JBL Professional Control 26CT-LS

Imagens Grandes

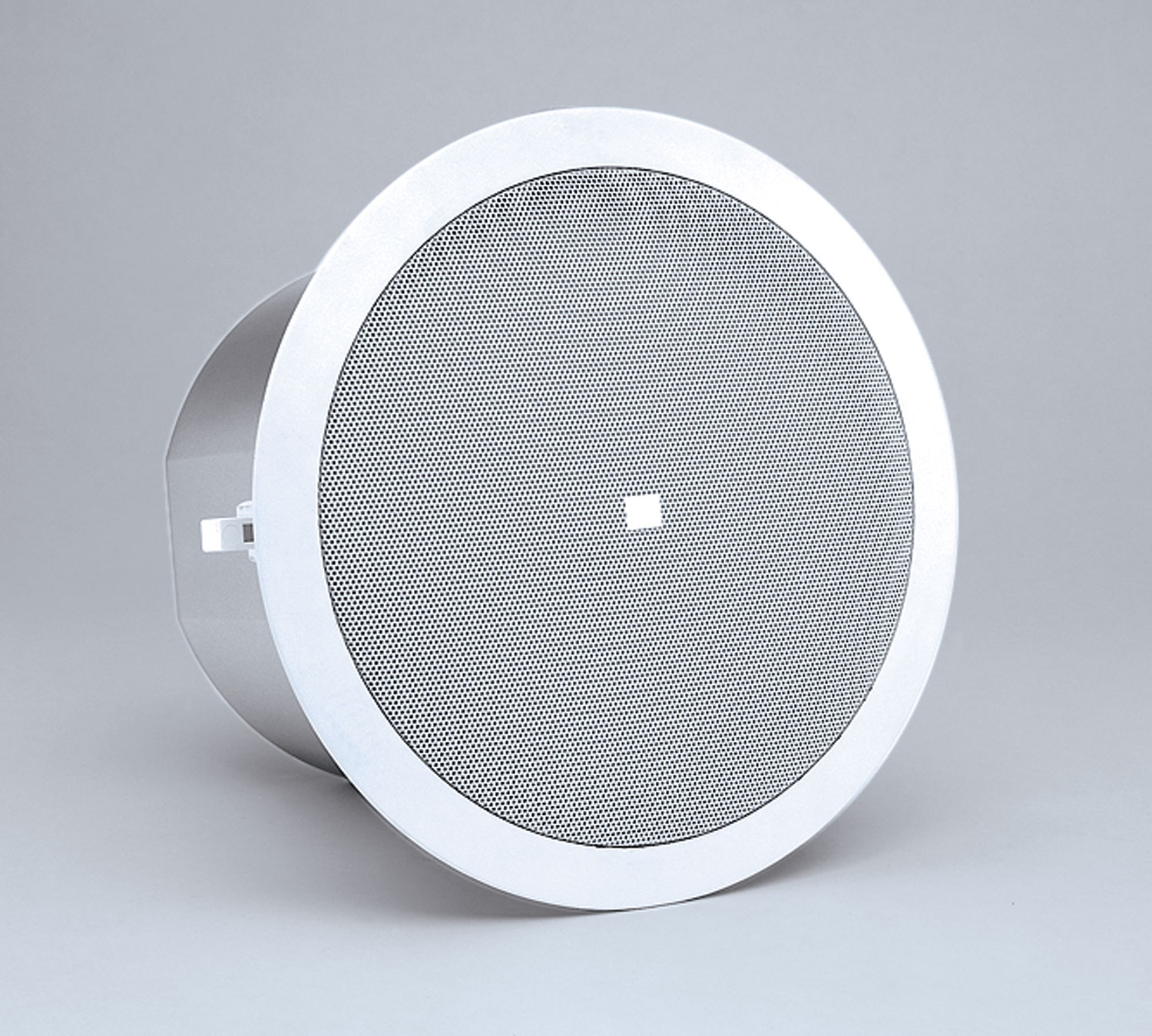

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
High power, wide frequency response and low distortion for high sound level capability
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Data Sheets

	Versão	Tamanho	Enviado
Control 26CT-LS Spec Sheet versão B, atualizado: mar 2020	B	566 KB	mar 2020

Manuals

	Versão	Tamanho	Enviado
MTC-TCD Thick-Ceiling Dogear atualizado: out 2019		41,7 KB	out 2019
Ceiling Speaker Accessory Guide versão A, atualizado: mai 2026	A	127 KB	mai 2026

Brochures

	Versão	Idioma	Tamanho	Enviado
Control Contractor Brochure (2025) versão A, atualizado: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2026) atualizado: mar 2026			21 MB	mar 2026

CAD Drawings

	Tamanho	Enviado
Control Contractor Ceiling Speakers 3D Drawing atualizado: out 2020	3,42 MB	out 2020

Compliances

	Tamanho	Enviado
JBL Control Series Passive Speakers DoC atualizado: dez 2019	179 KB	dez 2019

Simulation Data

	Versão	Tamanho	Enviado
JBL Pro ALL CLF Files versão 12-10-21, atualizado: mai 2023	12-10-21	24 MB	mai 2023
Ease SPK/DLL Files - Full JBL Pro Line atualizado: mai 2024		21 MB	mai 2024

Owner's Manuals

	Tamanho	Enviado
Control Contractor Ceiling Owner’s Manual atualizado: out 2020	386 KB	out 2020

Accessories

	Tamanho	Enviado
MTC-CS-Teth1 Press-In Grille Safety Tether atualizado: set 2021	204 KB	set 2021
MTC-14WG/16WG High Humidity Grille atualizado: out 2020	762 KB	out 2020

Speaker Tunings

	Versão	Tamanho	Enviado
Commercial, CBT, and AWC Tunings 220616 versão A, atualizado: mai 2023	A	557 KB	mai 2023

Install Guides

	Tamanho	Enviado
Guide to Business Music atualizado: out 2020	52,4 KB	out 2020
CC Ceiling Speakers: Myth versus Reality atualizado: out 2020	23,9 KB	out 2020

	Tamanho	Enviado
LS Surface-Mt Model atualizado: out 2020	75 KB	out 2020

	Tamanho	Enviado
Control 26C Photo atualizado: out 2020	312 KB	out 2020

	Tamanho	Enviado
C26CT-LS UL Life Safety Certificate atualizado: out 2020	189 KB	out 2020

Frequency Range	80 Hz - 20 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs
Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle	110° conical
Directivity Index (DI)	4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m)	107 dB (top 70V/100V tap)
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in)
CONEXÕES DE ENTRADA	Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia)	210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each)	4.2 kg (10 lb)
Shipping Weight (pair)	9.7 kg (21 lb)
Sensibilidade	89 dB (100 Hz - 10 kHz)
Cor	White
Safety Agency	UL1480 UUMW listed. Suitable for use in air handling spaces per UL1480, UEAY, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan	formed steel (included "blind-mount")
Baffle/Rim	Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size	220 mm (8.75 in) diamter (cardboard cutout template included)
Acessórios Inclusos	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector – Euroblock
Plenum Usage	Yes, backcan included
