JBL Professional 8320

Grandes images

Compact Cinema Surround Speaker for Digital Applications

The 8320 Cinema Surround Speaker offers high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8320’s reliability and performance features position it as the ideal low cost, compact surround for the extended dynamic range required by digital sound formats.

Caractéristiques

50 Hz to 20 kHz Frequency Range
High Sensitivity, 91 dB SPL, 1 W, 1 m (3.3 ft)
High Power Handling Capability: 150 watts continuous pink noise
Internal Thermomaster® technology allows for unprecedented high frequency power in a compact molded enclosure.
Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
Special cabinet shape incorporates 20° angled front baffle
SMPTE/ISO2969 Curve X high frequency de-emphasis
Lightweight, rigid molded enclosure
Input terminals located on top of cabinet for quick access
Uniform horizontal and vertical coverage
THX® Approved

Téléchargements

Data Sheets

	Taille	Téléchargé
2516 Quick-Mount Fixed-Angle Bracket for JBL 8320, 8340A and 8350 Loudspeakers mis à jour : oct. 2019	697 ko	oct. 2019

Specifications

	Taille	Téléchargé
8320 Spec Sheet mis à jour : oct. 2020	218 ko	oct. 2020

CAD Drawings

	Taille	Téléchargé
8320 Drawing mis à jour : oct. 2020	48 ko	oct. 2020

Compliances

	Taille	Téléchargé
Cinema Sound - Surround Systems Declaration of Conformity mis à jour : oct. 2019	86,1 ko	oct. 2019
Cinema Sound 9400 Series - EU Declaration of Conformity mis à jour : oct. 2019	277 ko	oct. 2019

Simulation Data

	Taille	Téléchargé
Ease SPK/DLL Files - Full JBL Pro Line mis à jour : mai 2024	21 Mo	mai 2024

Images

	Taille	Téléchargé

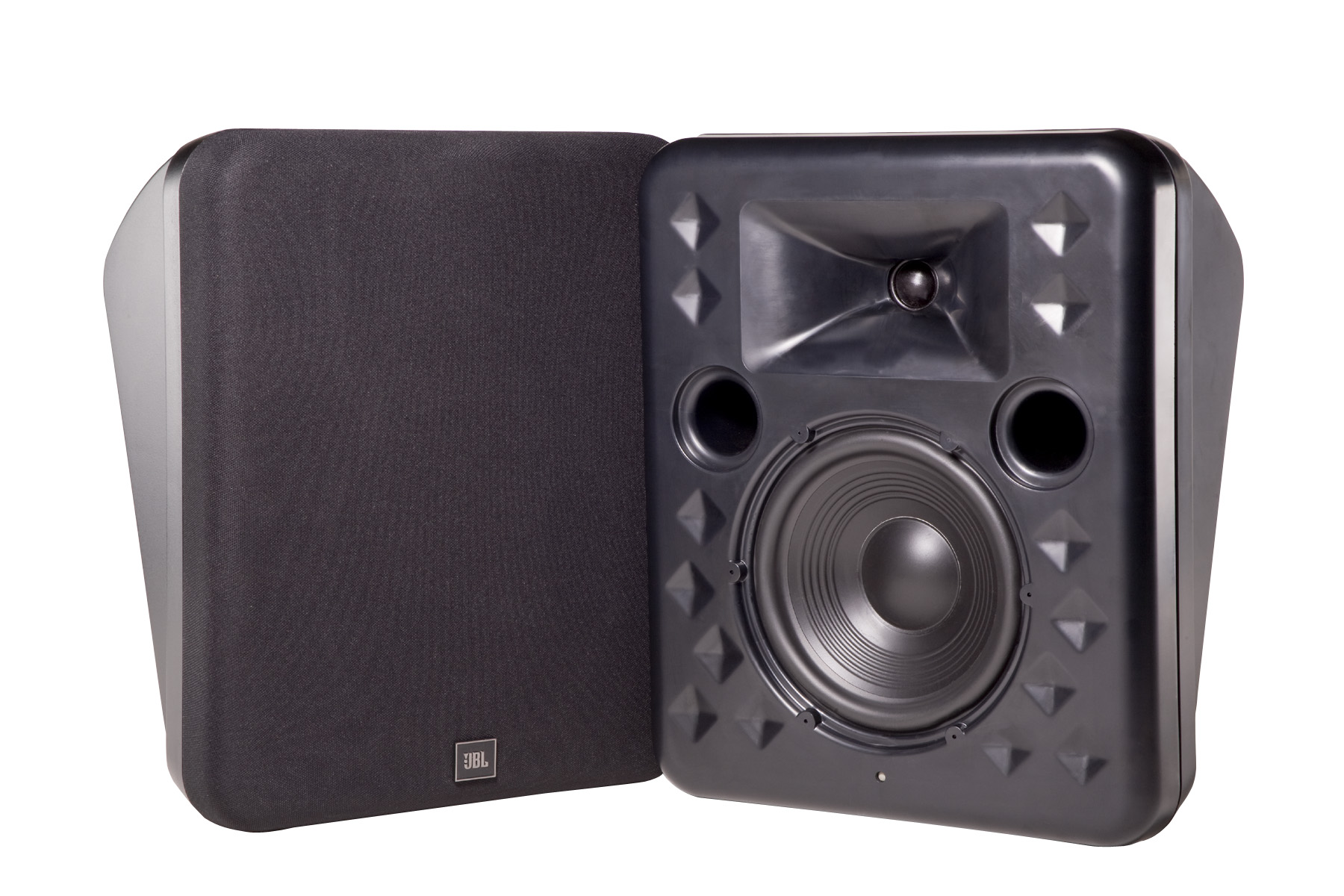

8320 Front mis à jour : oct. 2020	364 ko	oct. 2020

Information documents

	Taille	Téléchargé
JBL Digital Surround Series Cinema Loudspeakers mis à jour : oct. 2019	128 ko	oct. 2019

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (±3 dB)	65 Hz - 18 kHz
Frequency Range (-10dB)	50 Hz - 20 kHz
Power Rating	150 watts continuouspink noise600 watts peak
Sensitivity	94 dB-SPL half-space / wall-mounted91 dB-SPL free-field
Maximum SPL (1m)	116dB
Nominal Impedance	8Ω
Horizontal Coverage Angle (-6dB)	100° averaged 400 Hz to 12 kHz
Vertical Coverage Angle (-6dB)	90° averaged 400 Hz to 12 kHz
Directivity Factor (Q)	7 averaged 400 Hz to 12 kHz
Directivity Index (DI)	8.4 dB averaged 400 Hz to 12 kHz
Crossover Frequency	3 kHz
High Frequency Contour	ISO2969 Curve X surround contour
Polarity	EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal Diameter	200 mm (8 in)38 mm (1.5 in) voice coil
High Freq Transducer Nominal Diameter	25 mm (1 in)25 mm (1 in) voice coil
Downward Firing Angle	Nominal 20° when mounted flush on back panel
Enclosure Material	Textured Black H.I.P.S. Plastic
Grille Color	Black
Input Connectors	5-way binding posts
Dimensions (H x W x D)	406 mm x 343 mm x 224 mm16 in x 13.5 in x 8.8 in
Net Weight (each)	11 lbs (5.0 kg)
Power Handling (2Hr AES Rating)	150 W
