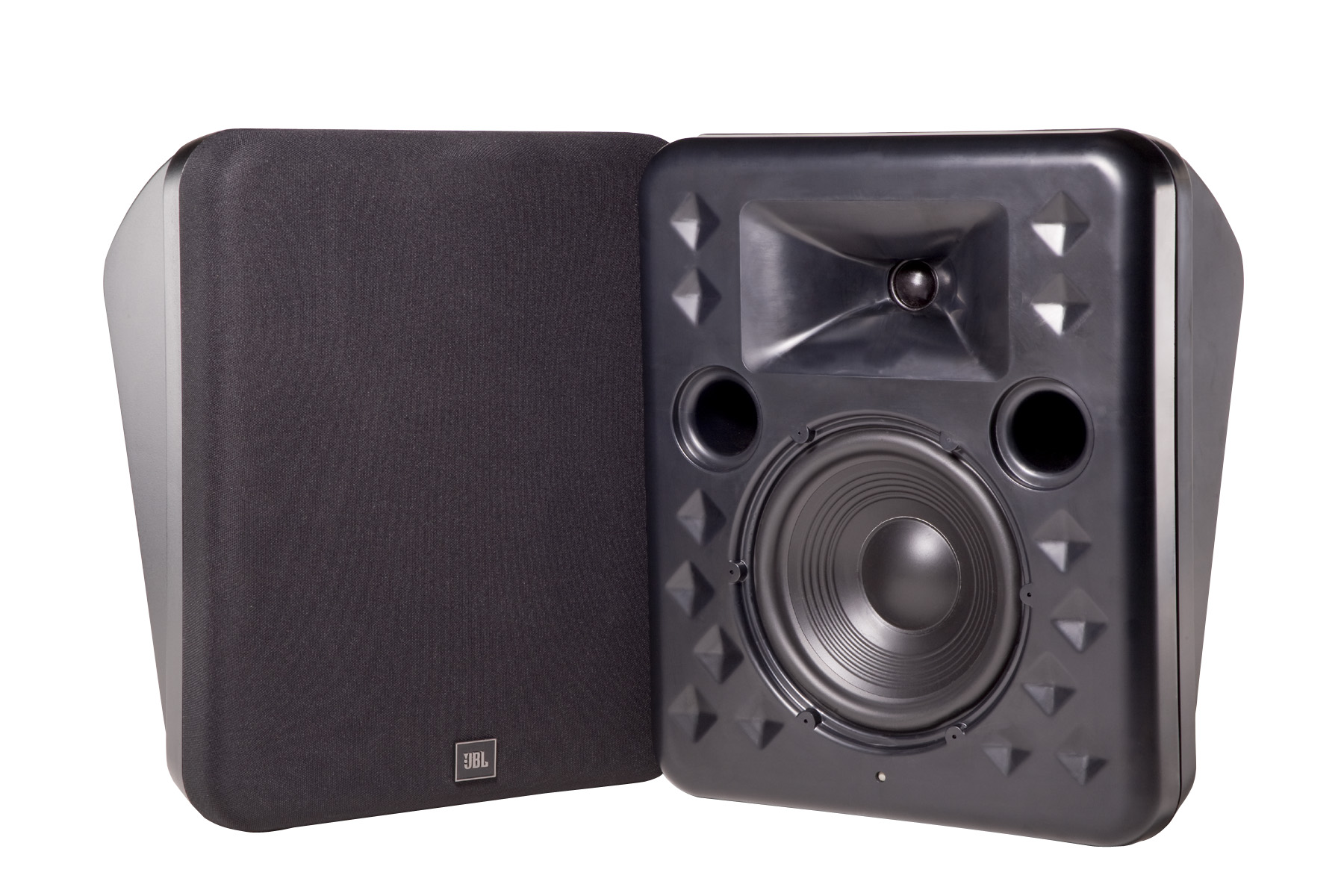

JBL Professional 8320

រូបភាពធំជាង

Compact Cinema Surround Speaker for Digital Applications

The 8320 Cinema Surround Speaker offers high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8320’s reliability and performance features position it as the ideal low cost, compact surround for the extended dynamic range required by digital sound formats.

លក្ខណៈពិសេស

50 Hz to 20 kHz Frequency Range
High Sensitivity, 91 dB SPL, 1 W, 1 m (3.3 ft)
High Power Handling Capability: 150 watts continuous pink noise
Internal Thermomaster® technology allows for unprecedented high frequency power in a compact molded enclosure.
Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
Special cabinet shape incorporates 20° angled front baffle
SMPTE/ISO2969 Curve X high frequency de-emphasis
Lightweight, rigid molded enclosure
Input terminals located on top of cabinet for quick access
Uniform horizontal and vertical coverage
THX® Approved

ការទាញយក

Data Sheets

	ទំហំ	បានផ្ទុកឡើង
2516 Quick-Mount Fixed-Angle Bracket for JBL 8320, 8340A and 8350 Loudspeakers បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	697 KB	តុលា 2019

Specifications

	ទំហំ	បានផ្ទុកឡើង
8320 Spec Sheet បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	218 KB	តុលា 2020

CAD Drawings

	ទំហំ	បានផ្ទុកឡើង
8320 Drawing បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	48 KB	តុលា 2020

Compliances

	ទំហំ	បានផ្ទុកឡើង
Cinema Sound - Surround Systems Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	86.1 KB	តុលា 2019
Cinema Sound 9400 Series - EU Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	277 KB	តុលា 2019

Simulation Data

	ទំហំ	បានផ្ទុកឡើង
Ease SPK/DLL Files - Full JBL Pro Line បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2024	21 MB	ឧសភា 2024

Images

	ទំហំ	បានផ្ទុកឡើង
8320 Front បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	364 KB	តុលា 2020

Information documents

	ទំហំ	បានផ្ទុកឡើង
JBL Digital Surround Series Cinema Loudspeakers បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	128 KB	តុលា 2019

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (±3 dB)	65 Hz - 18 kHz
Frequency Range (-10dB)	50 Hz - 20 kHz
Power Rating	150 watts continuouspink noise600 watts peak
Sensitivity	94 dB-SPL half-space / wall-mounted91 dB-SPL free-field
Maximum SPL (1m)	116dB
Nominal Impedance	8Ω
Horizontal Coverage Angle (-6dB)	100° averaged 400 Hz to 12 kHz
Vertical Coverage Angle (-6dB)	90° averaged 400 Hz to 12 kHz
Directivity Factor (Q)	7 averaged 400 Hz to 12 kHz
Directivity Index (DI)	8.4 dB averaged 400 Hz to 12 kHz
Crossover Frequency	3 kHz
High Frequency Contour	ISO2969 Curve X surround contour
Polarity	EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal Diameter	200 mm (8 in)38 mm (1.5 in) voice coil
High Freq Transducer Nominal Diameter	25 mm (1 in)25 mm (1 in) voice coil
Downward Firing Angle	Nominal 20° when mounted flush on back panel
Enclosure Material	Textured Black H.I.P.S. Plastic
Grille Color	Black
Input Connectors	5-way binding posts
Dimensions (H x W x D)	406 mm x 343 mm x 224 mm16 in x 13.5 in x 8.8 in
Net Weight (each)	11 lbs (5.0 kg)
Power Handling (2Hr AES Rating)	150 W
