8320

Compact Cinema SurroundSpeaker for Digital Applications

较大的图像

Compact Cinema Surround Speaker for Digital Applications

The 8320 Cinema Surround Speaker offers high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8320’s reliability and performance features position it as the ideal low cost, compact surround for the extended dynamic range required by digital sound formats.

特点

  • 50 Hz to 20 kHz Frequency Range
  • High Sensitivity, 91 dB SPL, 1 W, 1 m (3.3 ft)
  • High Power Handling Capability: 150 watts continuous pink noise
  • Internal Thermomaster® technology allows for unprecedented high frequency power in a compact molded enclosure.
  • Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
  • Special cabinet shape incorporates 20° angled front baffle
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight, rigid molded enclosure
  • Input terminals located on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX® Approved

下载

  Version Language Size Uploaded
Data Sheets
    696.7 KB 10月15日
Specifications
8320 Spec Sheet
updated: 10月22日
    218.1 KB 10月22日
CAD Drawings
8320 Drawing
updated: 10月22日
    48.0 KB 10月22日
Compliances
    86.1 KB 10月18日
    277.1 KB 10月31日
Images

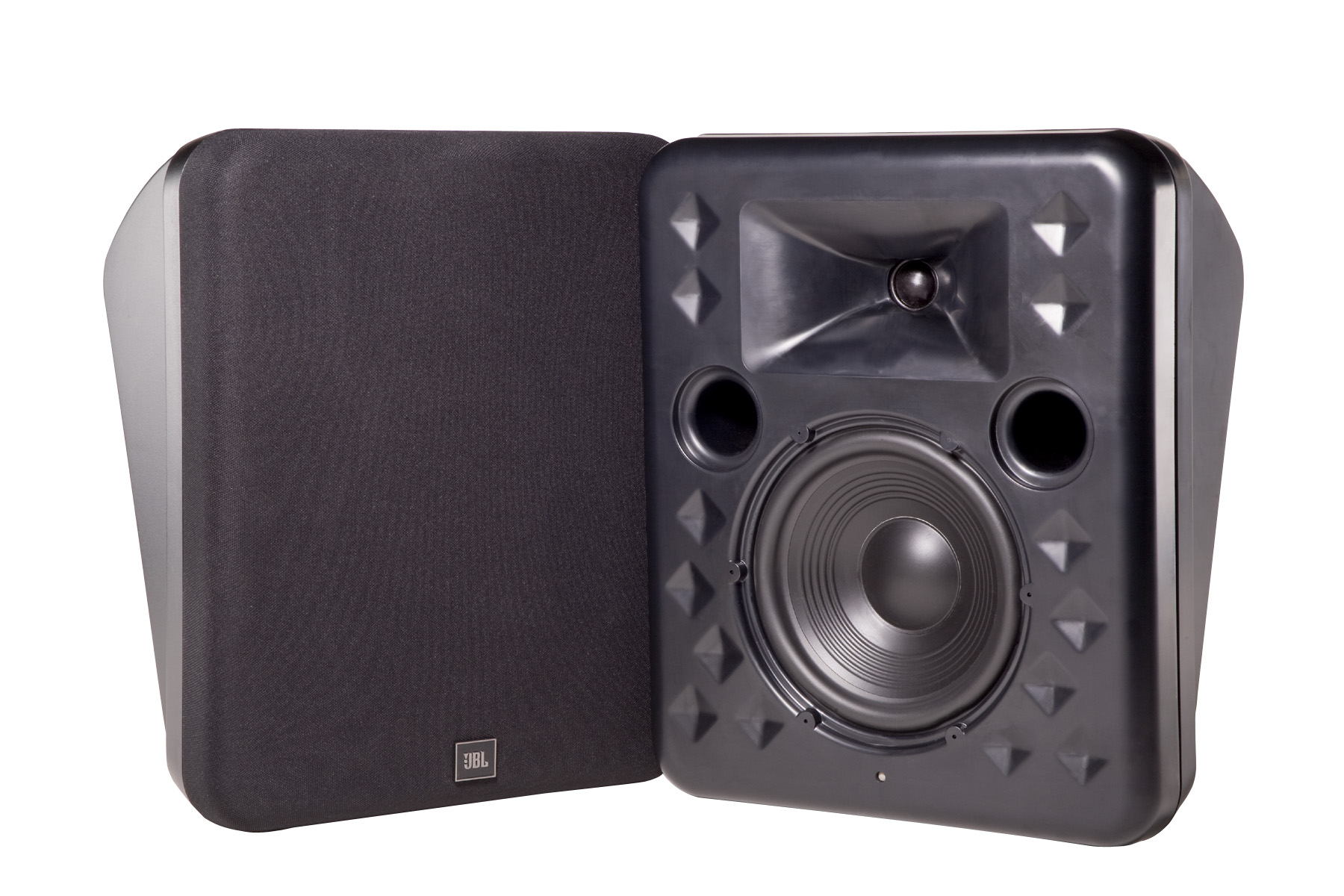

8320 Front
updated: 10月22日
    364.1 KB 10月22日
Information Documents
    128.0 KB 10月23日
Ease Data
    20.5 MB 7月08日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Range (±3 dB) 65 Hz - 18 kHz
Frequency Response (-10dB) 50 Hz - 20 kHz
额定功率 150 watts continuouspink noise600 watts peak

灵敏度

94 dB-SPL half-space / wall-mounted91 dB-SPL free-field
Maximum SPL (1m) 116dB
标称阻抗 8Ω
Horizontal Coverage Angle (-6dB) 100° averaged 400 Hz to 12 kHz
Vertical Coverage Angle (-6dB) 90° averaged 400 Hz to 12 kHz
Directivity Factor (Q) 7 averaged 400 Hz to 12 kHz
Directivity Index (DI) 8.4 dB averaged 400 Hz to 12 kHz
分频频率 3 kHz
高频率轮廓 ISO2969 Curve X surround contour
极性 EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal Diameter 200 mm (8 in)38 mm (1.5 in) voice coil
High Freq Transducer Nominal Diameter 25 mm (1 in)25 mm (1 in) voice coil
Downward Firing Angle Nominal 20° when mounted flush on back panel
音箱材料 Textured Black H.I.P.S. Plastic
Grille Color Black
输入连接器 5-way binding posts
尺寸(高 x 宽 x 厚) 406 mm x 343 mm x 224 mm16 in x 13.5 in x 8.8 in
Net Weight (each) 11 lbs (5.0 kg)
Power Handling (2Hr AES Rating) 150 W

Accessories

2516 Bracket | 2516 Quick-Mount® Fixed-Angle Bracket
2516 Bracket Main photo
较大的图像

2516 Quick-Mount® Fixed-Angle Bracket

Quick-Mount® Fixed-Angle Bracket

  • Cost-effective wall-mount bracket
  • Designed for 8320, 8340A, and 8350 surrounds
  • Packed two brackets to a carton
