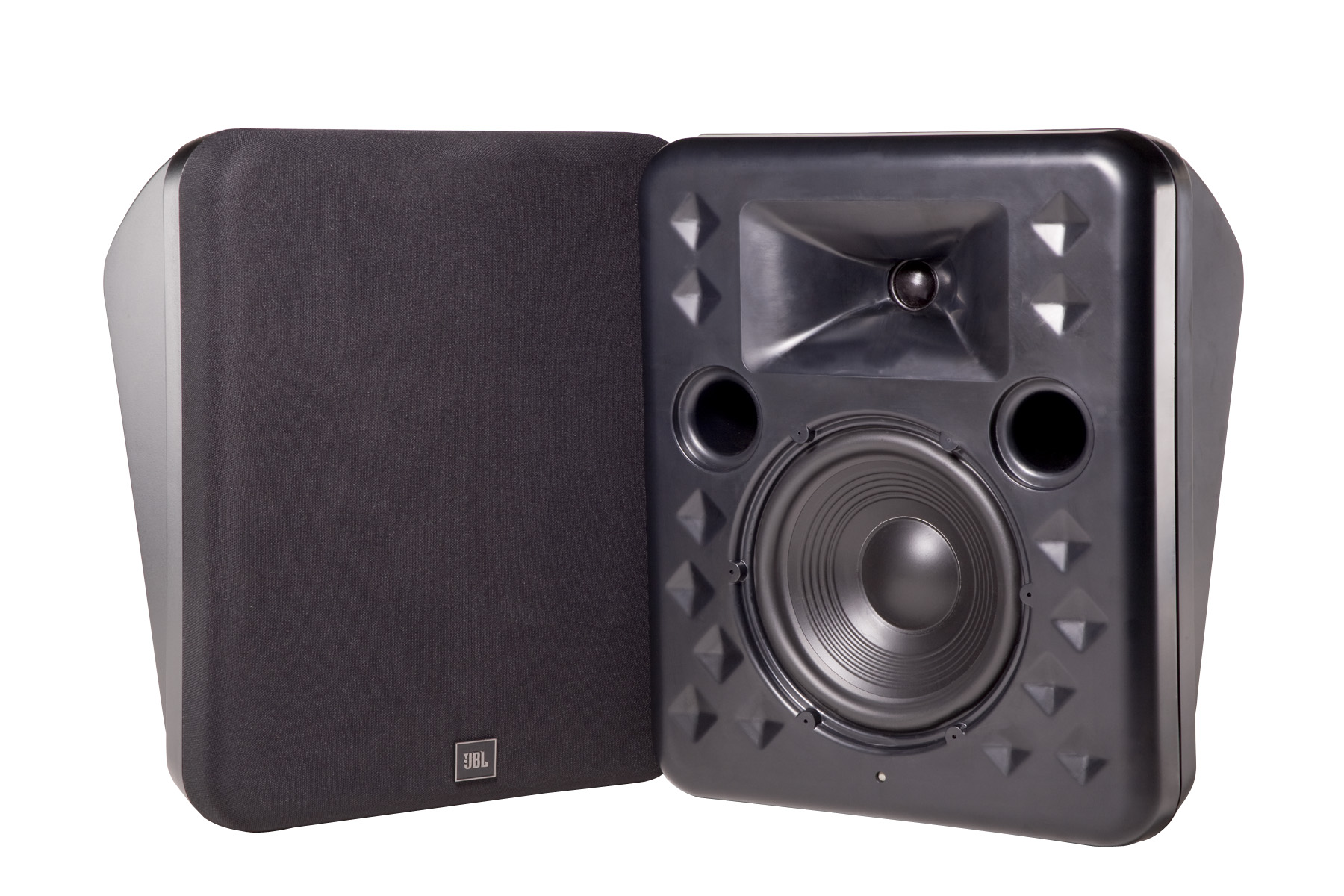

The 8320 Cinema Surround Speaker offers high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8320’s reliability and performance features position it as the ideal low cost, compact surround for the extended dynamic range required by digital sound formats.
| Ukuran | |
|
|
697 KB |
| Ukuran | |
|
|
218 KB |
| Ukuran | |
|
|
48 KB |
| Ukuran | |
|
|
86,1 KB |
|
|
277 KB |
| Ukuran | |
|
|
21 MB |
| Ukuran | |
|
|
364 KB |
| Ukuran | |
|
|
128 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
| Frequency Range (±3 dB) | 65 Hz - 18 kHz |
| Frequency Range (-10dB) | 50 Hz - 20 kHz |
| Power Rating | 150 watts continuouspink noise600 watts peak |
| Sensitivity | 94 dB-SPL half-space / wall-mounted91 dB-SPL free-field |
| Maximum SPL (1m) | 116dB |
| Nominal Impedance | 8Ω |
| Horizontal Coverage Angle (-6dB) | 100° averaged 400 Hz to 12 kHz |
| Vertical Coverage Angle (-6dB) | 90° averaged 400 Hz to 12 kHz |
| Directivity Factor (Q) | 7 averaged 400 Hz to 12 kHz |
| Directivity Index (DI) | 8.4 dB averaged 400 Hz to 12 kHz |
| Crossover Frequency | 3 kHz |
| High Frequency Contour | ISO2969 Curve X surround contour |
| Polarity | EIA (Positive voltage to RED terminal gives forward cone motion) |
| Low Freq Transducer Nominal Diameter | 200 mm (8 in)38 mm (1.5 in) voice coil |
| High Freq Transducer Nominal Diameter | 25 mm (1 in)25 mm (1 in) voice coil |
| Downward Firing Angle | Nominal 20° when mounted flush on back panel |
| Enclosure Material | Textured Black H.I.P.S. Plastic |
| Grille Color | Black |
| Input Connectors | 5-way binding posts |
| Dimensions (H x W x D) | 406 mm x 343 mm x 224 mm16 in x 13.5 in x 8.8 in |
| Net Weight (each) | 11 lbs (5.0 kg) |
| Power Handling (2Hr AES Rating) | 150 W |
Quick-Mount® Fixed-Angle Bracket
2517 Speaker Mount Pan and Tilt Rotations
2517 Speaker Mount
[143 KB]
2517 Cinema Surround Bracket CAD drawing
[1,39 MB]
