JBL Professional VPSB7118DP

Imágenes más grandes

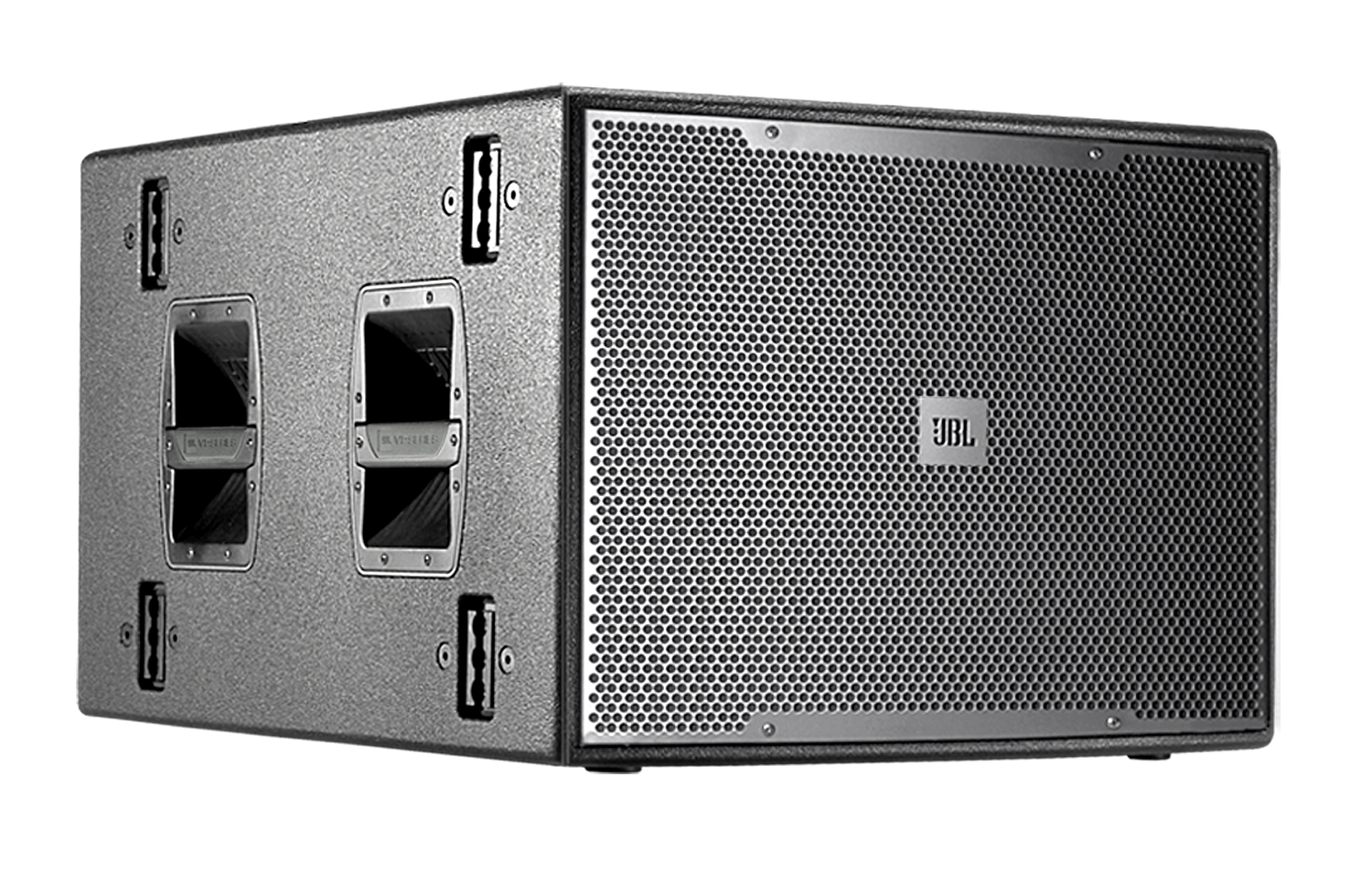

Powered 18 in. Integrated Loudspeaker System

The VPSB7118DP is a powered 18" integrated sub-woofer loudspeaker system featuring 3600 watts of peak output power, 1800 watts continuous, and onboard digital signal processing.

Características

Powered 18" Sub-woofer Loudspeaker System with JBL DrivePack® technology for portable or installed use.
3600 Watts peak power, 1800 Watts continuous.
HiQnet™ compatible; network control.
18-inch Differential Drive® low-frequency driver for extended low-frequency output.
Stylized and ergonomically designed powder-coated die-cast aluminum handles.
Eight 3-inch fly track suspension points and twenty-four M10 fittings (optional detachable flying fittings and forged eye bolt kits available).

Descargas

Documentos

	Idioma	Tamaño	Subido
VP Series Brochure actualizado: abr 2026		2,73 MB	abr 2026
DPDA Input Module Spec Sheet actualizado: abr 2026		475 KB	abr 2026
VPSB7118DP Spec Sheet actualizado: abr 2026		922 KB	abr 2026

Specifications

	Tamaño	Subido
VP DPDA Spec Sheet actualizado: jul 2019	5,85 MB	jul 2019
DPDA Input Module Spec Sheet actualizado: jul 2019	475 KB	jul 2019
VPSB7118DP Spec Sheet actualizado: jul 2019	563 KB	jul 2019

Manuals

	Tamaño	Subido
VP User's Guide actualizado: oct 2019	1,54 MB	oct 2019

Brochures

	Tamaño	Subido
VP Series Brochure actualizado: jul 2019	2,73 MB	jul 2019

CAD Drawings

	Tamaño	Subido
VP Series actualizado: oct 2019	2,54 MB	oct 2019
VPSB7118DP 3D DXF actualizado: jul 2019	300 KB	jul 2019
VPSB7118DP 2D DXF actualizado: jul 2019	202 KB	jul 2019
VPSB7118DP 2D PDF actualizado: jul 2019	51,1 KB	jul 2019

Compliances

	Tamaño	Subido
VP Series Declaration of Conformity actualizado: oct 2019	93,3 KB	oct 2019

Simulation Data

	Tamaño	Subido
Ease SPK/DLL Files - Full JBL Pro Line actualizado: may 2024	21 MB	may 2024

Images

	Tamaño	Subido
VPSB7118DP photo actualizado: jul 2019	752 KB	jul 2019

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range	29 Hz to 165 Hz (-10 dB)
Respuesta de frecuencia	39 Hz to 145 Hz ( ± 3 dB)
Maximum Peak Output	129dB SPL 1m
Low Frequency Section	JBL 2268G, 457 mm (18 in) dia., 76 mm (3 in) Dual Coil, Differential Drive®, Direct Cooled
Bandpass Nominal Impedance	4 ohms
DP1 Internal Amplification Output (at nominal load)	3600 Watts Peak, 1800 Watts Continuous
DP1 Output Section	1-Channel, Class I
Audio Input Connector	XLR with loop-through
Signal Processings	DSP Based, resident in Input Module
System Management	DSP based limiters for mechanical and thermal protection
AC Power Operating Range	Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC Line Voltage	50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector	Neutrik PowerCon
AC Loop-thru	Neutrik PowerCon
AC Current Requirement	6A per system at 120V, 3A per system at 240V
Box Construction	5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System	8 standard air-cargo 3 in. track and 24 M10 fittings
Grille	14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D)	514.4 x 701.8 x 812.8 mm(20.25 x 27.63 x 32 in.)
PESO NETO	54 kg (129 lb)
