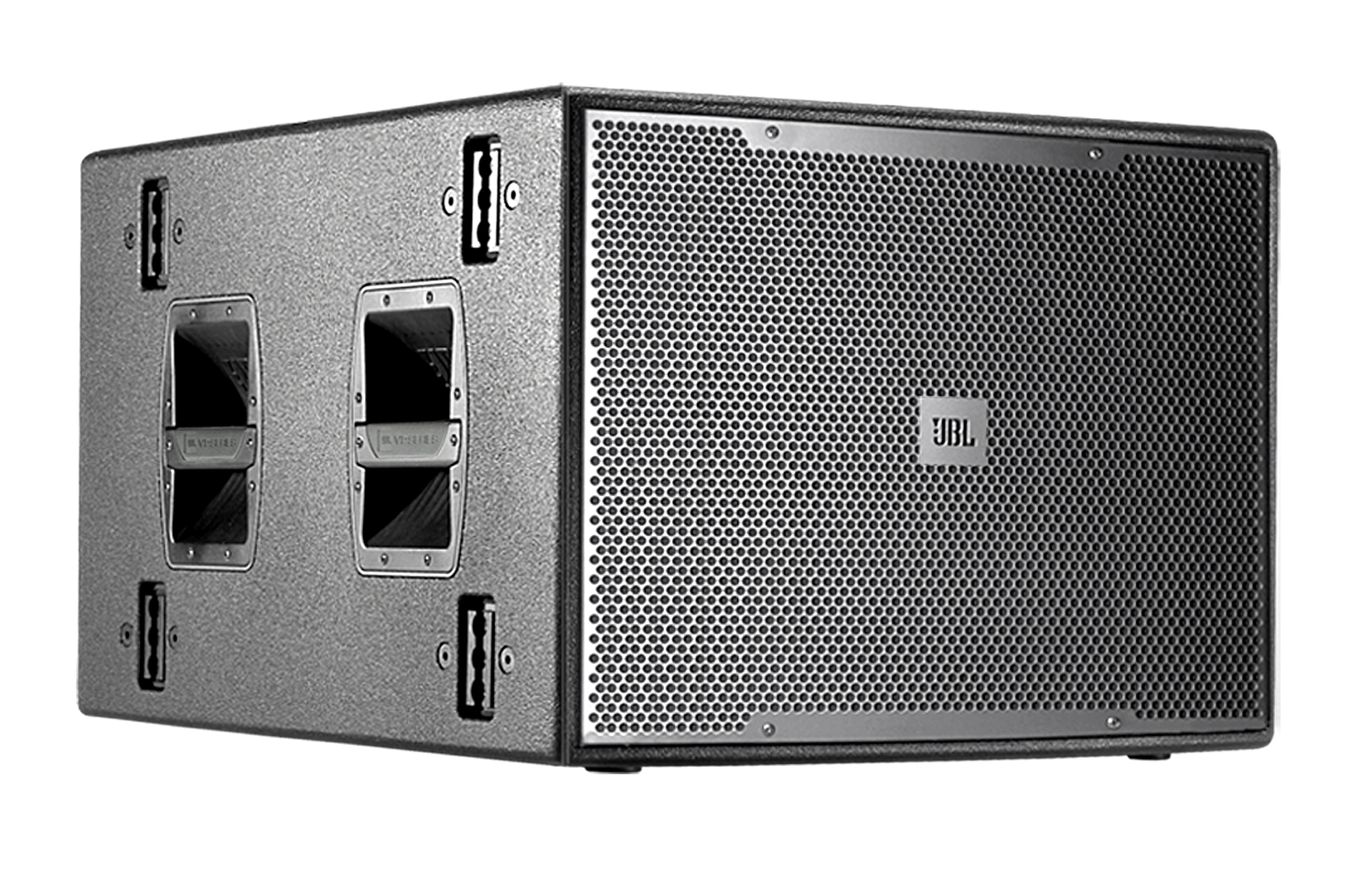

Powered 18 in. Integrated Loudspeaker System
The VPSB7118DP is a powered 18" integrated sub-woofer loudspeaker system featuring 3600 watts of peak output power, 1800 watts continuous, and onboard digital signal processing.
Grandes images
Caractéristiques
- Powered 18" Sub-woofer Loudspeaker System with JBL DrivePack® technology for portable or installed use.
- 3600 Watts peak power, 1800 Watts continuous.
- HiQnet™ compatible; network control.
- 18-inch Differential Drive® low-frequency driver for extended low-frequency output.
- Stylized and ergonomically designed powder-coated die-cast aluminum handles.
- Eight 3-inch fly track suspension points and twenty-four M10 fittings (optional detachable flying fittings and forged eye bolt kits available).
Téléchargements
Documents
| Taille | |
VP Series Brochure
mis à jour : avr. 2026
|
2,73 Mo |
|
DPDA Input Module Spec Sheet
mis à jour : avr. 2026
|
475 ko |
|
VPSB7118DP Spec Sheet
mis à jour : avr. 2026
|
922 ko |
Specifications
| Taille | |
|
|
5,85 Mo |
|
|
475 ko |
|
|
563 ko |
Manuals
| Taille | |
|
|
1,54 Mo |
Brochures
| Taille | |
|
|
2,73 Mo |
CAD Drawings
| Taille | |
|
|
2,54 Mo |
|
|
300 ko |
|
|
202 ko |
|
|
51,1 ko |
Compliances
| Taille | |
|
|
93,3 ko |
Simulation Data
| Taille | |
|
|
21 Mo |
Images
| Taille | |
|
|
752 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Range | 29 Hz to 165 Hz (-10 dB) |
| Frequency Response | 39 Hz to 145 Hz ( ± 3 dB) |
| Maximum Peak Output | 129dB SPL 1m |
| Low Frequency Section | JBL 2268G, 457 mm (18 in) dia., 76 mm (3 in) Dual Coil, Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 4 ohms |
| DP1 Internal Amplification Output (at nominal load) | 3600 Watts Peak, 1800 Watts Continuous |
| DP1 Output Section | 1-Channel, Class I |
| Audio Input Connector | XLR with loop-through |
| Signal Processings | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | Auto Select 90-132VAC/216-264VAC, 50/60 Hz |
| AC Line Voltage | 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 8 standard air-cargo 3 in. track and 24 M10 fittings |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 514.4 x 701.8 x 812.8 mm(20.25 x 27.63 x 32 in.) |
| Net Weight | 54 kg (129 lb) |
