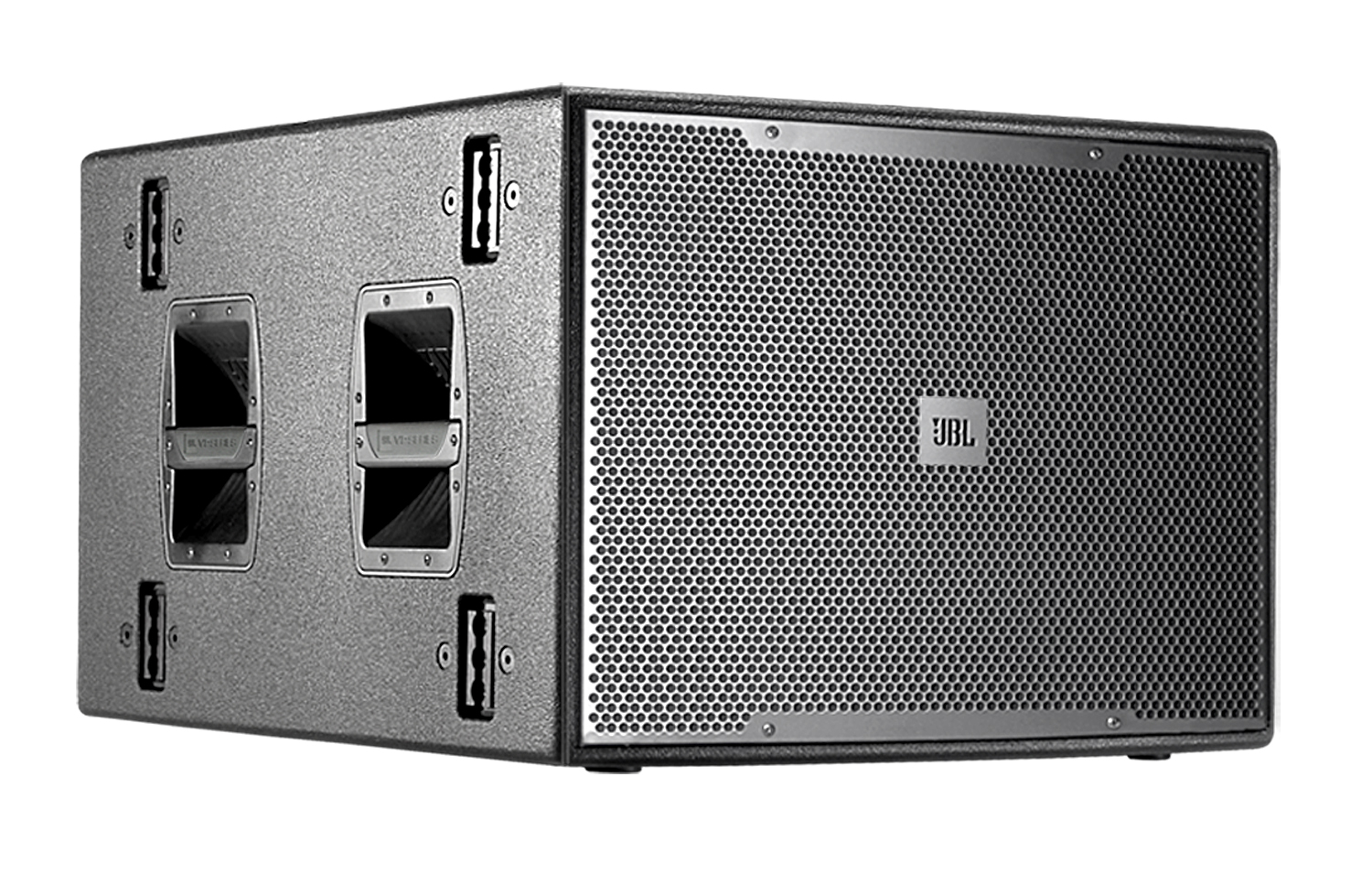

JBL Professional VPSB7118DP

Gambar Lebih Besar

Sistem Loudspeaker Terintegrasi Powered 18 in.

VPSB7118DP adalah sistem loudspeaker sub-woofer terintegrasi powered berukuran 18" yang dilengkapi dengan daya puncak 3600 watt, daya kontinu 1800 watt, dan pemrosesan sinyal digital onboard.

Fitur

Sistem Loudspeaker Sub-woofer 18" Bertenaga dengan teknologi JBL DrivePack® untuk penggunaan portabel atau terpasang.
Daya puncak 3600 Watt, 1800 Watt berkelanjutan.
Kompatibel HiQnet™; kontrol jaringan.
Driver frekuensi rendah Differential Drive® 18 inci untuk output frekuensi rendah yang diperluas.
Pegangan berdesain ergonomis dan bergaya yang dilapisi bubuk aluminium cor.
Delapan titik suspensi jalur terbang 3 inci dan dua puluh empat fitting M10 (fitting terbang lepasan opsional dan kit baut mata tempa tersedia).

Unduhan

Dokumen

	Bahasa	Ukuran	Diunggah
VP Series Brochure diperbarui: Apr 2026		2,73 MB	Apr 2026
DPDA Input Module Spec Sheet diperbarui: Apr 2026		475 KB	Apr 2026
VPSB7118DP Spec Sheet diperbarui: Apr 2026		922 KB	Apr 2026

Specifications

	Ukuran	Diunggah
VP DPDA Spec Sheet diperbarui: Jul 2019	5,85 MB	Jul 2019
DPDA Input Module Spec Sheet diperbarui: Jul 2019	475 KB	Jul 2019
VPSB7118DP Spec Sheet diperbarui: Jul 2019	563 KB	Jul 2019

Manuals

	Ukuran	Diunggah
VP User's Guide diperbarui: Okt 2019	1,54 MB	Okt 2019

Brochures

	Ukuran	Diunggah
VP Series Brochure diperbarui: Jul 2019	2,73 MB	Jul 2019

CAD Drawings

	Ukuran	Diunggah
VP Series diperbarui: Okt 2019	2,54 MB	Okt 2019
VPSB7118DP 3D DXF diperbarui: Jul 2019	300 KB	Jul 2019
VPSB7118DP 2D DXF diperbarui: Jul 2019	202 KB	Jul 2019
VPSB7118DP 2D PDF diperbarui: Jul 2019	51,1 KB	Jul 2019

Compliances

	Ukuran	Diunggah
VP Series Declaration of Conformity diperbarui: Okt 2019	93,3 KB	Okt 2019

Simulation Data

	Ukuran	Diunggah
Ease SPK/DLL Files - Full JBL Pro Line diperbarui: Mei 2024	21 MB	Mei 2024

Images

	Ukuran	Diunggah
VPSB7118DP photo diperbarui: Jul 2019	752 KB	Jul 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range	29 Hz to 165 Hz (-10 dB)
Frequency Response	39 Hz to 145 Hz ( ± 3 dB)
Maximum Peak Output	129dB SPL 1m
Low Frequency Section	JBL 2268G, 457 mm (18 in) dia., 76 mm (3 in) Dual Coil, Differential Drive®, Direct Cooled
Bandpass Nominal Impedance	4 ohms
DP1 Internal Amplification Output (at nominal load)	3600 Watts Peak, 1800 Watts Continuous
DP1 Output Section	1-Channel, Class I
Audio Input Connector	XLR with loop-through
Signal Processings	DSP Based, resident in Input Module
System Management	DSP based limiters for mechanical and thermal protection
AC Power Operating Range	Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC Line Voltage	50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector	Neutrik PowerCon
AC Loop-thru	Neutrik PowerCon
AC Current Requirement	6A per system at 120V, 3A per system at 240V
Box Construction	5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System	8 standard air-cargo 3 in. track and 24 M10 fittings
Grille	14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D)	514.4 x 701.8 x 812.8 mm(20.25 x 27.63 x 32 in.)
Net Weight	54 kg (129 lb)
