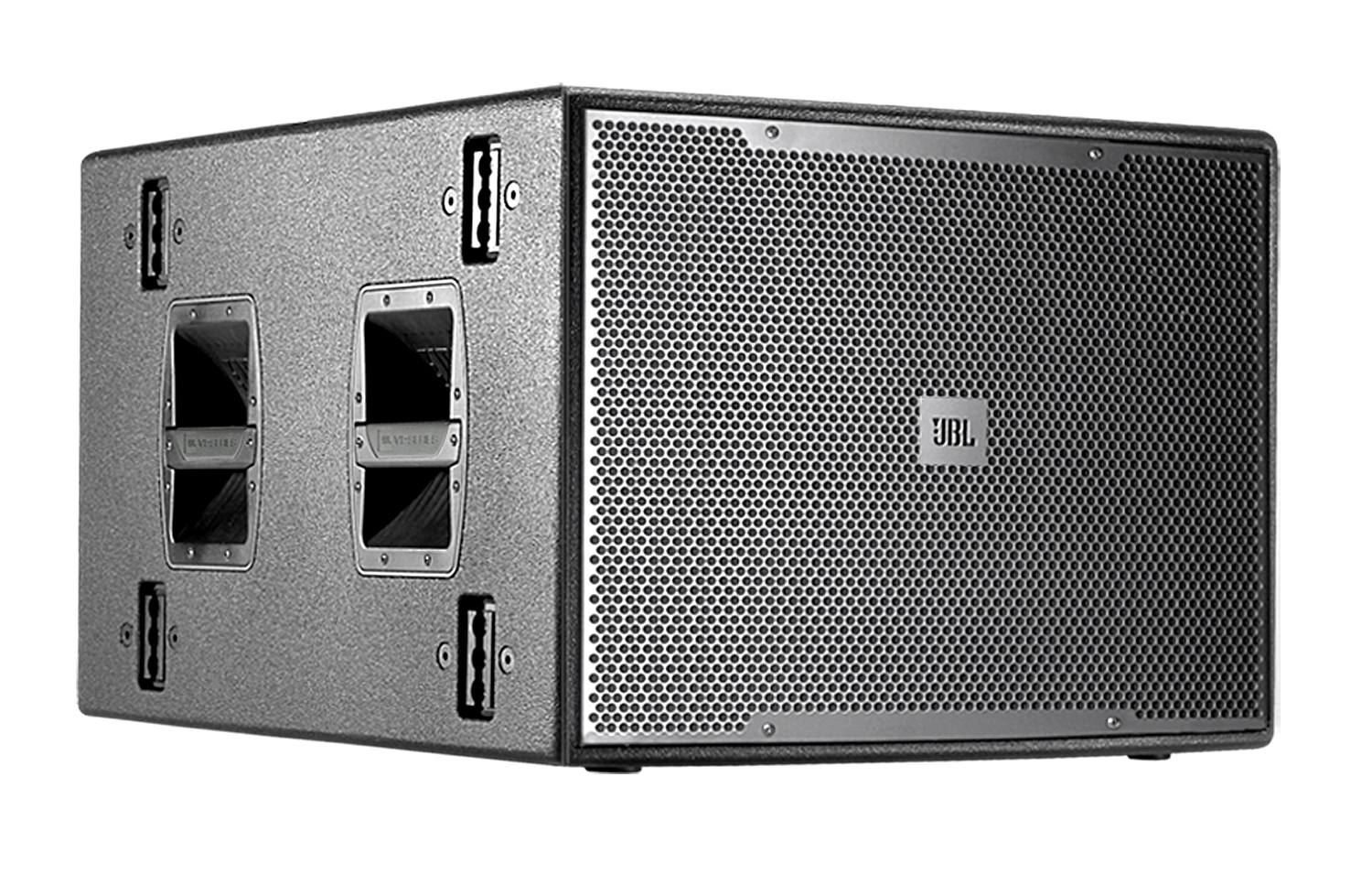

Powered 18 in. Integrated Loudspeaker System
The VPSB7118DP is a powered 18" integrated sub-woofer loudspeaker system featuring 3600 watts of peak output power, 1800 watts continuous, and onboard digital signal processing.
Larger Images
Features
- Powered 18" Sub-woofer Loudspeaker System with JBL DrivePack® technology for portable or installed use.
- 3600 Watts peak power, 1800 Watts continuous.
- HiQnet™ compatible; network control.
- 18-inch Differential Drive® low-frequency driver for extended low-frequency output.
- Stylized and ergonomically designed powder-coated die-cast aluminum handles.
- Eight 3-inch fly track suspension points and twenty-four M10 fittings (optional detachable flying fittings and forged eye bolt kits available).
Downloads
| Size | ||||
VP Series Brochure
updated: ก.ย. 2023
|
2.73 เมกะไบต์ | |||
|
DPDA Input Module Spec Sheet
updated: ก.ย. 2023
|
475 กิโลไบต์ | |||
|
VPSB7118DP Spec Sheet
updated: ก.ย. 2023
|
922 กิโลไบต์ | |||
Specifications | ||||
VP DPDA Spec Sheet
updated: ก.ค. 2019
|
5.85 เมกะไบต์ | |||
|
DPDA Input Module Spec Sheet
updated: ก.ค. 2019
|
475 กิโลไบต์ | |||
|
VPSB7118DP Spec Sheet
updated: ก.ค. 2019
|
563 กิโลไบต์ | |||
Manuals | ||||
|
VP User's Guide
updated: ต.ค. 2019
|
1.54 เมกะไบต์ | |||
Brochures | ||||
|
VP Series Brochure
updated: ก.ค. 2019
|
2.73 เมกะไบต์ | |||
CAD Drawings | ||||
|
VP Series
updated: ต.ค. 2019
|
2.54 เมกะไบต์ | |||
|
VPSB7118DP 3D DXF
updated: ก.ค. 2019
|
300 กิโลไบต์ | |||
|
VPSB7118DP 2D DXF
updated: ก.ค. 2019
|
202 กิโลไบต์ | |||
|
VPSB7118DP 2D PDF
updated: ก.ค. 2019
|
51.1 กิโลไบต์ | |||
Compliances | ||||
|
VP Series Declaration of Conformity
updated: ต.ค. 2019
|
93.3 กิโลไบต์ | |||
Images | ||||
|
VPSB7118DP photo
updated: ก.ค. 2019
|
752 กิโลไบต์ | |||
Ease Data | ||||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: มี.ค. 2022
|
21 เมกะไบต์ | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Range | 29 Hz to 165 Hz (-10 dB) |
| Frequency Response | 39 Hz to 145 Hz ( ± 3 dB) |
| Maximum Peak Output | 129dB SPL 1m |
| Low Frequency Section | JBL 2268G, 457 mm (18 in) dia., 76 mm (3 in) Dual Coil, Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 4 ohms |
| DP1 Internal Amplification Output (at nominal load) | 3600 Watts Peak, 1800 Watts Continuous |
| DP1 Output Section | 1-Channel, Class I |
| Audio Input Connector | XLR with loop-through |
| Signal Processings | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | Auto Select 90-132VAC/216-264VAC, 50/60 Hz |
| AC Line Voltage | 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 8 standard air-cargo 3 in. track and 24 M10 fittings |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 514.4 x 701.8 x 812.8 mm(20.25 x 27.63 x 32 in.) |
| Net Weight | 54 kg (129 lb) |
