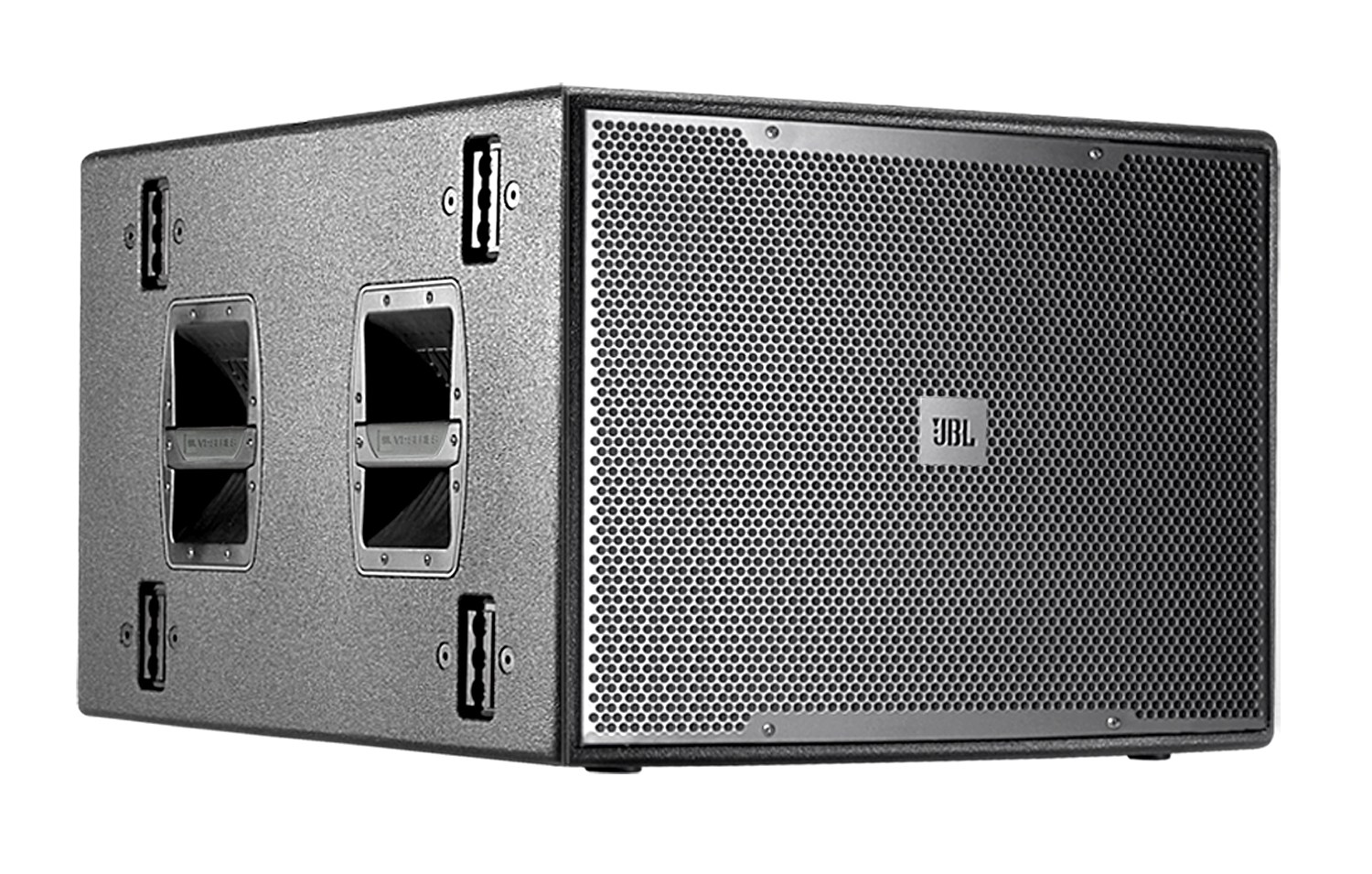

VPSB7118DP (停产)

Powered 18 in. Integrated Loudspeaker System

VPSB7118DP
较大的图像

Powered 18 in. Integrated Loudspeaker System

The VPSB7118DP is a powered 18" integrated sub-woofer loudspeaker system featuring 3600 watts of peak output power, 1800 watts continuous, and onboard digital signal processing.

特点

  • Powered 18" Sub-woofer Loudspeaker System with JBL DrivePack® technology for portable or installed use.
  • 3600 Watts peak power, 1800 Watts continuous.
  • HiQnet™ compatible; network control.
  • 18-inch Differential Drive® low-frequency driver for extended low-frequency output.
  • Stylized and ergonomically designed powder-coated die-cast aluminum handles.
  • Eight 3-inch fly track suspension points and twenty-four M10 fittings (optional detachable flying fittings and forged eye bolt kits available).

下载

  Version Language Size Uploaded
file type icon VP Series Brochure
en updated: 11月 2023
  en  2.7 MB 11月 2023
file type icon DPDA Input Module Spec Sheet
en updated: 11月 2023
  en  475.0 KB 11月 2023
file type icon VPSB7118DP Spec Sheet
en updated: 11月 2023
  en  921.5 KB 11月 2023
Specifications
file type icon VP DPDA Spec Sheet
updated: 7月 2019
    5.9 MB 7月 2019
file type icon DPDA Input Module Spec Sheet
updated: 7月 2019
    475.0 KB 7月 2019
file type icon VPSB7118DP Spec Sheet
updated: 7月 2019
    562.6 KB 7月 2019
Manuals
file type icon VP User's Guide
updated: 10月 2019
    1.5 MB 10月 2019
Brochures
file type icon VP Series Brochure
updated: 7月 2019
    2.7 MB 7月 2019
CAD Drawings
file type icon VP Series
updated: 10月 2019
    2.5 MB 10月 2019
file type icon VPSB7118DP 3D DXF
updated: 7月 2019
    300.3 KB 7月 2019
file type icon VPSB7118DP 2D DXF
updated: 7月 2019
    202.3 KB 7月 2019
file type icon VPSB7118DP 2D PDF
updated: 7月 2019
    51.1 KB 7月 2019
Compliances
file type icon VP Series Declaration of Conformity
updated: 10月 2019
    93.3 KB 10月 2019
Images
file type icon VPSB7118DP photo
updated: 7月 2019
    752.2 KB 7月 2019
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 29 Hz to 165 Hz (-10 dB)

频率响应

39 Hz to 145 Hz ( ± 3 dB)
Maximum Peak Output 129dB SPL 1m
Low Frequency Section JBL 2268G, 457 mm (18 in) dia., 76 mm (3 in) Dual Coil, Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 4 ohms
DP1 Internal Amplification Output (at nominal load) 3600 Watts Peak, 1800 Watts Continuous
DP1 Output Section 1-Channel, Class I
Audio Input Connector XLR with loop-through
Signal Processings DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC 线路电压 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon
AC Loop-thru Neutrik PowerCon
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 8 standard air-cargo 3 in. track and 24 M10 fittings
网罩 14 Gauge Black powder-coated perforated steel with foam backing
尺寸(高 x 宽 x 厚) 514.4 x 701.8 x 812.8 mm(20.25 x 27.63 x 32 in.)
净重量 54 kg (129 lb)
