Control 67 HC/T

Narrow 75° Coverage HighCeiling Pendant Speaker

Larger Images

Narrow 75° Coverage High Ceiling Pendant Speaker

Control 67HC’s well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues and hotel atrium areas.

Features

  • RBI Radiation Boundary Integrator Technology
  • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
  • 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
  • High 93 dB sensitivity
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

Downloads

  Version Language Size Uploaded
Specifications
Control 67HC/T Spec Sheet
updated: Apr 29, 2019
    997 KB Apr 29, 2019
Brochures
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
Commercial Sound Full Line 2015 Catalog
updated: Oct 21, 2019
    2.02 MB Oct 21, 2019
C60 Introductory Sheet
updated: Oct 18, 2019
    267 KB Oct 18, 2019
CAD Drawings
C60 DXF Drawings
updated: Apr 29, 2019
    705 KB Apr 29, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
Control 60 Series Declaration of Conformity
updated: Oct 18, 2019
    987 KB Oct 18, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
C60 Ease Files
updated: Apr 29, 2019
    262 KB Apr 29, 2019
Images

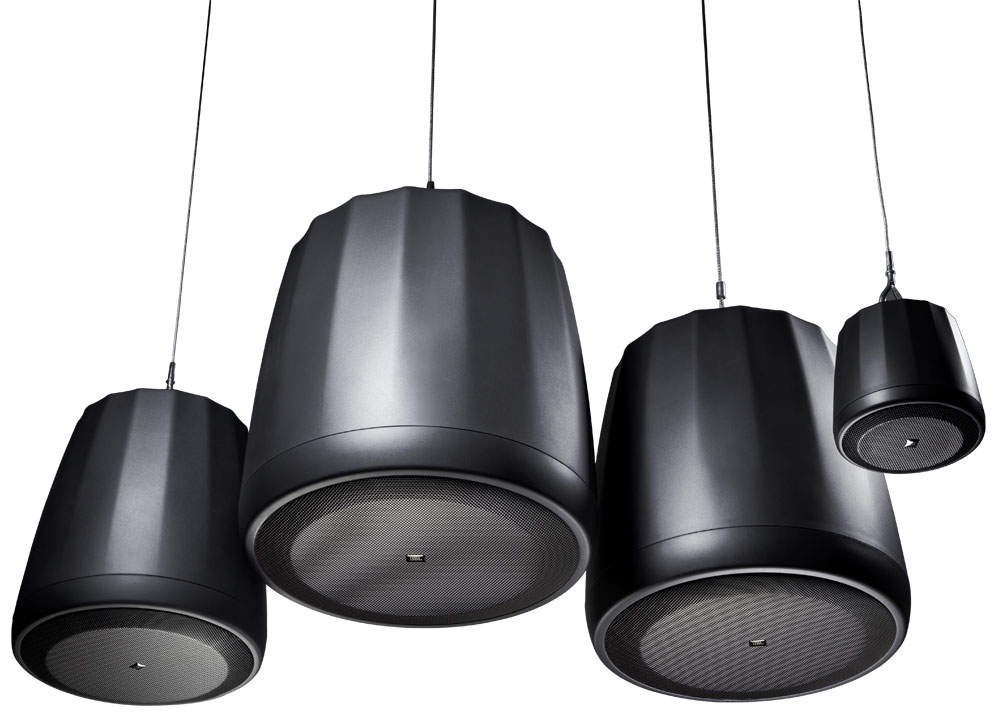

C60 Hi-Res Family Image
updated: Oct 18, 2019
    77.2 KB Oct 18, 2019

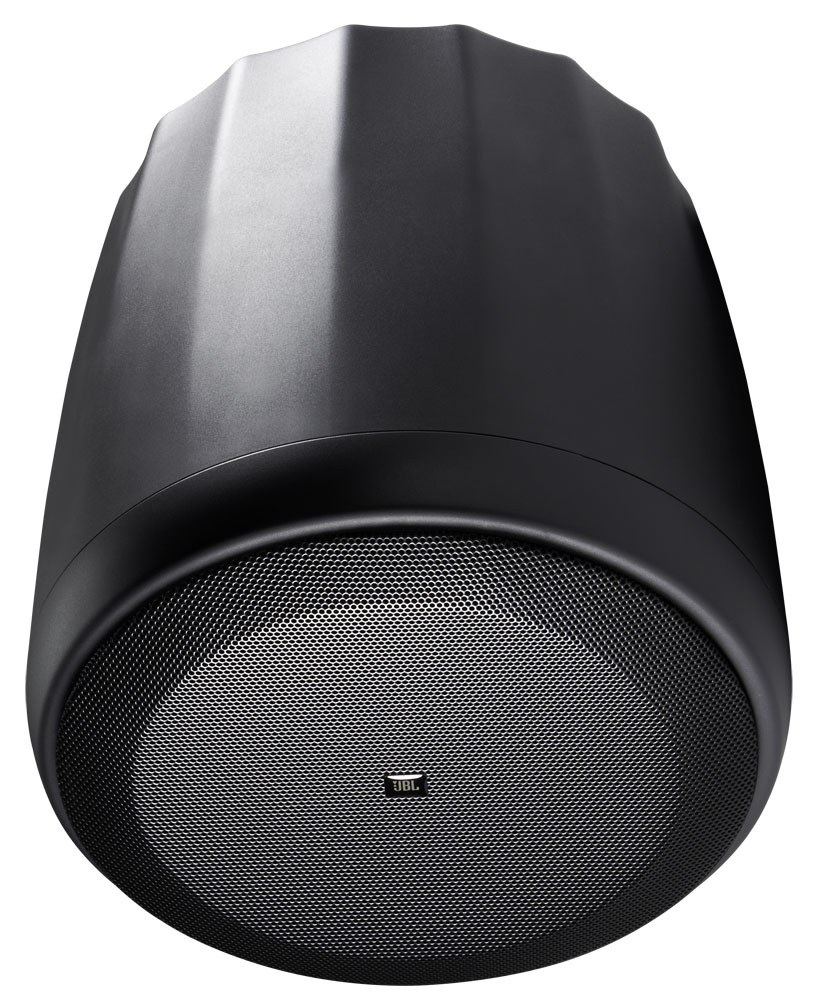

Control 67HCT Hi Res Images
updated: Apr 29, 2019
    170 KB Apr 29, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020
Accessories
C60 Panel Cover Instructions
updated: Apr 29, 2019
    710 KB Apr 29, 2019
Faqs
C60 Frequently Asked Questions
updated: Apr 29, 2019
    337 KB Apr 29, 2019
Install Guides
C60 Install Instructions
updated: Apr 29, 2019
    886 KB Apr 29, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response (-10 dB) 75 Hz – 17 kHz
Frequency Range (±3 dB) 110 Hz – 16 kHz
Power Capacity 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity 93 dB
Nominal Coverage Angle 75° (+15°/-20°)
Directivity (Q) 10.4
Directivity Index (DI) 9.8 dB
Rated Maximum SPL @ 1m 112 dB continuous pink noise, 118 dB peak
Rated Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
LF Driver 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF Driver 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure Material High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Termination Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
Net Weight (ea) 5.9 kg (13 lbs)
Shipping Weight (pair) 14.1 kg (31 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60HC top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
