Control 67 HC/T

Ενδιάμεσο Κρεμαστό Ηχείο Ψηλής Οροφής με Στενή Κάλυψη 75°

Control 67 HC/T
Μεγαλύτερες εικόνες

Ηχείο Κρεμαστό Οροφής Υψηλών Οροφών με Στενή Κάλυψη 75°

Η καλά ελεγχόμενη στενή κάλυψη του 67HC είναι ιδανική για βελτιωμένη ευκρίνεια ομιλίας και μουσικής καθαρότητας σε χώρους με υψηλές οροφές ή σε δωμάτια με δύσκολη ακουστική, όπως κέντρα συνθέσεων, κέντρα μεταφορών, χώρους εκθέσεων και περιοχές ατρίων ξενοδοχείων.

Χαρακτηριστικά

  • RBI Radiation Boundary Integrator Technology
  • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
  • 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
  • High 93 dB sensitivity
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

Λήψεις

Specifications
  Μέγεθος Ανέβηκε
file type icon Control 67HC/T Spec Sheet
ενημέρωση: Απρ 2019
1000 KB Απρ 2019
Brochures
  Έκδοση Γλώσσα Μέγεθος Ανέβηκε
file type icon Control Contractor Brochure (2026)
en ενημέρωση: Μαρ 2026
  en  20 MB Μαρ 2026
file type icon Control Contractor Brochure (2025)
en έκδοση A, ενημέρωση: Μαρ 2026
en  20 MB Μαρ 2026
file type icon Control Contractor Brochure (2024)
en έκδοση D, ενημέρωση: Φεβ 2024
en  10 MB Φεβ 2024
file type icon C60 Introductory Sheet
ενημέρωση: Οκτ 2019
    300 KB Οκτ 2019
CAD Drawings
  Μέγεθος Ανέβηκε
file type icon C60 DXF Drawings
ενημέρωση: Νοε 2022
4 MB Νοε 2022
BIM Objects
  Μέγεθος Ανέβηκε
file type icon Control 67HC/T BIM Object
ενημέρωση: Απρ 2024
Απρ 2024
Compliances
  Μέγεθος Ανέβηκε
file type icon Control 60 Series Declaration of Conformity
ενημέρωση: Οκτ 2019
1000 KB Οκτ 2019
Software
  Έκδοση Μέγεθος Ανέβηκε
Windows download icon Distributed System Design (DSD)
έκδοση 3.9, ενημέρωση: Νοε 2025
3.9   600 KB Νοε 2025
Install Guides
  Μέγεθος Ανέβηκε
file type icon Painting C60 Speakers
ενημέρωση: Απρ 2021
100 KB Απρ 2021
file type icon C60 Install Instructions
ενημέρωση: Απρ 2019
900 KB Απρ 2019
Images
  Μέγεθος Ανέβηκε

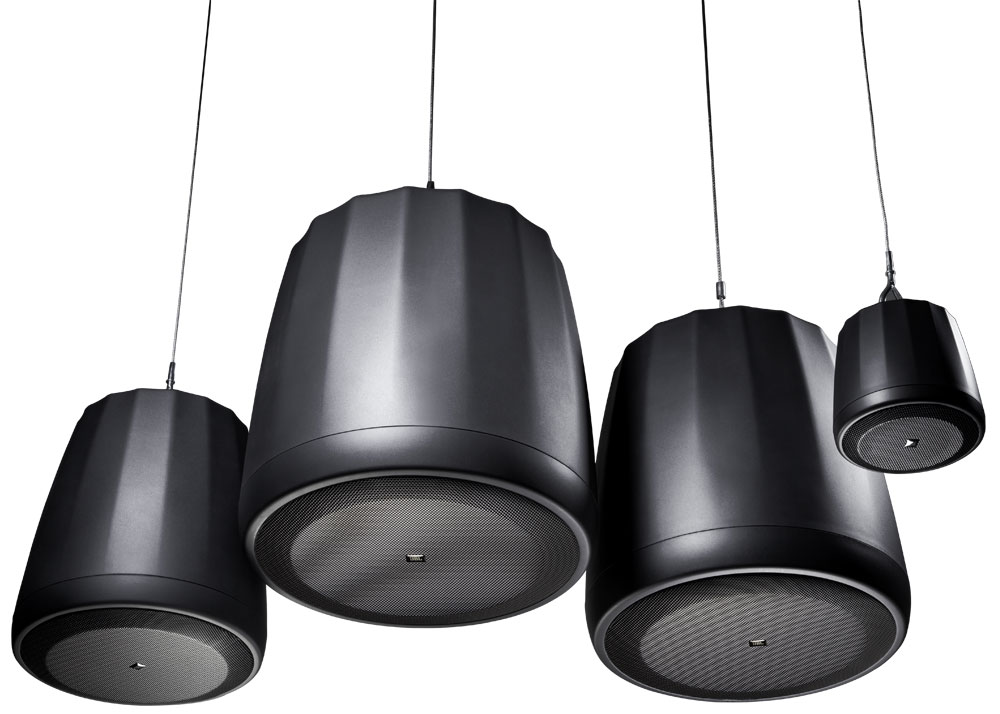

file type icon C60 Hi-Res Family Image
ενημέρωση: Οκτ 2019
80 KB Οκτ 2019

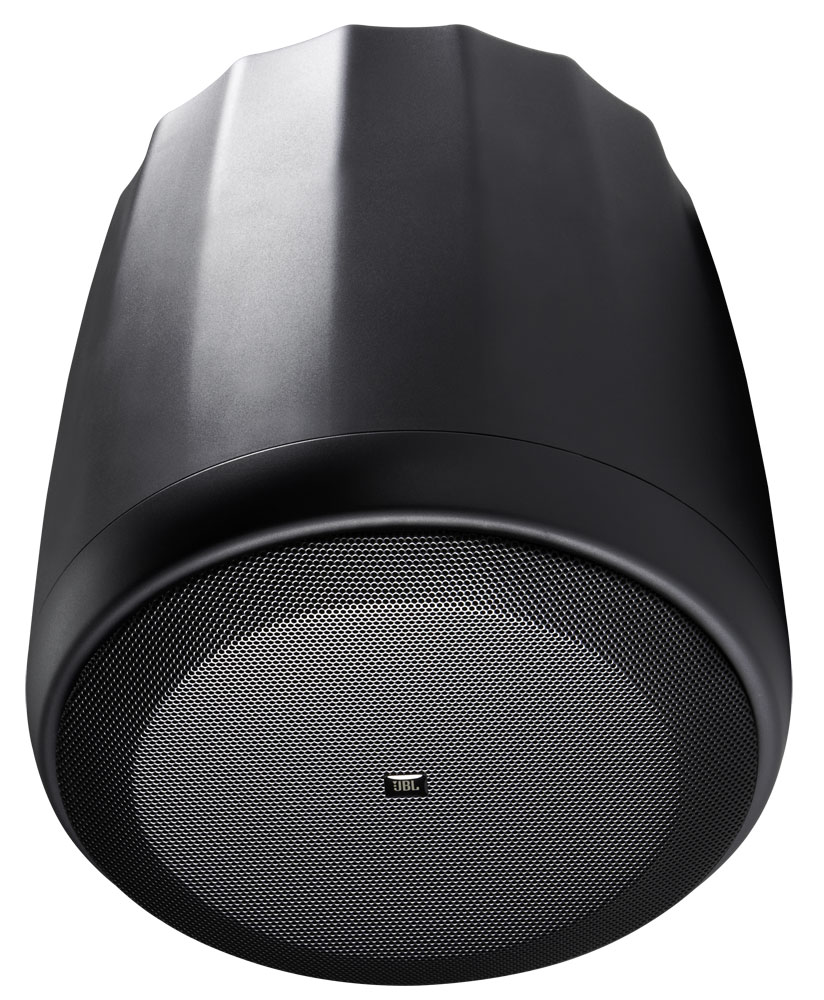

file type icon Control 67HCT Hi Res Images
ενημέρωση: Απρ 2019
200 KB Απρ 2019
Speaker Tunings
  Έκδοση Μέγεθος Ανέβηκε
file type icon Commercial, CBT, and AWC Tunings 220616
έκδοση A, ενημέρωση: Μαϊ 2023
600 KB Μαϊ 2023
Accessories
  Μέγεθος Ανέβηκε
file type icon C60 Panel Cover Instructions
ενημέρωση: Μαϊ 2021
700 KB Μαϊ 2021
Ease Data
  Έκδοση Μέγεθος Ανέβηκε
file type icon C60 Ease Files
έκδοση B, ενημέρωση: Ιαν 2023
1000 KB Ιαν 2023
CLF Files
  Μέγεθος Ανέβηκε
file type icon Control 60 Series CLF Files
ενημέρωση: Ιαν 2023
400 KB Ιαν 2023
FAQs
  Μέγεθος Ανέβηκε
file type icon C60 Frequently Asked Questions
ενημέρωση: Σεπ 2022
300 KB Σεπ 2022

Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.

Ανταλλακτικά και σέρβις

Προδιαγραφές

Frequency Range (-10dB) 75 Hz – 17 kHz
Frequency Range (±3 dB) 110 Hz – 16 kHz
Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity 93 dB
Coverage Angle 75° conical
Directivity Factor (Q) 10.4
Directivity Index (DI) 9.8 dB
Maximum SPL (1m) 112 dB continuous pink noise, 118 dB peak
Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
Net Weight (each) 5.9 kg (13 lbs)
Shipping Weight (pair) 14.1 kg (31 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60HC top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
