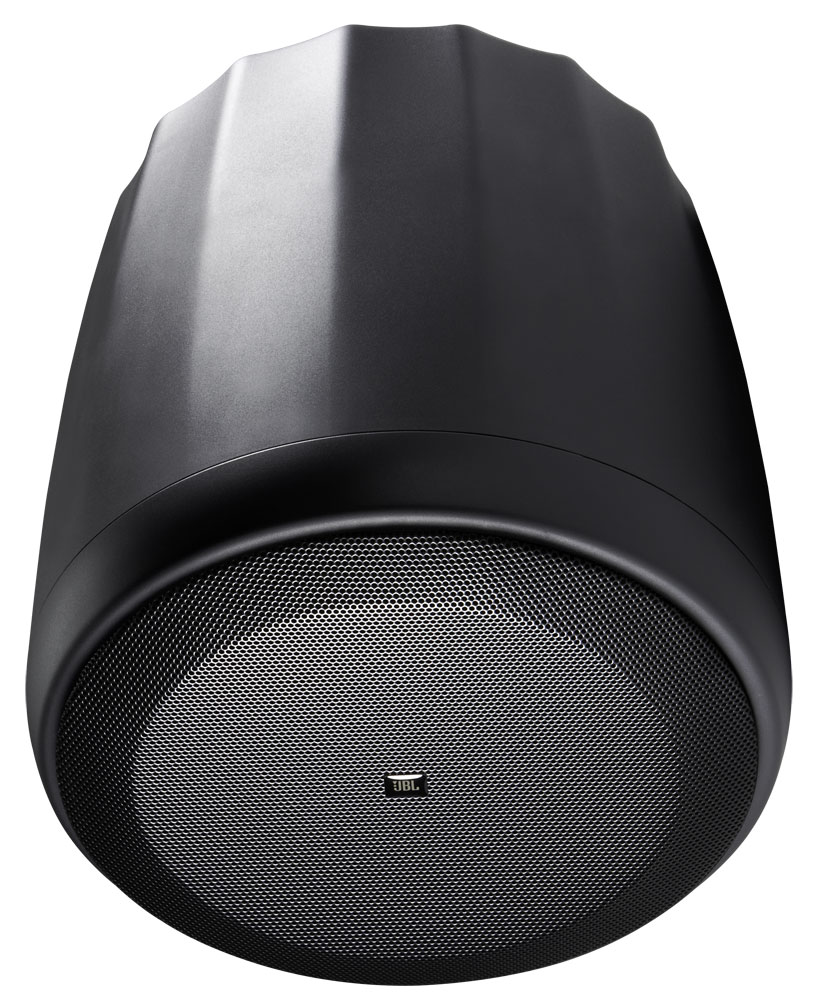

좁은 75° 커버리지 고천장 펜던트 스피커
Control 67HC의 정밀하게 제어된 좁은 커버리지는 컨벤션 센터, 교통 터미널, 전시 공간, 호텔 아트리움과 같이 고천장 또는 음향 조건이 까다로운 공간에서 음성 명료도와 음악적 선명도를 향상시키는 데 이상적입니다.
더 큰 이미지
기능
- RBI Radiation Boundary Integrator 기술
- 높은 천장 및 잔향이 있는 장소에서 탁월한 명료도를 제공하는 75° 지향각
- 뛰어난 음향 충실도를 위한 6.5" (165 mm) 저주파 드라이버 및 실크 돔 트위터
- 높은 93 dB 감도
- 75 W, 8 ohms 및 60 W 멀티탭 트랜스포머
- 블랙 또는 화이트
다운로드
Specifications
| 크기 | |
|
|
997KB |
Brochures
| 크기 | |
|
|
21MB |
|
|
23MB |
|
|
14MB |
|
|
267KB |
업데이트됨: 2026년 3월월
CAD Drawings
| 크기 | |
|
|
4.14MB |
BIM Objects
| 크기 | |
|
|
Compliances
| 크기 | |
|
|
987KB |
Software
| 크기 | |
|
|
612KB |
Install Guides
| 크기 | |
|
|
146KB |
|
|
886KB |
Images
| 크기 | |
|
|
77.2KB |
|
|
170KB |
Speaker Tunings
| 크기 | |
|
|
557KB |
Accessories
| 크기 | |
|
|
710KB |
Ease Data
| 크기 | |
|
|
962KB |
CLF Files
| 크기 | |
|
|
377KB |
FAQs
| 크기 | |
|
|
337KB |
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하십시오.
부품 및 서비스
사양
| Frequency Range (-10dB) | 75 Hz – 17 kHz |
| Frequency Range (±3 dB) | 110 Hz – 16 kHz |
| Power Rating | 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power |
| Nominal Sensitivity | 93 dB |
| Coverage Angle | 75° conical |
| Directivity Factor (Q) | 10.4 |
| Directivity Index (DI) | 9.8 dB |
| Maximum SPL (1m) | 112 dB continuous pink noise, 118 dB peak |
| Impedance | 8 ohms |
| Transformer Taps | 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W |
| Transformer Insertion Loss | 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W |
| Drivers | LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former |
| Enclosure | High impact polystyrene |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. |
| Input Connectors | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Suspension | Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
| Safety Agency | Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. |
| Dimensions (H x W x D) | 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket. |
| Net Weight (each) | 5.9 kg (13 lbs) |
| Shipping Weight (pair) | 14.1 kg (31 lbs) |
| Included Accessories | Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. |
| Optional Accessories | MTC-PC60HC top panel / terminal cover |
| Colors | Available in black or white (-WH). Paintable. |
