Control 67 HC/T

Narrow 75° Coverage HighCeiling Pendant Speaker

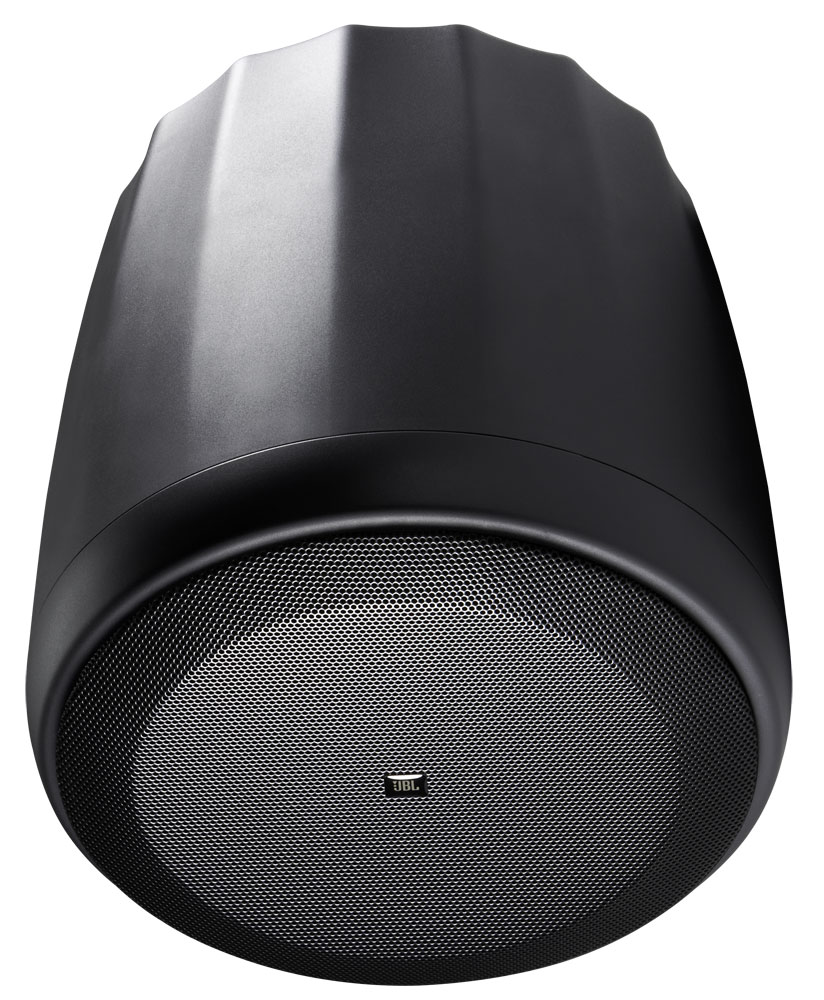

Control 67 HC/T
较大的图像

Narrow 75° Coverage High Ceiling Pendant Speaker

Control 67HC’s well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues and hotel atrium areas.

特点

  • RBI Radiation Boundary Integrator Technology
  • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
  • 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
  • High 93 dB sensitivity
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

下载

  Version Language Size Uploaded
Specifications
file type icon Control 67HC/T Spec Sheet
updated: 4月29日
    997.4 KB 4月29日
Brochures
file type icon C60 Introductory Sheet
updated: 10月18日
    266.9 KB 10月18日
CAD Drawings
file type icon C60 DXF Drawings
updated: 4月29日
    704.6 KB 4月29日
Compliances
file type icon Control 60 Series Declaration of Conformity
updated: 10月18日
    987.4 KB 10月18日
Software
platform icon Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 9月23日
3.6.2     804.8 KB 9月23日
Install Guides
file type icon Painting C60 Speakers
updated: 4月21日
    146.4 KB 4月21日
file type icon C60 Install Instructions
updated: 4月29日
    886.2 KB 4月29日
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月15日
    21.0 MB 3月15日
file type icon C60 Ease Files
updated: 3月15日
    614.3 KB 3月15日
Images
file type icon C60 Hi-Res Family Image
updated: 10月18日
    77.2 KB 10月18日
file type icon Control 67HCT Hi Res Images
updated: 4月29日
    170.3 KB 4月29日
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 181030
updated: 10月22日
    557.0 KB 10月22日
Accessories
file type icon C60 Panel Cover Instructions
updated: 5月04日
    709.6 KB 5月04日
CLF Files
file type icon Control 60 Series CLF Files
updated: 4月12日
    310.7 KB 4月12日
Faqs
file type icon C60 Frequently Asked Questions
updated: 4月29日
    337.2 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 (-10dB) 75 Hz – 17 kHz
频率响应(±3 dB) 110 Hz – 16 kHz
额定功率 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
标称灵敏度 93 dB
覆盖角度 75° (+15°/-20°)
Directivity Factor (Q) 10.4
Directivity Index (DI) 9.8 dB
Maximum SPL (1m) 112 dB continuous pink noise, 118 dB peak
阻抗 8 ohms
变压器抽头 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
变压器插入损耗 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
网罩 Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
输入接口 Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
尺寸(高 x 宽 x 厚) 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
Net Weight (each) 5.9 kg (13 lbs)
Shipping Weight (pair) 14.1 kg (31 lbs)

随附配件

Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60HC top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
