Control 67 HC/T

Altoparlante Sospeso ad Alta Copertura Stretta 75°

Control 67 HC/T
Immagini più grandi

Diffusore a Sospensione per Soffitti Alti con Copertura Stretta 75°

La copertura stretta ben controllata del Control 67HC è ideale per migliorare l'intelligibilità vocale e la chiarezza musicale in ambienti con soffitti alti o in locali con acustica difficile, come centri congressi, stazioni di transito, spazi espositivi e aree atrio di hotel.

Caratteristiche

  • RBI Radiation Boundary Integrator Technology
  • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
  • 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
  • High 93 dB sensitivity
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

Download

Specifications
  Dimensione Caricato
file type icon Control 67HC/T Spec Sheet
aggiornato: apr 2019
997 KB apr 2019
Brochures
  Versione Lingua Dimensione Caricato
file type icon Control Contractor Brochure (2026)
en aggiornato: mar 2026
  en  21 MB mar 2026
file type icon Control Contractor Brochure (2025)
en versione A, aggiornato: mar 2026
en  23 MB mar 2026
file type icon Control Contractor Brochure (2024)
en versione D, aggiornato: feb 2024
en  14 MB feb 2024
file type icon C60 Introductory Sheet
aggiornato: ott 2019
    267 KB ott 2019
CAD Drawings
  Dimensione Caricato
file type icon C60 DXF Drawings
aggiornato: nov 2022
4,14 MB nov 2022
BIM Objects
  Dimensione Caricato
file type icon Control 67HC/T BIM Object
aggiornato: apr 2024
apr 2024
Compliances
  Dimensione Caricato
987 KB ott 2019
Software
  Versione Dimensione Caricato
Windows download icon Distributed System Design (DSD)
versione 3.9, aggiornato: nov 2025
3.9   612 KB nov 2025
Install Guides
  Dimensione Caricato
file type icon Painting C60 Speakers
aggiornato: apr 2021
146 KB apr 2021
file type icon C60 Install Instructions
aggiornato: apr 2019
886 KB apr 2019
Images
  Dimensione Caricato

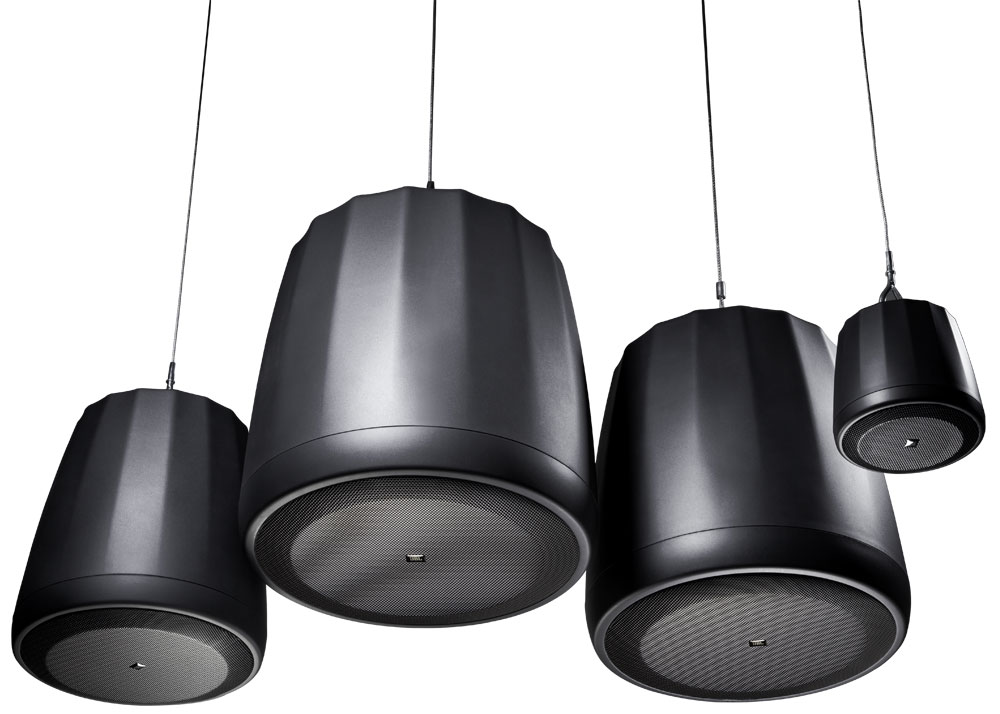

file type icon C60 Hi-Res Family Image
aggiornato: ott 2019
77,2 KB ott 2019

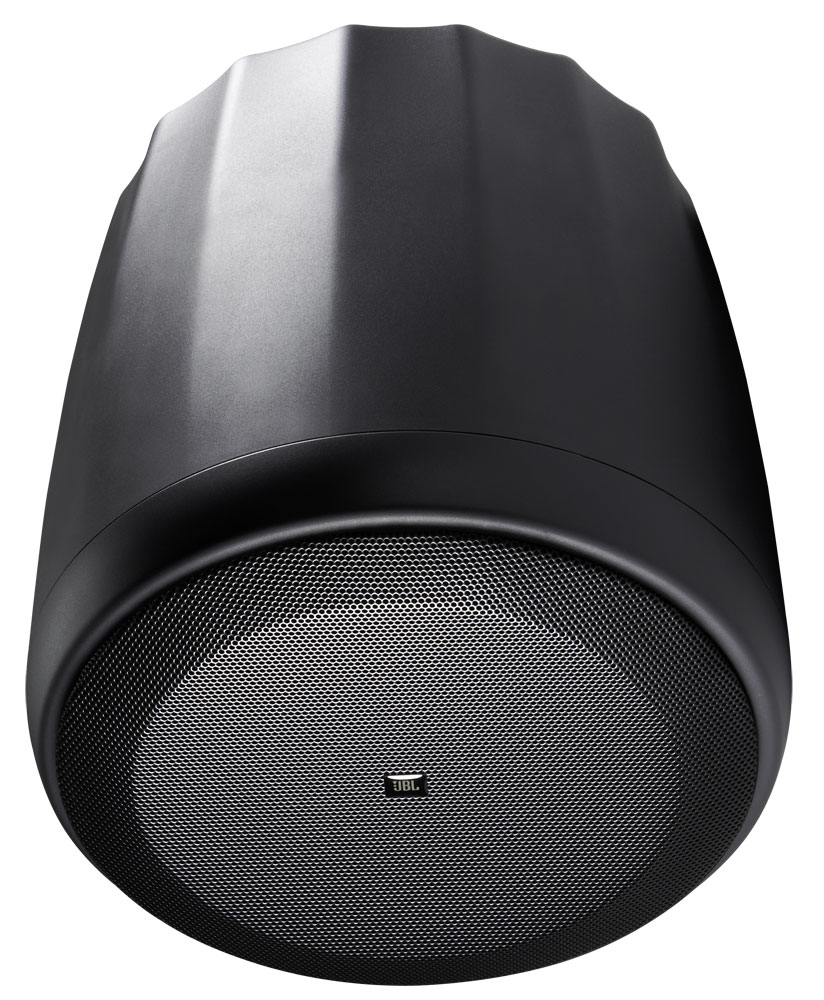

file type icon Control 67HCT Hi Res Images
aggiornato: apr 2019
170 KB apr 2019
Speaker Tunings
  Versione Dimensione Caricato
file type icon Commercial, CBT, and AWC Tunings 220616
versione A, aggiornato: mag 2023
557 KB mag 2023
Accessories
  Dimensione Caricato
file type icon C60 Panel Cover Instructions
aggiornato: mag 2021
710 KB mag 2021
Ease Data
  Versione Dimensione Caricato
file type icon C60 Ease Files
versione B, aggiornato: gen 2023
962 KB gen 2023
CLF Files
  Dimensione Caricato
file type icon Control 60 Series CLF Files
aggiornato: gen 2023
377 KB gen 2023
FAQs
  Dimensione Caricato
file type icon C60 Frequently Asked Questions
aggiornato: set 2022
337 KB set 2022

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Frequency Range (-10dB) 75 Hz – 17 kHz
Frequency Range (±3 dB) 110 Hz – 16 kHz
Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity 93 dB
Coverage Angle 75° conical
Directivity Factor (Q) 10.4
Directivity Index (DI) 9.8 dB
Maximum SPL (1m) 112 dB continuous pink noise, 118 dB peak
Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
Net Weight (each) 5.9 kg (13 lbs)
Shipping Weight (pair) 14.1 kg (31 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60HC top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
