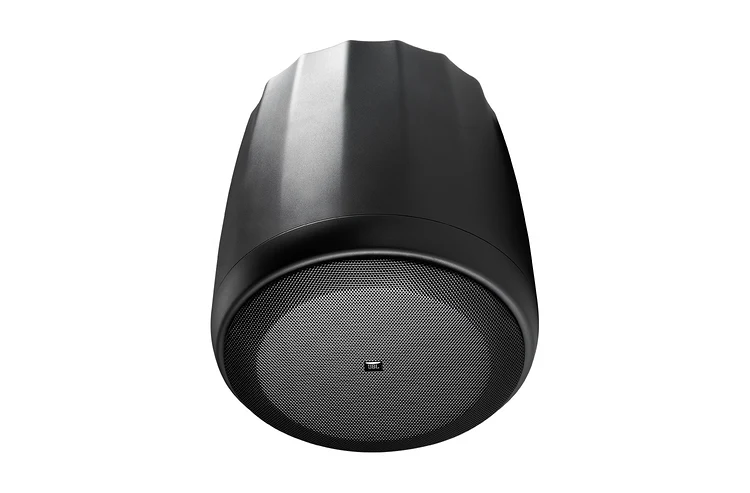

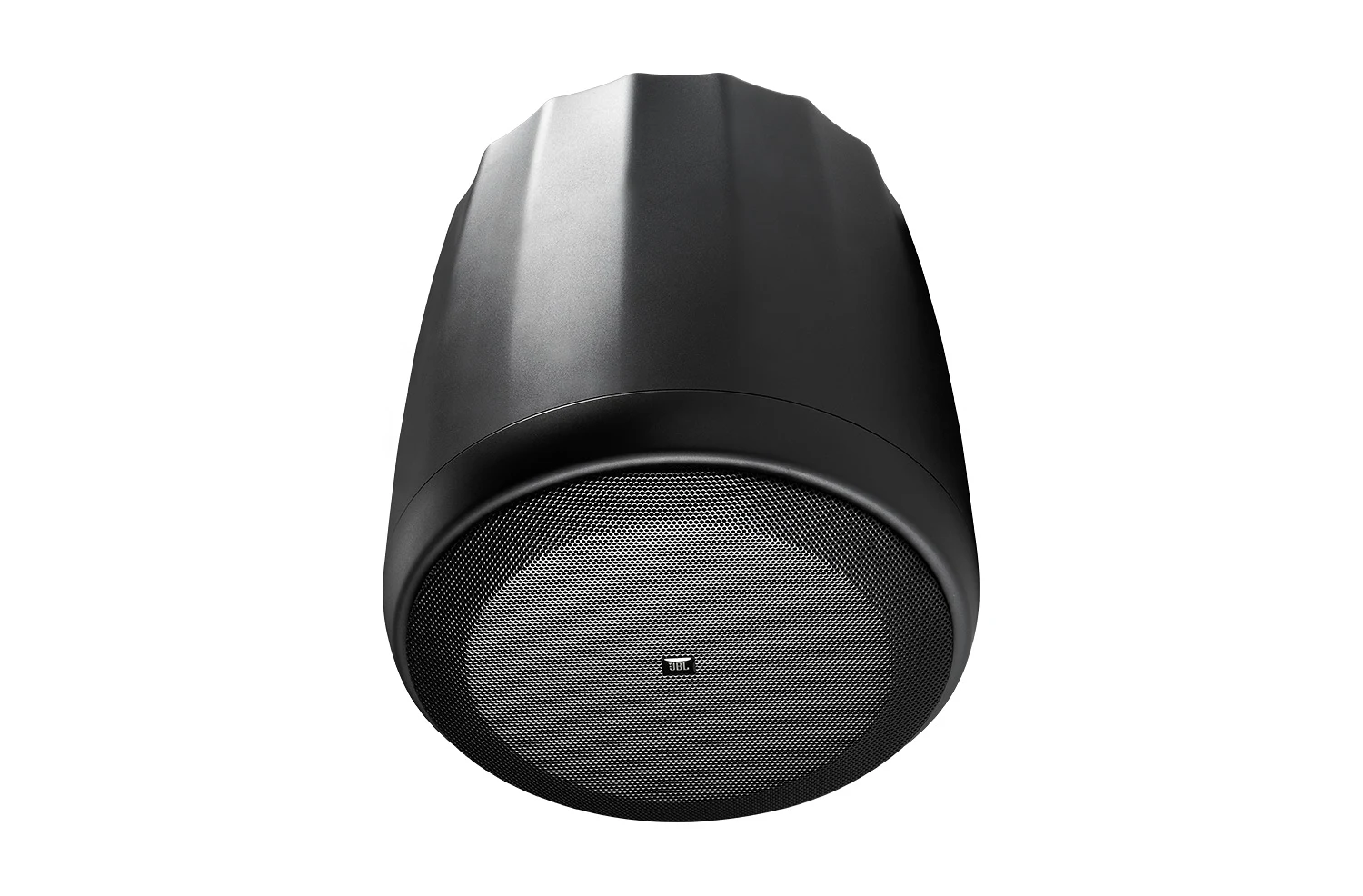

Control 67 HC/T

سماعة علوية ضيقة التغطية 75° للأسقف العالية

Control 67 HC/T
صور أكبر

مكبر صوت معلق للسقوف العالية بتغطية ضيقة 75°

التغطية الضيقة المنضبطة جيداً لـ Control 67HC مثالية لتحسين وضوح الكلام والوضوح الموسيقي في الأماكن ذات الأسقف العالية أو في الغرف ذات الصوتيات الصعبة، مثل مراكز المؤتمرات ومراكز النقل ومستودعات المعارض ومناطق ردهة الفنادق.

الميزات

  • RBI Radiation Boundary Integrator Technology
  • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
  • 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
  • High 93 dB sensitivity
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

التنزيلات

Specifications
  الحجم تاريخ التحميل
file type icon Control 67HC/T Spec Sheet
تم التحديث: أبريل 2019
997 KB أبريل 2019
Brochures
  الإصدار اللغة الحجم تاريخ التحميل
file type icon Control Contractor Brochure (2026)
en تم التحديث: مارس 2026
  en  21 MB مارس 2026
file type icon Control Contractor Brochure (2025)
en الإصدار A, تم التحديث: مارس 2026
en  23 MB مارس 2026
file type icon Control Contractor Brochure (2024)
en الإصدار D, تم التحديث: فبراير 2024
en  14 MB فبراير 2024
file type icon C60 Introductory Sheet
تم التحديث: أكتوبر 2019
    267 KB أكتوبر 2019
CAD Drawings
  الحجم تاريخ التحميل
file type icon C60 DXF Drawings
تم التحديث: نوفمبر 2022
4.14 MB نوفمبر 2022
BIM Objects
  الحجم تاريخ التحميل
file type icon Control 67HC/T BIM Object
تم التحديث: أبريل 2024
أبريل 2024
Compliances
  الحجم تاريخ التحميل
file type icon Control 60 Series Declaration of Conformity
تم التحديث: أكتوبر 2019
987 KB أكتوبر 2019
Software
  الإصدار الحجم تاريخ التحميل
Windows download icon Distributed System Design (DSD)
الإصدار 3.9, تم التحديث: نوفمبر 2025
3.9   612 KB نوفمبر 2025
Install Guides
  الحجم تاريخ التحميل
file type icon Painting C60 Speakers
تم التحديث: أبريل 2021
146 KB أبريل 2021
file type icon C60 Install Instructions
تم التحديث: أبريل 2019
886 KB أبريل 2019
Images
  الحجم تاريخ التحميل
file type icon C60 Hi-Res Family Image
تم التحديث: أكتوبر 2019
77.2 KB أكتوبر 2019

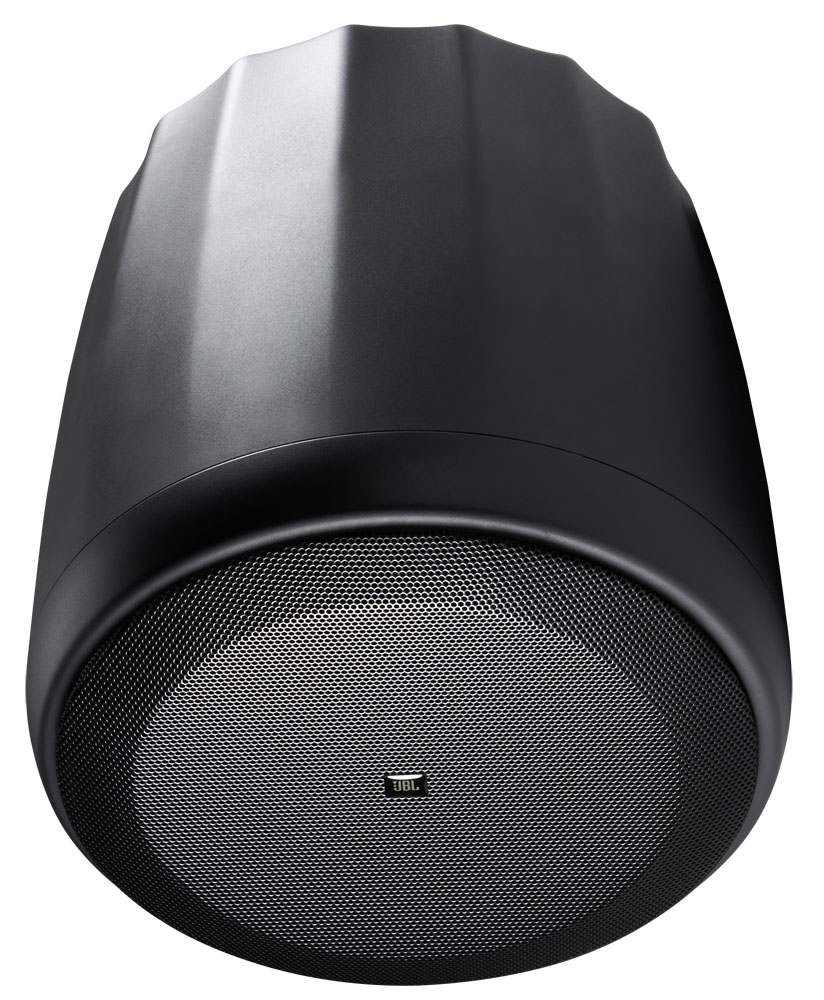

file type icon Control 67HCT Hi Res Images
تم التحديث: أبريل 2019
170 KB أبريل 2019
Speaker Tunings
  الإصدار الحجم تاريخ التحميل
file type icon Commercial, CBT, and AWC Tunings 220616
الإصدار A, تم التحديث: مايو 2023
557 KB مايو 2023
Accessories
  الحجم تاريخ التحميل
file type icon C60 Panel Cover Instructions
تم التحديث: مايو 2021
710 KB مايو 2021
Ease Data
  الإصدار الحجم تاريخ التحميل
file type icon C60 Ease Files
الإصدار B, تم التحديث: يناير 2023
962 KB يناير 2023
CLF Files
  الحجم تاريخ التحميل
file type icon Control 60 Series CLF Files
تم التحديث: يناير 2023
377 KB يناير 2023
FAQs
  الحجم تاريخ التحميل
file type icon C60 Frequently Asked Questions
تم التحديث: سبتمبر 2022
337 KB سبتمبر 2022

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Frequency Range (-10dB) 75 Hz – 17 kHz
Frequency Range (±3 dB) 110 Hz – 16 kHz
Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity 93 dB
Coverage Angle 75° conical
Directivity Factor (Q) 10.4
Directivity Index (DI) 9.8 dB
Maximum SPL (1m) 112 dB continuous pink noise, 118 dB peak
Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
Net Weight (each) 5.9 kg (13 lbs)
Shipping Weight (pair) 14.1 kg (31 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60HC top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
