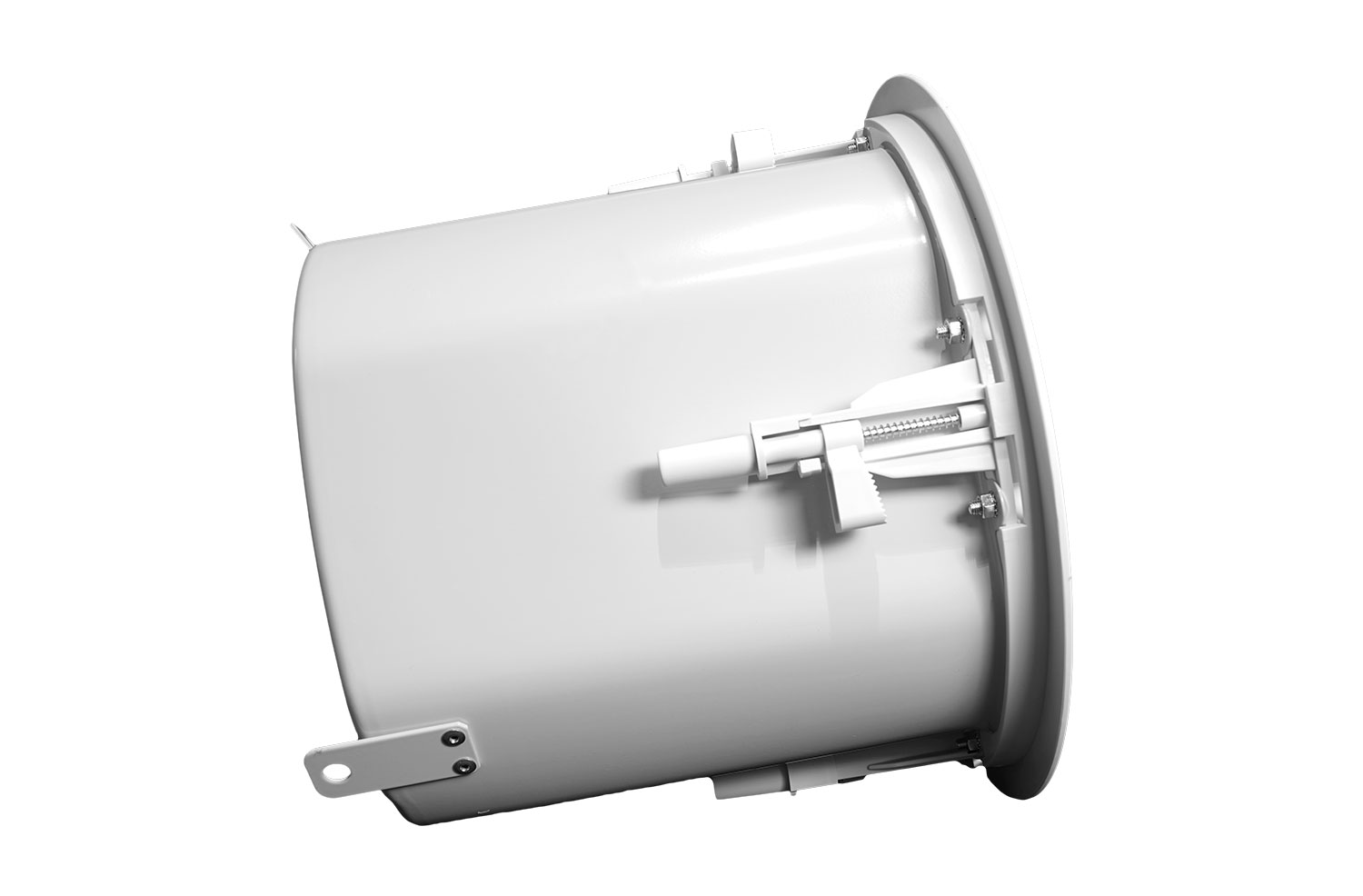

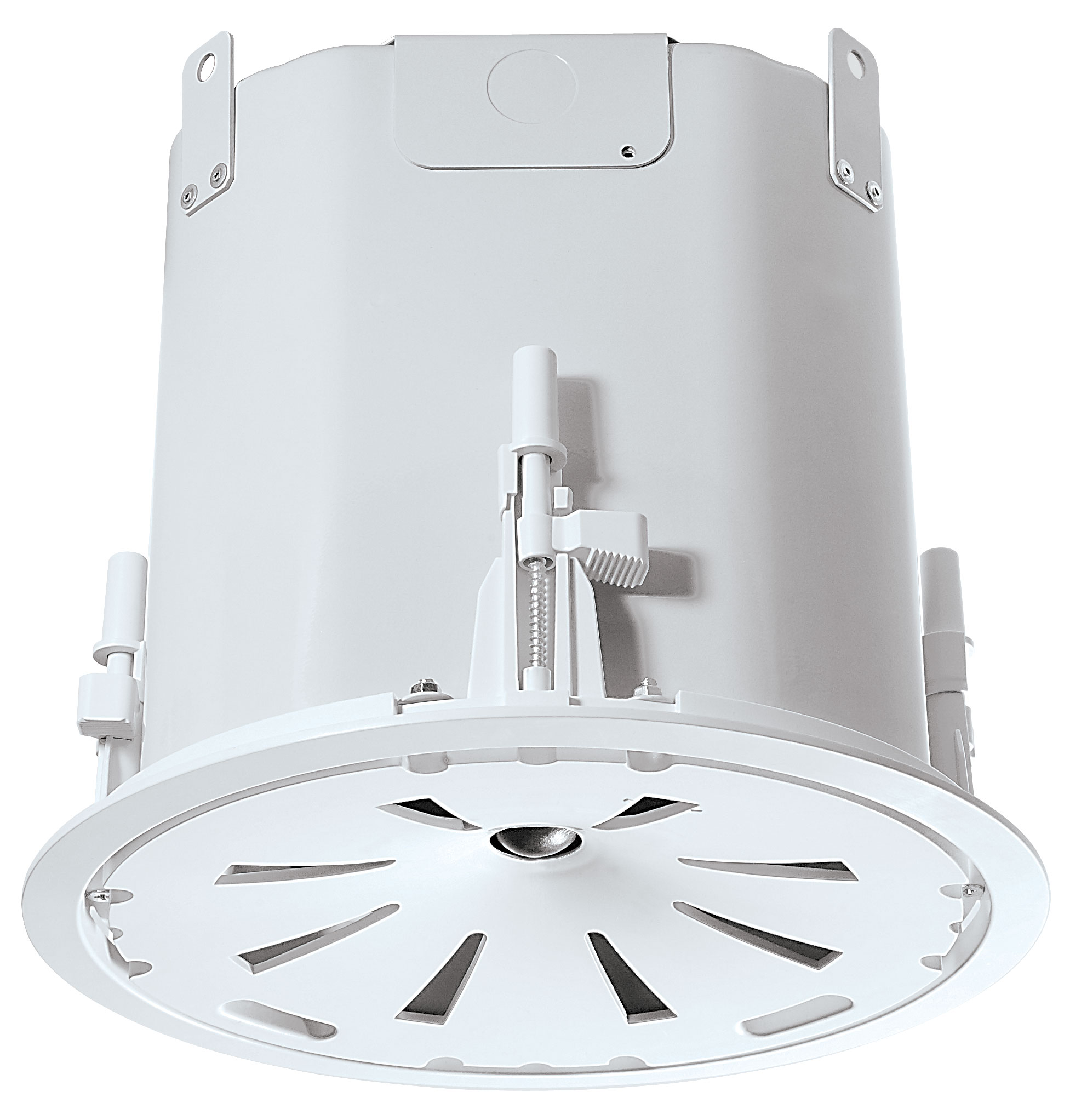

The Control 47C/T features extended bass performance with a wide 120° of coverage that allows fewer speakers to cover a large space. Ideal for a wide variety of applications, the Control 47C/T is perfect for settings ranging from restaurant and retail to large casinos and beyond.
| الحجم | |
|
|
932 KB |
| الحجم | |
|
|
127 KB |
| الحجم | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
|
|
716 KB |
| الحجم | |
|
|
1.7 MB |
|
|
202 KB |
| الحجم | |
|
|
154 KB |
|
|
179 KB |
| الحجم | |
|
|
612 KB |
| الحجم | |
|
|
934 KB |
| الحجم | |
|
|
204 KB |
| الحجم | |
|
|
1.02 MB |
| الحجم | |
|
|
1.17 MB |
|
|
11.5 MB |
| الحجم | |
|
|
47.8 KB |
|
|
56.4 KB |
|
|
136 KB |
|
|
60.2 KB |
|
|
264 KB |
| الحجم | |
|
|
557 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
| Frequency Range | 55 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), hrs |
| Sensitivity | 91 dB (1kHz - 16 kHz) |
| Transformer Taps | 60W, 30W, 15W (7.5W at 70V only) |
| Coverage Angle | 120° conical, constant directivity |
| Impedance | 8 ohms (in bypass mode) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in) |

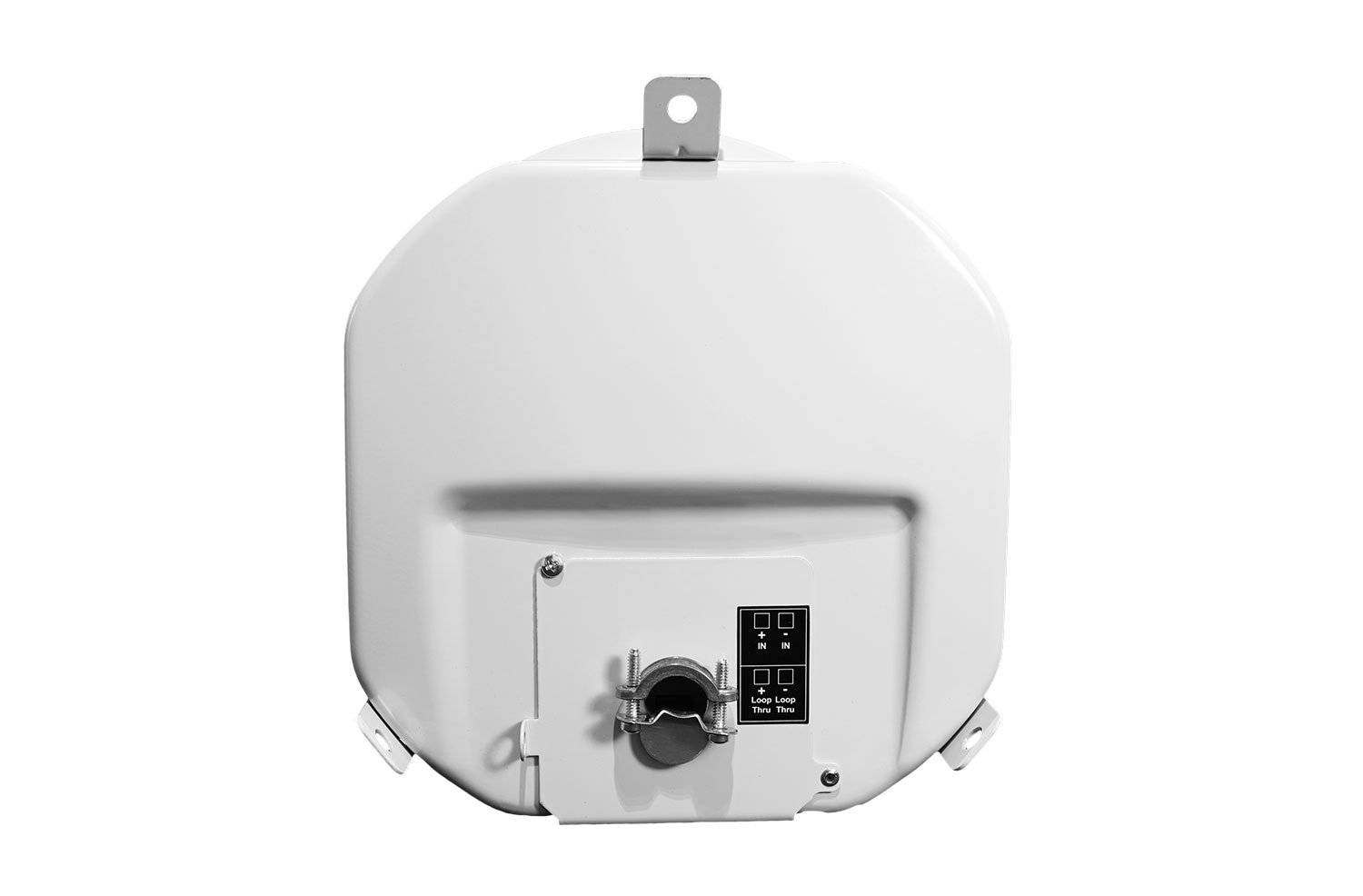

| Input Connectors | Two removeable locking 2-pin connectors with screwdown terminals. |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, Grille |
| Suspension Tabs | Three, on top panel |
| Dimensions (Diameter x Depth) | 305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2 in) |
| Maximum SPL (1m) | 110 dB (low-impedance, 116 dB peak) 109 dB (top 70V/100V tap) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 282 mm Diameter (11.1 in) (cardboard cutout template included) |
| Optional Accessories | MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
MTC-48TRx12 هو قضيب تثبيت إكسسوار لتثبيت العديد من مكبرات الصوت السقفية من JBL في بلاط السقف 4 قدم × 4 قدم
(1200 × 1200 مم؛ 48 × 48 بوصة) في تطبيقات الأسقف المعلقة.
MTC-48TRx12 Spec Sheet (revB)
[77.2 KB]
