Control 47C/T

Consistent Coverage Extended Bass

较大的图像

Consistent Coverage Extended Bass

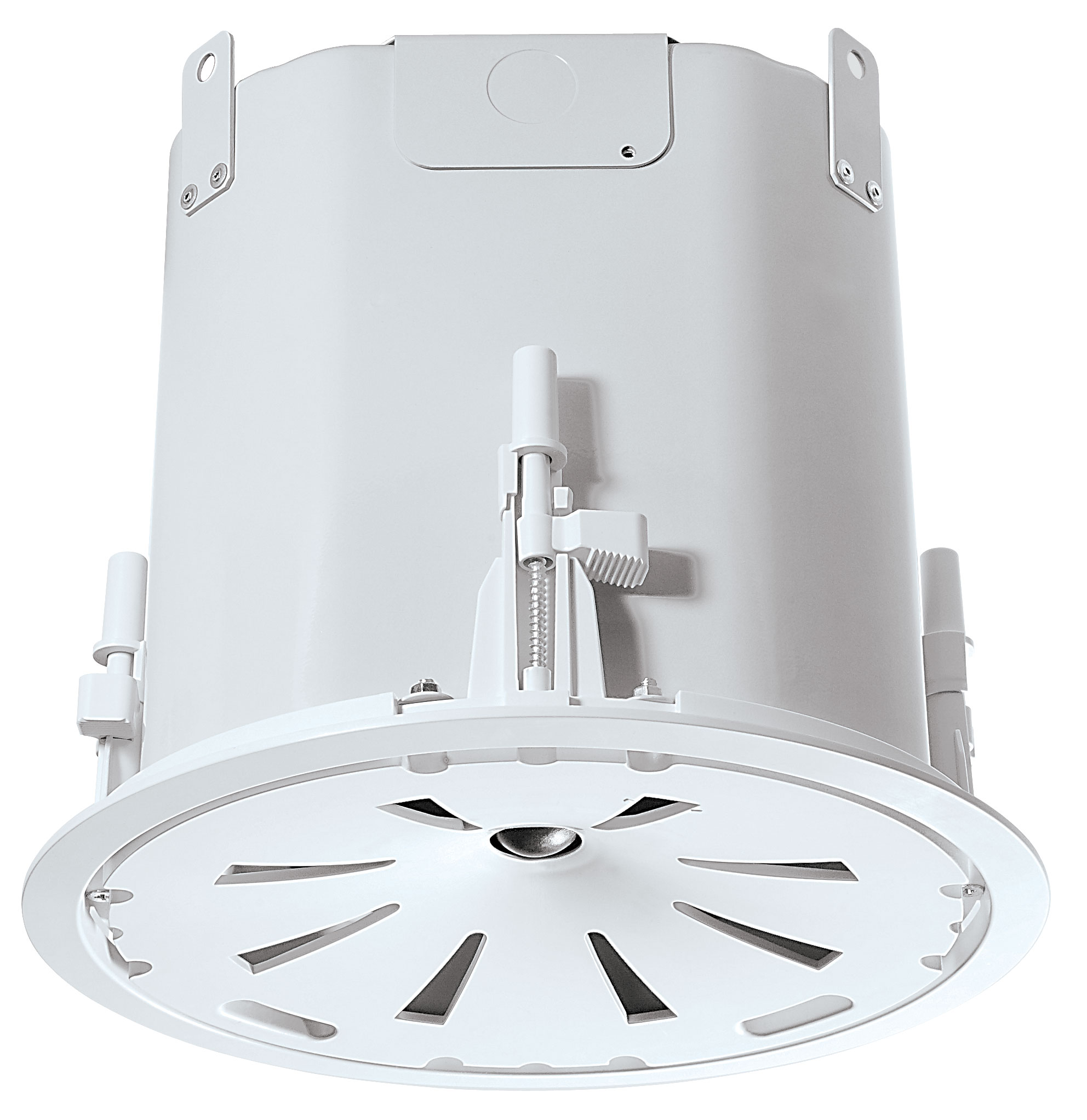

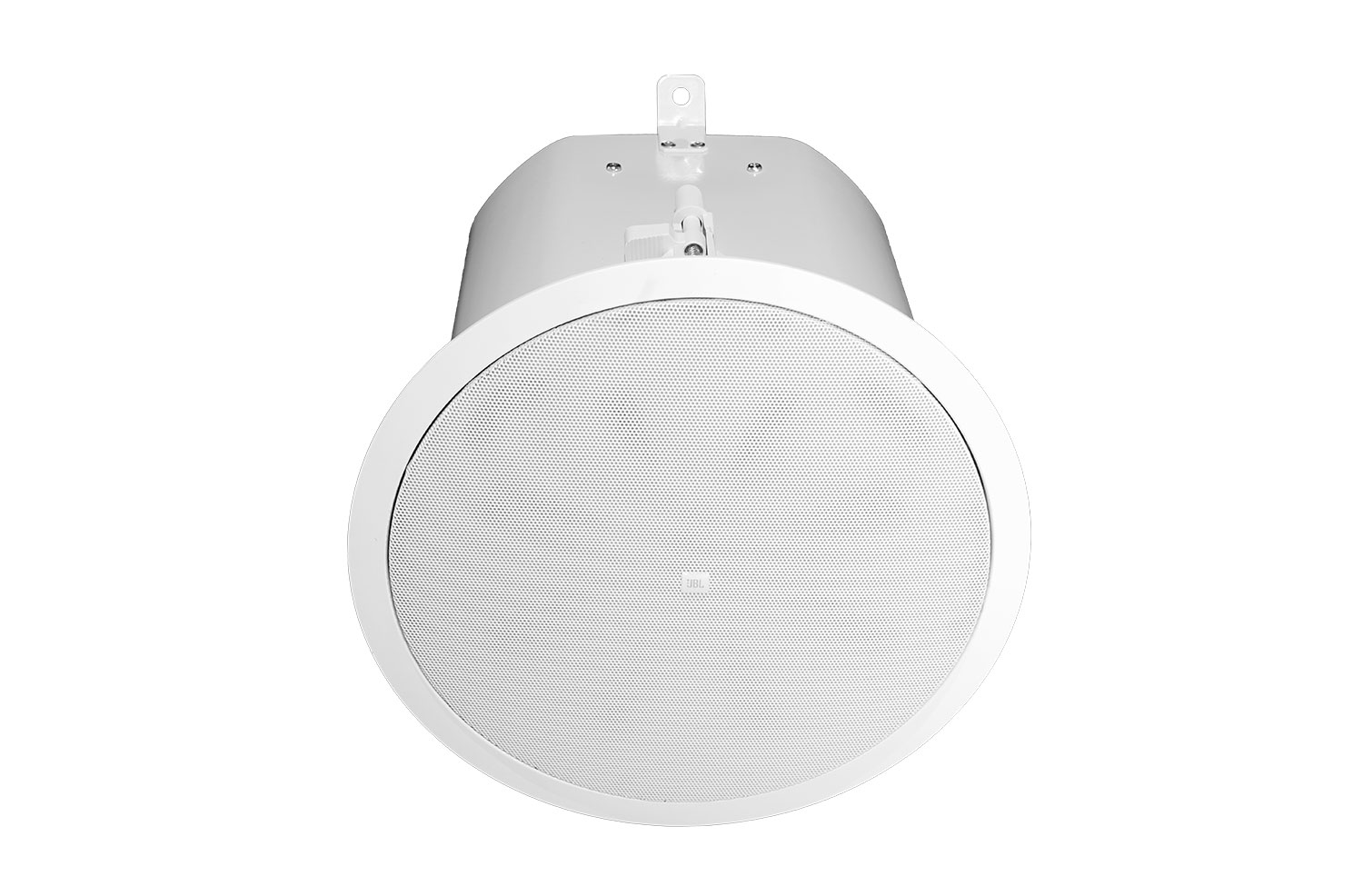

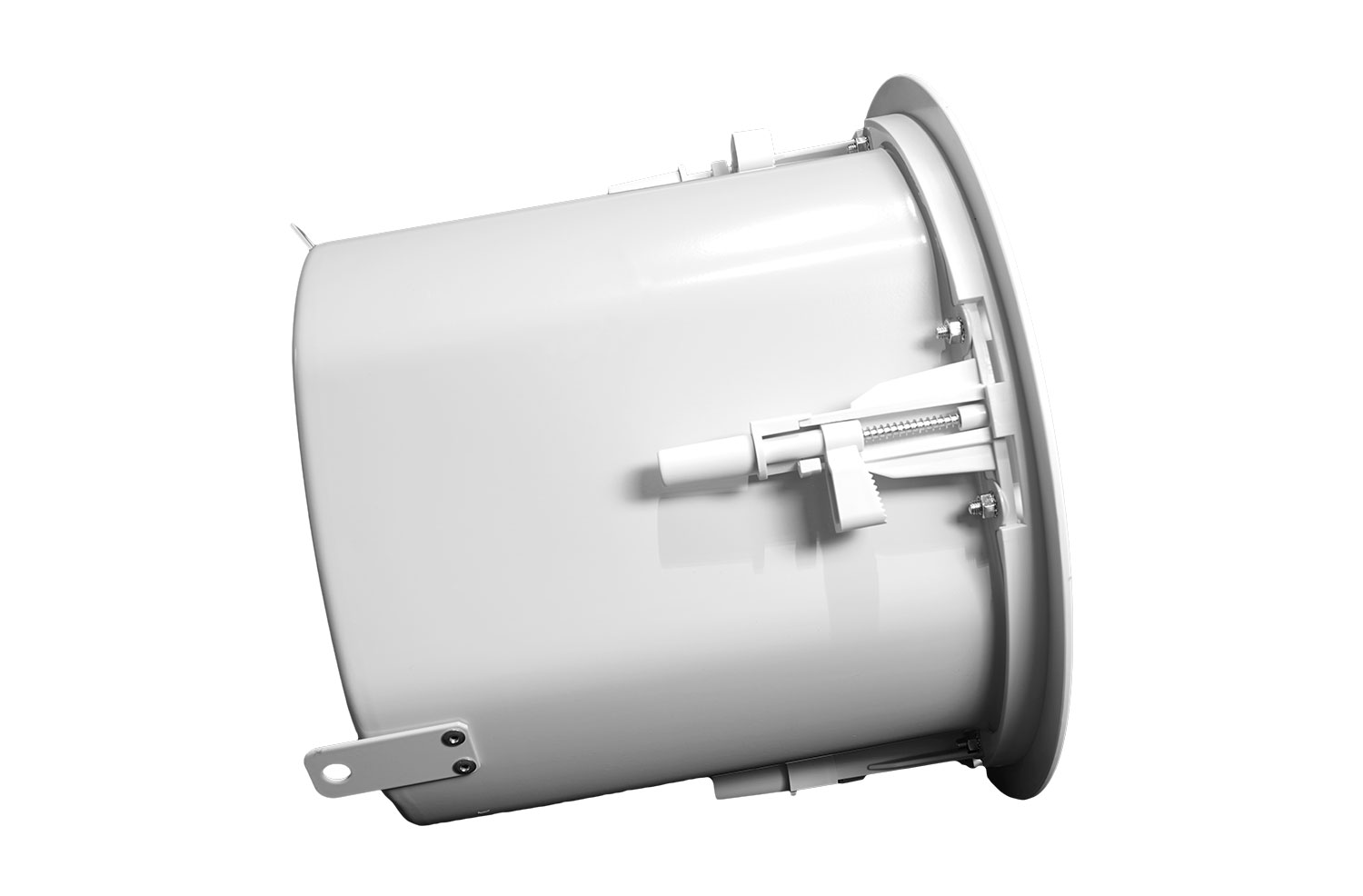

The Control 47C/T features extended bass performance with a wide 120° of coverage that allows fewer speakers to cover a large space. Ideal for a wide variety of applications, the Control 47C/T is perfect for settings ranging from restaurant and retail to large casinos and beyond.

特点

  • Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
  • Flat Frequency Response and Superior Performance
  • Large Backcan for Bass Response to 55 Hz
  • Elegant design fits any décor

下载

  Version Language Size Uploaded
Data Sheets
Control 47C/T Spec Sheet
version C, updated: 4月30日
  932.3 KB 4月30日
Manuals
Ceiling Speaker Accessory Guide
updated: 10月18日
    126.9 KB 10月18日
Brochures
Control 40 Brochure
updated: 9月26日
    716.0 KB 9月26日
CAD Drawings
Control 47CT 3D Drawing
updated: 10月31日
    1.7 MB 10月31日
Control 47C/T 3D Drawing
updated: 4月29日
    1.7 MB 4月29日
Control 47C/T 2D Drawing
updated: 4月29日
    202.5 KB 4月29日
Bim Objects
BIM (Revit) Files
updated: 10月03日
    12.4 MB 10月03日
Compliances
JBL Control Series Passive Speakers DoC
updated: 12月17日
    179.3 KB 12月17日
Control 40 Series Declaration of Conformity
updated: 10月18日
    154.0 KB 10月18日
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 1月14日
3.6.2     804.8 KB 1月14日
User Guides
Control 40 Users Guide
updated: 4月29日
    934.1 KB 4月29日
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: 2月24日
    557.0 KB 2月24日
Images
Control 47CT Hi-Res
updated: 4月29日
    263.8 KB 4月29日
Control 47CT 01
updated: 4月29日
    60.2 KB 4月29日
Control 47CT 02
updated: 4月29日
    136.4 KB 4月29日
Control 47CT 03
updated: 4月29日
    56.4 KB 4月29日
Control 47CT 04
updated: 4月29日
    47.8 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 55 Hz - 20 kHz
额定功率 IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), hrs

灵敏度

91 dB (1kHz - 16 kHz)
变压器抽头 60W, 30W, 15W (7.5W at 70V only)
覆盖角度 120° conical, constant directivity
阻抗 8 ohms (in bypass mode)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 25 mm (1 in)
输入连接器 Two removeable locking 2-pin connectors with screwdown terminals.

随附配件

C-rings, tile rails, paint shield, cutout template, Grille
Suspension Tabs Three, on top panel
Dimensions (Diameter x Depth) 305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2 in)
Maximum SPL (1m) 110 dB (low-impedance, 116 dB peak)
109 dB (top 70V/100V tap)
颜色 White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size 282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
Plenum Usage Yes, backcan included
