18" Self-Powered Extended Low Frequency Subwoofer System

The PRX718XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with extreme efficiency and control.

Features

134 dB peak SPL
18" Differential Drive® low-frequency driver for low-distortion and higher SPL
Efficient Class-D amplifier technology
DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
2 x XLR-1/4" combination inputs, with 2 x XLR loop-thru
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.
Multiple handles with comfort rubber grips for easy transport
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

The PRX718XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
The PRX718XLF is a high performance self-powered subwoofer system. The PRX718XLF is comprised of a powerful 2278H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Downloads

	Version	Language	Size	Uploaded
PRX718XLF Data Sheet updated: 03월 12일			2.46MB	03월 12일
PRX718XLF Spec Sheet updated: 03월 12일			938KB	03월 12일
PRX718XLF User's Guide - English updated: 03월 12일			1.95MB	03월 12일
PRX718XLF User's Guide - French updated: 03월 12일			898KB	03월 12일
PRX718XLF User's Guide - German updated: 03월 12일			906KB	03월 12일
PRX718XLF User's Guide - Spanish updated: 03월 12일			780KB	03월 12일
Data Sheets
PRX718XLF Datasheet updated: 07월 08일			2.46MB	07월 08일
Specifications
PRX718XLF Spec Sheet updated: 07월 08일			938KB	07월 08일
Brochures
Portable Sound Full Line 2015 Catalog updated: 10월 22일			2.54MB	10월 22일
CAD Drawings
PRX700 2D Drawings PDF updated: 10월 22일			704KB	10월 22일
PRX700 2D Drawings CAD updated: 10월 22일			6.41MB	10월 22일
Compliances
PRX700 Declaration of Conformity updated: 10월 22일			133KB	10월 22일
User Guides
PRX700 Users Guide updated: 10월 23일			1.95MB	10월 23일
PRX700 Users Guide Spanish updated: 10월 23일			780KB	10월 23일
PRX700 Users Guide French updated: 10월 23일			898KB	10월 23일
Images

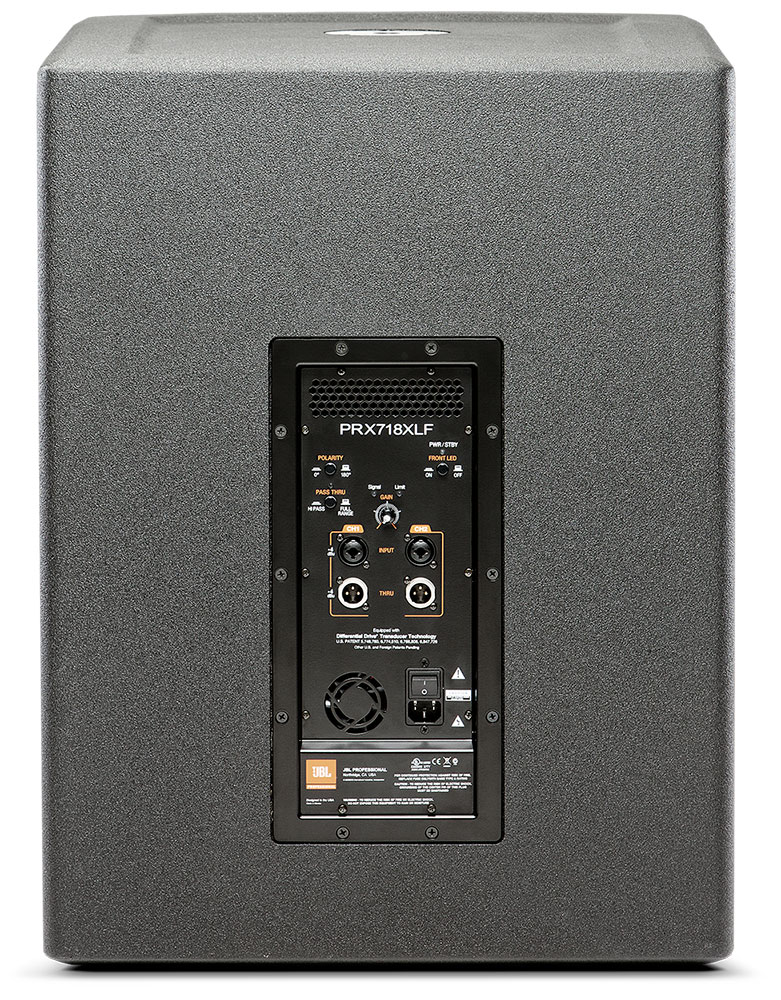

PRX718XLF Back updated: 07월 08일			295KB	07월 08일

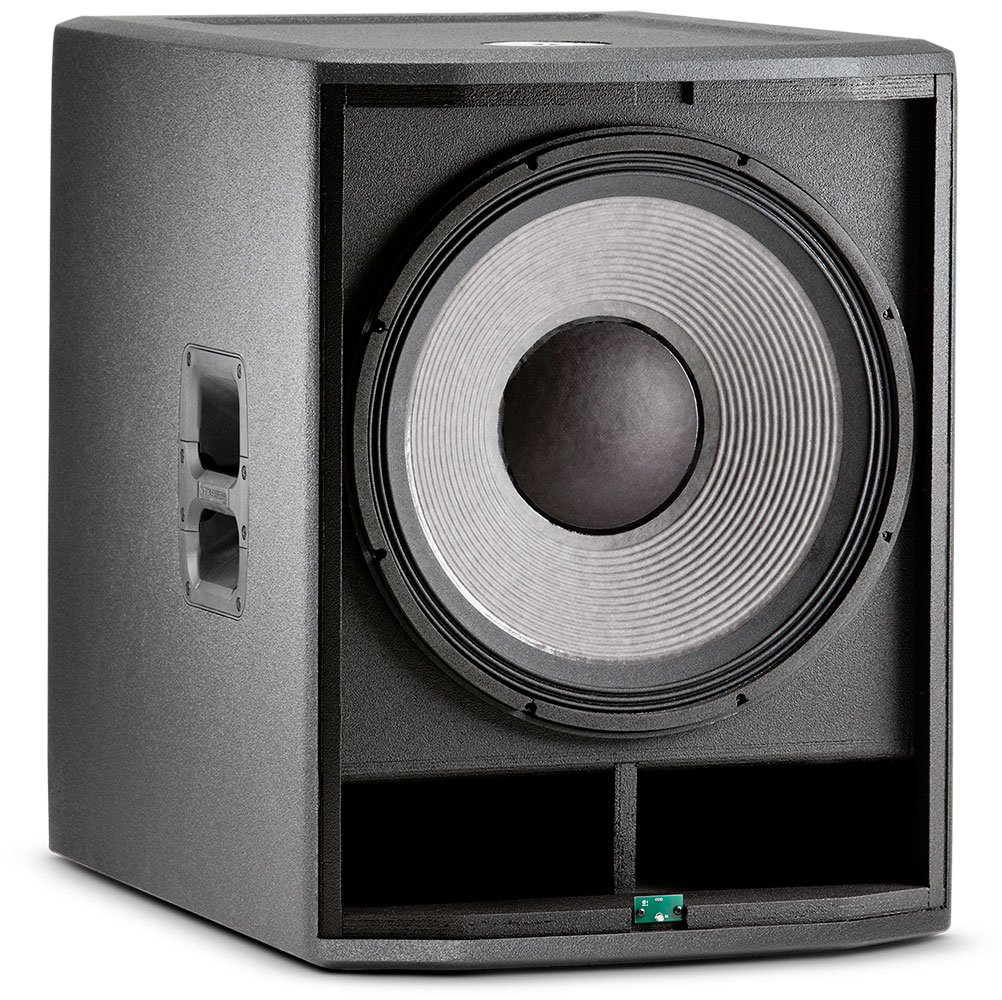

PRX718XLF Angle No Grill updated: 07월 08일			257KB	07월 08일

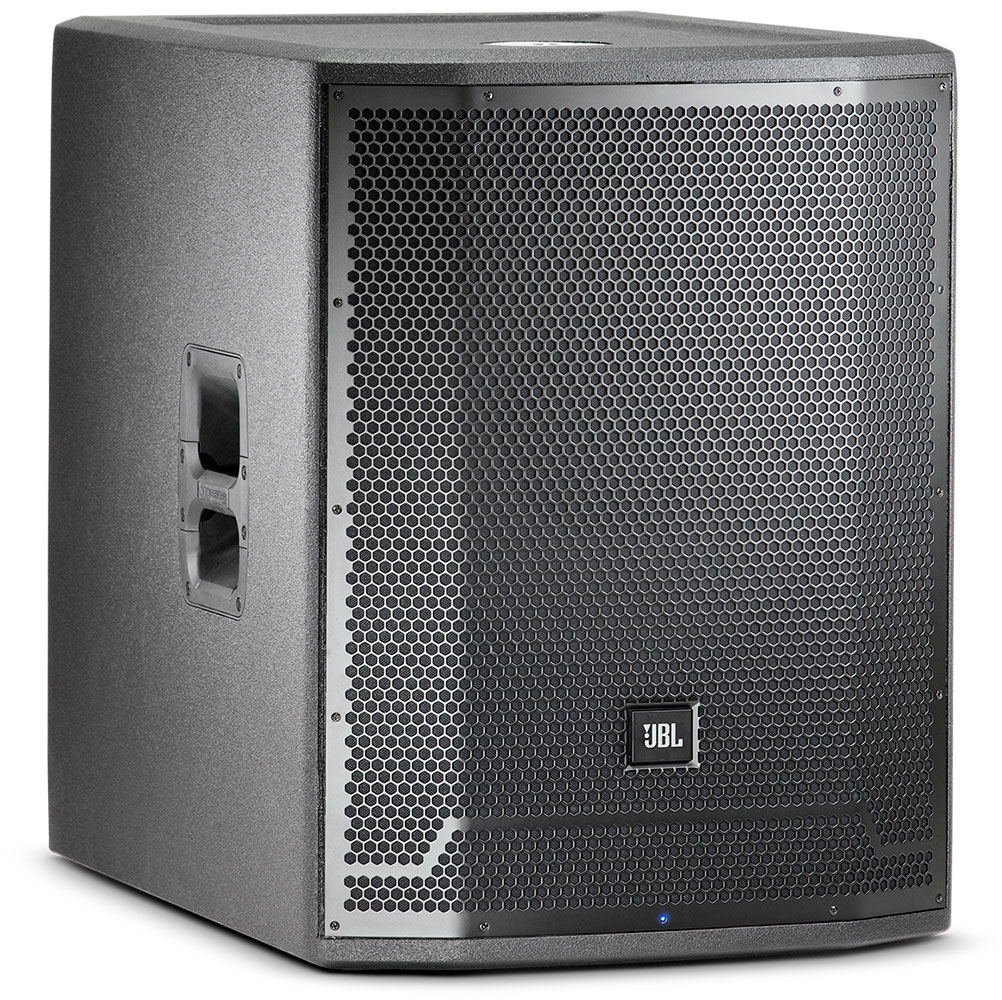

PRX718XLF Front Angle updated: 07월 08일			366KB	07월 08일
Accessories
PRX700 Users Guide German updated: 10월 23일			906KB	10월 23일

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Power Rating	1500 W
AC power input	100V - 240V~ 50/60 Hz
Frequency Range (-10dB)	30 Hz - 103 Hz
Frequency Response (±3 dB)	35 Hz – 87 Hz
Internal Crossover Frequency	100 Hz DSP controlled 48 dB filter slope
Loop out Crossover Frequency	120 Hz analog 24 dB filter slope
Maximum SPL (1m)	134 dB peak
Signal Indicators	Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input)	dbx Type IV™ limiter circuit
Input Impedance	20K Ohms (balanced)
Polarity	normal or reverse polarity
LF Driver	1 x JBL 2278H 460 mm (18 in) woofer
Enclosure	Rectangular, 18 mm, plywood
Suspension / Mounting	M20 threaded pole socket on top
Transport	2 x injection molded handles with backing cup
Finish	Obsidian DuraFlex™ finish
Grille	Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors	Two Balanced female XLR/ 1/4" combo connectors
Output Connectors	Two balanced male XLR connectors.
Dimensions (H x W x D)	690.372 mm x 523.24 mm x 723.9 mm (27.18 in x 20.60 in x 28.50 in)
Net Weight	36.8 kg (81 lb.)
