JBL Professional PRX718XLF

Imagens Grandes

18" Self-Powered Extended Low Frequency Subwoofer System

The PRX718XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with extreme efficiency and control.

Recursos

134 dB peak SPL
18" Differential Drive® low-frequency driver for low-distortion and higher SPL
Efficient Class-D amplifier technology
DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
2 x XLR-1/4" combination inputs, with 2 x XLR loop-thru
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.
Multiple handles with comfort rubber grips for easy transport
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

The PRX718XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.

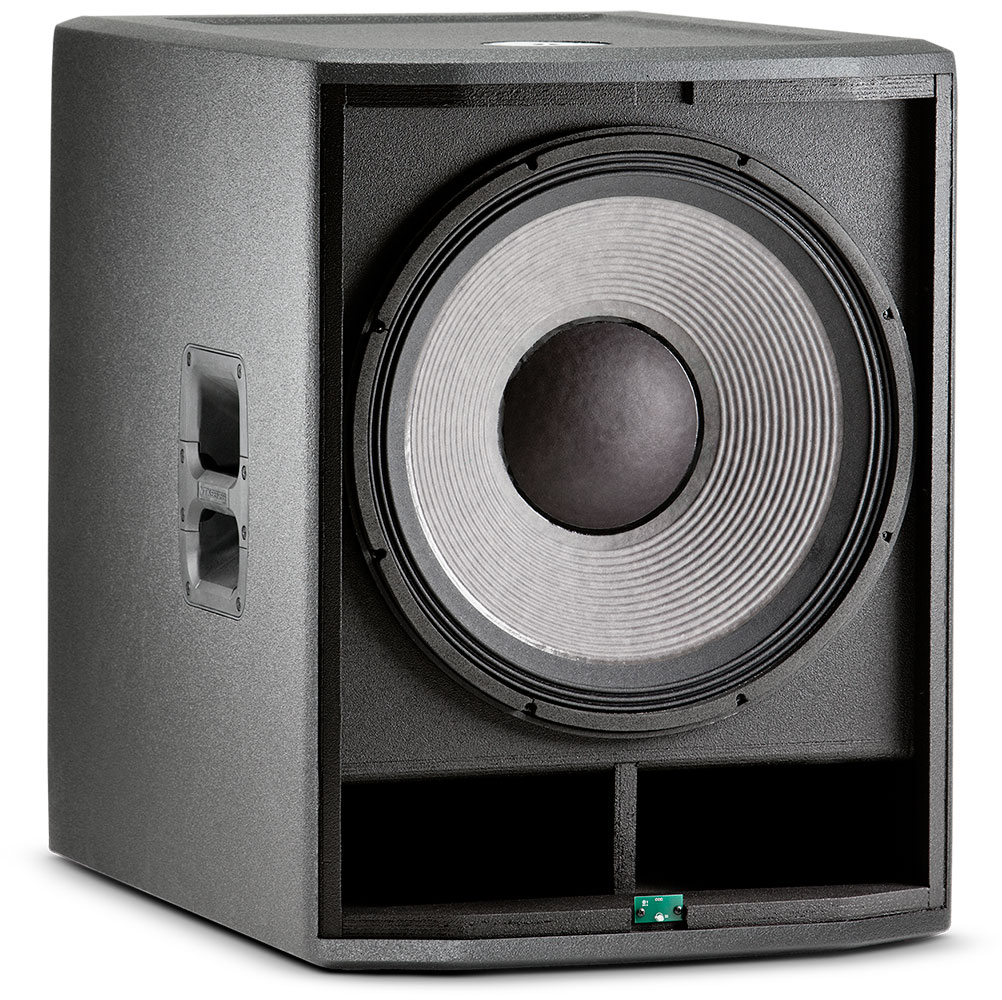

The PRX718XLF is a high performance self-powered subwoofer system. The PRX718XLF is comprised of a powerful 2278H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.

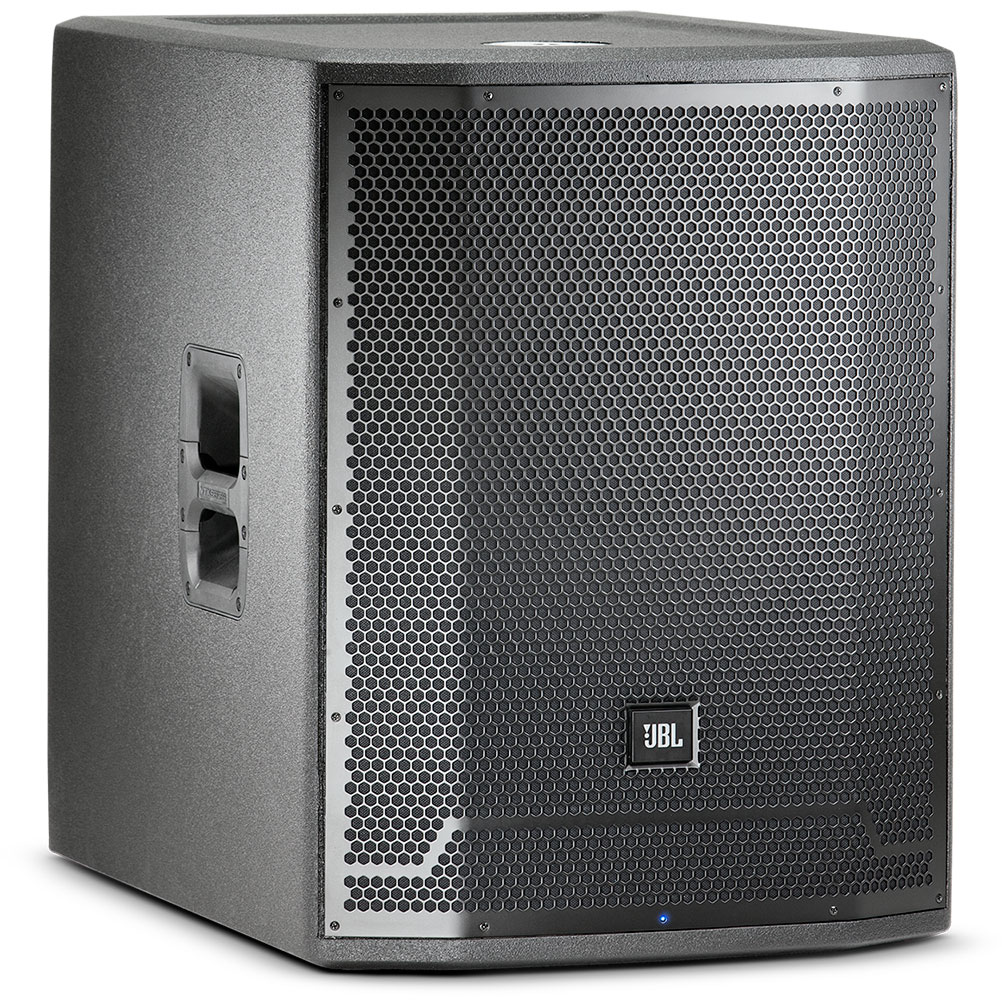

All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.

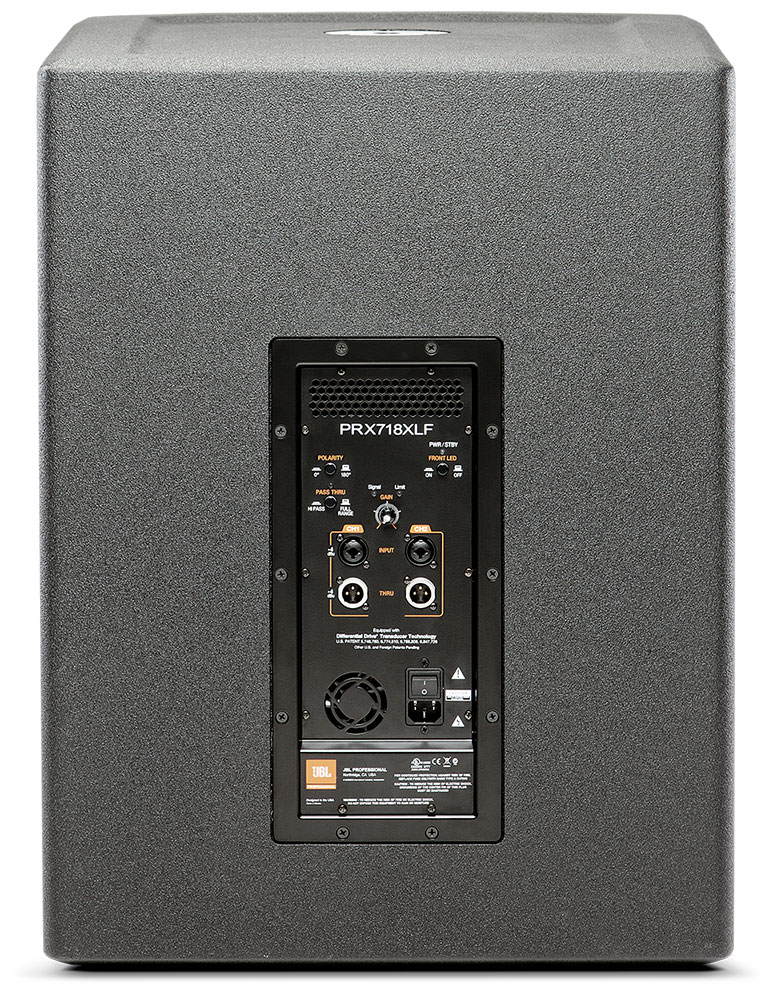

The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Downloads

Documentos

	Idioma	Tamanho	Enviado
PRX718XLF Data Sheet atualizado: abr 2026		2,46 MB	abr 2026
PRX718XLF Spec Sheet atualizado: abr 2026		938 KB	abr 2026
PRX718XLF User's Guide - English atualizado: abr 2026		1,95 MB	abr 2026
PRX718XLF User's Guide - French atualizado: abr 2026		898 KB	abr 2026
PRX718XLF User's Guide - German atualizado: abr 2026		906 KB	abr 2026
PRX718XLF User's Guide - Spanish atualizado: abr 2026		780 KB	abr 2026

Data Sheets

	Tamanho	Enviado
PRX718XLF Datasheet atualizado: jul 2019	2,46 MB	jul 2019

Specifications

	Tamanho	Enviado
PRX718XLF Spec Sheet atualizado: jul 2019	938 KB	jul 2019

Brochures

	Tamanho	Enviado
Portable Sound Full Line 2015 Catalog atualizado: out 2020	2,54 MB	out 2020

CAD Drawings

	Tamanho	Enviado
PRX700 2D Drawings PDF atualizado: out 2020	704 KB	out 2020
PRX700 2D Drawings CAD atualizado: out 2020	6,41 MB	out 2020

Compliances

	Tamanho	Enviado
PRX700 Declaration of Conformity atualizado: out 2020	133 KB	out 2020

User Guides

	Tamanho	Enviado
PRX700 Users Guide atualizado: out 2020	1,95 MB	out 2020
PRX700 Users Guide Spanish atualizado: out 2020	780 KB	out 2020
PRX700 Users Guide French atualizado: out 2020	898 KB	out 2020

Images

	Tamanho	Enviado
PRX718XLF Back atualizado: jul 2019	295 KB	jul 2019
PRX718XLF Angle No Grill atualizado: jul 2019	257 KB	jul 2019
PRX718XLF Front Angle atualizado: jul 2019	366 KB	jul 2019

Accessories

	Tamanho	Enviado
PRX700 Users Guide German atualizado: out 2020	906 KB	out 2020

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

Power Rating	1500 W
AC power input	100V - 240V~ 50/60 Hz
Frequency Range (-10dB)	30 Hz - 103 Hz
RESPOSTA EM FREQUÊNCIA (±3 dB)	35 Hz – 87 Hz
Internal Crossover Frequency	100 Hz DSP controlled 48 dB filter slope
Loop out Crossover Frequency	120 Hz analog 24 dB filter slope
Maximum SPL (1m)	134 dB peak
Signal Indicators	Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input)	dbx Type IV™ limiter circuit
Impedância de Entrada	20K Ohms (balanced)
Polarity	normal or reverse polarity
LF Driver	1 x JBL 2278H 460 mm (18 in) woofer
Enclosure	Rectangular, 18 mm, plywood
Suspension / Mounting	M20 threaded pole socket on top
Transport	2 x injection molded handles with backing cup
Acabamento	Obsidian DuraFlex™ finish
Grille	Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
CONEXÕES DE ENTRADA	Two Balanced female XLR/ 1/4" combo connectors
Conectores de Saída	Two balanced male XLR connectors.
DIMENSÕES (AxLxP)	690.372 mm x 523.24 mm x 723.9 mm (27.18 in x 20.60 in x 28.50 in)
PESO LÍQUIDO	36.8 kg (81 lb.)
