PRX718XLF (discontinued)

18" Self-Powered Extended Low Frequency Subwoofer System

PRX718XLF
Larger Images

18" Self-Powered Extended Low Frequency Subwoofer System

The PRX718XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with extreme efficiency and control.

Fitur

  • 134 dB peak SPL
  • 18" Differential Drive® low-frequency driver for low-distortion and higher SPL
  • Efficient Class-D amplifier technology
  • DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
  • Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
  • 2 x XLR-1/4" combination inputs, with 2 x XLR loop-thru
  • • 20 mm threaded pole socket for solid, secure satellite speaker mounting.
  • Multiple handles with comfort rubber grips for easy transport
  • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
  • Cloth backed, dent-resistant 16 gauge steel grilles
  • The PRX718XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
  • The PRX718XLF is a high performance self-powered subwoofer system. The PRX718XLF is comprised of a powerful 2278H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
  • All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
  • The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Downloads

  Version Language Size Uploaded
file type icon PRX718XLF Data Sheet
en updated: Mar 2024
  en  2,46 MB Mar 2024
file type icon PRX718XLF Spec Sheet
en updated: Mar 2024
  en  938 KB Mar 2024
file type icon PRX718XLF User's Guide - English
en updated: Mar 2024
  en  1,95 MB Mar 2024
file type icon PRX718XLF User's Guide - French
fr updated: Mar 2024
  fr  898 KB Mar 2024
file type icon PRX718XLF User's Guide - German
de updated: Mar 2024
  de  906 KB Mar 2024
file type icon PRX718XLF User's Guide - Spanish
es updated: Mar 2024
  es  780 KB Mar 2024
Data Sheets
file type icon PRX718XLF Datasheet
updated: Jul 2019
    2,46 MB Jul 2019
Specifications
file type icon PRX718XLF Spec Sheet
updated: Jul 2019
    938 KB Jul 2019
Brochures
file type icon Portable Sound Full Line 2015 Catalog
updated: Okt 2020
    2,54 MB Okt 2020
CAD Drawings
file type icon PRX700 2D Drawings PDF
updated: Okt 2020
    704 KB Okt 2020
file type icon PRX700 2D Drawings CAD
updated: Okt 2020
    6,41 MB Okt 2020
Compliances
file type icon PRX700 Declaration of Conformity
updated: Okt 2020
    133 KB Okt 2020
User Guides
file type icon PRX700 Users Guide
updated: Okt 2020
    1,95 MB Okt 2020
file type icon PRX700 Users Guide Spanish
updated: Okt 2020
    780 KB Okt 2020
file type icon PRX700 Users Guide French
updated: Okt 2020
    898 KB Okt 2020
Images

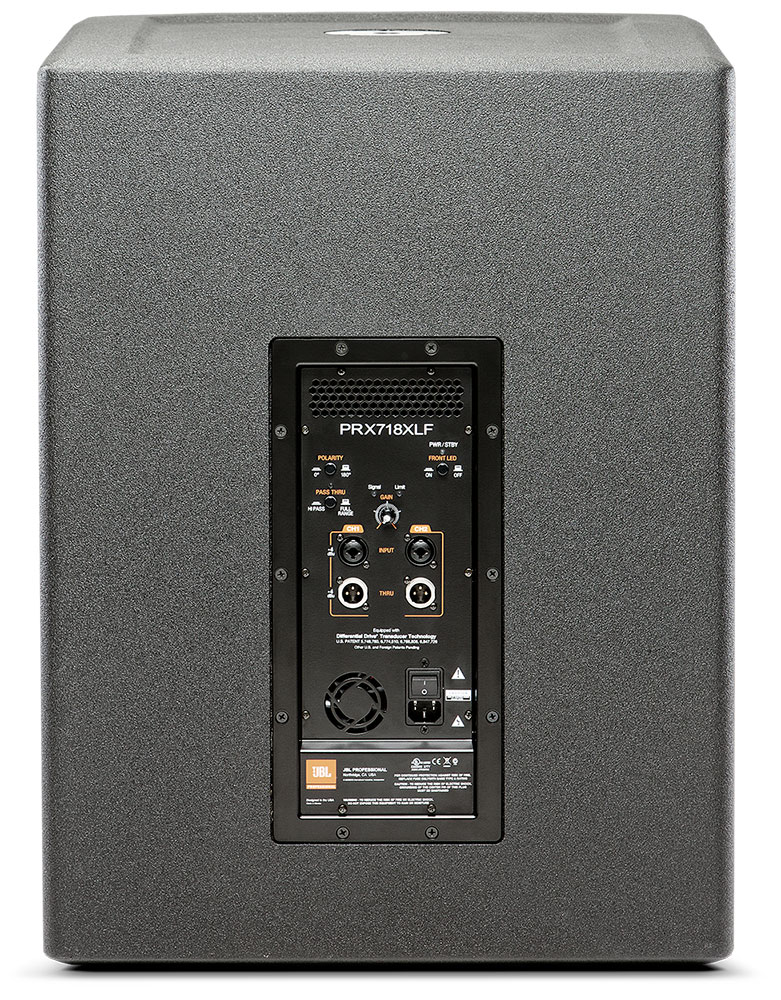

file type icon PRX718XLF Back
updated: Jul 2019
    295 KB Jul 2019

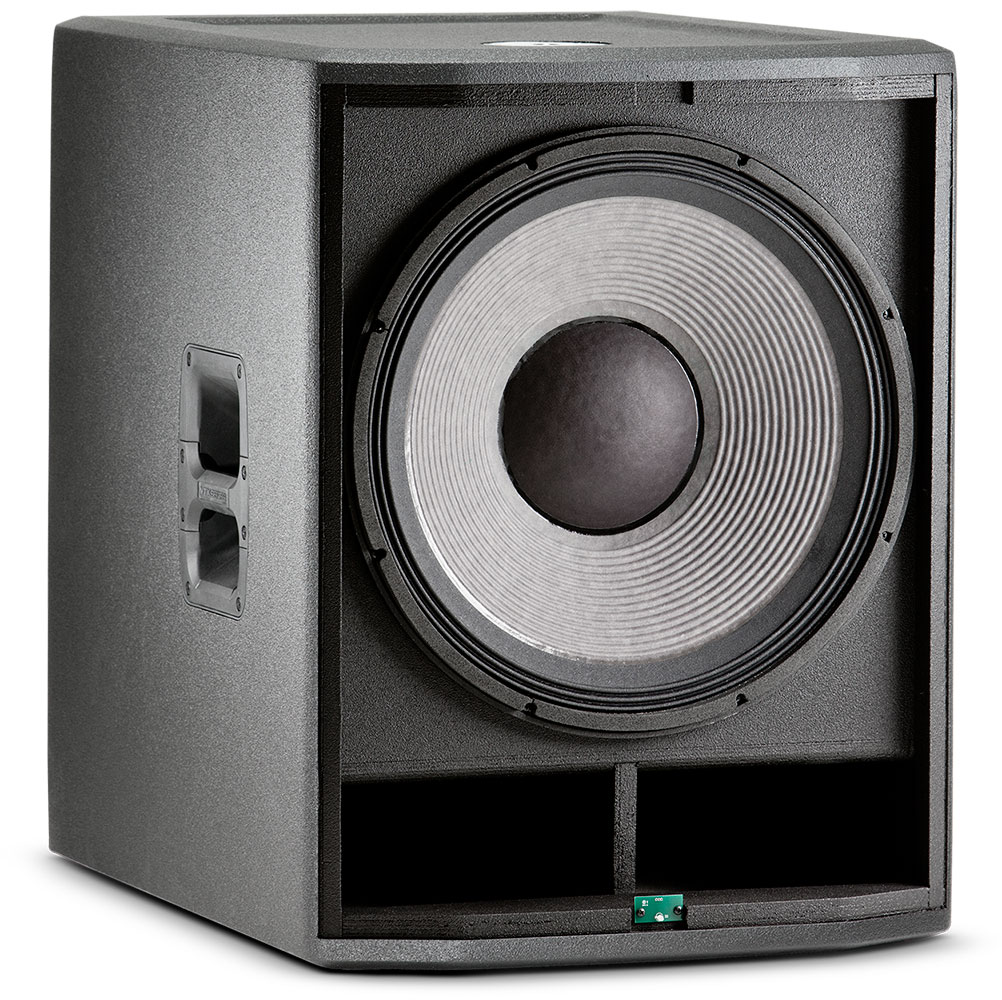

file type icon PRX718XLF Angle No Grill
updated: Jul 2019
    257 KB Jul 2019

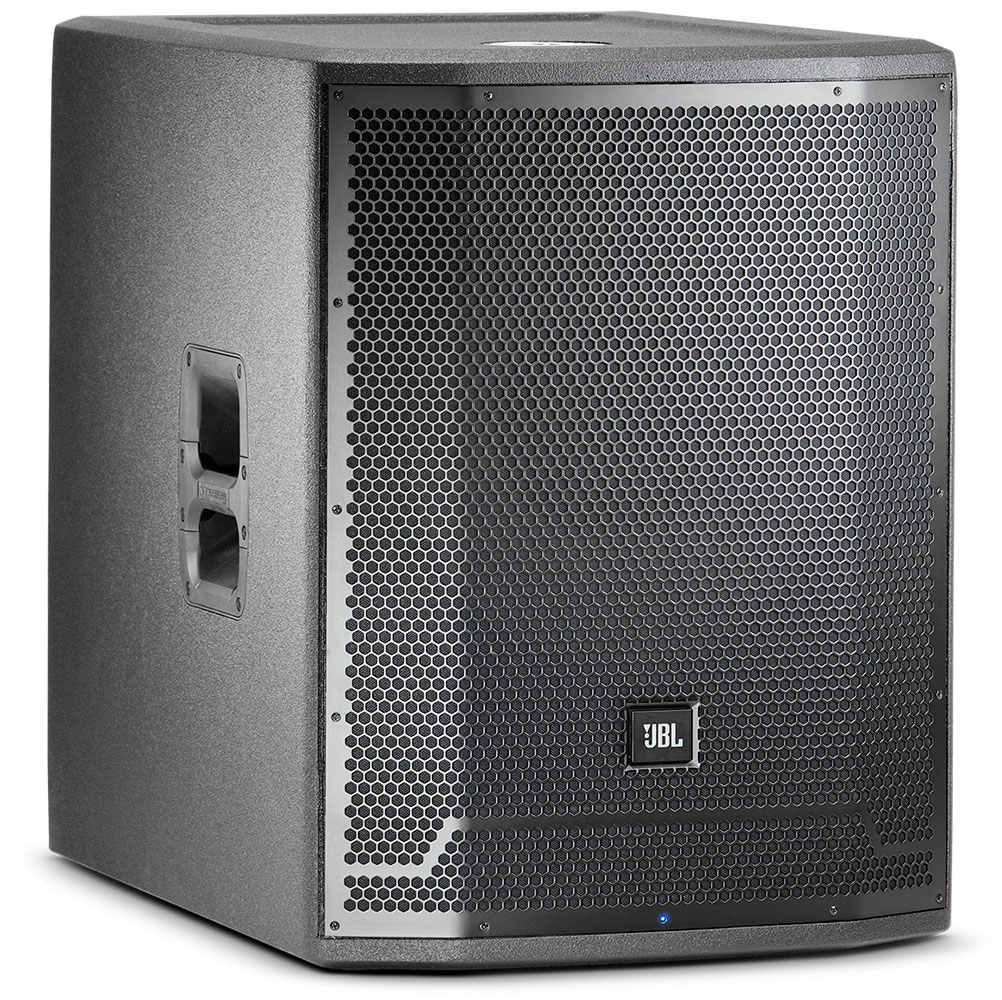

file type icon PRX718XLF Front Angle
updated: Jul 2019
    366 KB Jul 2019
Accessories
file type icon PRX700 Users Guide German
updated: Okt 2020
    906 KB Okt 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Power Rating 1500 W
AC power input 100V - 240V~ 50/60 Hz
Frequency Range (-10dB) 30 Hz - 103 Hz
Frequency Response (±3 dB) 35 Hz – 87 Hz
Internal Crossover Frequency 100 Hz DSP controlled 48 dB filter slope
Loop out Crossover Frequency 120 Hz analog 24 dB filter slope
Maximum SPL (1m) 134 dB peak
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input) dbx Type IV™ limiter circuit
Input Impedance 20K Ohms (balanced)
Polarity normal or reverse polarity
LF Driver 1 x JBL 2278H 460 mm (18 in) woofer
Enclosure Rectangular, 18 mm, plywood
Suspension / Mounting M20 threaded pole socket on top
Transport 2 x injection molded handles with backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors Two Balanced female XLR/ 1/4" combo connectors
Output Connectors Two balanced male XLR connectors.
Dimensions (H x W x D) 690.372 mm x 523.24 mm x 723.9 mm (27.18 in x 20.60 in x 28.50 in)
Net Weight 36.8 kg (81 lb.)
