JBL Professional PRX718XLF

Hình ảnh lớn hơn

18" Self-Powered Extended Low Frequency Subwoofer System

The PRX718XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with extreme efficiency and control.

Tính năng

134 dB peak SPL
18" Differential Drive® low-frequency driver for low-distortion and higher SPL
Efficient Class-D amplifier technology
DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
2 x XLR-1/4" combination inputs, with 2 x XLR loop-thru
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.
Multiple handles with comfort rubber grips for easy transport
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

The PRX718XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
The PRX718XLF is a high performance self-powered subwoofer system. The PRX718XLF is comprised of a powerful 2278H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Tải xuống

Tài liệu

	Ngôn ngữ	Kích thước	Đã tải lên
PRX718XLF Data Sheet cập nhật: Thg 4 2026		2 MB	Thg 4 2026
PRX718XLF Spec Sheet cập nhật: Thg 4 2026		900 KB	Thg 4 2026
PRX718XLF User's Guide - English cập nhật: Thg 4 2026		2 MB	Thg 4 2026
PRX718XLF User's Guide - French cập nhật: Thg 4 2026		900 KB	Thg 4 2026
PRX718XLF User's Guide - German cập nhật: Thg 4 2026		900 KB	Thg 4 2026
PRX718XLF User's Guide - Spanish cập nhật: Thg 4 2026		800 KB	Thg 4 2026

Data Sheets

	Kích thước	Đã tải lên
PRX718XLF Datasheet cập nhật: Thg 7 2019	2 MB	Thg 7 2019

Specifications

	Kích thước	Đã tải lên
PRX718XLF Spec Sheet cập nhật: Thg 7 2019	900 KB	Thg 7 2019

Brochures

	Kích thước	Đã tải lên
Portable Sound Full Line 2015 Catalog cập nhật: Thg 10 2020	3 MB	Thg 10 2020

CAD Drawings

	Kích thước	Đã tải lên
PRX700 2D Drawings PDF cập nhật: Thg 10 2020	700 KB	Thg 10 2020
PRX700 2D Drawings CAD cập nhật: Thg 10 2020	6 MB	Thg 10 2020

Compliances

	Kích thước	Đã tải lên
PRX700 Declaration of Conformity cập nhật: Thg 10 2020	100 KB	Thg 10 2020

User Guides

	Kích thước	Đã tải lên
PRX700 Users Guide cập nhật: Thg 10 2020	2 MB	Thg 10 2020
PRX700 Users Guide Spanish cập nhật: Thg 10 2020	800 KB	Thg 10 2020
PRX700 Users Guide French cập nhật: Thg 10 2020	900 KB	Thg 10 2020

Images

	Kích thước	Đã tải lên

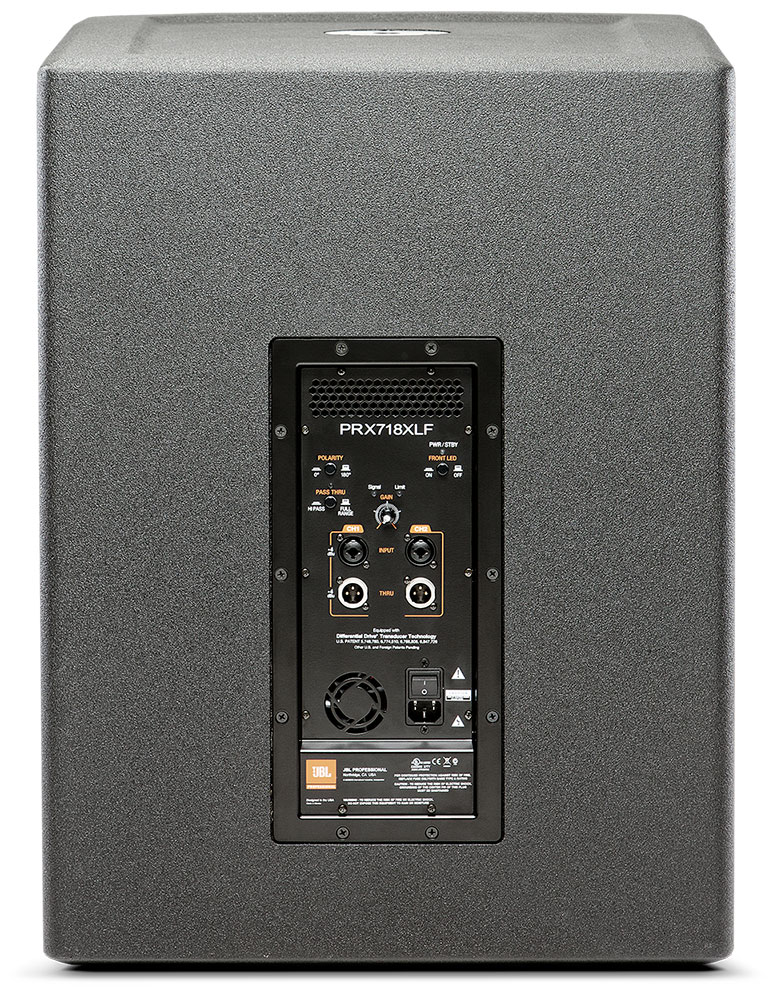

PRX718XLF Back cập nhật: Thg 7 2019	300 KB	Thg 7 2019

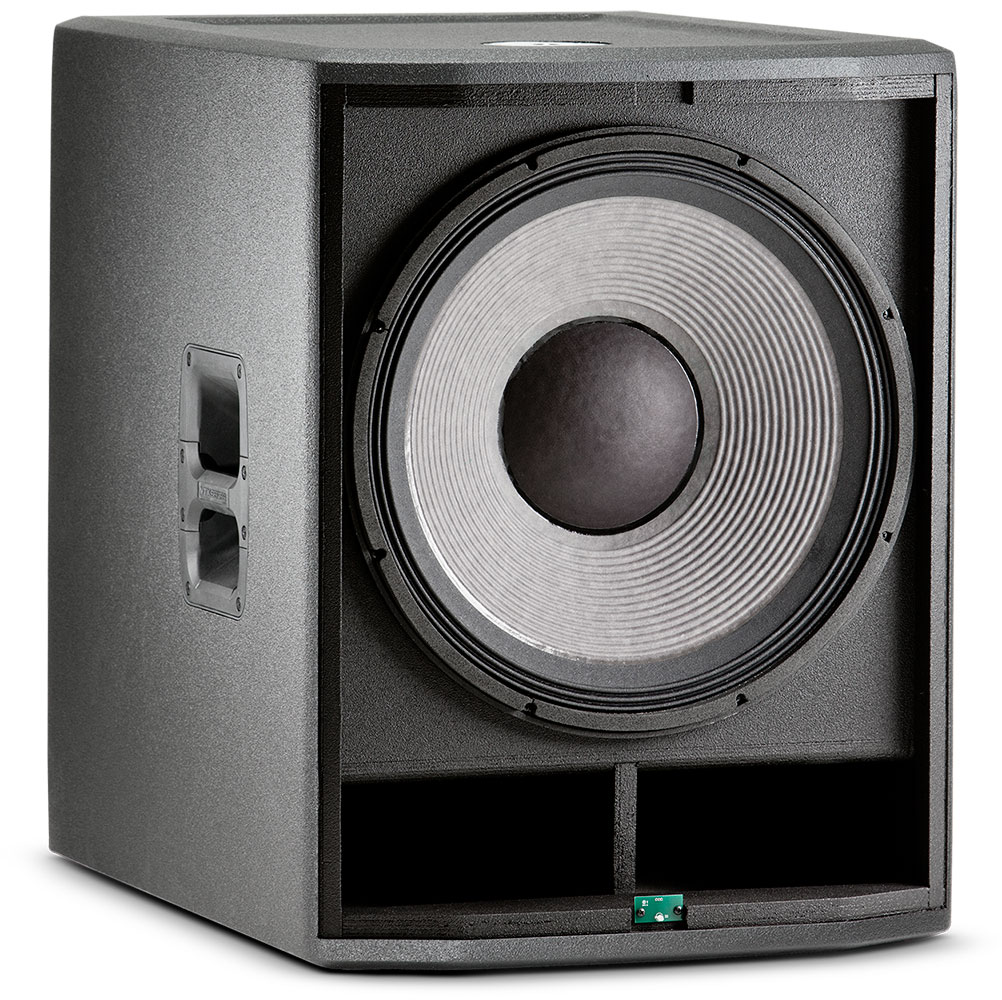

PRX718XLF Angle No Grill cập nhật: Thg 7 2019	300 KB	Thg 7 2019

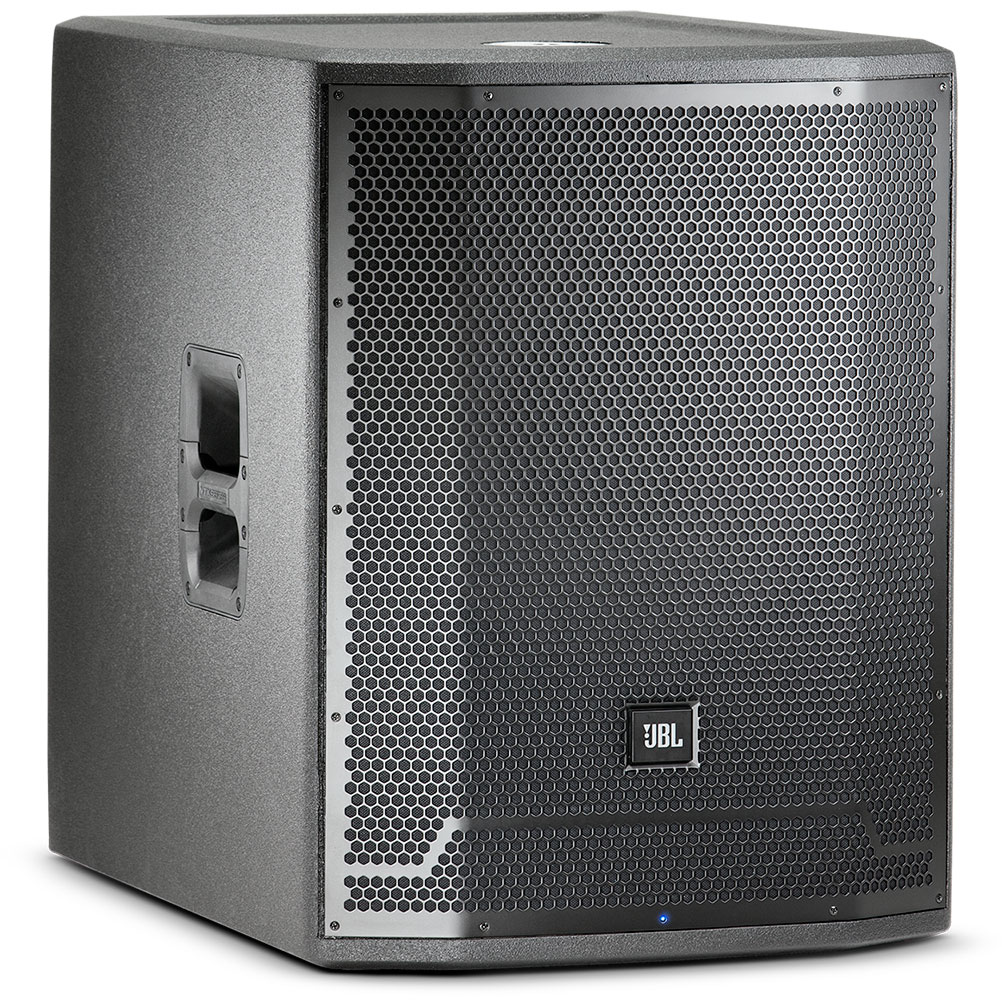

PRX718XLF Front Angle cập nhật: Thg 7 2019	400 KB	Thg 7 2019

Accessories

	Kích thước	Đã tải lên
PRX700 Users Guide German cập nhật: Thg 10 2020	900 KB	Thg 10 2020

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Phụ tùng & Dịch vụ

Thông số kỹ thuật

Power Rating	1500 W
AC power input	100V - 240V~ 50/60 Hz
Frequency Range (-10dB)	30 Hz - 103 Hz
Frequency Response (±3 dB)	35 Hz – 87 Hz
Internal Crossover Frequency	100 Hz DSP controlled 48 dB filter slope
Loop out Crossover Frequency	120 Hz analog 24 dB filter slope
Maximum SPL (1m)	134 dB peak
Signal Indicators	Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input)	dbx Type IV™ limiter circuit
Input Impedance	20K Ohms (balanced)
Polarity	normal or reverse polarity
LF Driver	1 x JBL 2278H 460 mm (18 in) woofer
Enclosure	Rectangular, 18 mm, plywood
Suspension / Mounting	M20 threaded pole socket on top
Transport	2 x injection molded handles with backing cup
Finish	Obsidian DuraFlex™ finish
Grille	Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors	Two Balanced female XLR/ 1/4" combo connectors
Output Connectors	Two balanced male XLR connectors.
Dimensions (H x W x D)	690.372 mm x 523.24 mm x 723.9 mm (27.18 in x 20.60 in x 28.50 in)
Net Weight	36.8 kg (81 lb.)
