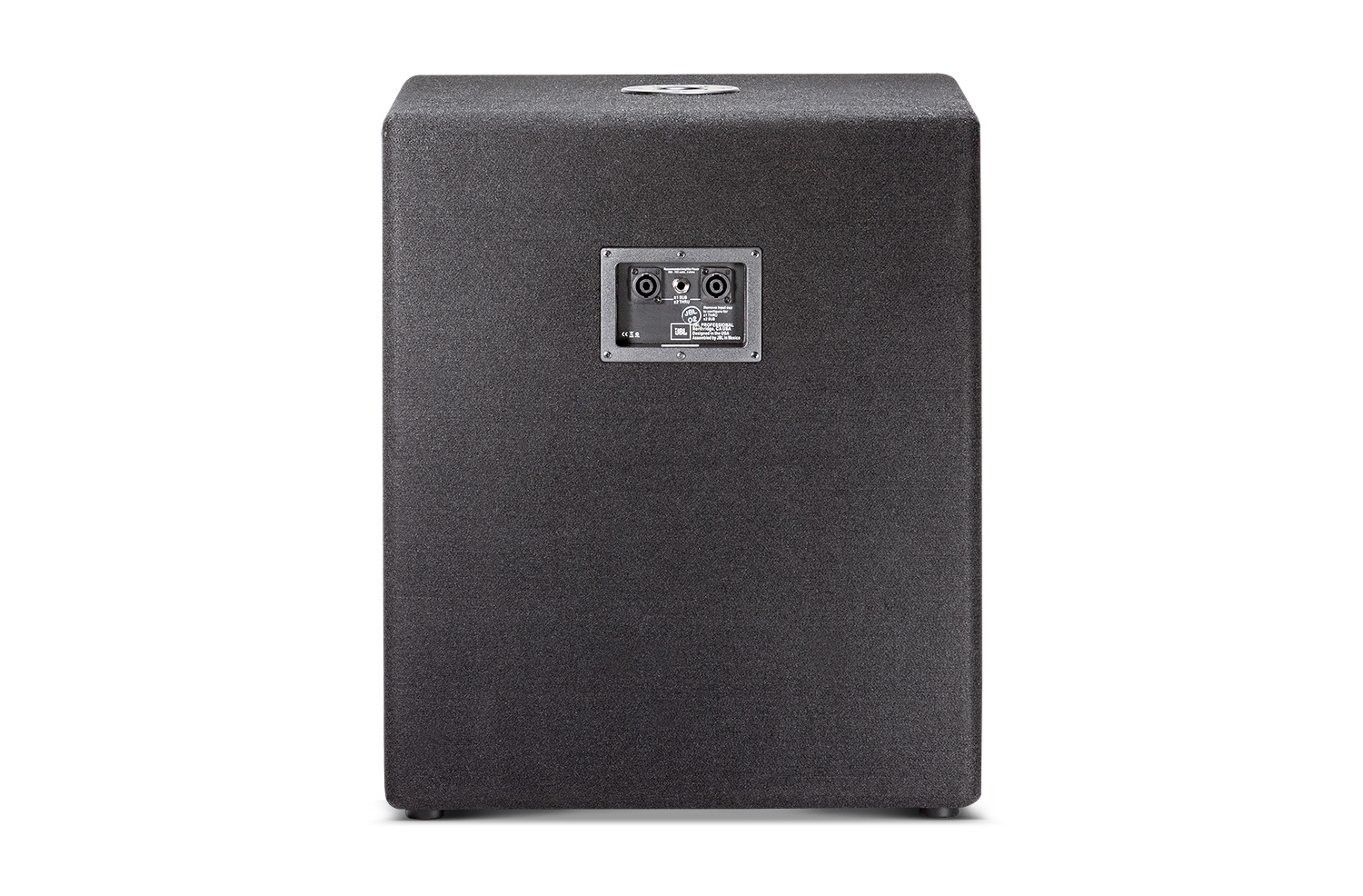

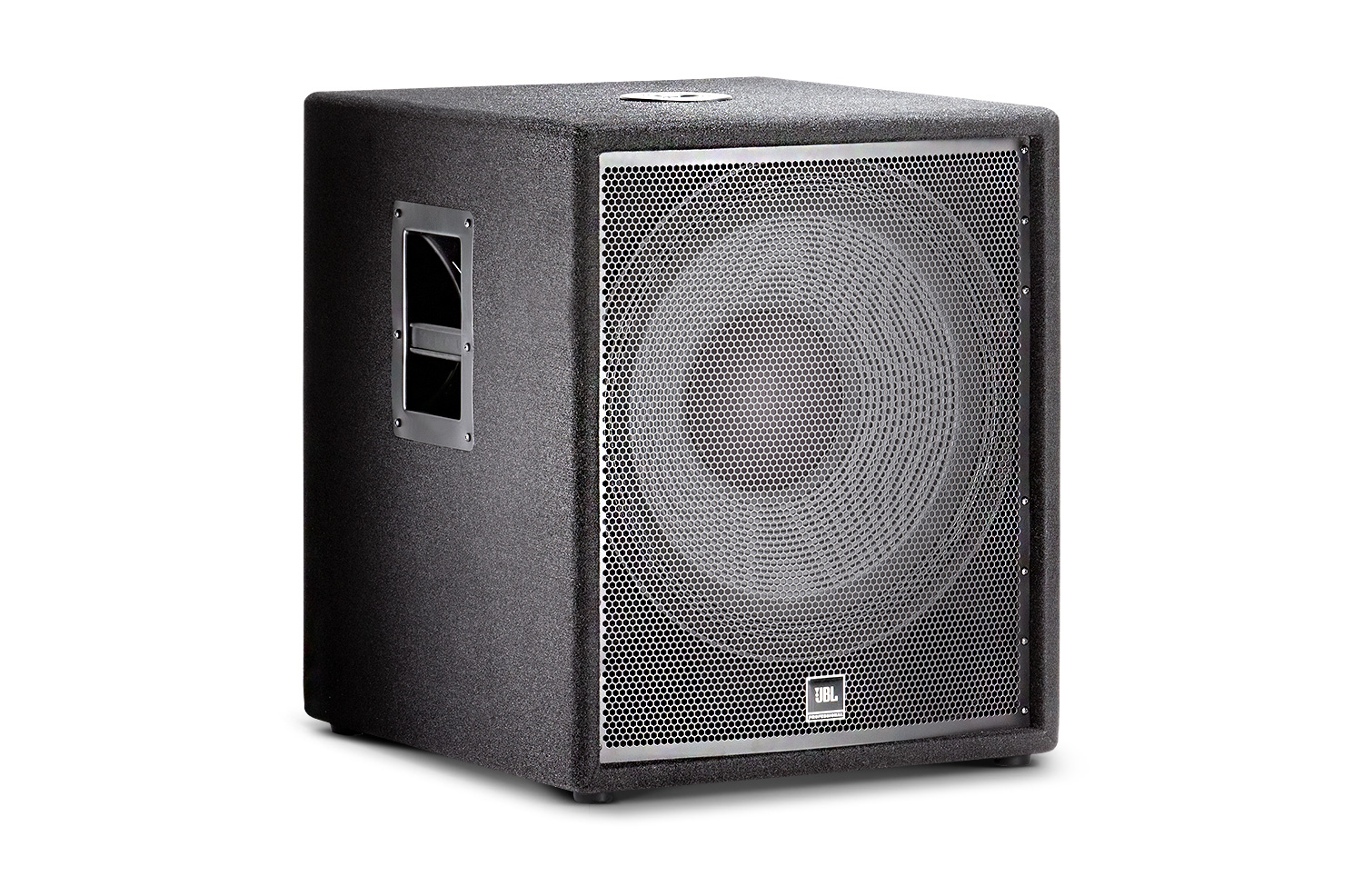

18" Compact Subwoofer
The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.
Immagini più grandi
Caratteristiche
- Subwoofer compatto da 18 pollici.
- Capacità di potenza: 350 W (continua), 1400 W (picco).
- L'enclosure robusto è costruito in MDF (Medium Density Fiberboard) da 19 mm (0,75 pollici) utilizzando adesivi avanzati e tecnologia di fissaggio meccanico per durabilità e prestazioni migliorate alle basse frequenze. L'enclosure è rivestito in moquette nera.
- Un raccordo per asta in alluminio fuso da 35 mm montato sulla parte superiore può accogliere un'asta opzionale SS3BK per facilitare l'uso del JRX218S come base per un cabinet mid-high.
- Maniglie completamente in acciaio antisonore.
- Una griglia in acciaio perforato da 18 gauge attraente protegge i componenti dai danni.
Download
Specifications
| Dimensione | |
|
|
298 KB |
Brochures
| Dimensione | |
|
|
2,54 MB |
|
|
8,45 MB |
versione B,
aggiornato: ago 2025
Compliances
| Dimensione | |
|
|
119 KB |
Images
| Dimensione | |
|
|
479 KB |
|
|
316 KB |
Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.
Parti e assistenza
Specifiche
| Power Rating | 350 W / 1400 W |
| Frequency Range (-10dB) | 34 Hz - 250 Hz |
| Frequency Response (±3 dB) | 53 Hz - 250 Hz |
| Sensitivity (@1m) | 98 dB SPL |
| Nominal Impedence | 4 ohms |
| Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
| Net Weight | 32.2 kg (71 lb) |
| LF Driver | M118-4 |
| Inputs | Neutrik® Speakon® NL-4 (x2); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
Accessori
JRX218S-CVR-CX | Custodia Convertibile per JRX218S
Immagini più grandi
Copertura convertibile per JRX218S. Consente la piena funzionalità dell'altoparlante anche all'interno della copertura protettiva. La copertura anteriore si apre per rivelare gli altoparlanti, con accesso completo agli ingressi posteriori e ai manici di trasporto.
JBL-SUB-18T | Rolling Sub Transporter Bag for JBL 18" Sub
Immagini più grandi
Padded Sub Transporter. Water Resistant Black Nylon, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters. Fits EON518S, JRX118S, JRX118SP, PRX518S.
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Immagini più grandi
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Documentazione
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36,2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30,5 KB]
-
JBL Tripod Gas Assist Open
[41,7 KB]
-
JBL Tripod Manual Adjust Open
[39,5 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Immagini più grandi
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Documentazione
-
JBLTRIPOD-MA Data Sheet
[228 KB]
JBLPOLE-GA | JBL Gas Assist Speaker Pole
Immagini più grandi
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Documentazione
-
JBL pole Gas Assist
[41,6 KB]
-
JBL pole Gas Assist detail
[70,2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Immagini più grandi
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Documentazione
-
JBLPOLE-MA Data Sheet
[258 KB]
-
JBL pole Manual Adjust
[40,7 KB]
-
JBL pole Manual Adjust Detail
[87,7 KB]
