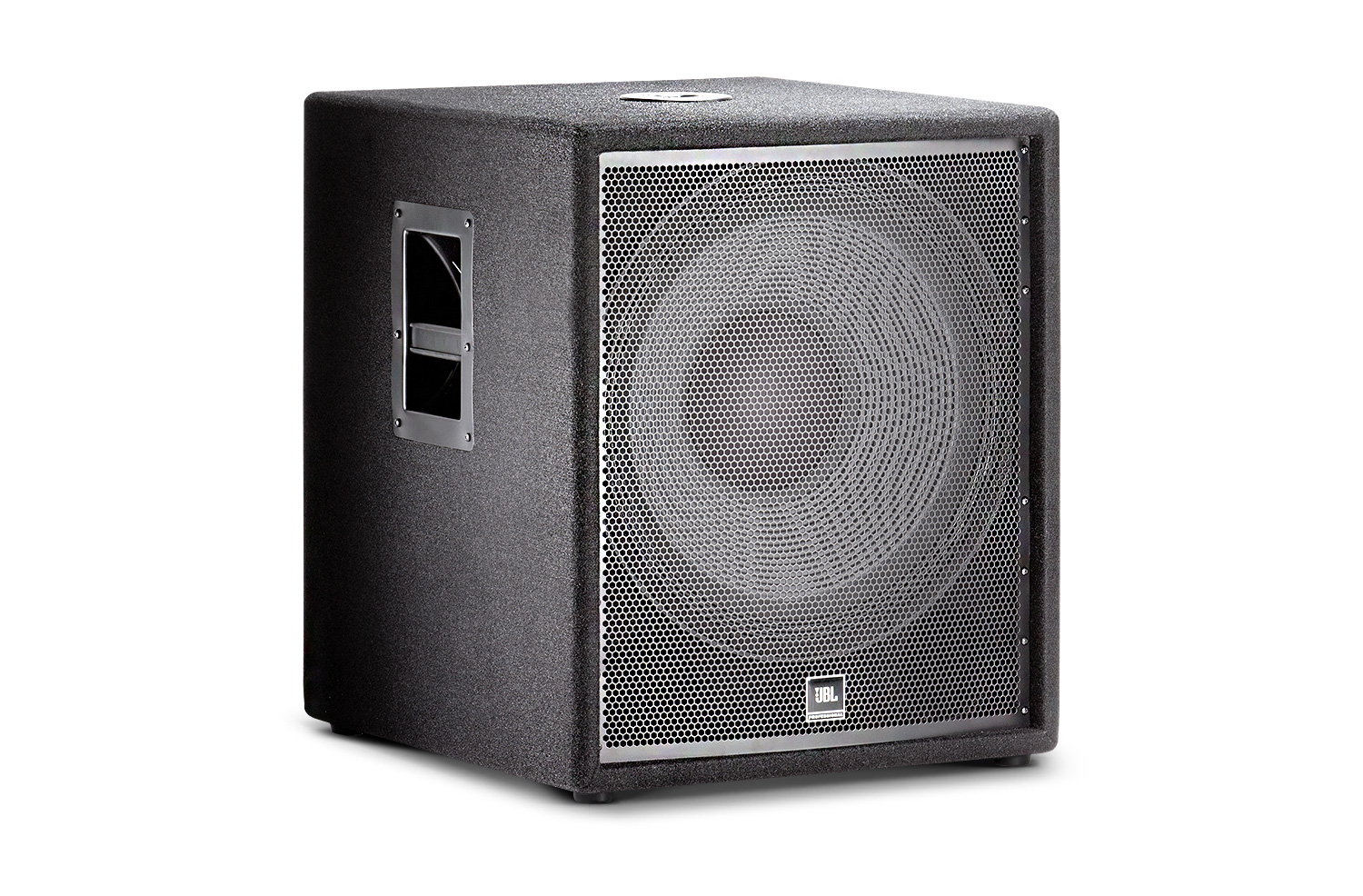

ស៊ុបវូហ្វ័រខូនប៉ាក់ 18"
JRX218S ត្រូវបានដំណើរការដោយវូហ្វ័របាស JBL 18" ដ៏មានឥទ្ធិពល ដែលបំពាក់ដោយស៊ុមចាក់ពីលោហធាតុ និងកង់វង់សំឡេង (voice coil) ទំហំ 3"។
រូបភាពធំជាង
លក្ខណៈពិសេស
- 18 in. compact subwoofer.
- 350 W (continuous), 1400 W (peak) power capacity.
- The rugged enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet.
- A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a midhigh speaker cabinet.
- Non-resonant, all steel handles are used.
- Attractive 18-gauge perforated steel grille protects components from damage.
ការទាញយក
Specifications
| ទំហំ | |
|
|
298 KB |
Brochures
| ទំហំ | |
|
|
2.54 MB |
|
|
8.45 MB |
កំណែ B,
បានធ្វើបច្ចុប្បន្នភាព: សីហា 2025
Compliances
| ទំហំ | |
|
|
119 KB |
Images
| ទំហំ | |
|
|
479 KB |
|
|
316 KB |
ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។
ផ្នែក និងសេវាកម្ម
លក្ខណៈពិសេស
| Power Rating | 350 W / 1400 W |
| Frequency Range (-10dB) | 34 Hz - 250 Hz |
| Frequency Response (±3 dB) | 53 Hz - 250 Hz |
| Sensitivity (@1m) | 98 dB SPL |
| Nominal Impedence | 4 ohms |
| Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
| Net Weight | 32.2 kg (71 lb) |
| LF Driver | M118-4 |
| Inputs | Neutrik® Speakon® NL-4 (x2); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
គ្រឿងបន្លាស់
JRX218S-CVR-CX | Convertible Cover for JRX218S
រូបភាពធំជាង
Convertible Cover for JRX218S. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
JBL-SUB-18T | Rolling Sub Transporter Bag for JBL 18" Sub
រូបភាពធំជាង
Padded Sub Transporter. Water Resistant Black Nylon, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters. Fits EON518S, JRX118S, JRX118SP, PRX518S.
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
រូបភាពធំជាង
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
ឯកសារ
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36.2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30.5 KB]
-
JBL Tripod Gas Assist Open
[41.7 KB]
-
JBL Tripod Manual Adjust Open
[39.5 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
រូបភាពធំជាង
ជើងទម្រឧបករណ៍បង្កើនសំឡេងបែបជើងបីធ្វើពីអាលុយមីញ៉ូម មានម្ជុលចាក់សោរឹងមាំ និងសមត្ថភាពផ្ទុក ១៥០ ផោន។ ដើម្បីជួយអ្នកក្នុងការលើកឧបករណ៍បង្កើនសំឡេង យើងបានបន្ថែមរង្វង់លើកដ៏រឹងមាំនៅលើបំពង់អូសបញ្ចូលគ្នា ដើម្បីឱ្យដៃខាងលើរបស់អ្នកមានចំណុចសម្រាប់រុញ ពេលលើកឧបករណ៍បង្កើនសំឡេងឡើងដល់កម្ពស់ដែលចង់បាន។
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
ឯកសារ
-
JBLTRIPOD-MA Data Sheet
[228 KB]
JBLPOLE-GA | JBL Gas Assist Speaker Pole
រូបភាពធំជាង
ដងទ្រឧបករណ៍បំពងសំឡេងប្រភេទជំនួយដោយឧស្ម័ន មានចុងខាងក្រោមជាខ្សែវីស M20, ដងទំហំ 38mm និងអាដាប់ទ័រ 35mm។ JBLPOLE-GA គឺជាជើងទម្រឧបករណ៍បំពងសំឡេងដែលងាយស្រួលប្រើបំផុត ដោយសារមានប្រព័ន្ធខ្នើយឧស្ម័ន (pneumatic shock) នៅខាងក្នុង ដែលជួយលើកឧបករណ៍បំពងសំឡេងជំនួសលោកអ្នក។ ខ្នើយឧស្ម័នខាងក្នុងនេះអាចលើកឧបករណ៍បំពងសំឡេងដែលមានទម្ងន់ 35 ផោន ឬតិចជាងនេះបានយ៉ាងងាយស្រួល ដោយអ្នកប្រើប្រាស់មិនចាំបាច់ប្រើកម្លាំងឡើយ។
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
ឯកសារ
-
JBL pole Gas Assist
[41.6 KB]
-
JBL pole Gas Assist detail
[70.2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
រូបភាពធំជាង
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
ឯកសារ
-
JBLPOLE-MA Data Sheet
[258 KB]
-
JBL pole Manual Adjust
[40.7 KB]
-
JBL pole Manual Adjust Detail
[87.7 KB]
