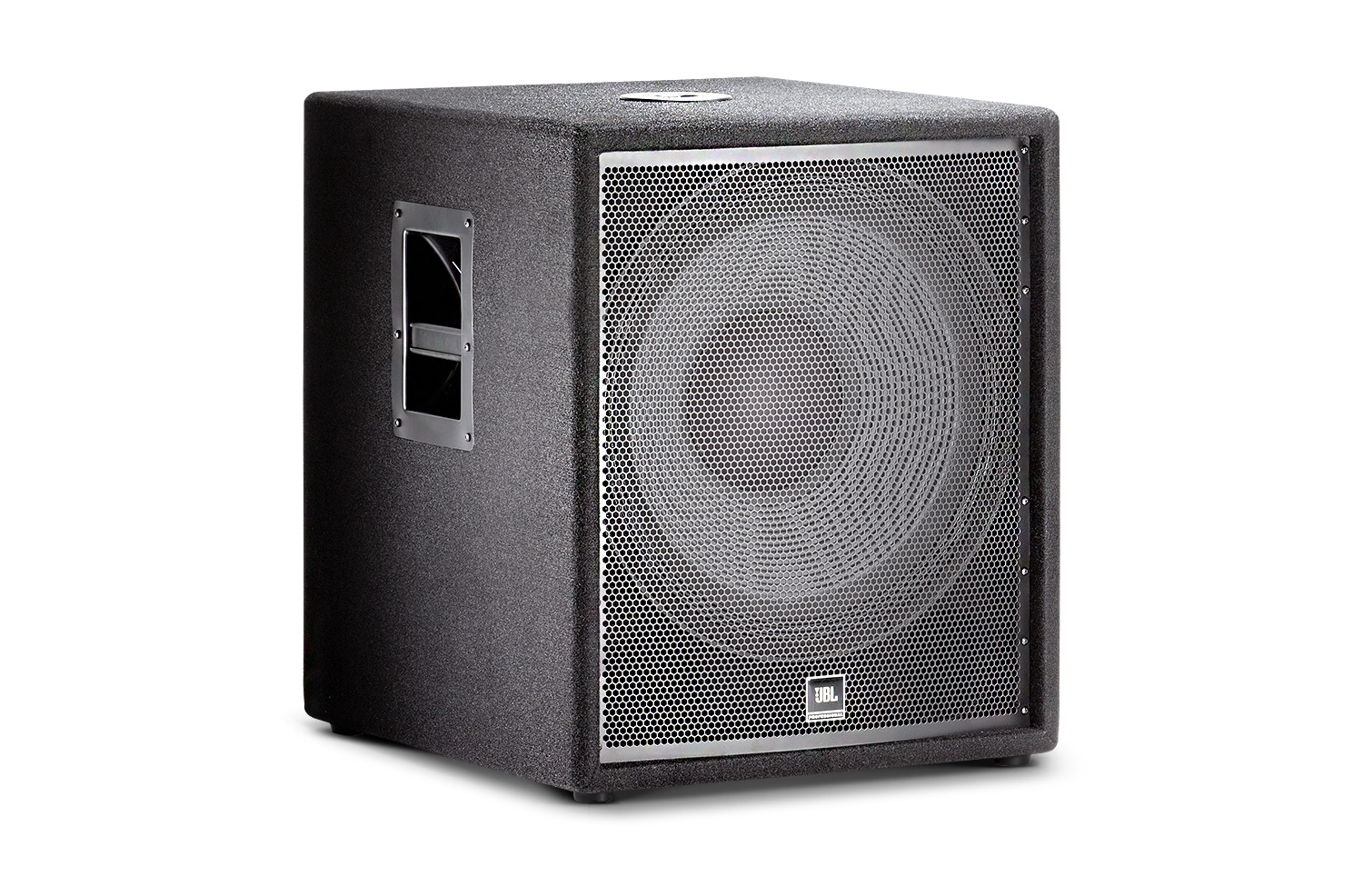

18" 컴팩트 서브우퍼
JRX218S는 주조 프레임과 3" 보이스 코일을 갖춘 대형 JBL 18" 우퍼로 구동됩니다.
JRX218S는 주조 프레임과 3" 보이스 코일을 갖춘 대형 JBL 18" 우퍼로 구동됩니다.
| 크기 | |
|
|
298KB |
| 크기 | |
|
|
2.54MB |
|
|
8.45MB |
| 크기 | |
|
|
119KB |
| 크기 | |
|
|
479KB |
|
|
316KB |
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하십시오.
| Power Rating | 350 W / 1400 W |
| Frequency Range (-10 dB) | 34 Hz - 250 Hz |
| Frequency Response (±3 dB) | 53 Hz - 250 Hz |
| Sensitivity (@1m) | 98 dB SPL |
| Nominal Impedence | 4 ohms |
| Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
| Net Weight | 32.2 kg (71 lb) |
| LF Driver | M118-4 |
| Inputs | Neutrik® Speakon® NL-4 (x2); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
JRX218S용 전환형 커버입니다. 보호 커버를 씌운 상태에서도 스피커의 모든 기능을 그대로 사용할 수 있습니다. 전면 커버를 열면 라우드스피커가 드러나며, 후면 입력 단자와 운반용 손잡이도 자유롭게 사용할 수 있습니다.
Padded Sub Transporter. Water Resistant Black Nylon, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters. Fits EON518S, JRX118S, JRX118SP, PRX518S.
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
