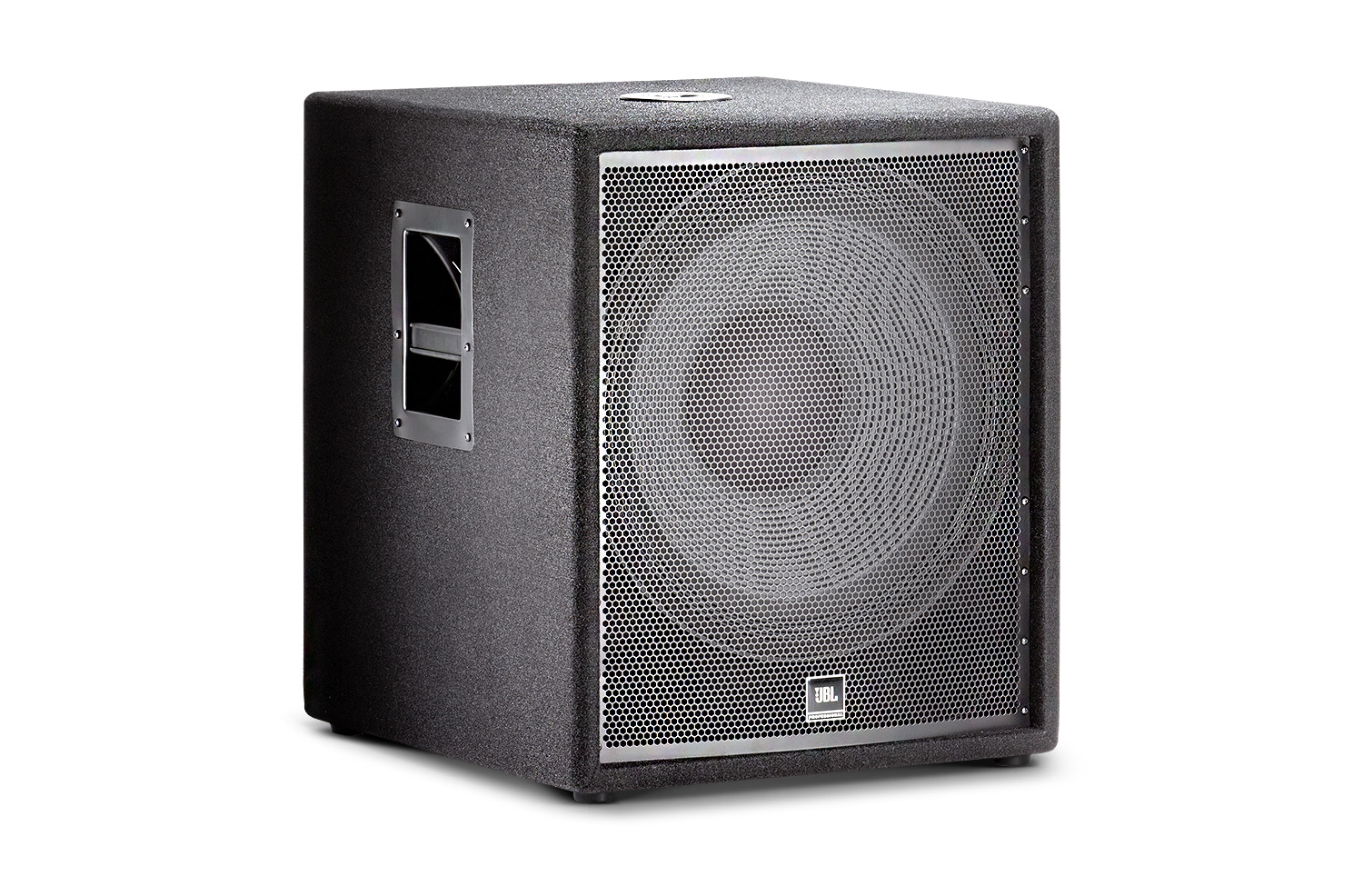

18" Compact Subwoofer
The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.
Imágenes más grandes
Características
- 18 in. compact subwoofer.
- 350 W (continuous), 1400 W (peak) power capacity.
- The rugged enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet.
- A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a midhigh speaker cabinet.
- Non-resonant, all steel handles are used.
- Attractive 18-gauge perforated steel grille protects components from damage.
Descargas
Specifications
| Tamaño | |
|
|
298 KB |
Brochures
| Tamaño | |
|
|
2,54 MB |
|
|
8,45 MB |
versión B,
actualizado: ago 2025
Compliances
| Tamaño | |
|
|
119 KB |
Images
| Tamaño | |
|
|
479 KB |
|
|
316 KB |
Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.
Piezas y servicio
Especificaciones
| Power Rating | 350 W / 1400 W |
| Frequency Range (-10dB) | 34 Hz - 250 Hz |
| RESPUESTA DE FRECUENCIA (±3 dB) | 53 Hz - 250 Hz |
| Sensitivity (@1m) | 98 dB SPL |
| Nominal Impedence | 4 ohms |
| Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
| PESO NETO | 32.2 kg (71 lb) |
| LF Driver | M118-4 |

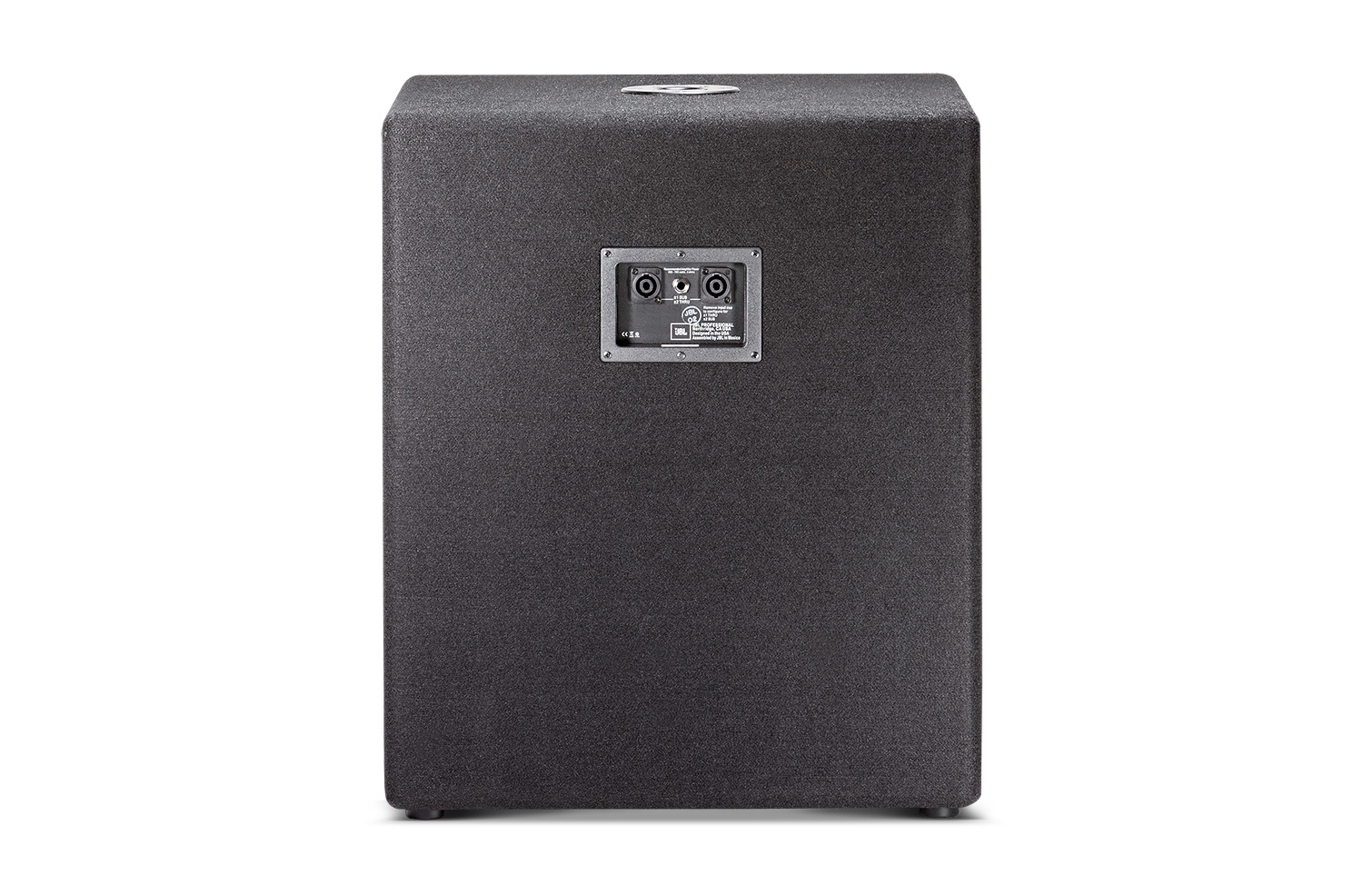

| Inputs | Neutrik® Speakon® NL-4 (x2); parallel |
| Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
Accesorios
JRX218S-CVR-CX | Funda Convertible para JRX218S
Imágenes más grandes
Convertible Cover for JRX218S. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
JBL-SUB-18T | Rolling Sub Transporter Bag for JBL 18" Sub
Imágenes más grandes
Transportador de Subwoofer Acolchado. Nylon Negro Resistente al Agua, Protector de Parrilla de Polietileno, Bolsillo Grande para Accesorios, Asas de Levantamiento Exteriores, Plataforma de Ruedas Integrada con (4) Ruedas Giratorias. Compatible con EON518S, JRX118S, JRX118SP, PRX518S.
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Imágenes más grandes
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Documentación
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36,2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30,5 KB]
-
JBL Tripod Gas Assist Open
[41,7 KB]
-
JBL Tripod Manual Adjust Open
[39,5 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Imágenes más grandes
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Documentación
-
JBLTRIPOD-MA Data Sheet
[228 KB]
JBLPOLE-GA | JBL Gas Assist Speaker Pole
Imágenes más grandes
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Documentación
-
JBL pole Gas Assist
[41,6 KB]
-
JBL pole Gas Assist detail
[70,2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Imágenes más grandes
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Documentación
-
JBLPOLE-MA Data Sheet
[258 KB]
-
JBL pole Manual Adjust
[40,7 KB]
-
JBL pole Manual Adjust Detail
[87,7 KB]
