18" Compact Subwoofer

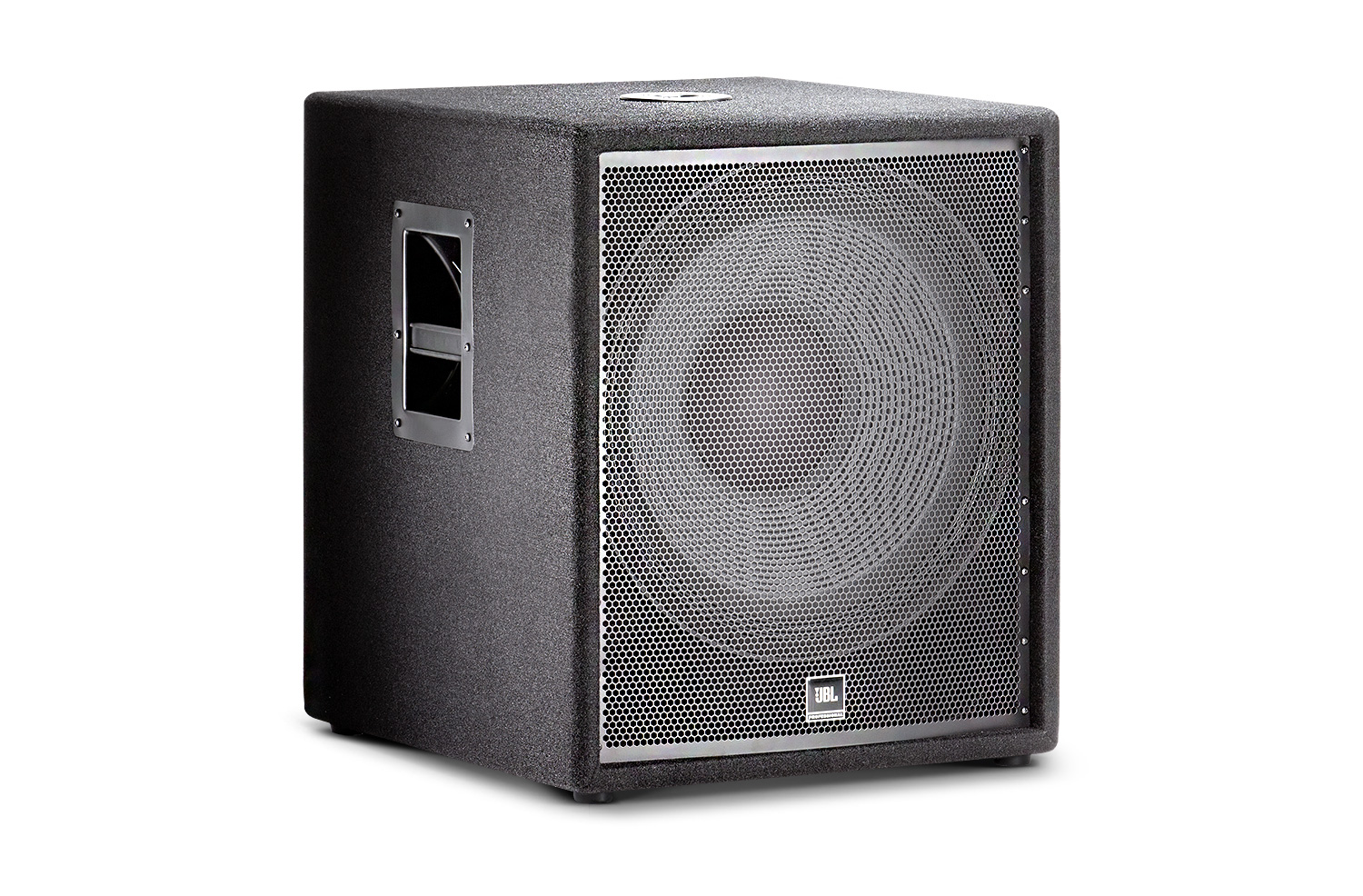

The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.
The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.
Size | ||||
Specifications | ||||
updated: avr. 2019
|
298 ko | |||
Brochures | ||||
updated: oct. 2020
|
2,54 Mo | |||
Compliances | ||||
updated: oct. 2020
|
119 ko | |||
Images | ||||
updated: avr. 2019
|
479 ko | |||
updated: avr. 2019
|
316 ko |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Power Rating | 350 W / 1400 W |
Frequency Range (-10dB) | 34 Hz - 250 Hz |
Frequency Response (±3 dB) | 53 Hz - 250 Hz |
Sensitivity (@1m) | 98 dB SPL |
Nominal Impedence | 4 ohms |
Recommended Amplifier Power | 350 W to 700 W into 4 ohms |
Maximum SPL (1m) | 133 dB |
Dimensions (H x W x D) | 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in) |
Net Weight | 32.2 kg (71 lb) |
LF Driver | M118-4 |

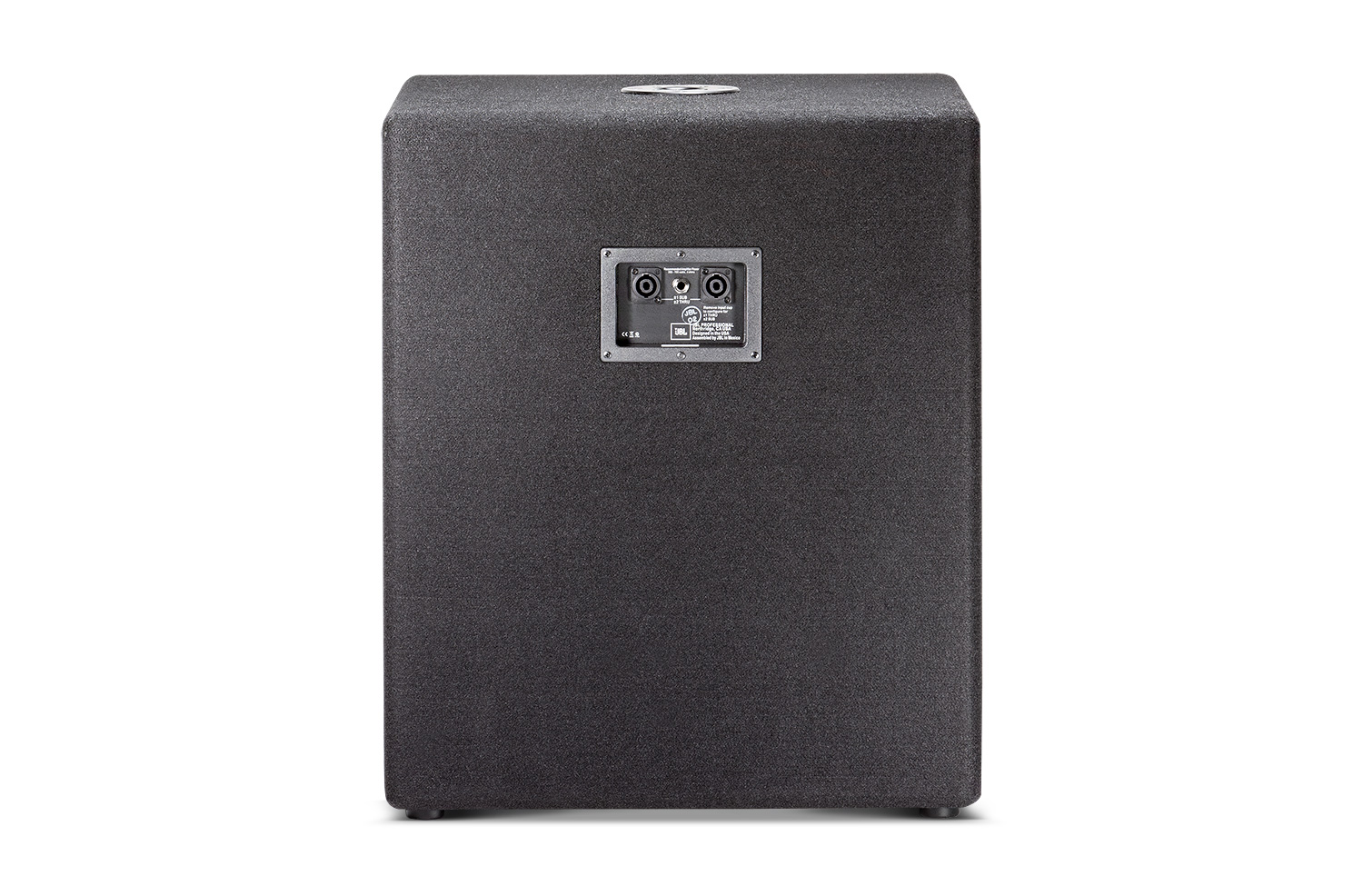

Inputs | Neutrik® Speakon® NL-4 (x2); parallel |
Enclosure | MDF (Medium Density Fiberboard) covered in black carpet. |
Convertible Cover for JRX218S. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
Padded Sub Transporter. Water Resistant Black Nylon, Polyethylene Grille Protector, Large Accessory Pocket, Exterior Lifting Handles, Integrated Caster Board with (4) Swivel Casters. Fits EON518S, JRX118S, JRX118SP, PRX518S.
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
