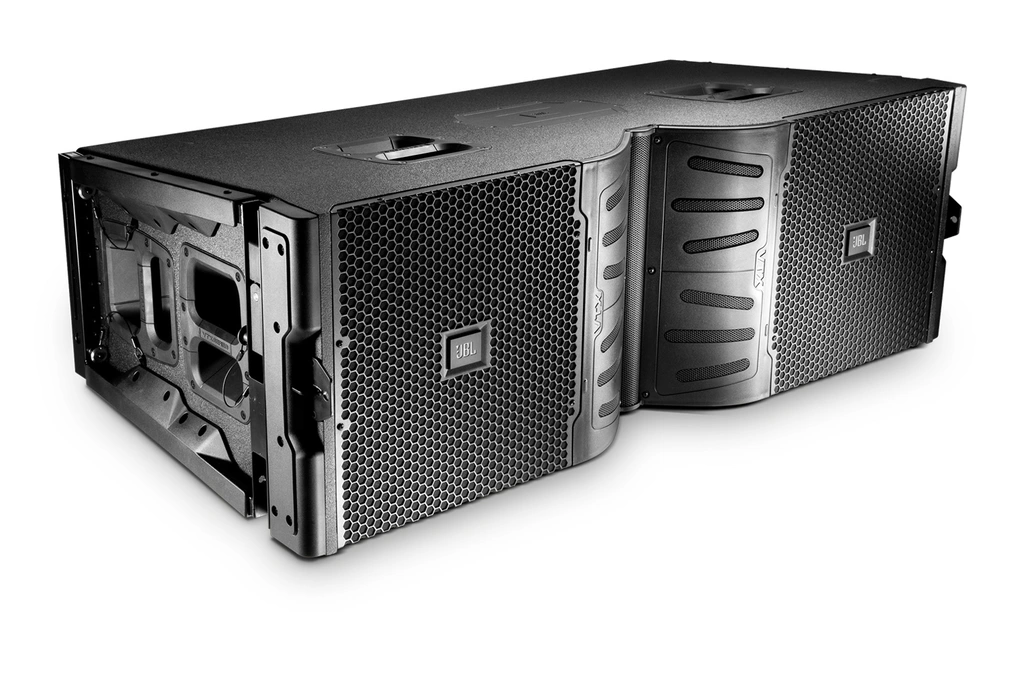

JBL Professional VTX V25-II

Imágenes más grandes

Line array de 3 vías de tamaño completo y alta directividad con suspensión ASM de ángulo fijo

El VTX V25-II es un elemento de line array de 3 vías de tamaño completo y alta directividad que incluye una nueva guía de ondas de 4ª generación que mejora el rendimiento de largo alcance, el control del frente de onda y ofrece una mejor adaptación de potencia con el Crown IT4x3500HD. La dotación de transductores del VTX V25-II consta de dos altavoces de graves Differential Drive® de 15" y 2000 W montados en deflectores de aluminio fundido a presión, cuatro transductores de medios Differential Drive de 8" que radian a través de un Radiation Boundary Integrator® (RBI) patentado, y tres revolucionarios drivers de compresión D2 de doble diafragma y doble bobina móvil acoplados a la guía de ondas de nuevo diseño. El sistema se completa con un sistema de rigging patentado, amplificación Crown I-Tech HD con procesamiento BSS ® OmniDriveHD V5 y el software de configuración y control JBL HiQnet Performance Manager™.

Características

New 4th Generation HF Waveguide technology
Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver
JBL’s patented RBI (Radiation Boundary Integrator®)
Cardioid-Arrayable Subwoofer Enclosure Models
Aluminum front baffles for reduced cabinet height, weight and improved heat transfer
Patented JBL S.A.F.E.™ Suspension System
V5 Processing with Crown I-Tech HD or VRACK
JBL HiQnet Performance Manager™ System Configuration and Control
Available with either fixed angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware

Más detalles

D2 DUAL DIAPHRAGM DUAL VOICE COIL COMPRESSION DRIVER

The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling. This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight.

LEARN MORE

VTX V25-II WAVEGUIDE

Improved Wavefront Control

The V25‐II waveguide provides better acoustic loading conditions for the D2 driver, resulting in 10 dB higher sensitivity above 10 kHz.

LEARN MORE

DIFFERENTIAL DRIVE® TECHNOLOGY

Enhanced Performance and Dramatically Reduced Driver Weight

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

LEARN MORE

VTX S.A.F.E™ Suspension & Laser setup

Next Generation Line Array System Solutions.

JBL’s patented S.A.F.E suspension system is streamlined for speed and efficiency with improved hardware for faster setup with fewer pinning operations and greater security.

LEARN MORE

System Integration

System Integration and Management

With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency and the highest possible level of performance in any venue, anywhere in the world.

LEARN MORE

Descargas

Specifications

	Tamaño	Subido
VTX V25-II Spec Sheet actualizado: jun 2023	1,26 MB	jun 2023

Brochures

	Tamaño	Subido
VTX V25 System Brochure actualizado: dic 2020	6,48 MB	dic 2020

CAD Drawings

	Tamaño	Subido
V25-II 2D Drawings PDF actualizado: jul 2019	125 KB	jul 2019
V25 3D Drawings DXF actualizado: jul 2019	208 KB	jul 2019

Compliances

	Tamaño	Subido
VTX V-Series Declaration of Conformity actualizado: dic 2020	158 KB	dic 2020

Software

	Tamaño	Subido
Venue Synthesis publicado: jul 2026		jul 2026
Performance Manager 3 publicado: jul 2024		jul 2024

Ease Data

	Versión	Tamaño	Subido
VTX V25-II/S28 EASE GLL versión 1.2, actualizado: dic 2020	1.2	29,8 MB	dic 2020

Preset Libraries

	Versión	Tamaño	Subido
V25-II Preset Library versión 2.1, actualizado: dic 2020	2.1	595 KB	dic 2020

Service Notes

	Versión	Idioma	Tamaño	Subido
VTX V25-II Spare Parts versión A, actualizado: abr 2026	A		72 KB	abr 2026

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

TIPO DE SISTEMA	Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers
Frequency Range (-10dB)	35Hz - 18 kHz (Preset: VTX V25-II)
Horizontal Coverage (-6 dB)	90 degrees nominal (200 Hz - 16 kHz)
Maximum Peak Output	LF: 141 dB MF: 140.5 dB HF: 149.5 dB
System Amplification	Crown Audio I-Tech HD
Impedancia nominal	LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms

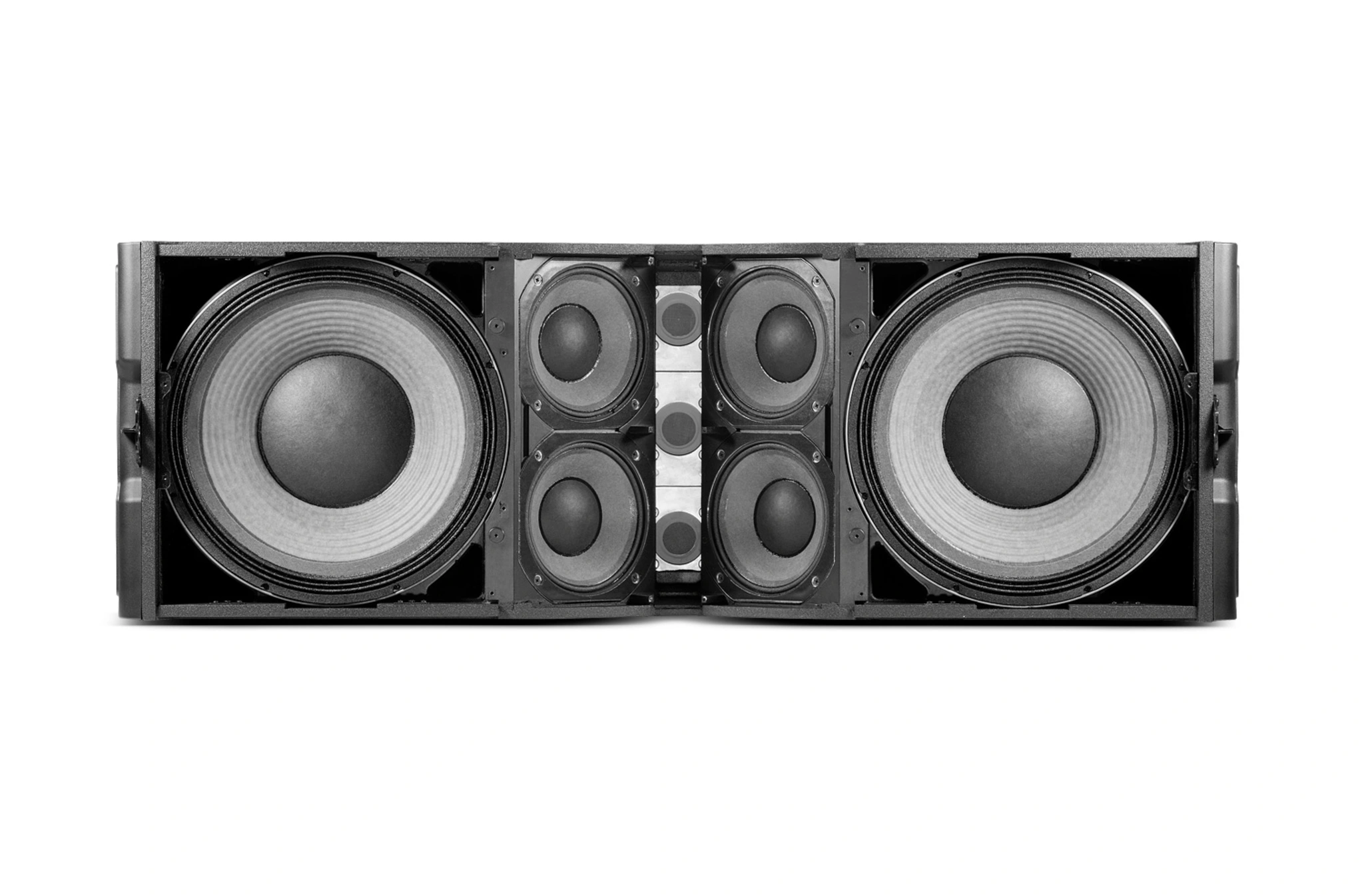

LF Driver	(2) JBL 2267H 15-inch woofer
MF Driver	(4) JBL 2168H 8-inch mid-frequency driver
HF Driver	(3) JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Enclosure	Cast aluminum front baffle, Finnish birch plywood, black DuraFlex™ finish; four integral recessed handles
Inter-enclosure Angle	0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Dimensions (H x W x D)	414 mm x 1223 mm x 614 mm 16.3 in x 48.2 in x 24.2 in
Net Weight (each)	82.6 kg (182 lb)

Accesorios

VTX V25 AF | Array Frame

Imágenes más grandes

Marco de matriz para suspender o apilar en suelo los gabinetes de la serie VTX V25. El VTX-V25-AF también es compatible con los gabinetes de subwoofer dual de 18" VTX S28. Incluye patas de nivelación ajustables en altura para aplicaciones de apilamiento en suelo. Barra de extensión opcional VTX-V25-AF-EB disponible.

Características:

Compatible con VTX V25, VTX V25-CS, VTX V25-II, VTX V25-II-CS y VTX S28
9 puntos de levante disponibles para suspensión de punto único
Barra de extensión opcional disponible
Opciones flexibles de puntos de levante de frente a fondo o lado a lado
Soporta hasta 24 gabinetes (según la geometría de la matriz)
Puede usarse para aplicaciones de apilamiento en suelo
Tamaño de grillete de punto de levante: 5/8" o 3/4"

Incluido:

1 x VTX-V25-AF
4 x patas de nivelación ajustables en altura para aplicaciones de apilamiento en suelo
4 x pasadores de liberación rápida (QRP) para asegurar el gabinete superior al marco

Documentación

VTX V25 AF EB | Array Frame

Imágenes más grandes

Extension Bar accessory used in conjunction with the VTX-V25-AF array frame for deploying VTX V25 series systems in either compression or tension mode. Five extension bar attachment options provide variable pick point separation (2-point suspension) and added flexibility for single point suspension. The extension bar can be front- or rear-mounted for increased array up-tilt or down-tilt, respectively. When rear-mounted, provides an attachment point for compression suspension. A single extension bar can be installed in the array frame central tube, or alternatively, a pair of extension bars can be front or rear-mounted in left/right array frame tubes. Single or dual extension bars can also be front- or rear-mounted in ground stack applications for extra stability and a wider range of array tilt angle options. Dual extension bars can also be front-and rear-mounted for compression suspension when increased array up-tilt is required.

Features:

Compatible with VTX-V25-AF
2 x pick points available for single point suspension
1 x pick point available for VTX-V25-LH level hoist attachment
Supports up to 24 cabinets (array geometry dependent)
Pick point shackle size: 5/8” or 3/4”

Included:

1 x VTX-V25-AF-EB extension bar
1 x height-adjustable leveling foot for ground stack applications
2 x Quick Release Pins (QRP) for securing the extension bar to the array frame

Documentación

VTX V25 PB | Pull Back Accessory

Imágenes más grandes

Pull Back accessory for attachment to the bottom V25 enclosure to facilitate compression suspension of VTX V25-II-CS or VTX V25-CS arrays. Compression can be implemented using a separate chain motor and suspension point (Rear Motor Pullback) or by using an optional VTX-V25-LH lever hoist or chain motor attached to the VTX-V25-AF-EB extension bar (Extension Bar Pullback). The VTX-V25-PB is also compatible with non Compression Suspension V25 enclosures and can be used for rear motor pullback configurations.

Features:

Compatible with VTX V25-II, VTX V25-II-CS, VTX V25, VTX V25-CS
Can be used with VTX-V25-LH lever hoist or separate pull back suspension point
Supports up to 2000 lbs of pull back force
Shackle size: 5/8” (included)

Included:

1 x central pullback bar with 2x left/right adapter brackets for connection to bottom V25 cabinet
2 x 5/8” shackles for attaching spreader bar to chain bridle
1 x 24” dual leg chain bridle with locking safety hooks and upper master link for attachment to compression or pullback device

Documentación

VTX V25 PB Specsheet [539 KB]

VTX V20 DF | DOWN FILL ADAPTER

Imágenes más grandes

Designed to facilitate fast attachment and precise alignment of VTX V20 and V25-II / V25-II-CS systems, the VTX V20-DF is a lightweight solution for providing wider coverage at the bottom of VTX V25-II / V25-II-CS arrays. Lightweight design with multiple options for angle between V25-II / V25-II-CS and V20 (3.5deg, 7.5deg, 11deg). Able to be used as a down-fill adapter frame for V25-II arrays, or as a downfill adapter frame + pullback frame for compression of VTX V25-II-CS arrays with V20 downfill. Supports up to 6x VTX V20 cabinets suspended underneath VTX V25-II / V25-II-CS.

Features:

Angle options: 3.5deg, 7.5deg, 11deg
Lightweight design
Precise HF exit alignment between V25-II and V20
Support for up to 6x VTX V20 cabinets

Documentación

VTX V20 DF Spec Sheet [568 KB]
VTX V20 DF Suspension Manual (rev2) [852 KB]
VTX V20 DF Customer Drawings [1,42 MB]

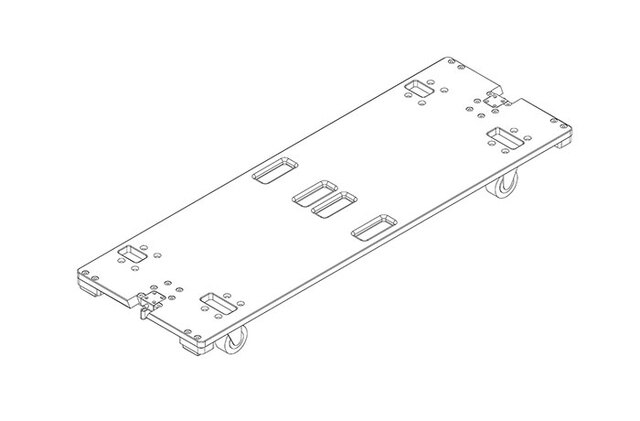

VTX V25 ACC | Accessory Cover and Casterboard

Imágenes más grandes

VTX Series V25 Accessory Kit for transportation and protection of one VTX V25 or VTX V25-II enclosure. Includes: padded, reinforced protective cover with handle cutouts and rear panel access flap; dolly caster-board with rugged tour grade casters and rotating cam mechanisms for secure attachment to the V25 enclosure. Beveled recesses auto-locate with V25 caster board mount tabs. The rotating cam mechanism can be released while V25 or V25-II cabinets are face down during the suspension process (no need to manually remove caster board).

Features:

Compatible with VTX V25 and VTX V25-II
Includes padded protective cover and caster-board
Handle cutouts and rear panel access flap
Speaker cabinets can be tested without fully removing the cover
Tour grade casters
Stackable for convenient storage
Rotating release/lock cam mechanisms for secure attachment to loudspeaker enclosure

Included:

1 x VTX V25 caster-board
1 x padded protective cover

Documentación

VTX V25 ACC Specsheet [789 KB]

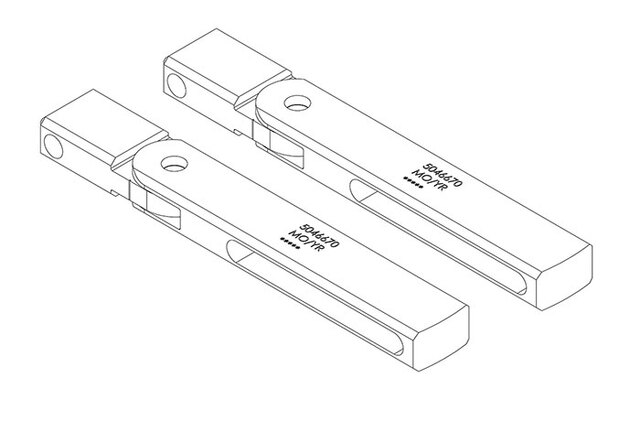

VTX V25 CS K | COMPRESSION SUSPENSION KIT

Imágenes más grandes

La suspensión por compresión se puede implementar en gabinetes VTX V25 existentes equipados con el nuevo kit de suspensión por compresión VTX-V25-CS-K utilizando los accesorios VTX-V25-PB Pull Back y VTX-V25-LH Lever Hoist.

El kit incluye:

2x etiquetas de marco de suspensión
2x barras de bisagra ranurada
2x barras ASM
2x asambleas Quick Release Pin (QRP) / arnés de seguridad y todo el hardware de montaje requerido

Documentación

VTX V25 CS K Specsheet [526 KB]
VTX V25 CS K Components [891 KB]

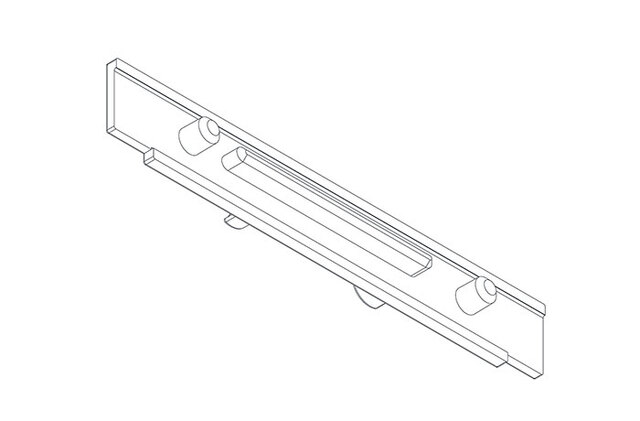

VTX V25 CS K LJ | KIT DE ETIQUETAS

Imágenes más grandes

Kit de Suspensión con Compresión - Plantilla de Etiqueta para garantizar la colocación, alineación y adhesión adecuadas al instalar etiquetas.

El kit incluye:

2 etiquetas de repuesto
Accesorio de instalación de plantilla de etiqueta
Instrucciones detalladas (consulte la descarga de documentación)
NOTA: Se debe pedir al menos un accesorio de instalación de plantilla de etiqueta
por cada pedido de VTX-V25-CS-K

Documentación

VTX V25 CS K LJ Shetsheet [401 KB]
VTX V25 CS K LJ Installation Guide [8,73 MB]
