Altavoz Envolvente de Cine Compacto para Aplicaciones Digitales

8320
Imágenes más grandes

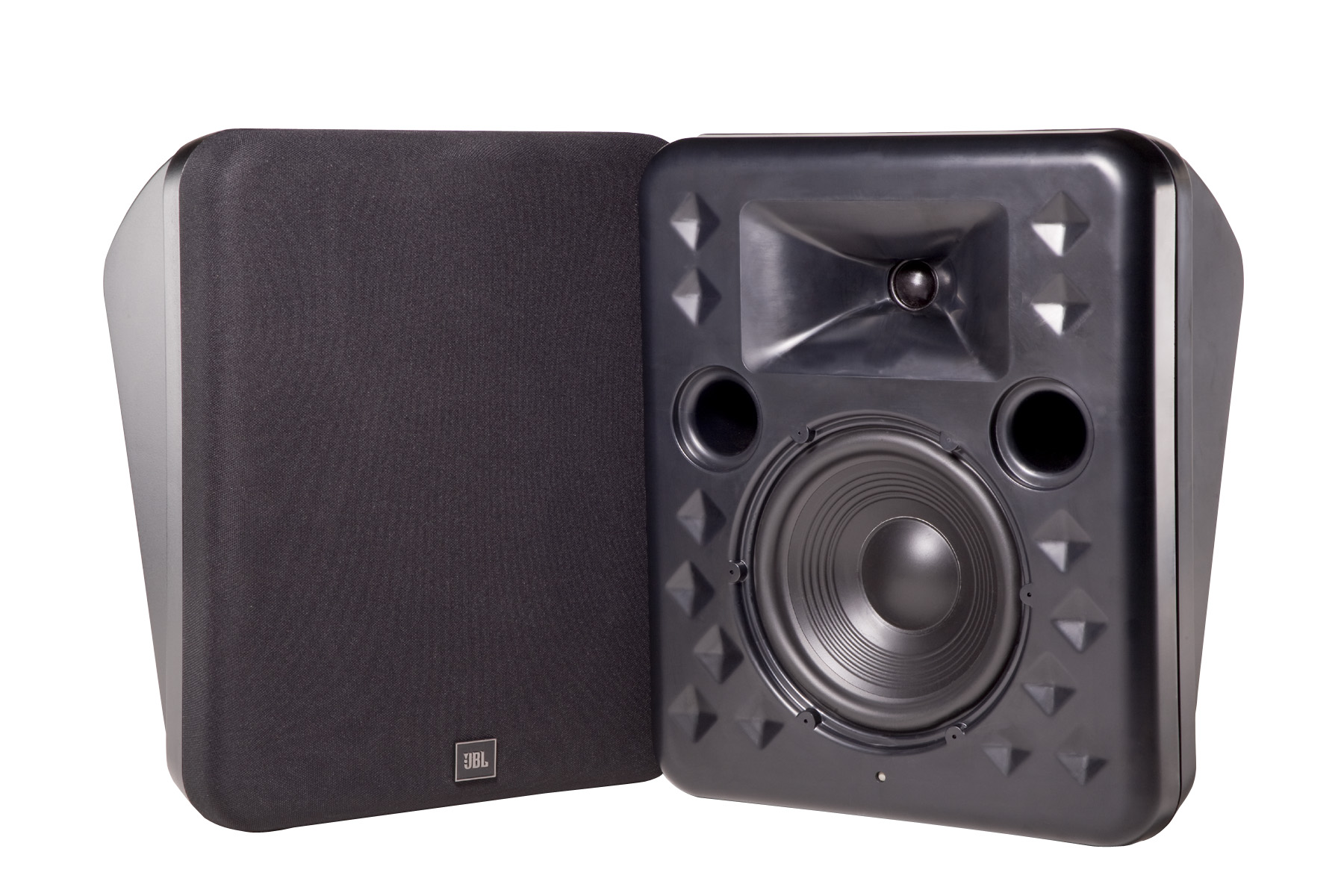

Altavoz Envolvente Compacto para Cinema para Aplicaciones Digitales

El Altavoz Envolvente Cinema 8320 ofrece manejo de alta potencia, alta sensibilidad y respuesta de bajos extendida en un recinto muy compacto. Las características de confiabilidad y rendimiento del sistema de dos vías 8320 lo posicionan como el altavoz envolvente compacto de bajo costo ideal para el rango dinámico extendido requerido por formatos de sonido digital.

Características

  • 50 Hz to 20 kHz Frequency Range
  • High Sensitivity, 91 dB SPL, 1 W, 1 m (3.3 ft)
  • High Power Handling Capability: 150 watts continuous pink noise
  • Internal Thermomaster® technology allows for unprecedented high frequency power in a compact molded enclosure.
  • Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
  • Special cabinet shape incorporates 20° angled front baffle
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight, rigid molded enclosure
  • Input terminals located on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX® Approved

Descargas

Data Sheets
  Tamaño Subido
697 KB oct 2019
Specifications
  Tamaño Subido
file type icon 8320 Spec Sheet
actualizado: oct 2020
218 KB oct 2020
CAD Drawings
  Tamaño Subido
file type icon 8320 Drawing
actualizado: oct 2020
48 KB oct 2020
Compliances
  Tamaño Subido
86,1 KB oct 2019
277 KB oct 2019
Simulation Data
  Tamaño Subido
21 MB may 2024
Images
  Tamaño Subido
file type icon 8320 Front
actualizado: oct 2020
364 KB oct 2020
Information documents
  Tamaño Subido
128 KB oct 2019

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Piezas y servicio

Especificaciones

Frequency Range (±3 dB) 65 Hz - 18 kHz
Frequency Range (-10dB) 50 Hz - 20 kHz
Power Rating 150 watts continuouspink noise600 watts peak
Sensitivity 94 dB-SPL half-space / wall-mounted91 dB-SPL free-field
Maximum SPL (1m) 116dB
Impedancia nominal 8Ω
Horizontal Coverage Angle (-6dB) 100° averaged 400 Hz to 12 kHz
Vertical Coverage Angle (-6dB) 90° averaged 400 Hz to 12 kHz
Directivity Factor (Q) 7 averaged 400 Hz to 12 kHz
Directivity Index (DI) 8.4 dB averaged 400 Hz to 12 kHz
Frecuencia de crossover 3 kHz
High Frequency Contour ISO2969 Curve X surround contour
Polarity EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal Diameter 200 mm (8 in)38 mm (1.5 in) voice coil
High Freq Transducer Nominal Diameter 25 mm (1 in)25 mm (1 in) voice coil
Downward Firing Angle Nominal 20° when mounted flush on back panel
Enclosure Material Textured Black H.I.P.S. Plastic
Grille Color Black
CONEXIONES DE ENTRADA 5-way binding posts
Dimensions (H x W x D) 406 mm x 343 mm x 224 mm16 in x 13.5 in x 8.8 in
Net Weight (each) 11 lbs (5.0 kg)
Power Handling (2Hr AES Rating) 150 W

Accesorios

2516 Bracket | Soporte de ángulo fijo con montaje rápido Quick-Mount® 2516
2516 Bracket Main photo
Imágenes más grandes
2516 Bracket detail thumbnail #1

2516 Quick-Mount® Fixed-Angle Bracket

Quick-Mount® Fixed-Angle Bracket

  • Cost-effective wall-mount bracket
  • Designed for 8320, 8340A, and 8350 surrounds
  • Packed two brackets to a carton

Documentación
2517 Speaker Mount | 2517 Speaker MountPan and Tilt Rotations
2517 Speaker Mount Main photo
Imágenes más grandes
2517 Speaker Mount detail thumbnail #1

2517 Speaker Mount Pan and Tilt Rotations

2517 Speaker Mount Pan and Tilt Rotations

  • Alloy steel
  • Black powder coat paint
  • Designed for 8320, 8340A, and 8350 surrounds
