VT4889ADP-DA, VT4889ADP (discontinued)

Powered Fullsize 3-Way High Directivity Line Array Element

Larger Images

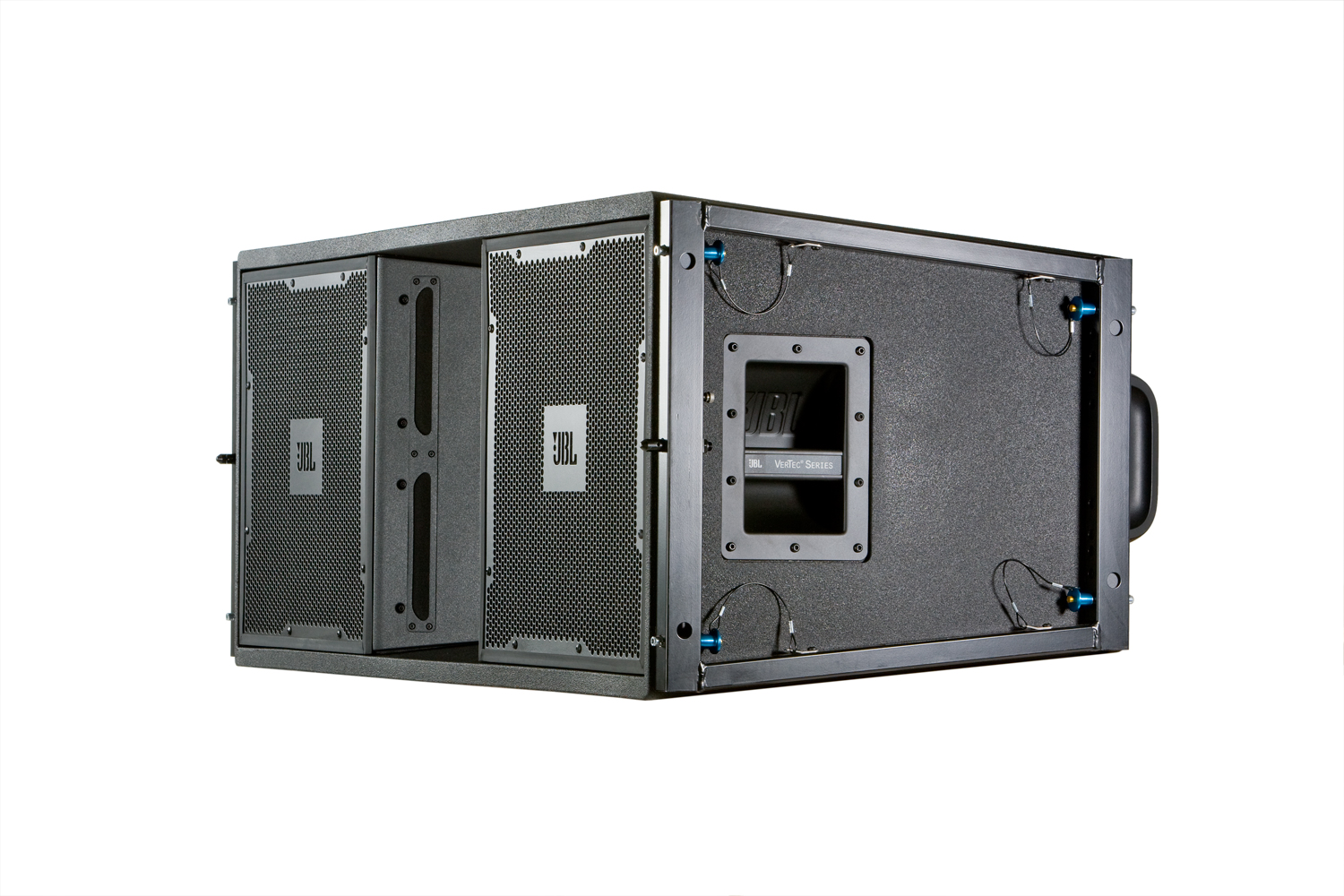

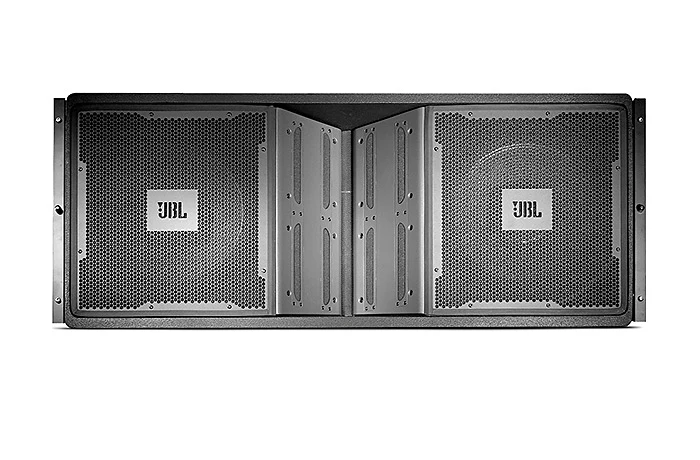

Powered Fullsize 3-Way High Directivity Line Array Element

The VT4889ADP Full Size Powered Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venue installations.

Features

  • JBL DrivePack® DP-3 electronics package with robust high efficiency Class-I power
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages automatically selected for 50 or 60 Hz
  • Advanced technology components: Differential Drive®, Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers for low weight and high output
  • Industry’s smallest, lightest, most powerful 1.5" exit, 3" diaphragm high frequency compression driver
  • Proprietary waveguides couple to create precision HF vertical slot aperture
  • Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements
  • JBL PlyMax® engineered wood materials provide rigid, yet lightweight enclosure
  • Rugged DuraFlex™ exterior finish; weatherized loudspeaker cones
  • Patented integrated S.A.F.E.™ suspension system with premium heat-treated alloys
  • For use in stand-alone arrays or in combination with other VERTEC system models

Downloads

  Version Language Size Uploaded
DPDA Input Module Spec Sheet
en updated: Jun 19, 2015
  en  475 KB Jun 19, 2015
VT4889ADPDA Spec Sheet
en updated: Jun 19, 2015
  en  1.52 MB Jun 19, 2015
VT4889ADP Spec Sheet
en updated: Jun 19, 2015
  en  1.3 MB Jun 19, 2015
VT DP Fullsize Product User's Guide
en updated: Jun 19, 2015
  en  2.15 MB Jun 19, 2015
Specifications
VT4889ADPDA Spec Sheet
updated: Jul 08, 2019
    1.52 MB Jul 08, 2019
DPDA Input Module Spec Sheet
updated: Jul 08, 2019
    475 KB Jul 08, 2019
VT4889-ADP Spec Sheet
updated: Jul 08, 2019
    1.3 MB Jul 08, 2019
Brochures
VerTec Line Brochure
updated: Oct 03, 2019
    2.09 MB Oct 03, 2019
CAD Drawings
VT4889ADP 3D PDF
updated: Jul 08, 2019
    11.5 MB Jul 08, 2019
VT4889ADP 2D DXF
updated: Jul 08, 2019
    2.58 MB Jul 08, 2019
VT4889ADP 2D PDF
updated: Jul 08, 2019
    111 KB Jul 08, 2019
Compliances
VerTec Series (Powered) Declaration of Conformity
updated: Oct 18, 2019
    89.4 KB Oct 18, 2019
Software
PerformanceManager
version 2.7.0, updated: Aug 17, 2020
2.7.0     108 MB Aug 17, 2020
Vertec Line Array Calculator
version 1.3.1, updated: Jan 23, 2020
1.3.1     18 MB Jan 23, 2020
Speaker Tunings
VT4889ADPDA V4Preset
updated: Oct 18, 2019
    34.1 KB Oct 18, 2019
V4 DSP_DPCN_VT4889ADP
updated: Oct 18, 2019
    56.1 KB Oct 18, 2019
V4 DSP DPAN_VT4889ADP
updated: Oct 18, 2019
    53.5 KB Oct 18, 2019
VTDP ALL LIBRARIES V4 Preset
updated: Nov 01, 2019
    680 KB Nov 01, 2019
User Guides
VerTec DP Fullsize User’s Guide
updated: Oct 03, 2019
    2.15 MB Oct 03, 2019
Accessories
VT Fullsize Array Frame and Adapter CAD
updated: Jul 08, 2019
    6.2 MB Jul 08, 2019
Images
VT4889ADP photo
updated: Jul 08, 2019
    572 KB Jul 08, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 40 Hz - 18 kHz (-10 dB)
Frequency Response 45 Hz - 16 kHz (± 3 dB)
Power Rating 6000W Peak3000W Continuous
Maximum Peak Output 143 dB SPL, 1m
Bandpass Nominal Impedance 4 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage 90 degrees nominal 250 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d) 1215 mm x 494 mm x 692 mm
Weight 93.1 kg (205 lb)
