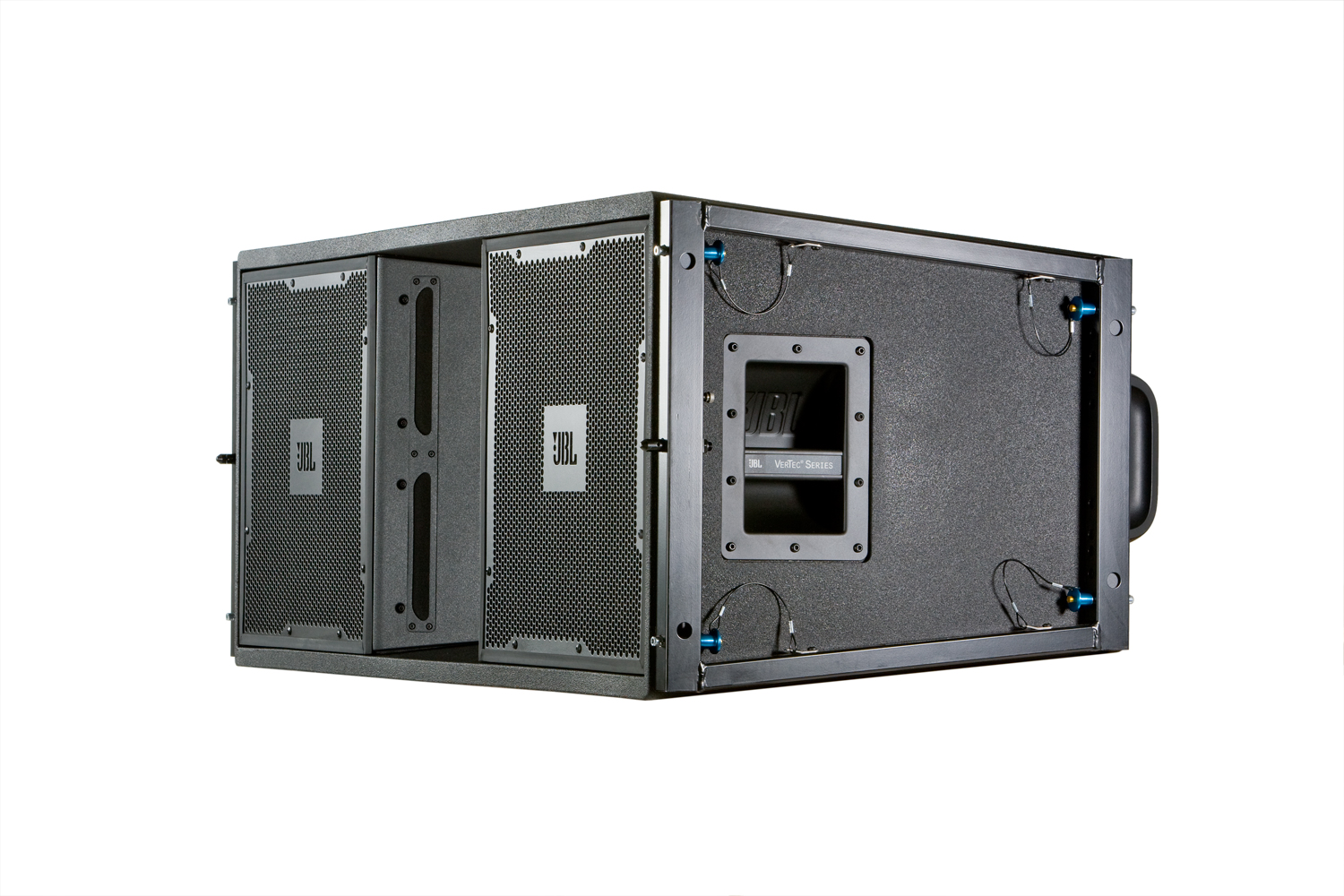

JBL Professional VT4889ADP-DA, VT4889ADP

Imagens maiores

Powered Fullsize 3-Way High Directivity Line Array Element

The VT4889ADP Full Size Powered Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venue installations.

Características

JBL DrivePack^® DP-3 electronics package with robust high efficiency Class-I power
Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
World-wide AC line voltages automatically selected for 50 or 60 Hz
Advanced technology components: Differential Drive^®, Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers for low weight and high output
Industry’s smallest, lightest, most powerful 1.5" exit, 3" diaphragm high frequency compression driver
Proprietary waveguides couple to create precision HF vertical slot aperture
Radiation Boundary Integrator^® (RBI): Patented technology integrates output of individual bandpass elements
JBL PlyMax^® engineered wood materials provide rigid, yet lightweight enclosure
Rugged DuraFlex™ exterior finish; weatherized loudspeaker cones
Patented integrated S.A.F.E.™ suspension system with premium heat-treated alloys
For use in stand-alone arrays or in combination with other VERTEC system models

Descarregamentos

Documentos

	Idioma	Tamanho	Carregado
DPDA Input Module Spec Sheet atualizado: abr 2026		500 KB	abr 2026
VT4889ADPDA Spec Sheet atualizado: abr 2026		2 MB	abr 2026
VT4889ADP Spec Sheet atualizado: abr 2026		1 MB	abr 2026
VT DP Fullsize Product User's Guide atualizado: abr 2026		2 MB	abr 2026

Specifications

	Tamanho	Carregado
VT4889ADPDA Spec Sheet atualizado: out 2020	2 MB	out 2020
DPDA Input Module Spec Sheet atualizado: jul 2019	500 KB	jul 2019
VT4889-ADP Spec Sheet atualizado: out 2020	1 MB	out 2020

Brochures

	Tamanho	Carregado
VerTec Line Brochure atualizado: out 2020	2 MB	out 2020

CAD Drawings

	Tamanho	Carregado
VT4889ADP 3D PDF atualizado: out 2020	10 MB	out 2020
VT4889ADP 2D DXF atualizado: out 2020	3 MB	out 2020
VT4889ADP 2D PDF atualizado: out 2020	100 KB	out 2020

Compliances

	Tamanho	Carregado
VerTec Series (Powered) Declaration of Conformity atualizado: out 2019	90 KB	out 2019

Software

	Versão	Tamanho	Carregado
Vertec Line Array Calculator versão 1.3.1, publicado: ago 2023	1.3.1	20 MB	ago 2023
PerformanceManager versão 3.3.0, atualizado: jul 2026	3.3.0	100 MB	jul 2026

Speaker Tunings

	Tamanho	Carregado
VT4889ADPDA V4Preset atualizado: out 2019	30 KB	out 2019
V4 DSP_DPCN_VT4889ADP atualizado: out 2019	60 KB	out 2019
V4 DSP DPAN_VT4889ADP atualizado: out 2019	50 KB	out 2019
VTDP ALL LIBRARIES V4 Preset atualizado: out 2020	700 KB	out 2020

User Guides

	Tamanho	Carregado
VerTec DP Fullsize User’s Guide atualizado: out 2020	2 MB	out 2020

Accessories

	Tamanho	Carregado
VT Fullsize Array Frame and Adapter CAD atualizado: out 2020	6 MB	out 2020

Images

	Tamanho	Carregado
VT4889ADP photo atualizado: out 2020	600 KB	out 2020

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range	40 Hz - 18 kHz (-10 dB)
Frequency Response	45 Hz - 16 kHz (± 3 dB)
Power Rating	6000W Peak3000W Continuous
Maximum Peak Output	143 dB SPL, 1m
Bandpass Nominal Impedance	4 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage	90 degrees nominal 250 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d)	1215 mm x 494 mm x 692 mm
Weight	93.1 kg (205 lb)
