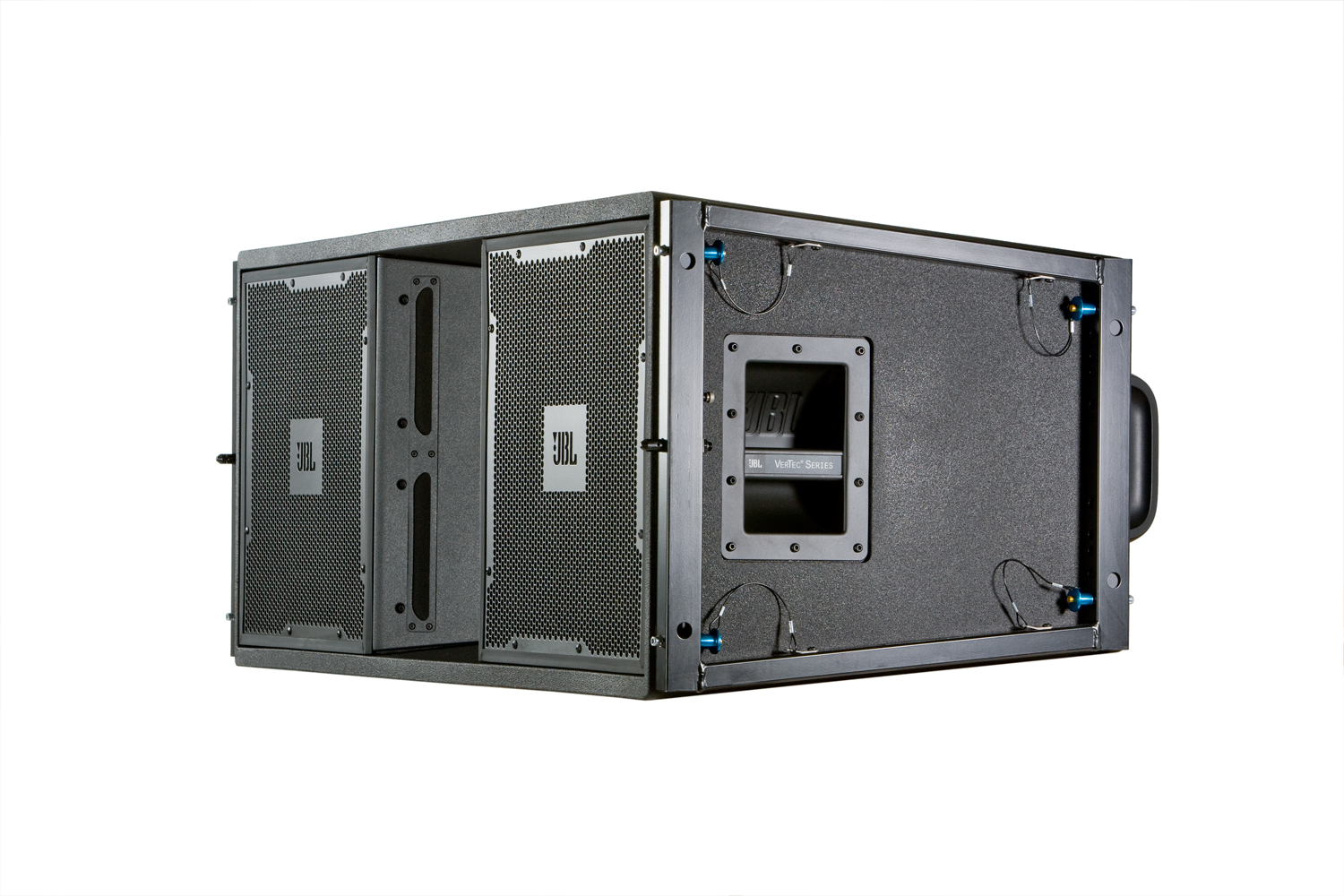

JBL Professional VT4889ADP-DA, VT4889ADP

Immagini più grandi

Powered Fullsize 3-Way High Directivity Line Array Element

The VT4889ADP Full Size Powered Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venue installations.

Caratteristiche

JBL DrivePack^® DP-3 electronics package with robust high efficiency Class-I power
Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
World-wide AC line voltages automatically selected for 50 or 60 Hz
Advanced technology components: Differential Drive^®, Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers for low weight and high output
Industry’s smallest, lightest, most powerful 1.5" exit, 3" diaphragm high frequency compression driver
Proprietary waveguides couple to create precision HF vertical slot aperture
Radiation Boundary Integrator^® (RBI): Patented technology integrates output of individual bandpass elements
JBL PlyMax^® engineered wood materials provide rigid, yet lightweight enclosure
Rugged DuraFlex™ exterior finish; weatherized loudspeaker cones
Patented integrated S.A.F.E.™ suspension system with premium heat-treated alloys
For use in stand-alone arrays or in combination with other VERTEC system models

Download

Documenti

	Lingua	Dimensione	Caricato
DPDA Input Module Spec Sheet aggiornato: apr 2026		475 KB	apr 2026
VT4889ADPDA Spec Sheet aggiornato: apr 2026		1,52 MB	apr 2026
VT4889ADP Spec Sheet aggiornato: apr 2026		1,3 MB	apr 2026
VT DP Fullsize Product User's Guide aggiornato: apr 2026		2,15 MB	apr 2026

Specifications

	Dimensione	Caricato
VT4889ADPDA Spec Sheet aggiornato: ott 2020	1,52 MB	ott 2020
DPDA Input Module Spec Sheet aggiornato: lug 2019	475 KB	lug 2019
VT4889-ADP Spec Sheet aggiornato: ott 2020	1,3 MB	ott 2020

Brochures

	Dimensione	Caricato
VerTec Line Brochure aggiornato: ott 2020	2,09 MB	ott 2020

CAD Drawings

	Dimensione	Caricato
VT4889ADP 3D PDF aggiornato: ott 2020	11,5 MB	ott 2020
VT4889ADP 2D DXF aggiornato: ott 2020	2,58 MB	ott 2020
VT4889ADP 2D PDF aggiornato: ott 2020	111 KB	ott 2020

Compliances

	Dimensione	Caricato
VerTec Series (Powered) Declaration of Conformity aggiornato: ott 2019	89,4 KB	ott 2019

Software

	Versione	Dimensione	Caricato
Vertec Line Array Calculator versione 1.3.1, rilasciato: ago 2023	1.3.1	18 MB	ago 2023
PerformanceManager versione 3.3.0, aggiornato: lug 2026	3.3.0	136 MB	lug 2026

Speaker Tunings

	Dimensione	Caricato
VT4889ADPDA V4Preset aggiornato: ott 2019	34,1 KB	ott 2019
V4 DSP_DPCN_VT4889ADP aggiornato: ott 2019	56,1 KB	ott 2019
V4 DSP DPAN_VT4889ADP aggiornato: ott 2019	53,5 KB	ott 2019
VTDP ALL LIBRARIES V4 Preset aggiornato: ott 2020	680 KB	ott 2020

User Guides

	Dimensione	Caricato
VerTec DP Fullsize User’s Guide aggiornato: ott 2020	2,15 MB	ott 2020

Accessories

	Dimensione	Caricato
VT Fullsize Array Frame and Adapter CAD aggiornato: ott 2020	6,2 MB	ott 2020

Images

	Dimensione	Caricato
VT4889ADP photo aggiornato: ott 2020	572 KB	ott 2020

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Frequency Range	40 Hz - 18 kHz (-10 dB)
Frequency Response	45 Hz - 16 kHz (± 3 dB)
Power Rating	6000W Peak3000W Continuous
Maximum Peak Output	143 dB SPL, 1m
Bandpass Nominal Impedance	4 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage	90 degrees nominal 250 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d)	1215 mm x 494 mm x 692 mm
Weight	93.1 kg (205 lb)
