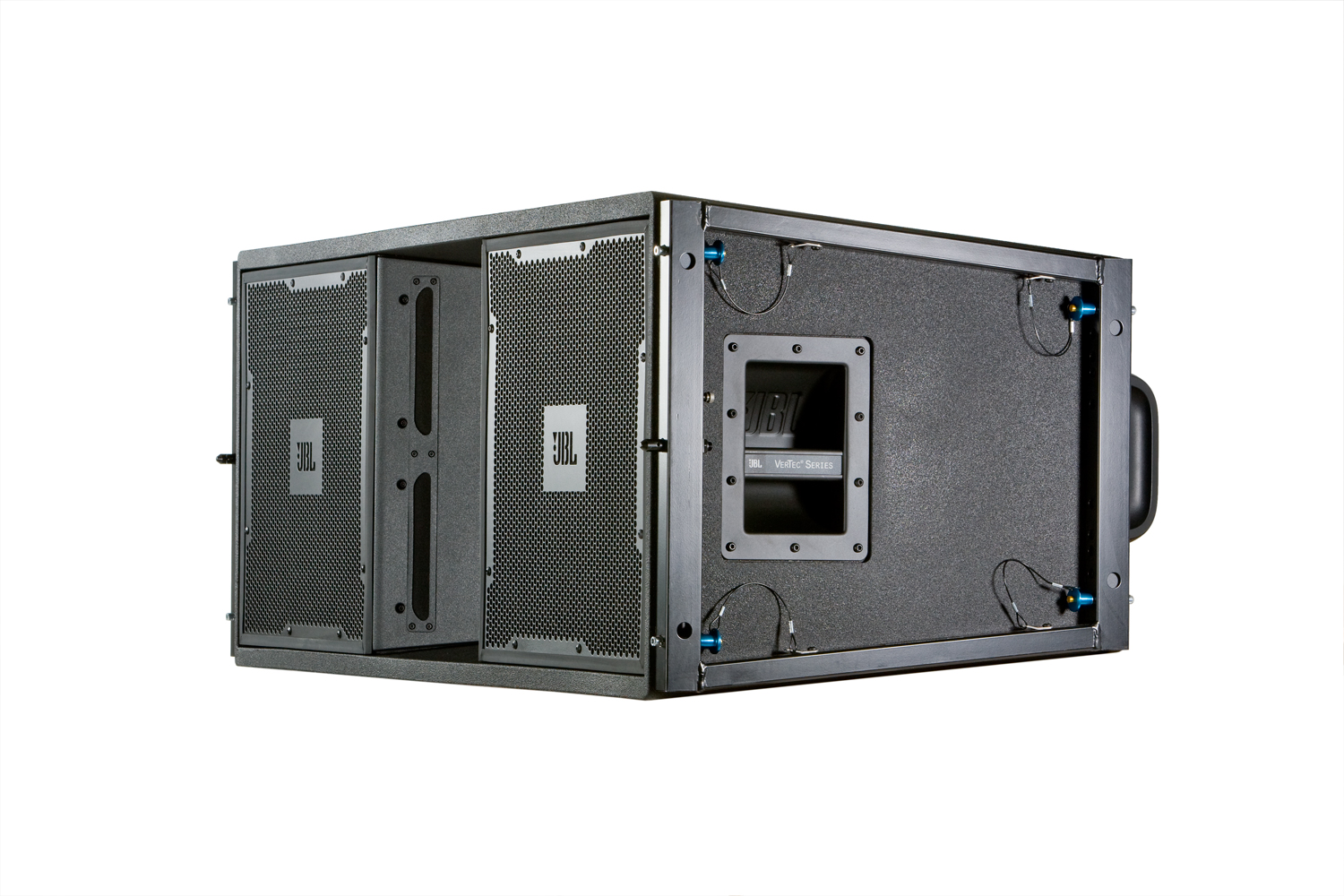

VT4889ADP-DA, VT4889ADP (discontinued)

Powered Fullsize 3-Way High Directivity Line Array Element

VT4889ADP-DA, VT4889ADP
Larger Images

Powered Fullsize 3-Way High Directivity Line Array Element

The VT4889ADP Full Size Powered Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venue installations.

特長

  • JBL DrivePack® DP-3 electronics package with robust high efficiency Class-I power
  • Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
  • World-wide AC line voltages automatically selected for 50 or 60 Hz
  • Advanced technology components: Differential Drive®, Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers for low weight and high output
  • Industry’s smallest, lightest, most powerful 1.5" exit, 3" diaphragm high frequency compression driver
  • Proprietary waveguides couple to create precision HF vertical slot aperture
  • Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements
  • JBL PlyMax® engineered wood materials provide rigid, yet lightweight enclosure
  • Rugged DuraFlex™ exterior finish; weatherized loudspeaker cones
  • Patented integrated S.A.F.E.™ suspension system with premium heat-treated alloys
  • For use in stand-alone arrays or in combination with other VERTEC system models

Downloads

  Version Language Size Uploaded
file type icon DPDA Input Module Spec Sheet
en updated: 3月 2024
  en  475KB 3月 2024
file type icon VT4889ADPDA Spec Sheet
en updated: 3月 2024
  en  1.52MB 3月 2024
file type icon VT4889ADP Spec Sheet
en updated: 3月 2024
  en  1.3MB 3月 2024
file type icon VT DP Fullsize Product User's Guide
en updated: 3月 2024
  en  2.15MB 3月 2024
Specifications
file type icon VT4889ADPDA Spec Sheet
updated: 10月 2020
    1.52MB 10月 2020
file type icon DPDA Input Module Spec Sheet
updated: 7月 2019
    475KB 7月 2019
file type icon VT4889-ADP Spec Sheet
updated: 10月 2020
    1.3MB 10月 2020
Brochures
file type icon VerTec Line Brochure
updated: 10月 2020
    2.09MB 10月 2020
CAD Drawings
file type icon VT4889ADP 3D PDF
updated: 10月 2020
    11.5MB 10月 2020
file type icon VT4889ADP 2D DXF
updated: 10月 2020
    2.58MB 10月 2020
file type icon VT4889ADP 2D PDF
updated: 10月 2020
    111KB 10月 2020
Compliances
file type icon VerTec Series (Powered) Declaration of Conformity
updated: 10月 2019
    89.4KB 10月 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 8月 2023
1.3.1     18MB 8月 2023
platform icon PerformanceManager
version 3.0.0, updated: 2月 2024
3.0.0     124MB 2月 2024
Speaker Tunings
file type icon VT4889ADPDA V4Preset
updated: 10月 2019
    34.1KB 10月 2019
file type icon V4 DSP_DPCN_VT4889ADP
updated: 10月 2019
    56.1KB 10月 2019
file type icon V4 DSP DPAN_VT4889ADP
updated: 10月 2019
    53.5KB 10月 2019
file type icon VTDP ALL LIBRARIES V4 Preset
updated: 10月 2020
    680KB 10月 2020
User Guides
file type icon VerTec DP Fullsize User’s Guide
updated: 10月 2020
    2.15MB 10月 2020
Accessories
file type icon VT Fullsize Array Frame and Adapter CAD
updated: 10月 2020
    6.2MB 10月 2020
Images
file type icon VT4889ADP photo
updated: 10月 2020
    572KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 40 Hz - 18 kHz (-10 dB)
Frequency Response 45 Hz - 16 kHz (± 3 dB)
Power Rating 6000W Peak3000W Continuous
Maximum Peak Output 143 dB SPL, 1m
Bandpass Nominal Impedance 4 ohm LF, 8 ohm MF, 16 ohm HF
Horizontal Coverage 90 degrees nominal 250 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d) 1215 mm x 494 mm x 692 mm
Weight 93.1 kg (205 lb)
