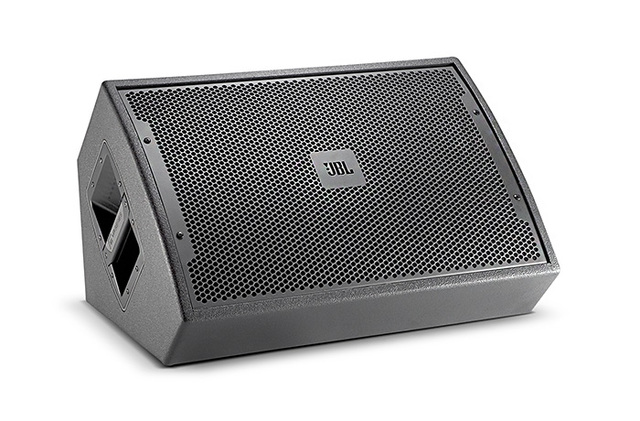

VP7212MDP (discontinued)

Powered 12 in. 2-Way Integrated Stage Monitor Loudspeaker System

Larger Images

Powered 12 in. 2-Way Integrated Stage Monitor Loudspeaker System

The VP7212MDP is a powered 12" 2-way integrated loudspeaker system designed specifically as a high-impact stage monitor.


  • Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for stage monitor use.
  • High-impact system with premium fidelity.
  • Field rotatable baffle for easy left/right configurations.
  • 1750 watts peak output power, 875 watts continuous.
  • 12-inch Differential Drive® low-frequency driver for extended lowfrequency output.
  • 50° x 90° coverage optimized for use as stage monitor.
  • Robust powder-coated die cast aluminum handles, designed for strength and comfort.


  Version Language Size Uploaded
file type icon VP7212MDP Spec Sheet
updated: Jul 2019
    345 KB Jul 2019
file type icon VP DrivePack DPC2 User's Guide
updated: Oct 2019
    1.02 MB Oct 2019
file type icon VP Series Brochure
updated: Jul 2019
    2.73 MB Jul 2019
CAD Drawings
file type icon VP7212MDP 2D PDF
updated: Jul 2019
    55.6 KB Jul 2019
file type icon VP7212MDP 2D DXF
updated: Jul 2019
    891 KB Jul 2019
file type icon VP7212MDP 3D DXF
updated: Jul 2019
    21.5 KB Jul 2019
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: Mar 2022
    21 MB Mar 2022

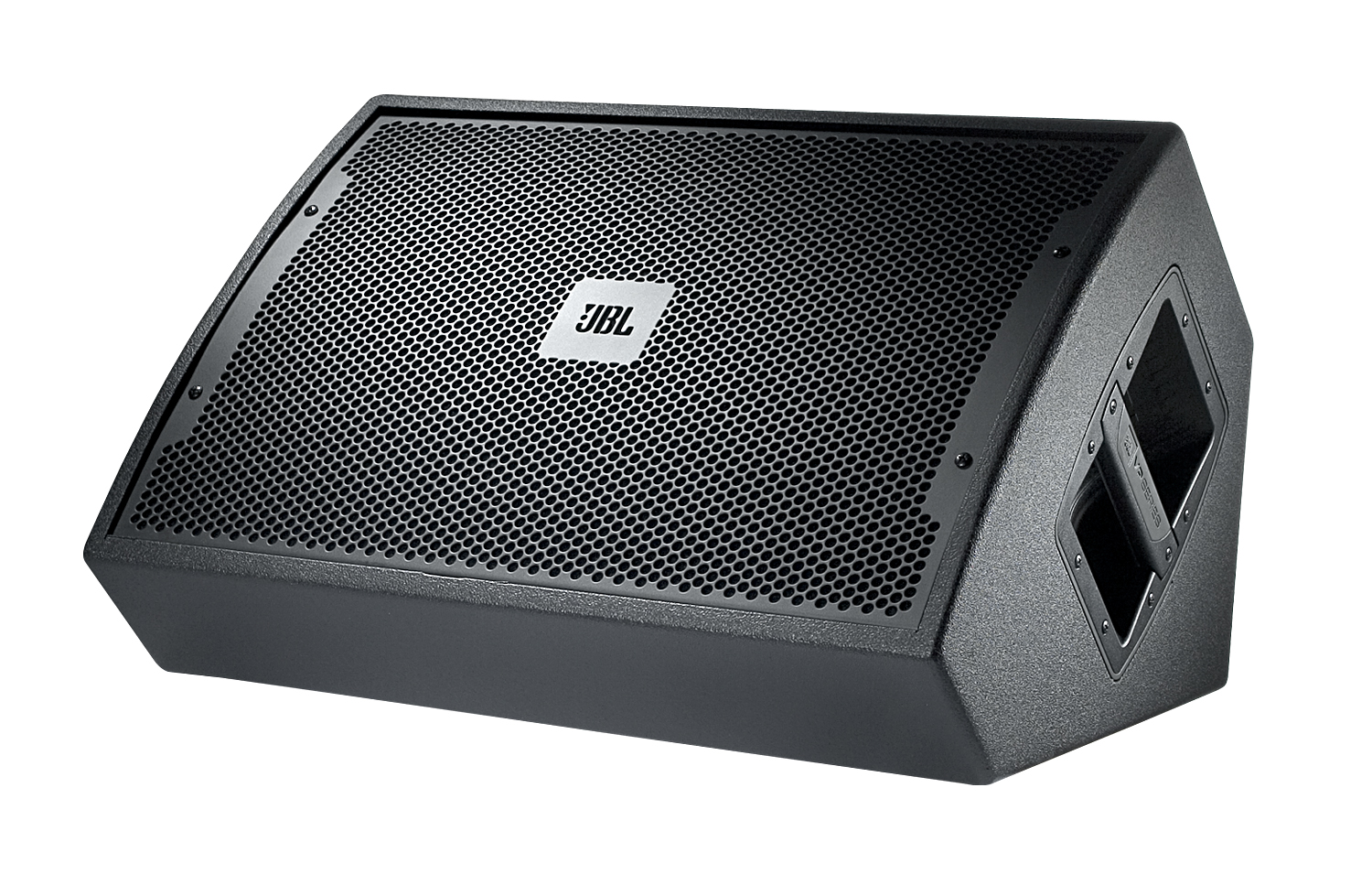

file type icon VP7212MDP Photo
updated: Jul 2019
    836 KB Jul 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Response 80 Hz - 18 kHz ( ± 3 dB)
Frequency Range 55 Hz - 20 kHz (-10 dB)
Coverage Pattern 50° x 90°
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Maximum Peak Output 134 dB SPL 1m
Low Frequency Section JBL 2262G, 304mm (12in) dia., 76mm (3in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 2 x 2 ohms
High Frequency JBL2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit.
DP2 Internal Amplification Output (at nominal load) 1750 Watts Peak, 875 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 1-Channel, Class I
DPC-2 Output Section LF: Dual Bridged Technology™, Class D HF: Bridged Class D
Audio Input Connector XLR with loop-through
User Controls System EQ Selection: Full Range or Speech/Vocal 0-16 dB input Attenuator with 32 precision 0.5 dB steps
Signal Processing DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC/216-264 VAC, 50/60 Hz
AC Line Voltage 50/60 Hz; User Selectable; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop-thru Neutrik PowerCon (NAC 3MPB)
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Enclosure 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Grille 14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D) 346 x 565 x 413 mm13.6 x 22.3 x 16.2 in
Net Weight 20.7 kg (45.5 lbs)
