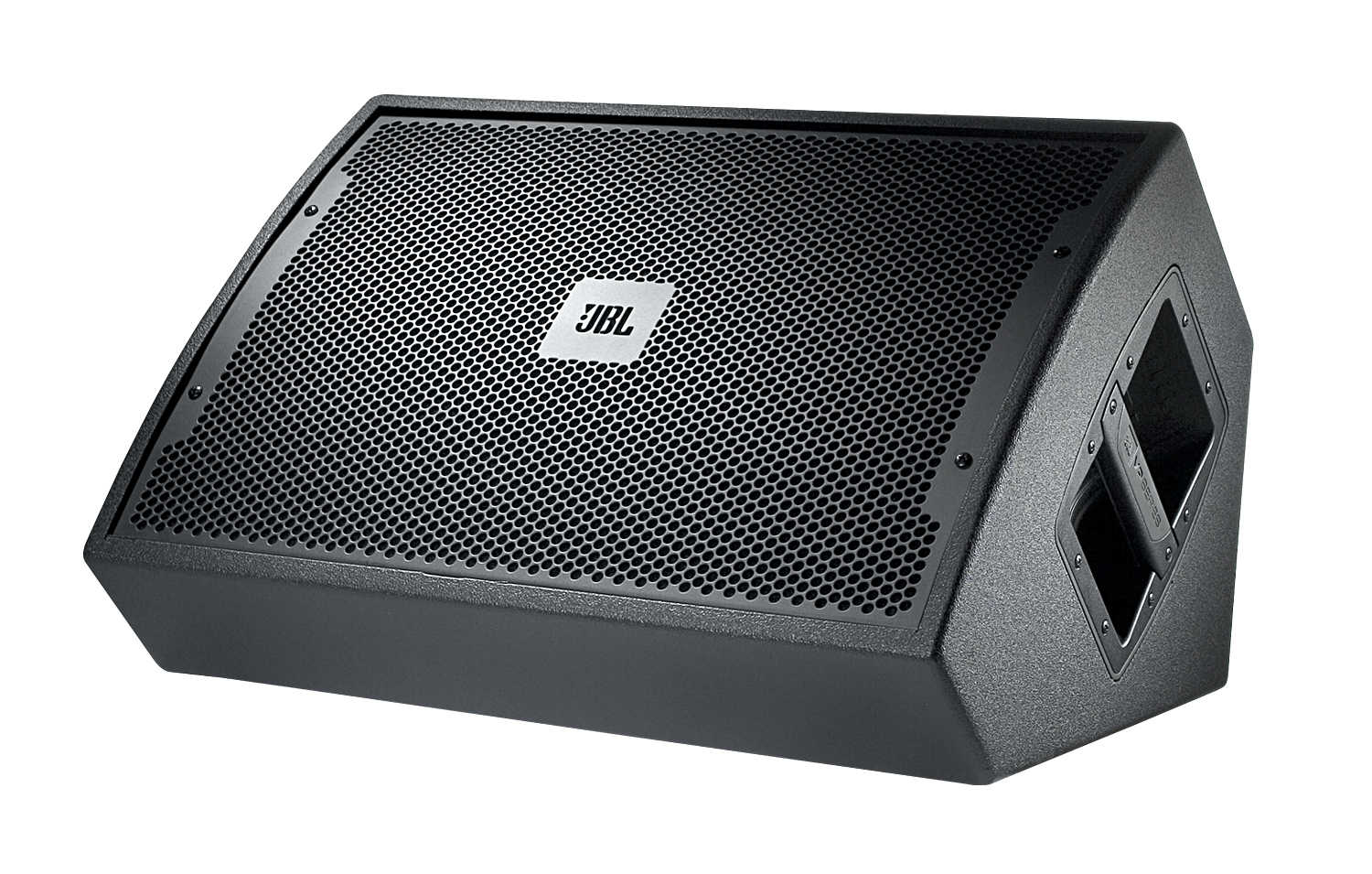

Powered 12 in. 2-Way Integrated Stage Monitor Loudspeaker System
The VP7212MDP is a powered 12" 2-way integrated loudspeaker system designed specifically as a high-impact stage monitor.
صور أكبر
الميزات
- Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for stage monitor use.
- High-impact system with premium fidelity.
- Field rotatable baffle for easy left/right configurations.
- 1750 watts peak output power, 875 watts continuous.
- 12-inch Differential Drive® low-frequency driver for extended lowfrequency output.
- 50° x 90° coverage optimized for use as stage monitor.
- Robust powder-coated die cast aluminum handles, designed for strength and comfort.
التنزيلات
الوثائق
| الحجم | |
VP Series Brochure
تم التحديث: أبريل 2026
|
2.73 MB |
|
VP7212MDP Spec Sheet
تم التحديث: أبريل 2026
|
345 KB |
Specifications
| الحجم | |
|
|
345 KB |
Manuals
| الحجم | |
|
|
1.02 MB |
Brochures
| الحجم | |
|
|
2.73 MB |
CAD Drawings
| الحجم | |
|
|
55.6 KB |
|
|
891 KB |
|
|
21.5 KB |
Simulation Data
| الحجم | |
|
|
21 MB |
Images
| الحجم | |
|
|
836 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
القطع والخدمة
المواصفات
| Frequency Response | 80 Hz - 18 kHz ( ± 3 dB) |
| Frequency Range | 55 Hz - 20 kHz (-10 dB) |
| Coverage Pattern | 50° x 90° |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Maximum Peak Output | 134 dB SPL 1m |
| Low Frequency Section | JBL 2262G, 304mm (12in) dia., 76mm (3in) Dual Coil neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 2 x 2 ohms |
| High Frequency | JBL2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit. |
| DP2 Internal Amplification Output (at nominal load) | 1750 Watts Peak, 875 Watts Continuous |
| DP2 Output (Continuous IEC shaped pink noise into rated load impedance) | 1-Channel, Class I |
| DPC-2 Output Section | LF: Dual Bridged Technology™, Class D HF: Bridged Class D |
| Audio Input Connector | XLR with loop-through |
| User Controls | System EQ Selection: Full Range or Speech/Vocal 0-16 dB input Attenuator with 32 precision 0.5 dB steps |
| Signal Processing | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | 90-132 VAC/216-264 VAC, 50/60 Hz |
| AC Line Voltage | 50/60 Hz; User Selectable; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
| AC Loop-thru | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Enclosure | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 346 x 565 x 413 mm13.6 x 22.3 x 16.2 in |
| Net Weight | 20.7 kg (45.5 lbs) |
