VP7212MDP (停产)

Powered 12 in. 2-Way Integrated Stage Monitor Loudspeaker System


Powered 12 in. 2-Way Integrated Stage Monitor Loudspeaker System

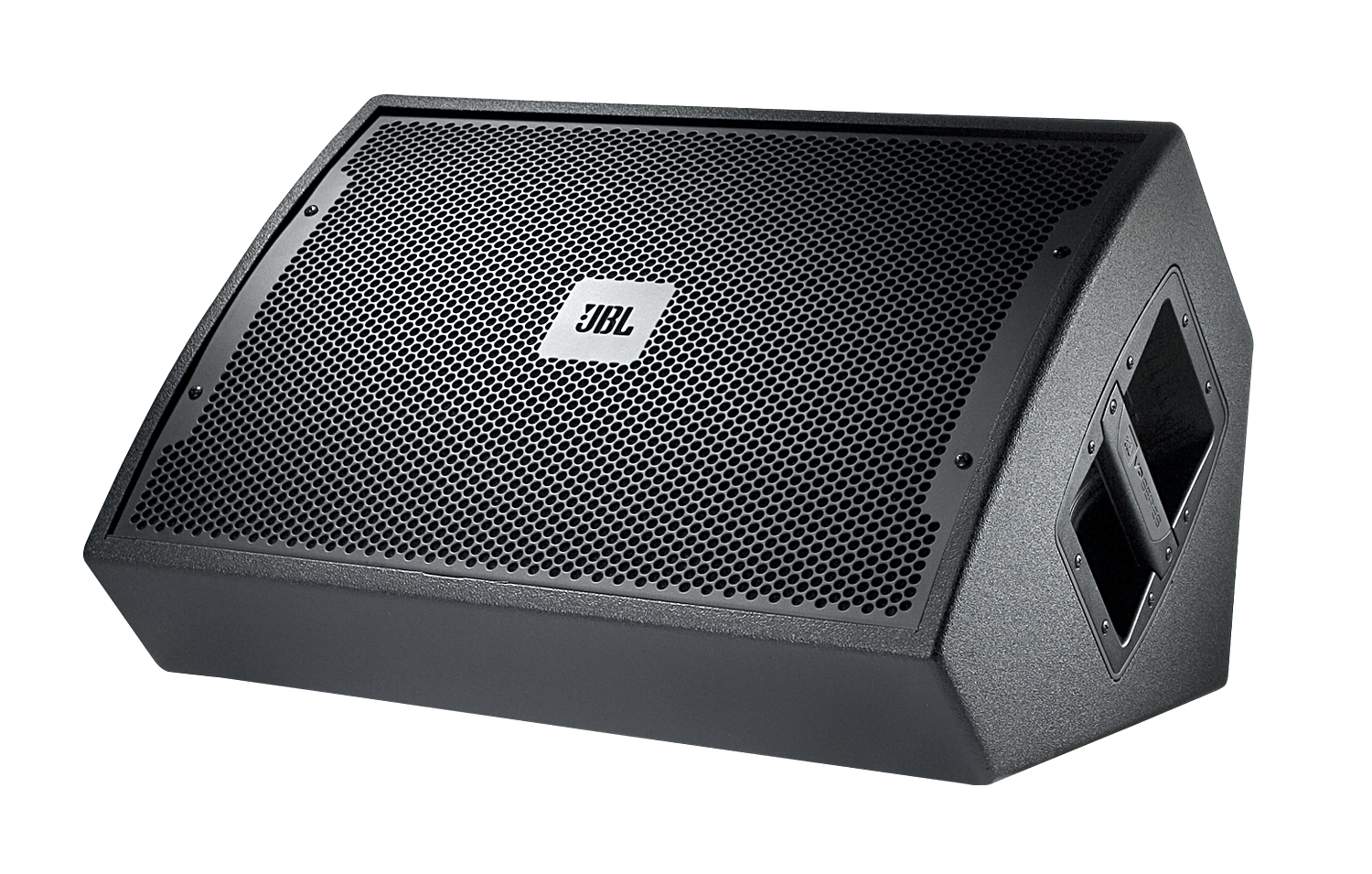

The VP7212MDP is a powered 12" 2-way integrated loudspeaker system designed specifically as a high-impact stage monitor.


  • Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for stage monitor use.
  • High-impact system with premium fidelity.
  • Field rotatable baffle for easy left/right configurations.
  • 1750 watts peak output power, 875 watts continuous.
  • 12-inch Differential Drive® low-frequency driver for extended lowfrequency output.
  • 50° x 90° coverage optimized for use as stage monitor.
  • Robust powder-coated die cast aluminum handles, designed for strength and comfort.


  Version Language Size Uploaded
file type icon VP Series Brochure
en updated: 1月12日
  en  2.7 MB 1月12日
file type icon VP7212MDP Spec Sheet
en updated: 1月12日
  en  344.7 KB 1月12日
file type icon VP7212MDP Spec Sheet
updated: 7月08日
    344.7 KB 7月08日
file type icon VP DrivePack DPC2 User's Guide
updated: 10月18日
    1.0 MB 10月18日
file type icon VP Series Brochure
updated: 7月08日
    2.7 MB 7月08日
CAD Drawings
file type icon VP7212MDP 2D PDF
updated: 7月08日
    55.6 KB 7月08日
file type icon VP7212MDP 2D DXF
updated: 7月08日
    891.3 KB 7月08日
file type icon VP7212MDP 3D DXF
updated: 7月08日
    21.5 KB 7月08日
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月15日
    21.0 MB 3月15日
file type icon VP7212MDP Photo
updated: 7月08日
    836.1 KB 7月08日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service



80 Hz - 18 kHz ( ± 3 dB)
频率范围 55 Hz - 20 kHz (-10 dB)
覆盖范围 50° x 90°
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Maximum Peak Output 134 dB SPL 1m
Low Frequency Section JBL 2262G, 304mm (12in) dia., 76mm (3in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 2 x 2 ohms
High Frequency JBL2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit.
DP2 Internal Amplification Output (at nominal load) 1750 Watts Peak, 875 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 1-Channel, Class I
DPC-2 Output Section LF: Dual Bridged Technology™, Class D HF: Bridged Class D
Audio Input Connector XLR with loop-through
User Controls System EQ Selection: Full Range or Speech/Vocal 0-16 dB input Attenuator with 32 precision 0.5 dB steps
Signal Processing DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC/216-264 VAC, 50/60 Hz
AC 线路电压 50/60 Hz; User Selectable; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop-thru Neutrik PowerCon (NAC 3MPB)
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Enclosure 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
网罩 14 Gauge Black powder-coated perforated steel with foam backing
尺寸(高 x 宽 x 厚) 346 x 565 x 413 mm13.6 x 22.3 x 16.2 in
净重量 20.7 kg (45.5 lbs)
