VP7210/95DP (discontinued)

Powered 10 in. Integrated Loudspeaker System

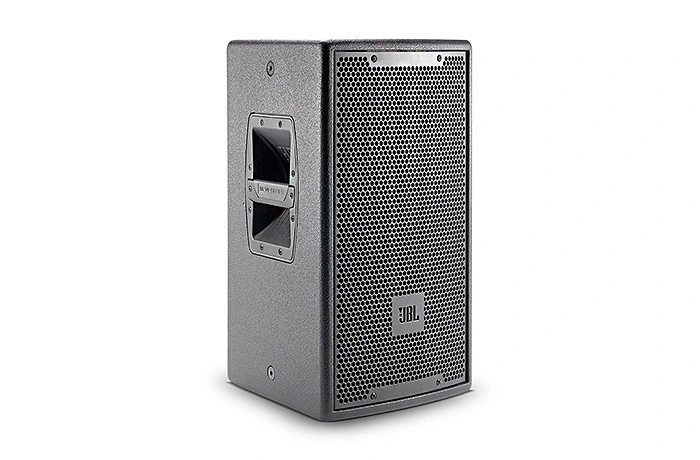

Larger Images

Powered 10 in. Integrated Loudspeaker System

The VP7210/95DP is a powered 10" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.

Features

  • Compact Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable
    or installed use.
  • Optimized for both portable/rental or permanent-venue use.
  • 1750 watts peak output power, 875 watts continuous.
  • 10-inch Differential Drive® low-frequency driver for extended lowfrequency output.
  • Robust powder-coated die cast aluminum handles, designed for strength and comfort.

Downloads

  Version Language Size Uploaded
VP Series Brochure
en updated: Jun 18, 2015
  en  2.73 MB Jun 18, 2015
VP7210/95DP Spec Sheet
en updated: Jun 18, 2015
  en  985 KB Jun 18, 2015
Specifications
VP7210/95DP Spec Sheet
updated: Jul 08, 2019
    985 KB Jul 08, 2019
Manuals
VP DrivePack DPC2 User's Guide
updated: Oct 18, 2019
    1.02 MB Oct 18, 2019
Brochures
VP Series Brochure
updated: Jul 08, 2019
    2.73 MB Jul 08, 2019
Installed Sound Full Line 2015 Catalog
updated: Aug 20, 2020
    2.59 MB Aug 20, 2020
CAD Drawings
VP Series
updated: Oct 18, 2019
    2.54 MB Oct 18, 2019
VP7210/95DP 3D DXF
updated: Jul 08, 2019
    25.2 KB Jul 08, 2019
VP7210/95DP 2D DXF
updated: Jul 08, 2019
    814 KB Jul 08, 2019
VP7210/95DP 2D PDF
updated: Jul 08, 2019
    52.8 KB Jul 08, 2019
Compliances
VP Series Declaration of Conformity
updated: Oct 18, 2019
    93.3 KB Oct 18, 2019
Images

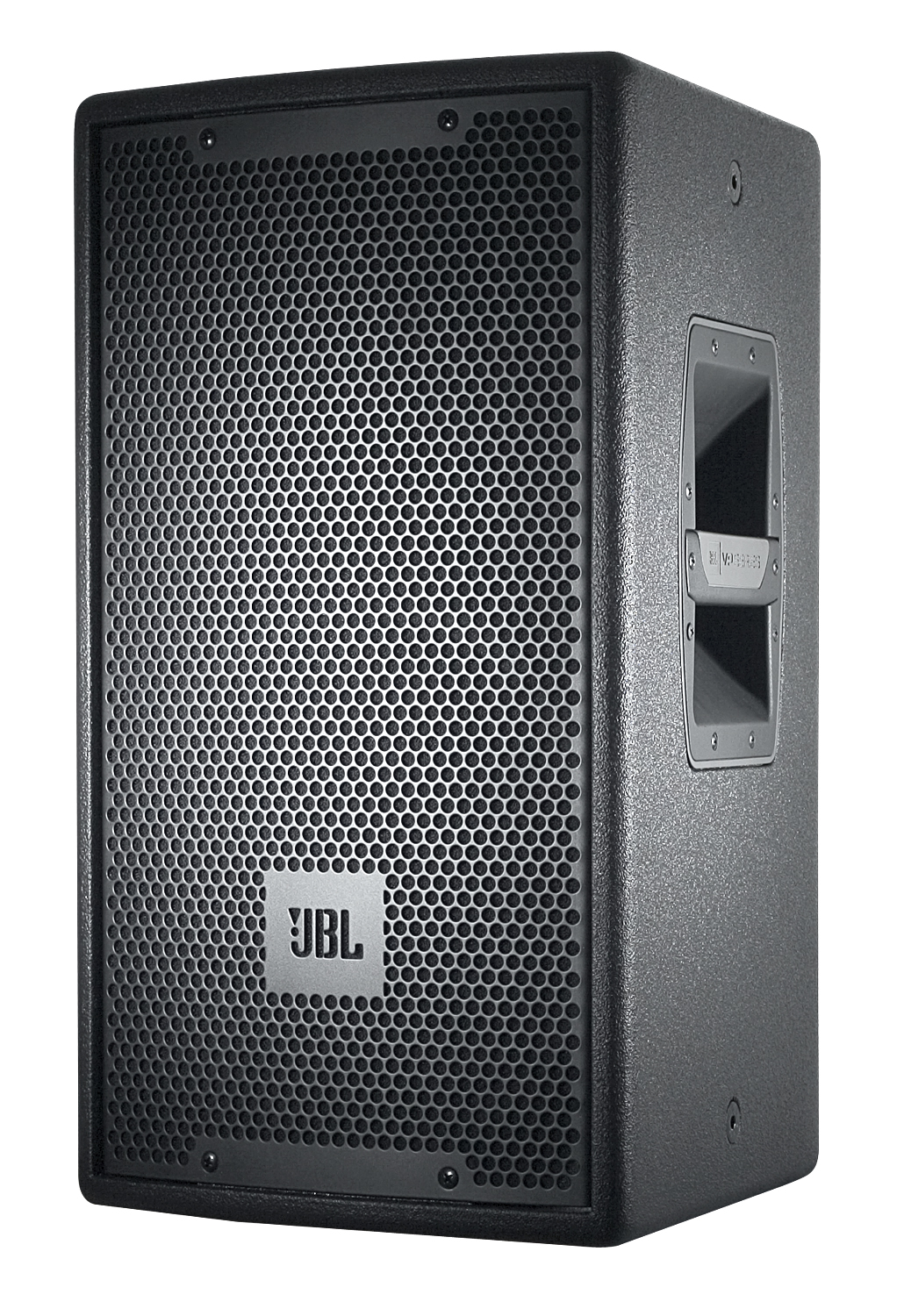

VP7210 Photo
updated: Jul 08, 2019
    1.01 MB Jul 08, 2019
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Clf Files
CLF Files
version 03-16-20, updated: Mar 16, 2020
03-16-20    22.5 MB Mar 16, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Response 80 Hz – 20 kHz ( ± 3 dB)
Frequency Range 50 Hz – 20 kHz (-10 dB)
Coverage Pattern 90° x 50° rotatable waveguide
Directivity Factor (Q) 10
Directivity Index (DI) 10 dB
Maximum Peak Output 132 dB SPL 1m
Low Frequency Section JBL 2261FF, 254 mm (10 in) dia., 76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance 2 x 2 ohms
High Frequency JBL2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit.
DP2 Internal Amplification Output (at nominal load) 1750 Watts Peak, 875 Watts Continuous
DP2 Output (Continuous IEC shaped pink noise into rated load impedance) 750LF/125HF Watts
DPC-2 Output Section LF: Dual Bridged Technology™, Class D HF: Bridged Class D
Audio Input Connector XLR with loop-through
User Controls 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps
Signal Processing DSP Based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC/216-264 VAC, 50/60 Hz
AC Line Voltage 50/60 Hz; User Selectable; 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop-thru Neutrik PowerCon (NAC 3MPB)
AC Current Requirement 6A per system at 120V, 3A per system at 240V
Box Construction 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish.
Suspension System 10 M10 Fittings
Grille 14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D) 521 x 293 x 303 mm20.5 x 11.5 x 11.9 in
Net Weight 18.4 kg (40.5 lbs)
