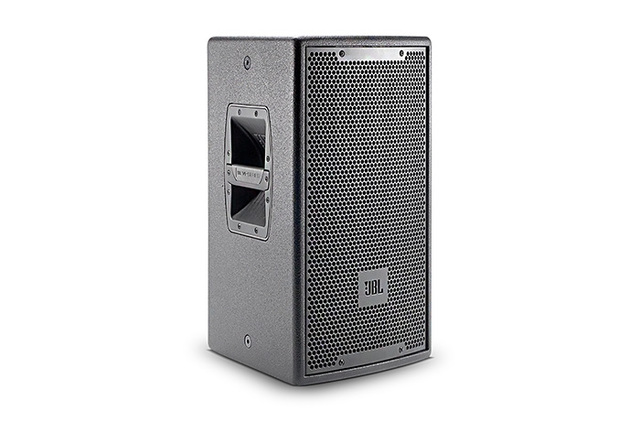

Powered 10 in. Integrated Loudspeaker System
The VP7210/95DP is a powered 10" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.
Grandes images
Caractéristiques
- Compact Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable
or installed use. - Optimized for both portable/rental or permanent-venue use.
- 1750 watts peak output power, 875 watts continuous.
- 10-inch Differential Drive® low-frequency driver for extended lowfrequency output.
- Robust powder-coated die cast aluminum handles, designed for strength and comfort.
Téléchargements
| Size | ||||
VP Series Brochure
updated: mars 13, 2023
|
2,73 Mo | |||
|
VP7210/95DP Spec Sheet
updated: mars 13, 2023
|
985 ko | |||
Specifications | ||||
|
VP7210/95DP Spec Sheet
updated: juil. 08, 2019
|
985 ko | |||
Manuals | ||||
|
VP DrivePack DPC2 User's Guide
updated: oct. 18, 2019
|
1,02 Mo | |||
Brochures | ||||
|
VP Series Brochure
updated: juil. 08, 2019
|
2,73 Mo | |||
CAD Drawings | ||||
VP Series
updated: oct. 18, 2019
|
2,54 Mo | |||
|
VP7210/95DP 3D DXF
updated: juil. 08, 2019
|
25,2 ko | |||
|
VP7210/95DP 2D DXF
updated: juil. 08, 2019
|
814 ko | |||
|
VP7210/95DP 2D PDF
updated: juil. 08, 2019
|
52,8 ko | |||
Compliances | ||||
|
VP Series Declaration of Conformity
updated: oct. 18, 2019
|
93,3 ko | |||
Images | ||||
|

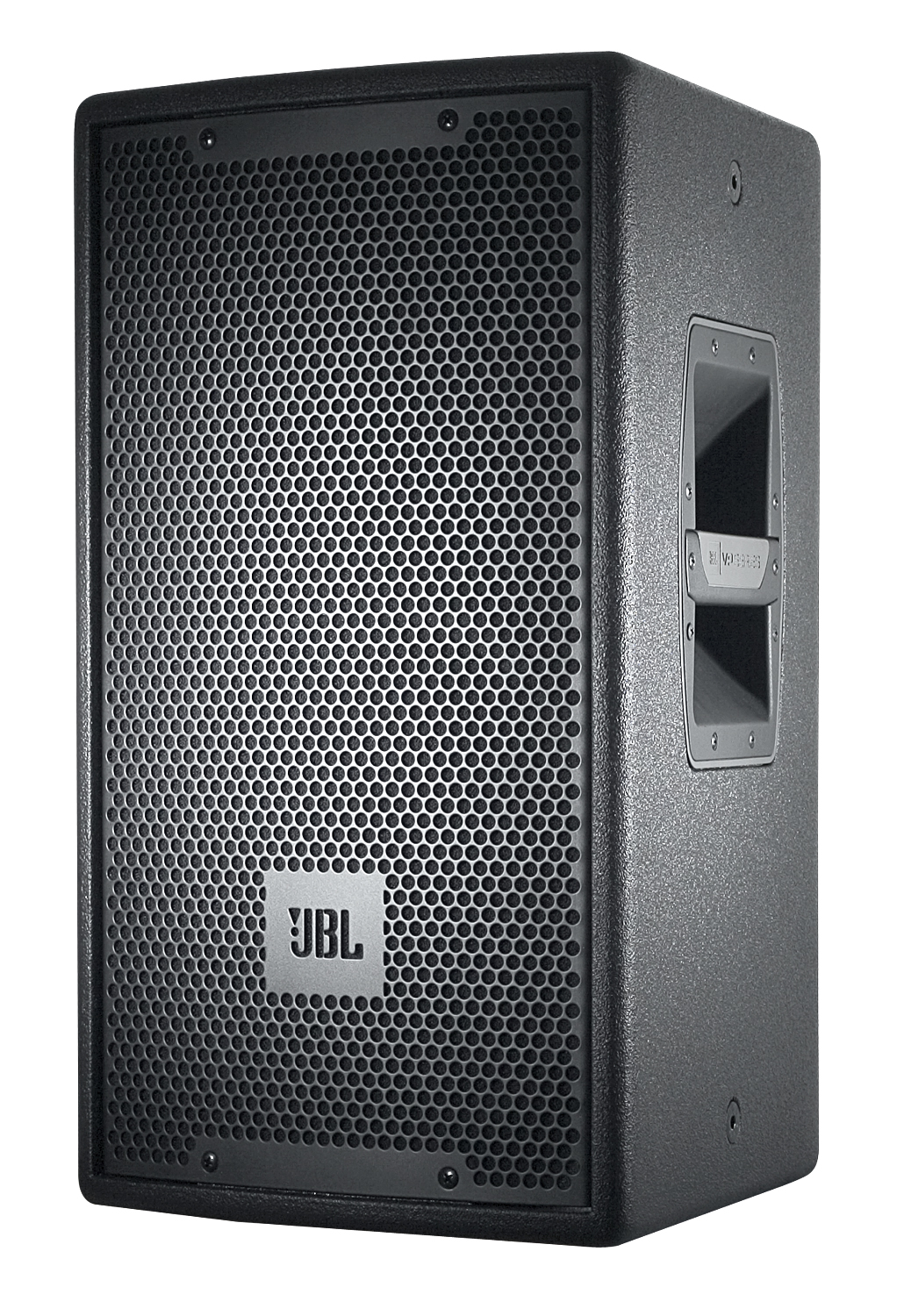

VP7210 Photo
updated: juil. 08, 2019
|
1,01 Mo | |||
Ease Data | ||||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: mars 15, 2022
|
21 Mo | |||
CLF Files | ||||
|
JBL Pro ALL CLF Files
version 12-10-21,
updated: déc. 13, 2021
|
24 Mo | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Response | 80 Hz – 20 kHz ( ± 3 dB) |
| Frequency Range | 50 Hz – 20 kHz (-10 dB) |
| Coverage Pattern | 90° x 50° rotatable waveguide |
| Directivity Factor (Q) | 10 |
| Directivity Index (DI) | 10 dB |
| Maximum Peak Output | 132 dB SPL 1m |
| Low Frequency Section | JBL 2261FF, 254 mm (10 in) dia., 76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 2 x 2 ohms |
| High Frequency | JBL2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit. |
| DP2 Internal Amplification Output (at nominal load) | 1750 Watts Peak, 875 Watts Continuous |
| DP2 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/125HF Watts |
| DPC-2 Output Section | LF: Dual Bridged Technology™, Class D HF: Bridged Class D |
| Audio Input Connector | XLR with loop-through |
| User Controls | 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps |
| Signal Processing | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | 90-132 VAC/216-264 VAC, 50/60 Hz |
| AC Line Voltage | 50/60 Hz; User Selectable; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
| AC Loop-thru | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 10 M10 Fittings |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 521 x 293 x 303 mm20.5 x 11.5 x 11.9 in |
| Net Weight | 18.4 kg (40.5 lbs) |
