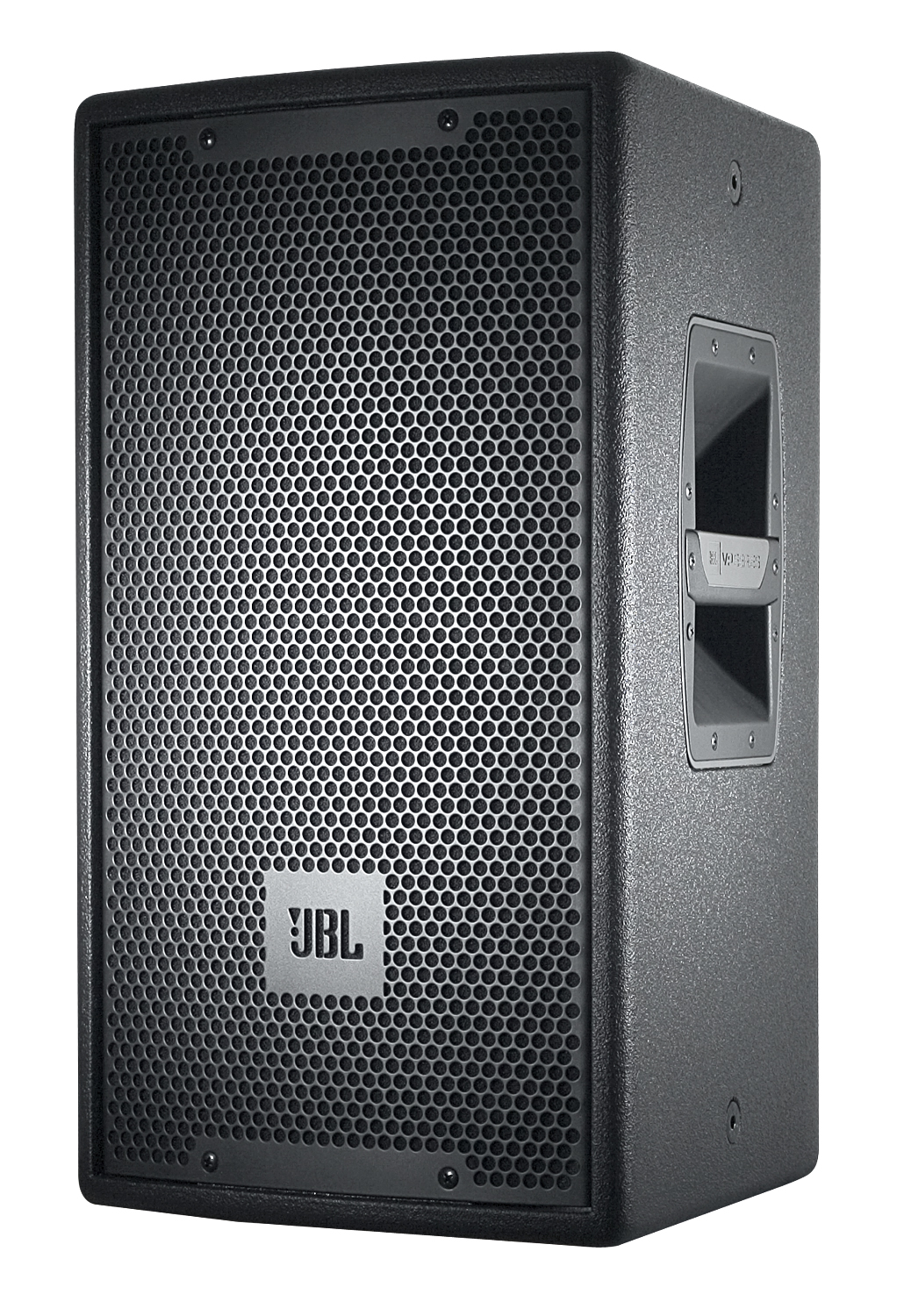

Powered 10 in. Integrated Loudspeaker System
The VP7210/95DP is a powered 10" 2-way integrated loudspeaker system featuring 1750 watts of peak output power, and onboard digital signal processing.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- Compact Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable
or installed use. - Optimized for both portable/rental or permanent-venue use.
- 1750 watts peak output power, 875 watts continuous.
- 10-inch Differential Drive® low-frequency driver for extended lowfrequency output.
- Robust powder-coated die cast aluminum handles, designed for strength and comfort.
Λήψεις
Έγγραφα
| Μέγεθος | |
VP Series Brochure
ενημέρωση: Απρ 2026
|
3 MB |
|
VP7210/95DP Spec Sheet
ενημέρωση: Απρ 2026
|
1000 KB |
Specifications
| Μέγεθος | |
|
|
1000 KB |
Manuals
| Μέγεθος | |
|
|
1 MB |
Brochures
| Μέγεθος | |
|
|
3 MB |
CAD Drawings
| Μέγεθος | |
|
|
3 MB |
|
|
30 KB |
|
|
800 KB |
|
|
50 KB |
Compliances
| Μέγεθος | |
|
|
90 KB |
Simulation Data
| Μέγεθος | |
|
|
20 MB |
|
|
20 MB |
Images
| Μέγεθος | |
|
|
1 MB |
Εάν κάποιος από τους παραπάνω συνδέσμους έχει ως αποτέλεσμα παράξενους χαρακτήρες στο πρόγραμμα περιήγησής σας, κάντε δεξί κλικ στο αρχείο για να το αποθηκεύσετε στον υπολογιστή σας.
Ανταλλακτικά και σέρβις
Προδιαγραφές
| Frequency Response | 80 Hz – 20 kHz ( ± 3 dB) |
| Frequency Range | 50 Hz – 20 kHz (-10 dB) |
| Coverage Pattern | 90° x 50° rotatable waveguide |
| Directivity Factor (Q) | 10 |
| Directivity Index (DI) | 10 dB |
| Maximum Peak Output | 132 dB SPL 1m |
| Low Frequency Section | JBL 2261FF, 254 mm (10 in) dia., 76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 2 x 2 ohms |
| High Frequency | JBL2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit. |
| DP2 Internal Amplification Output (at nominal load) | 1750 Watts Peak, 875 Watts Continuous |
| DP2 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/125HF Watts |
| DPC-2 Output Section | LF: Dual Bridged Technology™, Class D HF: Bridged Class D |
| Audio Input Connector | XLR with loop-through |
| User Controls | 80 Hz Subwoofer High Pass Filter. Enable/Disable 0-16 dB input Attenuator with 32 precision 0.5 dB steps |
| Signal Processing | DSP Based, resident in Input Module |
| System Management | DSP based limiters for mechanical and thermal protection |
| AC Power Operating Range | 90-132 VAC/216-264 VAC, 50/60 Hz |
| AC Line Voltage | 50/60 Hz; User Selectable; 120V/240V (-15%, +10%) |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
| AC Loop-thru | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirement | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 10 M10 Fittings |
| Grille | 14 Gauge Black powder-coated perforated steel with foam backing |
| Dimensions (H x W x D) | 521 x 293 x 303 mm20.5 x 11.5 x 11.9 in |
| Net Weight | 18.4 kg (40.5 lbs) |
