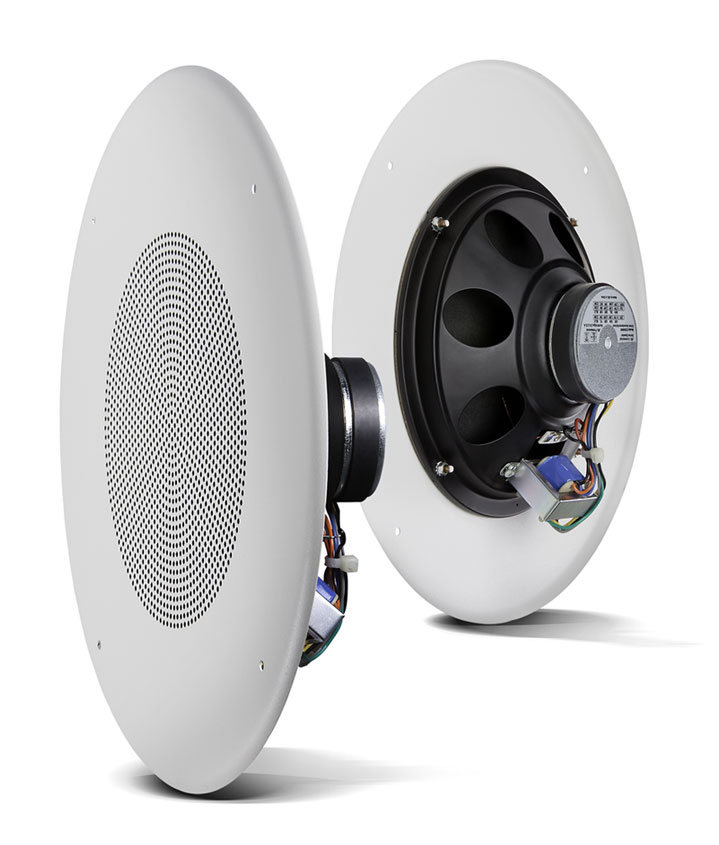

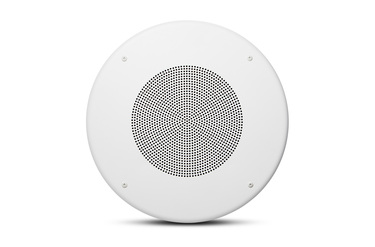

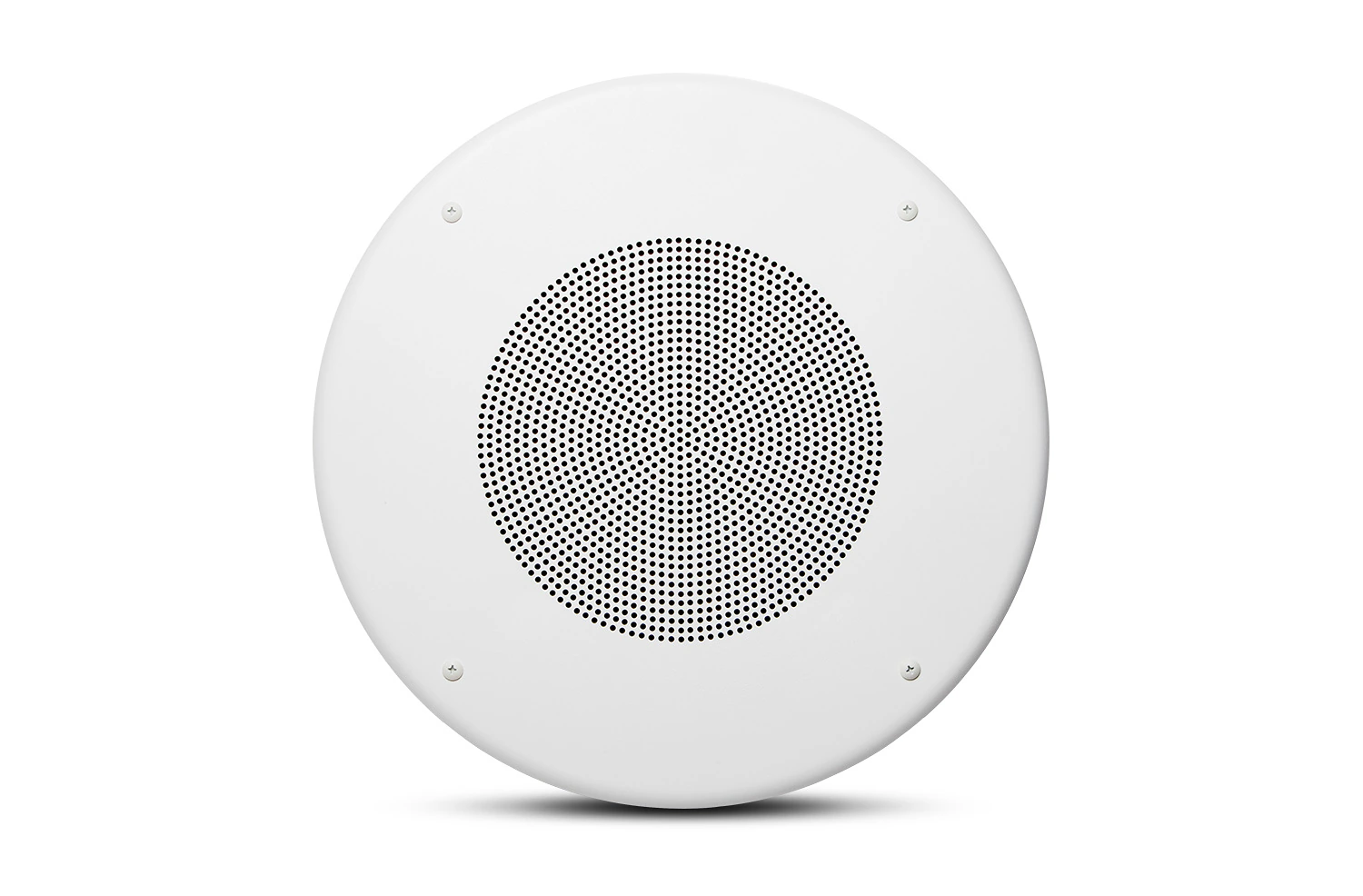

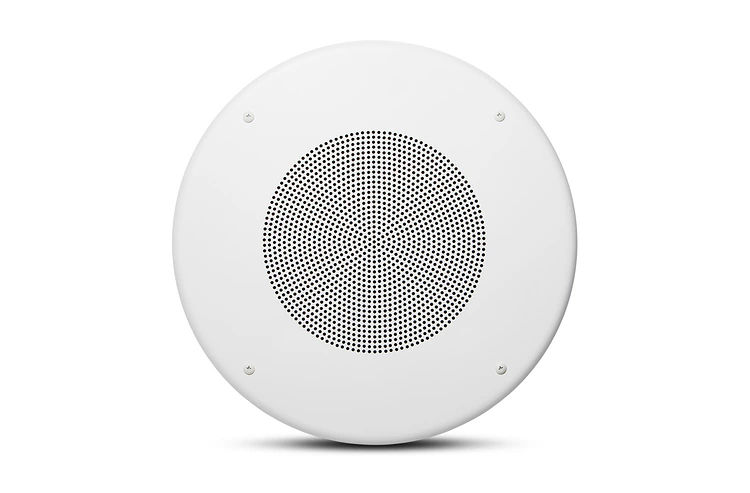

CSS8008

200 mm (8 in) Commercial Series Ceiling Speakers

Larger Images

200 mm (8 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Features

  • High 96 dB sensitivity
  • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • 120° conical coverage
  • Fits CSS-BB8 backcan

Downloads

  Version Language Size Uploaded
Specifications
CSS8004/CSS8008/CSS8018 Spec Sheet
updated: Oct 22, 2020
    1.24 MB Oct 22, 2020
Manuals
Ceiling Speaker Accessory Guide
updated: Oct 18, 2019
    127 KB Oct 18, 2019
Brochures
Commercial Series Introductory Sheet
updated: Oct 18, 2019
    250 KB Oct 18, 2019
Compliances
CSS8000 Declaration of Conformity
updated: Oct 18, 2019
    145 KB Oct 18, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
Install Guides
CSS8008 Install Instructions
updated: Oct 22, 2020
    38.3 KB Oct 22, 2020
Ease Data
CSS 8000 Ease Files
updated: Oct 22, 2020
    35.8 KB Oct 22, 2020
    20.5 MB Jul 08, 2019
Images
CSS8008 Hi-Res Image
updated: Oct 22, 2020
    63.6 KB Oct 22, 2020
Speaker Tunings
    557 KB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Drivers 200 mm (8 in) Full-Range
Sensitivity 96 dB (2k - 6k Hz)
Frequency Range (-10 dB) Driver/Grille Assembly 55 Hz – 16 kHz
Installed in CSS-BB backcan 100 Hz – 16 kHz
Coverage Angle 120° conical
Driver Continuous Power Handling 15 Watts
Transformer Taps 5W, 2.5W, 1.3W
Transformer Taps 5W, 2.5W, 1.3W, 0.7W
Transformer Taps 5W, 2.5W, 1.3W, 0.7W
Transformer Insertion Loss 1.5 dB Maximum
Transformer Connection Bare wire
Motor Mass 200 g (7 oz)
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan CSS-BB8 (0.15 cu ft)
Other Compatible Backcans MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft)
Bolt Mounting Circle to Backcan 4 points on 286 mm(11.25 in) diameter
Cutout DiameterOpen-back 216 mm (8.5 in)
In CSS-BB backcan 295 mm (11.7in)
Depth (behind grille) 71 mm (2.8 in)
Grille Diameter 327 mm (12.9 in)
Net Weight (each) 1.27 kg (2.8 lb)
Shipping Weight (ea) 1.94 kg (4.3 lb)
Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
Power Rating See transformer taps
Transformer Taps 100V Taps - 5W, 2.5W, 1.3W
70V Taps - 5W, 2.5W, 1.3W, 0.7W
25V Taps - 5W, 2.5W, 1.3W, 0.7W
Maximum SPL (1m) 103 dB (top 25V/70V/100V tap)
Input Connectors Bare wire
Color White
Backcan formed steel (accessory)
Baffle/Rim Metal
Ceiling Cutout Size 216 mm (8.5 in)
Plenum Usage Yes, with accessory backcan

Accessories

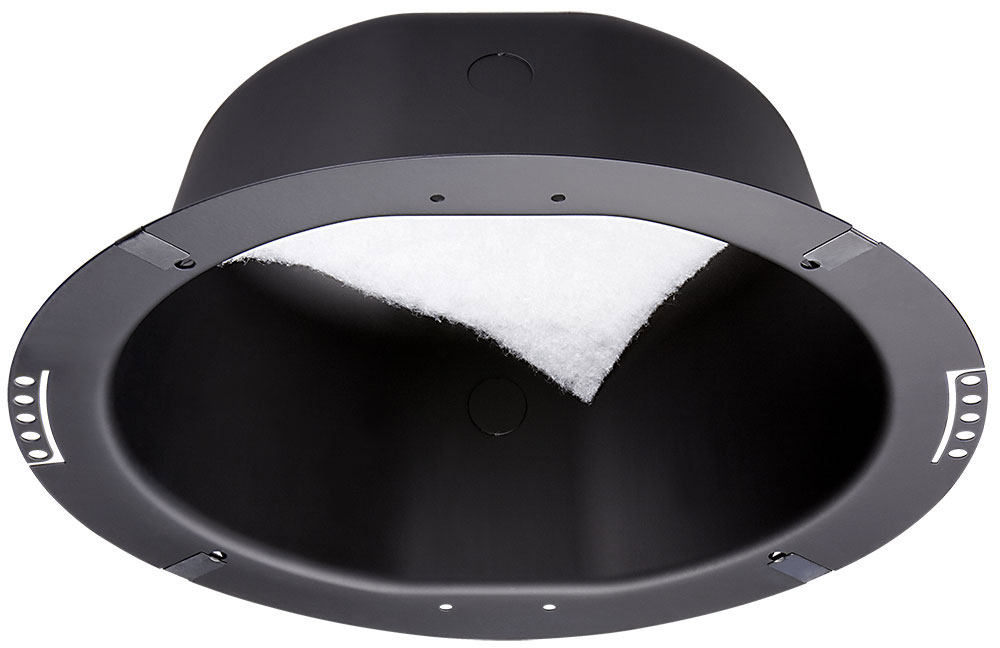

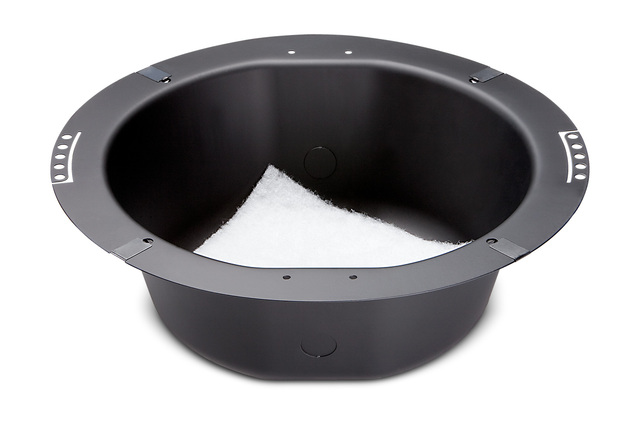

CSS-BB8x6 | 8" Backcan for CSS8008 or CSS8018 speaker
CSS-BB8x6 Main photo
Larger Images

8" Backcan for CSS8008 or CSS8018 speaker

CSS-BB8x6


Documentation

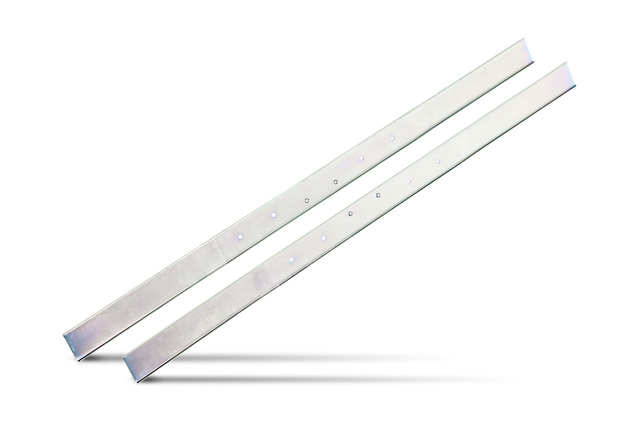

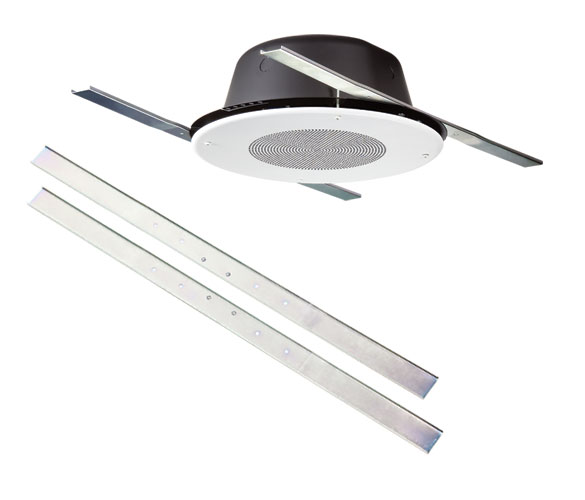

CSS-TR4/8x12 | Tile Rails for CSS-BB4x6 and CSS-BB8x6 backcans
CSS-TR4/8x12  Main photo
Larger Images

Tile Rails for CSS-BB4x6 and CSS-BB8x6 backcans

CSS-TR4/8x12
