CSS-BB8x6

8" Backcan for CSS8008 or CSS8018 speaker

CSS-BB8x6
Larger Images

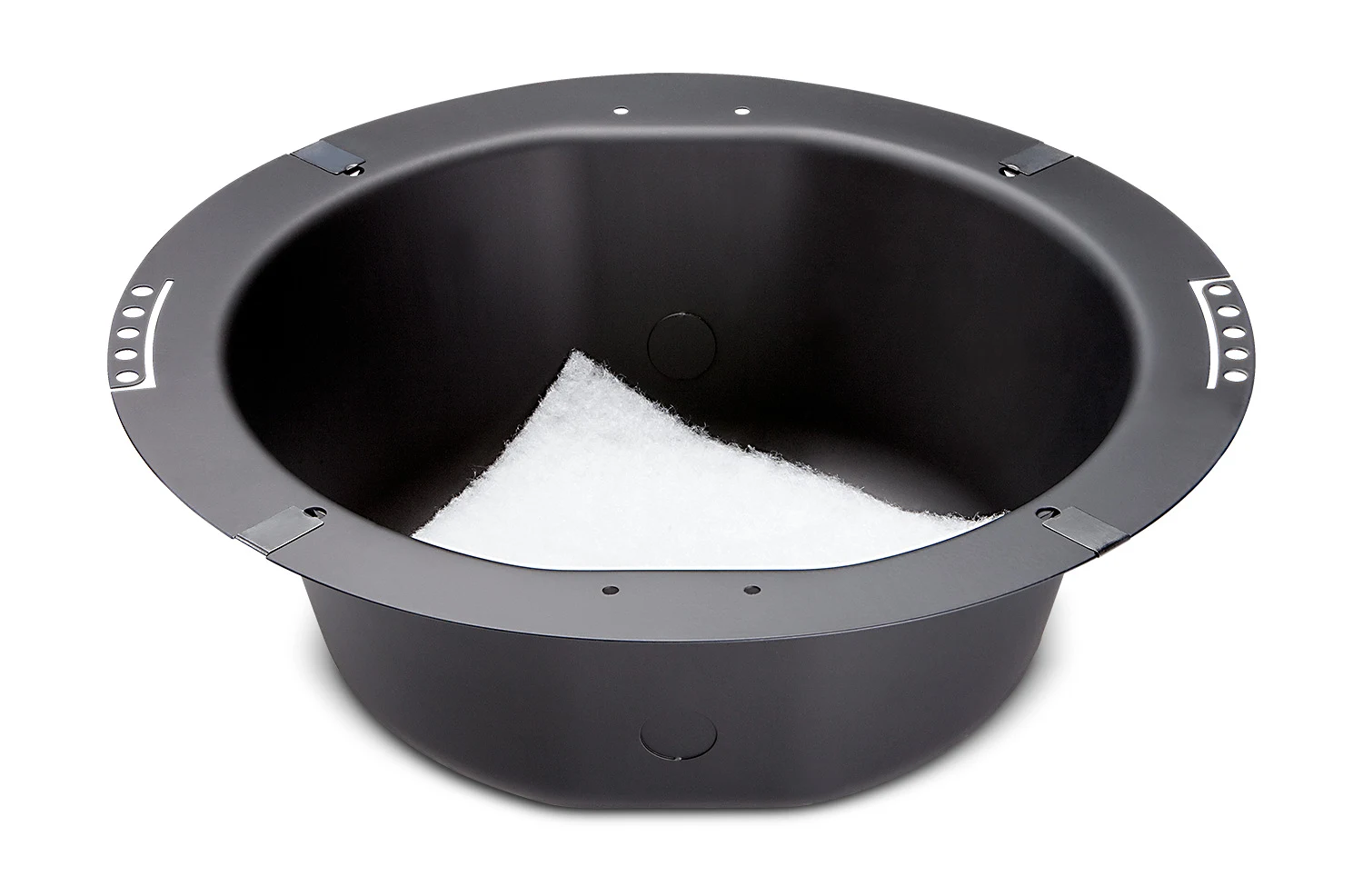

8" Backcan for CSS8008 or CSS8018 speaker

CSS-BB8x6

Pre-install backcan for use with CSS8008 or CSS8018 speaker.

For suspended ceilings, tile rail is CSS-TR4/8.

Comes in packs of 6 pcs CSS-BB8x6, for 6 speakers.

Downloads

  Version Language Size Uploaded
Specifications
file type icon CSS8004/CSS8008/CSS8018 Spec Sheet
updated: Oct 2020
    1.24 MB Oct 2020
Brochures
file type icon Commercial Series Introductory Sheet
updated: Oct 2019
    250 KB Oct 2019
Images
file type icon CSS-BB8x6 Hi-Res Image
updated: Oct 2020
    50.7 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Compatibility CSS-8008 and CSS-8018 speaker, CSS-TR4/8 tile rails
Dimensions 108 deep x 334 diameter mm (4.3 x 13.2 in)
Bolt Mount Circle 4 points on 286 mm (11.25 in) diameter
Air Space 4.0 liters (0.15 cu ft)
Material Steel, zinc-plated, powder-coated
Conduit Knockouts Five (5) knockouts:4 on sides spaced at 90° and1 at center of top panel
Attachment Points 4 points on 286 mm (11.25 in) diameter with clip nuts for 4 screws.
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling Speaker. CUL Listed. In accordance with IEC60849/EN60849.
Net Weight (each) 0.87 kg (2.0 lb)
Shipping Weight (ea) 1.04 kg (2.3 lb)
Included Accessories 4 pcs M4 x 8 mm machine screws for attaching two tiles rails to backcan
