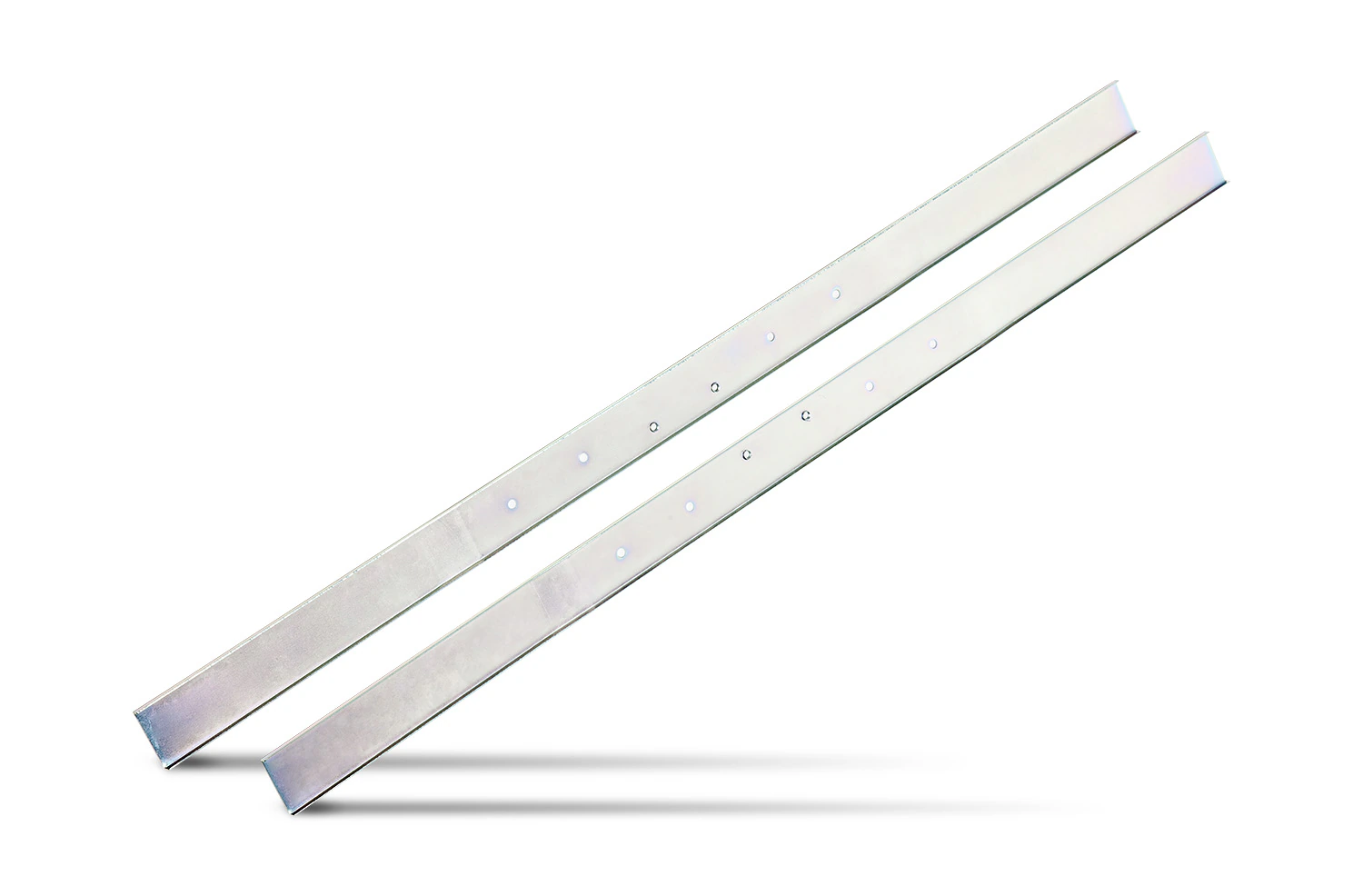

Tile Rails for CSS-BB4x6 and CSS-BB8x6 backcans
CSS-TR4/8x12
For suspended ceilings.
Comes in packs of 12 pcs CSS-TR4/8x12, for 6 backcans.
Larger Images
Downloads
| Size | ||||
Specifications | ||||
CSS8004/CSS8008/CSS8018 Spec Sheet
updated: Oct 2020
|
1.24 MB | |||
Brochures | ||||
|
Commercial Series Introductory Sheet
updated: Oct 2019
|
250 KB | |||
Images | ||||
CSS-TR4/8x12 Hi-Res Image
updated: Oct 2020
|
22.2 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Compatibility | CSS-BB4 and CSS-BB8 backcans |
| Dimensions | 600 x 36 x 8 mm (23.6 x 1.4 x 0.3 in) |
| Bolt Mount Circle | N/A |
| Air Space | N/A |
| Material | Punched/formed steel, zinc-plated |
| Conduit Knockouts | N/A |
| Attachment Points | 2 points screw onto backcan, each rail. |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling Speaker. CUL Listed. In accordance with IEC60849/EN60849. |
| Net Weight (each) | 0.18 kg (0.4 lb) |
| Shipping Weight (ea) | 0.21 kg (0.5 lb) |
| Included Accessories | M4 x 8 mm machine screws for attaching rails |
