CSS8008

200 mm (8 in) Commercial Series Ceiling Speakers

较大的图像

200 mm (8 in) Commercial Series Ceiling Speakers

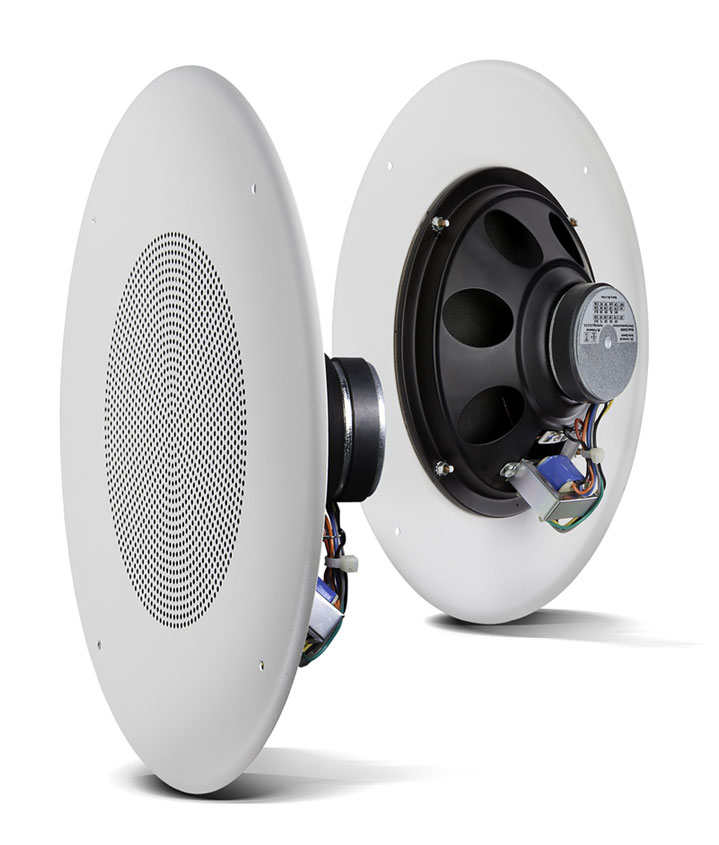

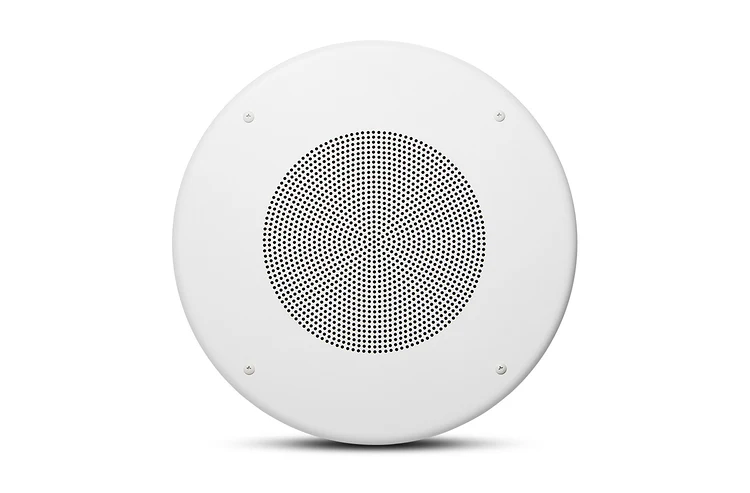

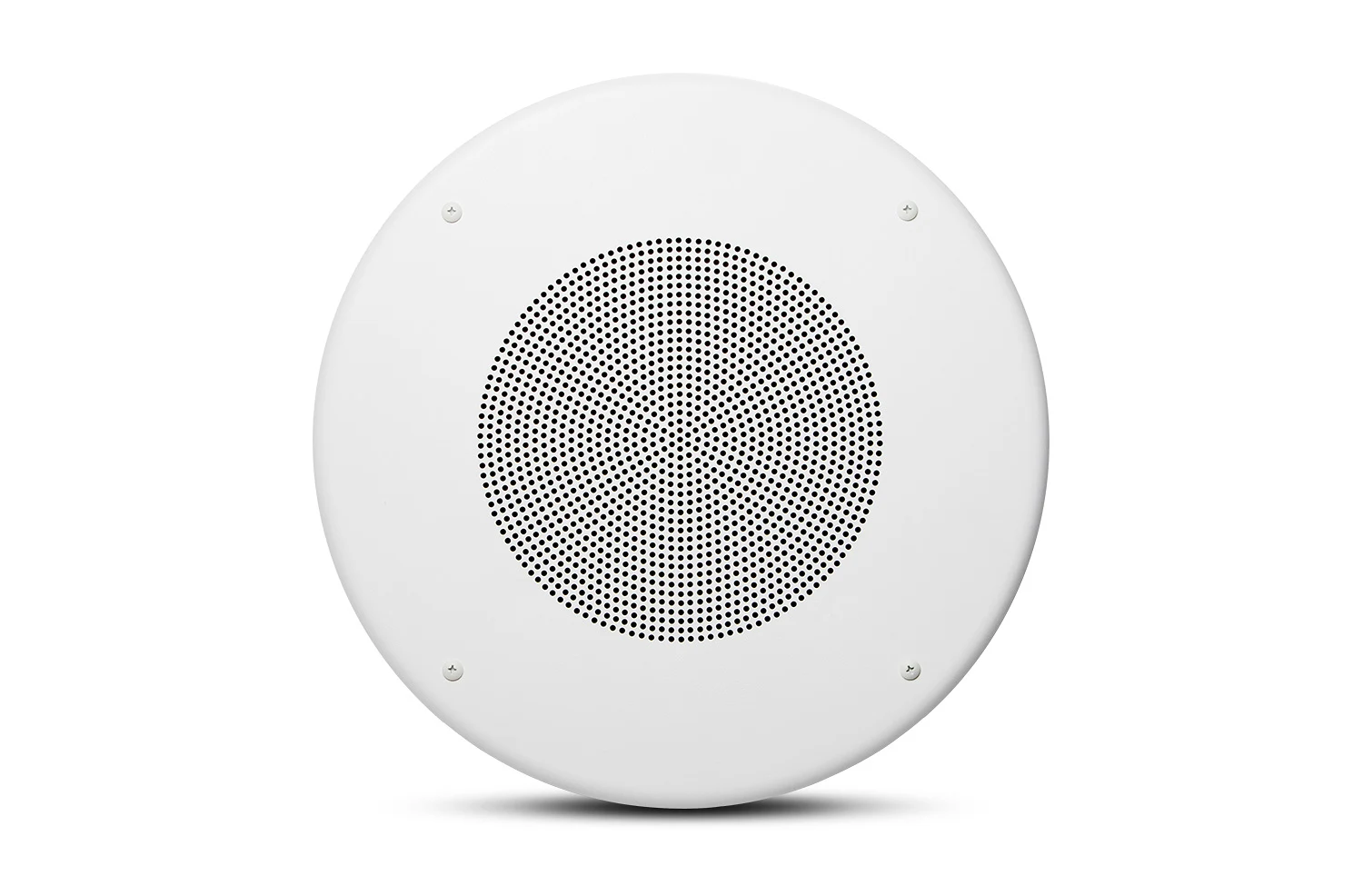

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

特点

  • High 96 dB sensitivity
  • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • 120° conical coverage

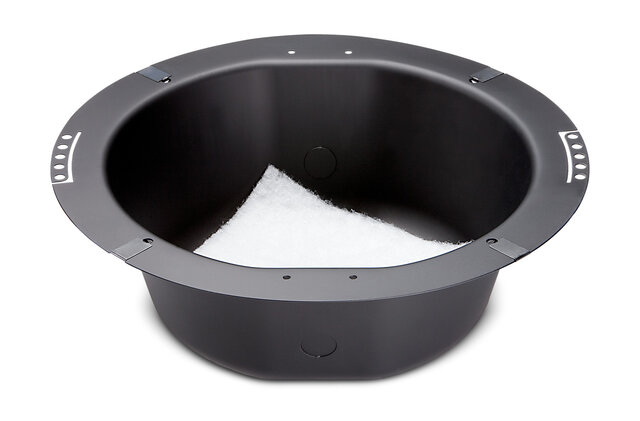

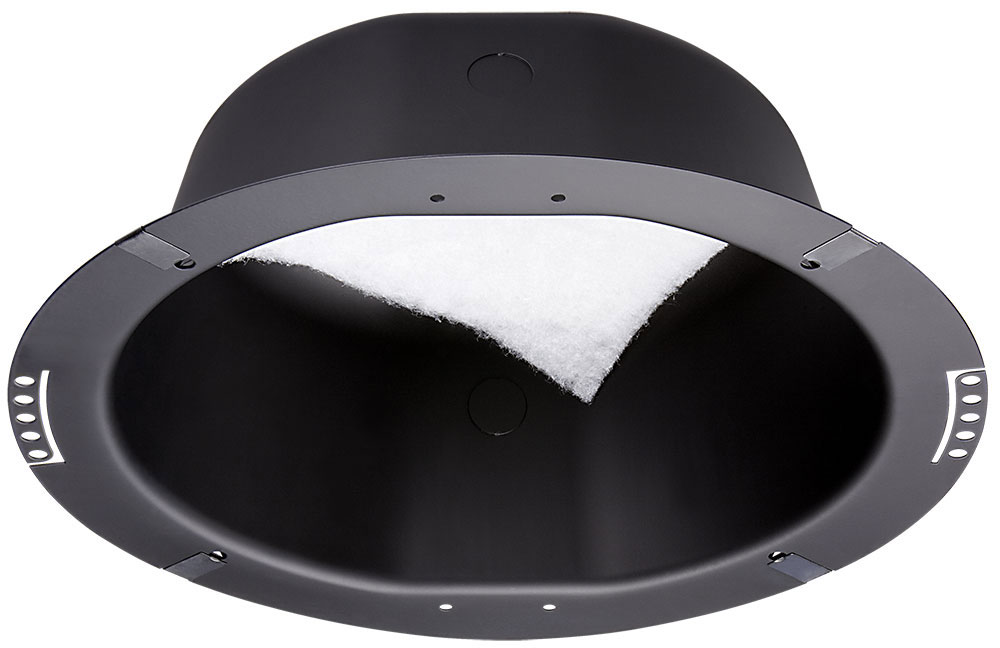

  • Fits CSS-BB8 backcan

下载

  Version Language Size Uploaded
Specifications
CSS8004/CSS8008/CSS8018 Spec Sheet
updated: 4月29日
    1.2 MB 4月29日
Manuals
Ceiling Speaker Accessory Guide
updated: 10月18日
    126.9 KB 10月18日
Brochures
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日
Commercial Sound Full Line 2015 Catalog
updated: 10月21日
    2.0 MB 10月21日
Commercial Series Introductory Sheet
updated: 10月18日
    249.8 KB 10月18日
Compliances
CSS8000 Declaration of Conformity
updated: 10月18日
    144.7 KB 10月18日
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 1月14日
3.6.2     804.8 KB 1月14日
Install Guides
CSS8008 Install Instructions
updated: 4月29日
    38.3 KB 4月29日
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: 7月08日
    20.5 MB 7月08日
CSS 8000 Ease Files
updated: 4月29日
    35.8 KB 4月29日
Images
CSS8008 Hi-Res Image
updated: 4月29日
    63.6 KB 4月29日
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: 2月24日
    557.0 KB 2月24日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Drivers 200 mm (8 in) Full-Range
Sensitivity (1W, 1m) 96 dB (2k - 6k Hz)
Frequency Range (-10 dB) Driver/Grille Assembly 55 Hz – 16 kHz
Installed in CSS-BB backcan 100 Hz – 16 kHz
覆盖角度 120° conical
驱动单元连续功率承受能力 15 Watts
变压器抽头 5W, 2.5W, 1.3W
变压器抽头 5W, 2.5W, 1.3W, 0.7W
变压器抽头 5W, 2.5W, 1.3W, 0.7W
变压器插入损耗 1.5 dB Maximum
Transformer Connection Bare wire
Motor Mass 200 g (7 oz)
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan CSS-BB8 (0.15 cu ft)
Other Compatible Backcans MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft)
Bolt Mounting Circle to Backcan 4 points on 286 mm(11.25 in) diameter
Cutout DiameterOpen-back 216 mm (8.5 in)
In CSS-BB backcan 295 mm (11.7in)
Depth (behind grille) 71 mm (2.8 in)
Grille Diameter 327 mm (12.9 in)
Net Weight (each) 1.27 kg (2.8 lb)
Shipping Weight (ea) 1.94 kg (4.3 lb)

随附配件

4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
额定功率 See transformer taps
变压器抽头 100V Taps - 5W, 2.5W, 1.3W
70V Taps - 5W, 2.5W, 1.3W, 0.7W
25V Taps - 5W, 2.5W, 1.3W, 0.7W
Maximum SPL (1m) 103 dB (top 25V/70V/100V tap)
输入连接器 Bare wire
颜色 White
Backcan formed steel (accessory)
Baffle/Rim Metal
Ceiling Cutout Size 216 mm (8.5 in)
Plenum Usage Yes, with accessory backcan
