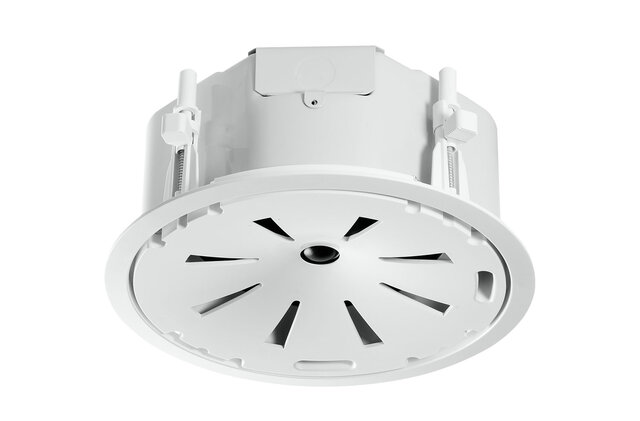

Control 47LP

Low Profile

Larger Images

Low Profile

Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.

Features

  • Shallow Backcan Version of 47C/T for locations with limited clearance
  • Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode
  • Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
  • Flat Frequency Response and Superior Performance
  • Elegant design fits any décor

Downloads

  Version Language Size Uploaded
Data Sheets
Control 47LP Spec Sheet
version B, updated: Mar 13, 2020
  604 KB Mar 13, 2020
Manuals
Ceiling Speaker Accessory Guide
updated: Oct 18, 2019
    127 KB Oct 18, 2019
Brochures
Commercial Sound Full Line 2015 Catalog
updated: Oct 21, 2019
    2.02 MB Oct 21, 2019
Full Line 2015 Catalog
updated: Jan 11, 2020
    11.7 MB Jan 11, 2020
Control 40 Brochure
updated: Sep 26, 2019
    716 KB Sep 26, 2019
CAD Drawings
Control 47LP 2D Drawing
updated: Apr 29, 2019
    184 KB Apr 29, 2019
Control 47LP 3D Drawing
updated: Apr 29, 2019
    2.71 MB Apr 29, 2019
Bim Objects
BIM (Revit) Files
updated: Oct 03, 2019
    12.4 MB Oct 03, 2019
Compliances
Control 40 Series Declaration of Conformity
updated: Oct 18, 2019
    154 KB Oct 18, 2019
JBL Control Series Passive Speakers DoC
updated: Dec 17, 2019
    179 KB Dec 17, 2019
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: Jan 14, 2020
3.6.2     805 KB Jan 14, 2020
User Guides
Control 40 Users Guide
updated: Apr 29, 2019
    934 KB Apr 29, 2019
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: Jul 08, 2019
    20.5 MB Jul 08, 2019
Images

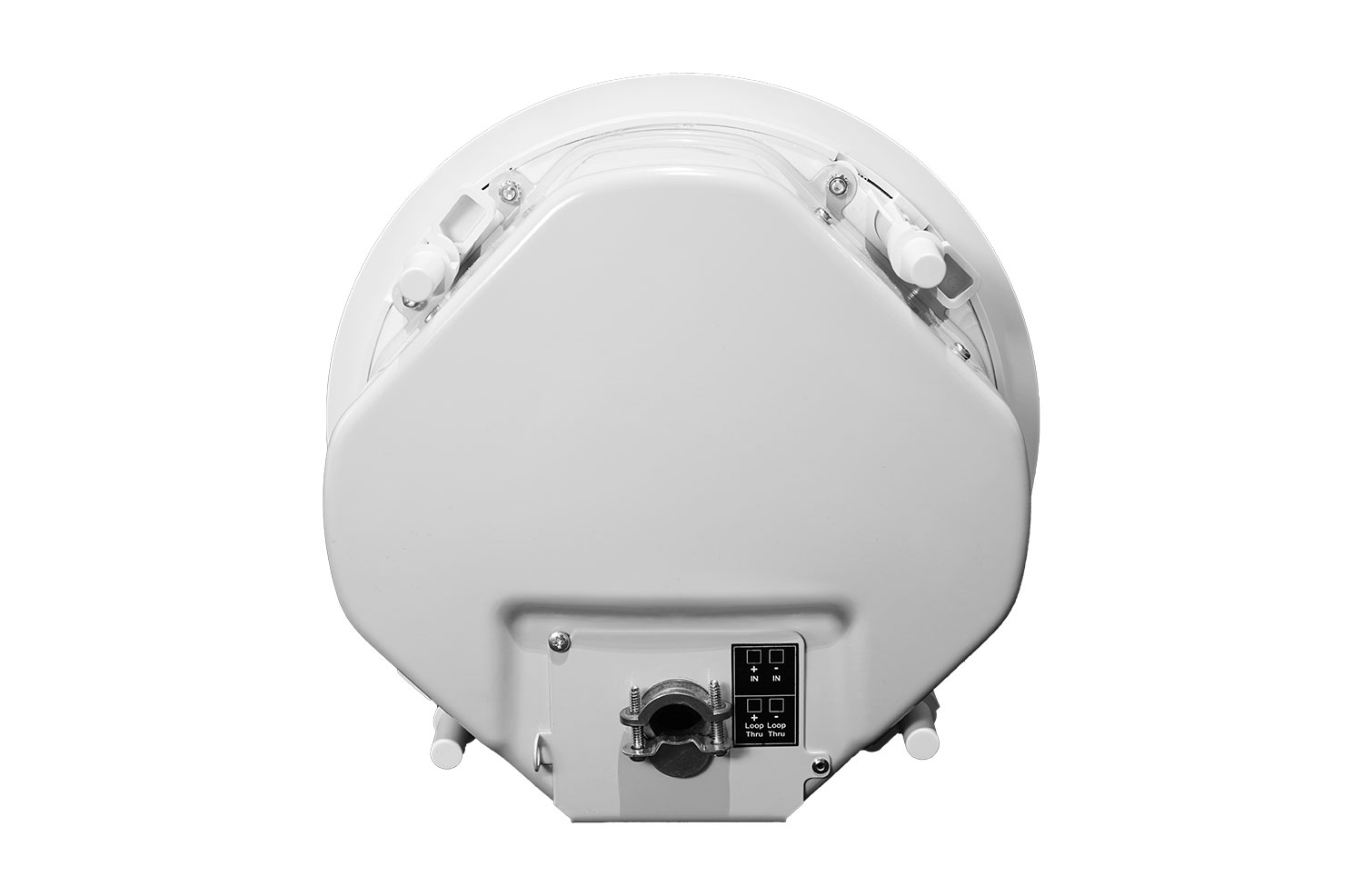

Control 47LP 04
updated: Apr 29, 2019
    58.9 KB Apr 29, 2019

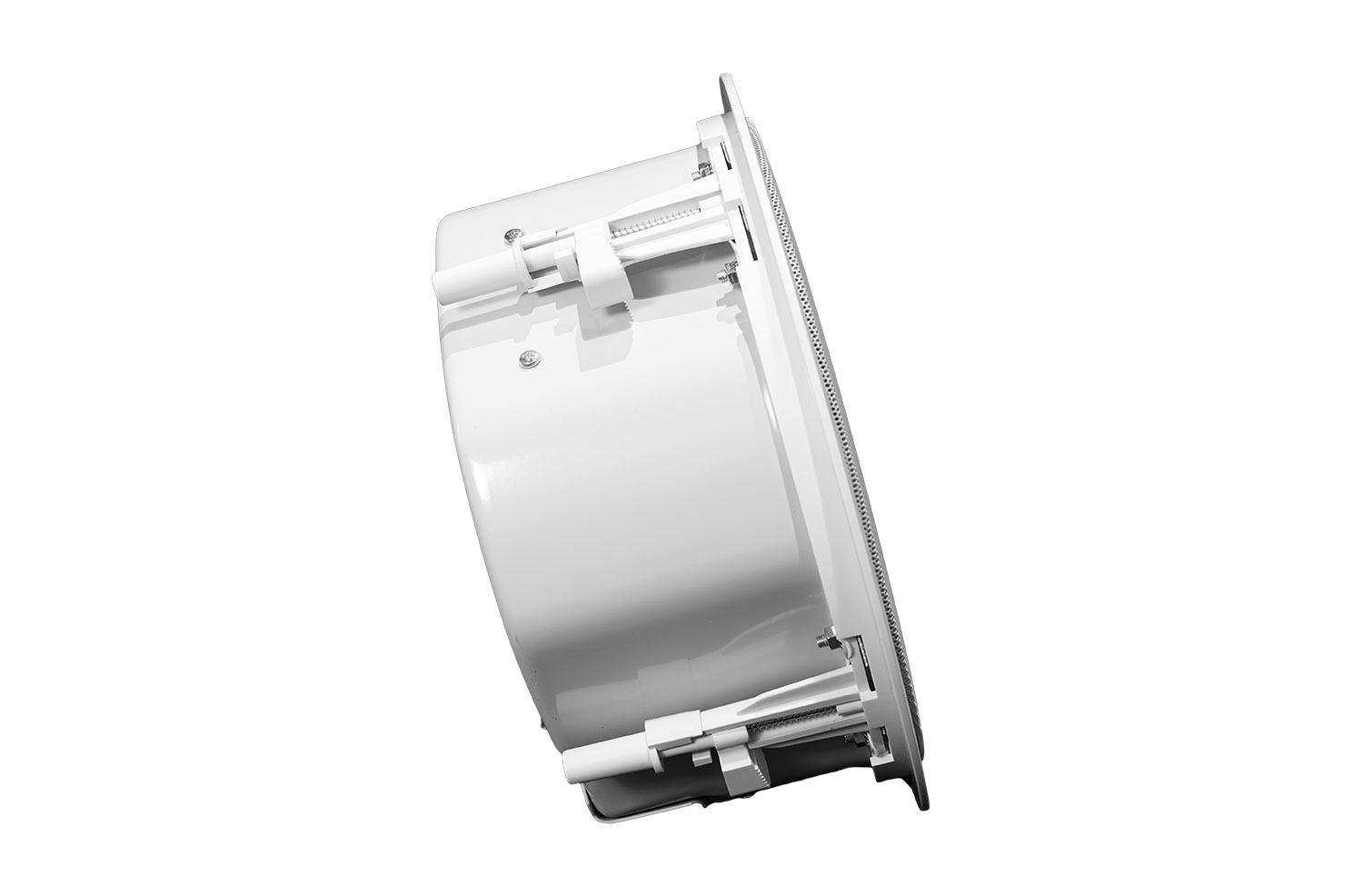

Control 47LP 03
updated: Apr 29, 2019
    55.9 KB Apr 29, 2019

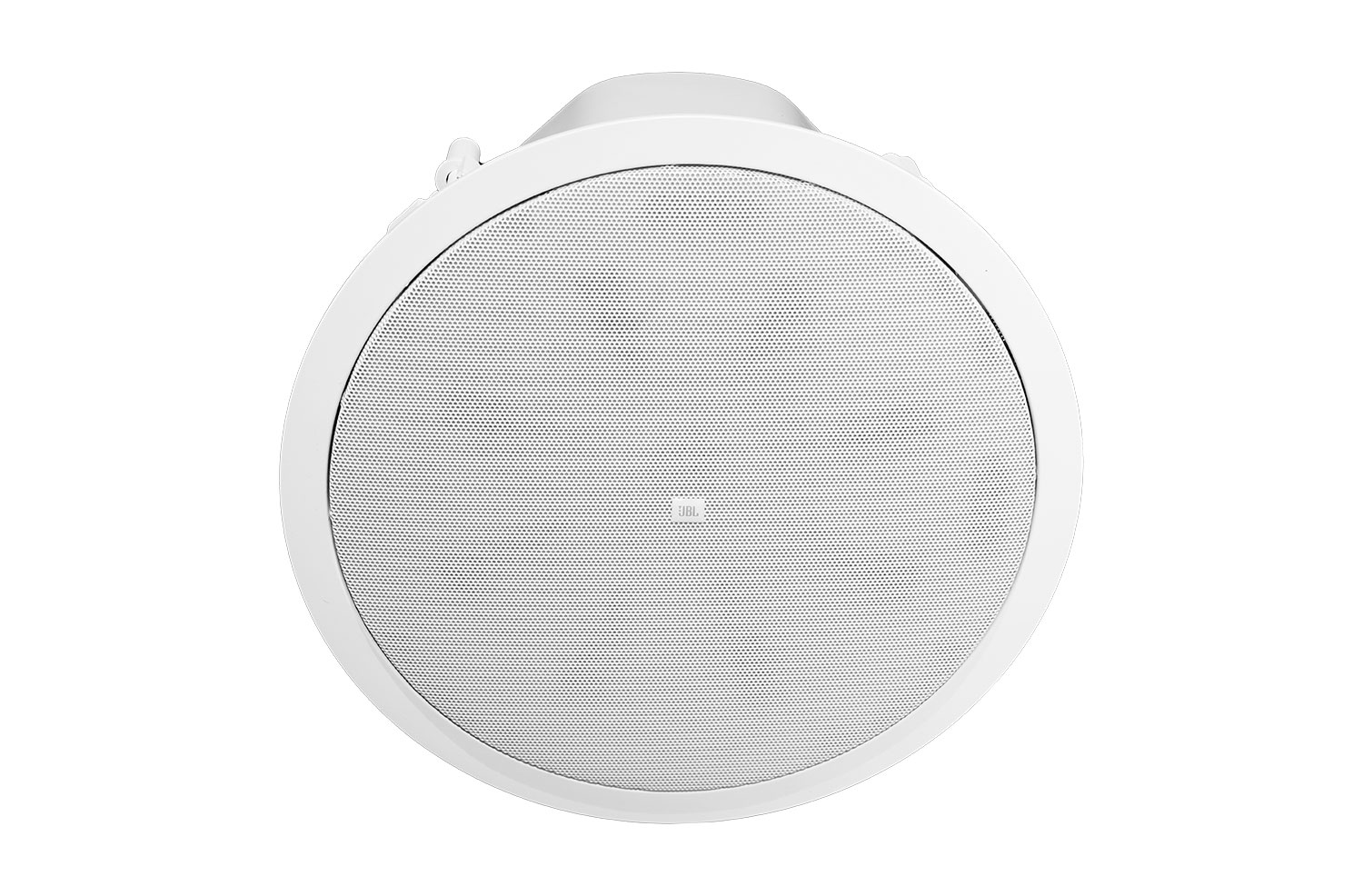

Control 47LP 02
updated: Apr 29, 2019
    209 KB Apr 29, 2019

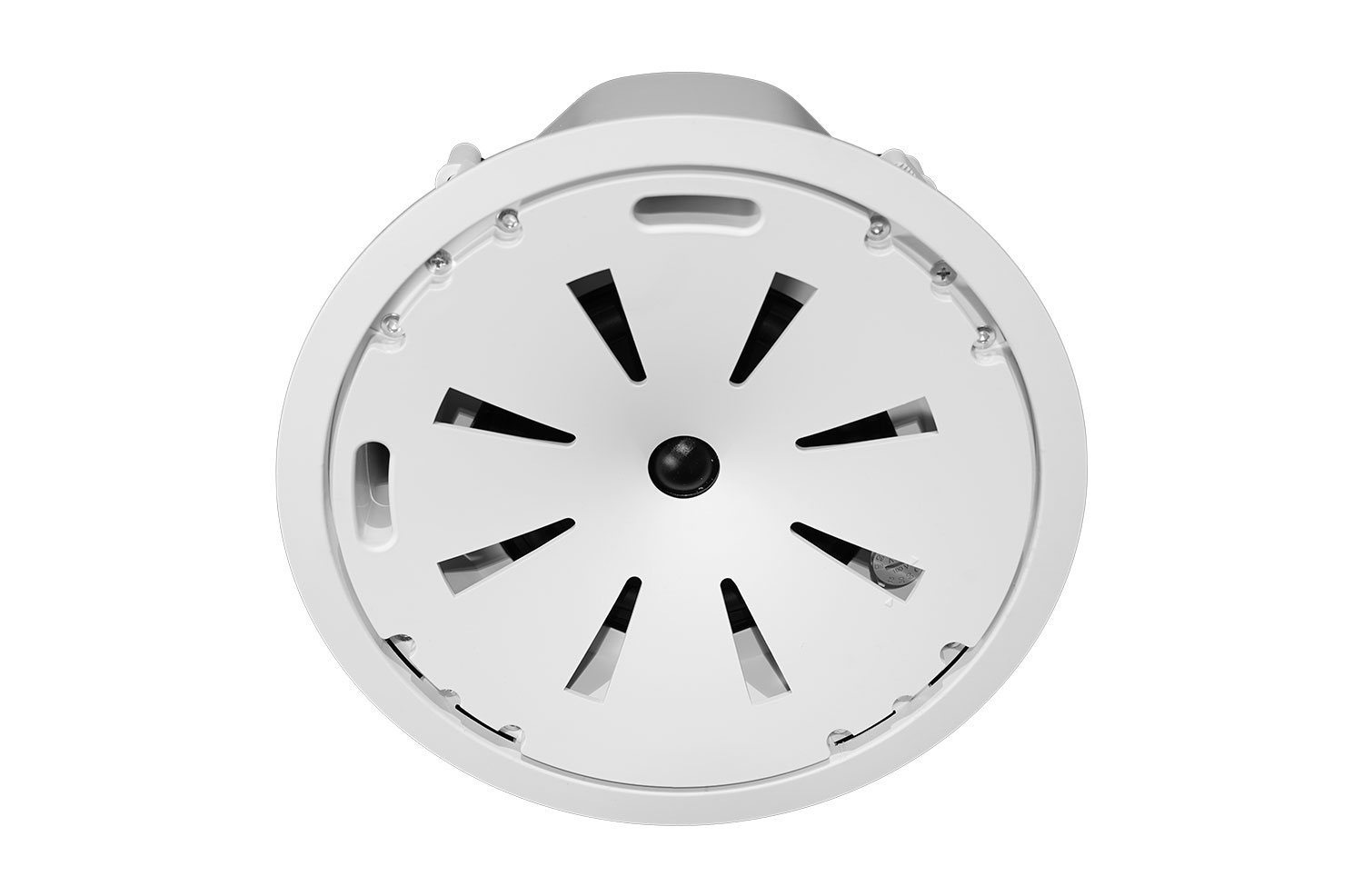

Control 47LP 01
updated: Apr 29, 2019
    63.4 KB Apr 29, 2019

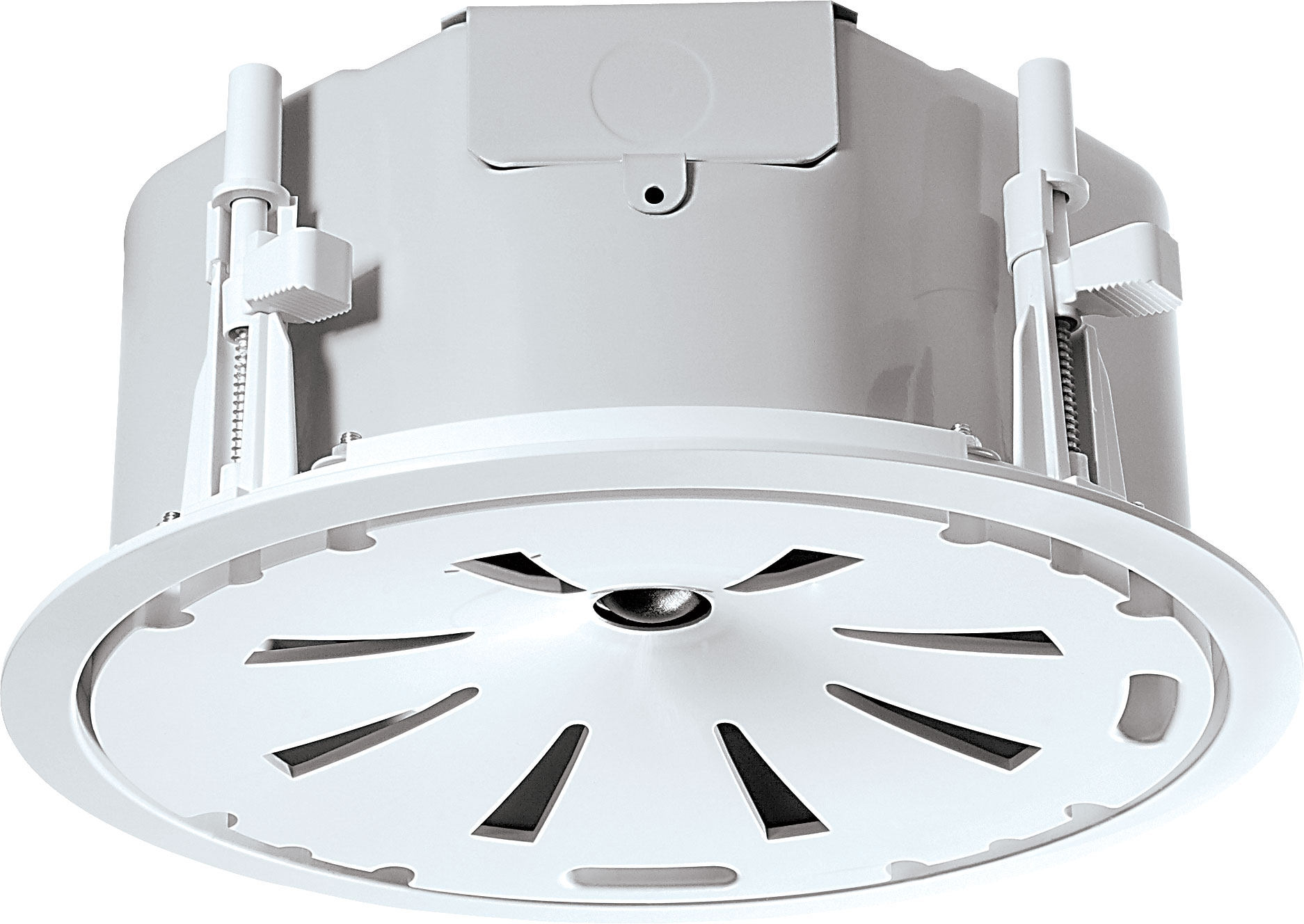

Control 47LP HiRes
updated: Apr 29, 2019
    217 KB Apr 29, 2019
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: Feb 24, 2020
    557 KB Feb 24, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Frequency Range 68 Hz - 20 kHz
Power Capacity 150W program, 75W pink noise
Sensitivity 91 dB, 1W, 1m
70V/100V Taps 60W, 30W, 15W (7.5W at 70V only)
Coverage 120° conical, consistent broadband
Nominal Impedance 8 ohms
Component 6.5 inch (135 mm) woofer, 1" tweeter
Termination Screw-down removable locking clip-in connector
Included Accessories C-rings, tile rails, paint shield, cutout template, Grille
Dimensions (Diameter x Depth) 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in)
