Control 47LP

Low Profile

Control 47LP
Larger Images

Low Profile

Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.


  • Shallow Backcan Version of 47C/T for locations with limited clearance
  • Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode
  • Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
  • Flat Frequency Response and Superior Performance
  • Elegant design fits any décor


  Version Language Size Uploaded
Data Sheets
file type icon Control 47LP Spec Sheet
version C, updated: เม.ย. 2020
  969 กิโลไบต์ เม.ย. 2020
file type icon Ceiling Speaker Accessory Guide
version B, updated: ม.ค. 2024
  231 กิโลไบต์ ม.ค. 2024
file type icon Control 40 Brochure
updated: ก.ย. 2019
    716 กิโลไบต์ ก.ย. 2019
file type icon Control Contractor Brochure (2024)
en version D, updated: ก.พ. 2024
en  14 เมกะไบต์ ก.พ. 2024
CAD Drawings
file type icon Control 47LP 2D Drawing
updated: เม.ย. 2019
    184 กิโลไบต์ เม.ย. 2019
file type icon Control 47LP 3D Drawing
updated: เม.ย. 2019
    2.71 เมกะไบต์ เม.ย. 2019
file type icon Control 40 Series Declaration of Conformity
updated: ต.ค. 2019
    154 กิโลไบต์ ต.ค. 2019
file type icon JBL Control Series Passive Speakers DoC
updated: ธ.ค. 2019
    179 กิโลไบต์ ธ.ค. 2019
platform icon Distributed System Design (DSD)
version 3.7, updated: พ.ย. 2023
3.7     1.07 เมกะไบต์ พ.ย. 2023
User Guides
file type icon Control 40 Users Guide
updated: ต.ค. 2020
    934 กิโลไบต์ ต.ค. 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: มี.ค. 2022
    21 เมกะไบต์ มี.ค. 2022
file type icon MTC-CS-Teth1 Press-In Grille Safety Tether
updated: ก.ย. 2021
    204 กิโลไบต์ ก.ย. 2021
Technical Papers
file type icon C40 RBI White Paper
en updated: ส.ค. 2021
  en  1.02 เมกะไบต์ ส.ค. 2021

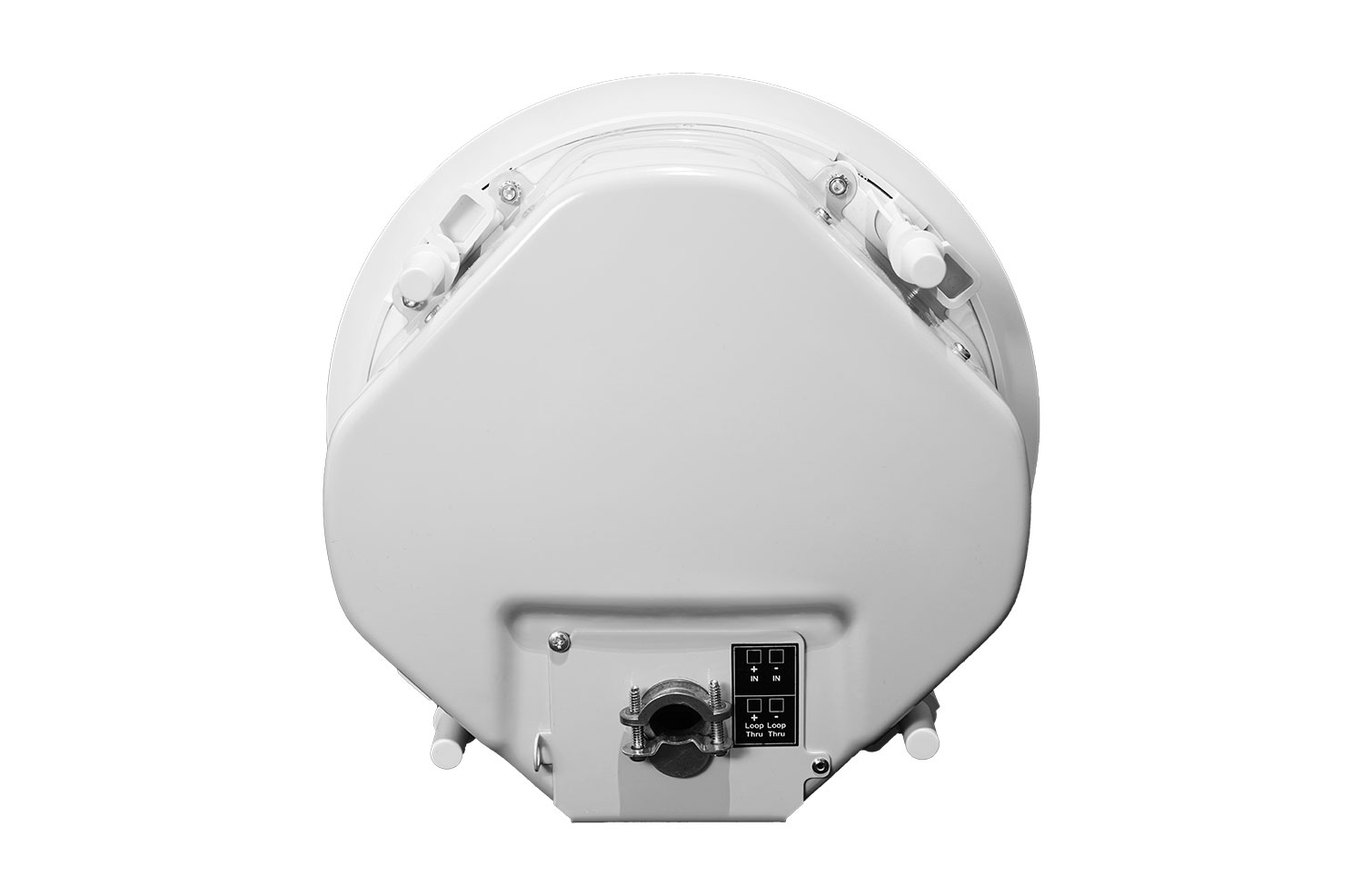

file type icon Control 47LP 04
updated: เม.ย. 2019
    58.9 กิโลไบต์ เม.ย. 2019

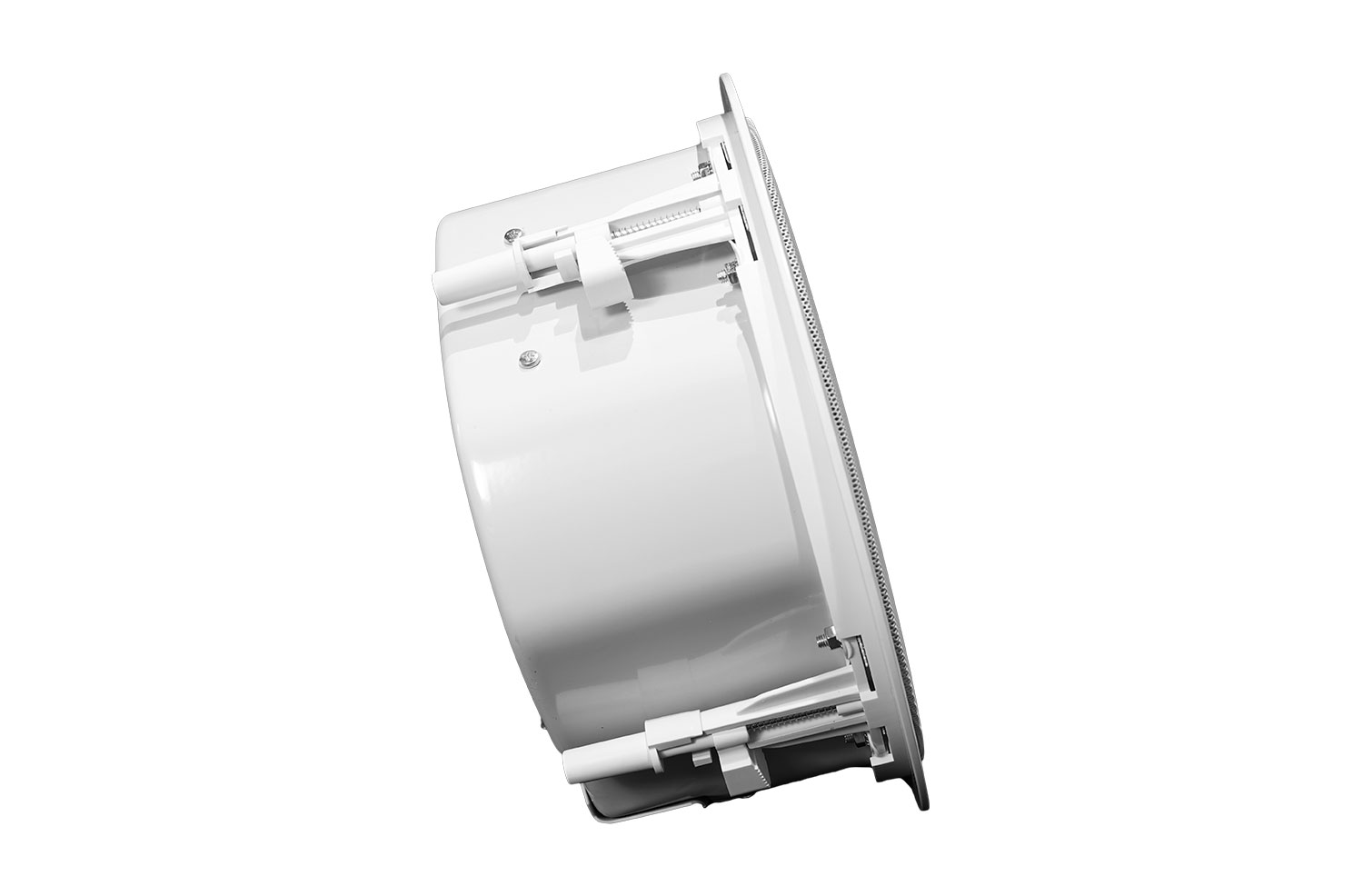

file type icon Control 47LP 03
updated: เม.ย. 2019
    55.9 กิโลไบต์ เม.ย. 2019

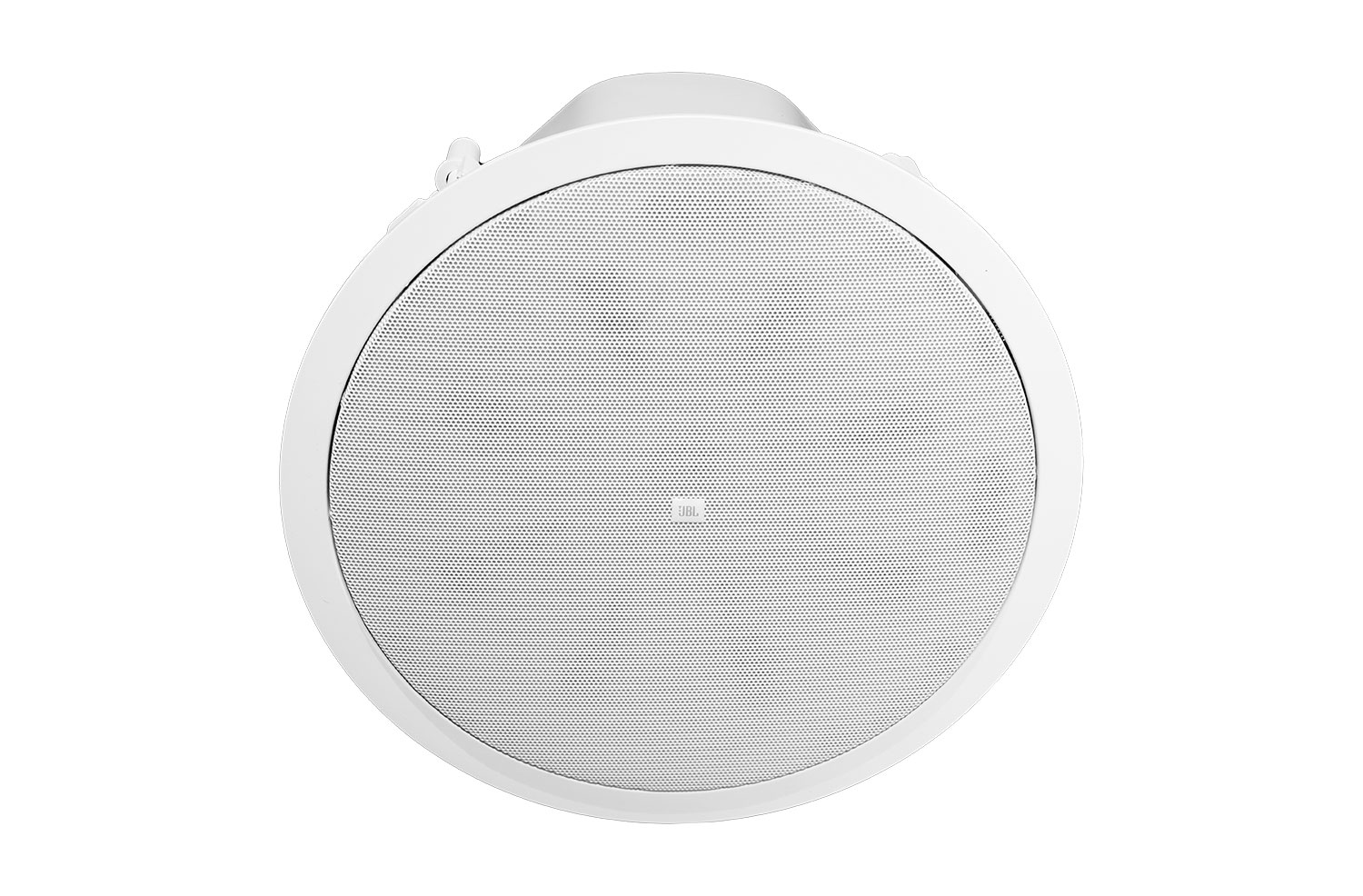

file type icon Control 47LP 02
updated: เม.ย. 2019
    209 กิโลไบต์ เม.ย. 2019

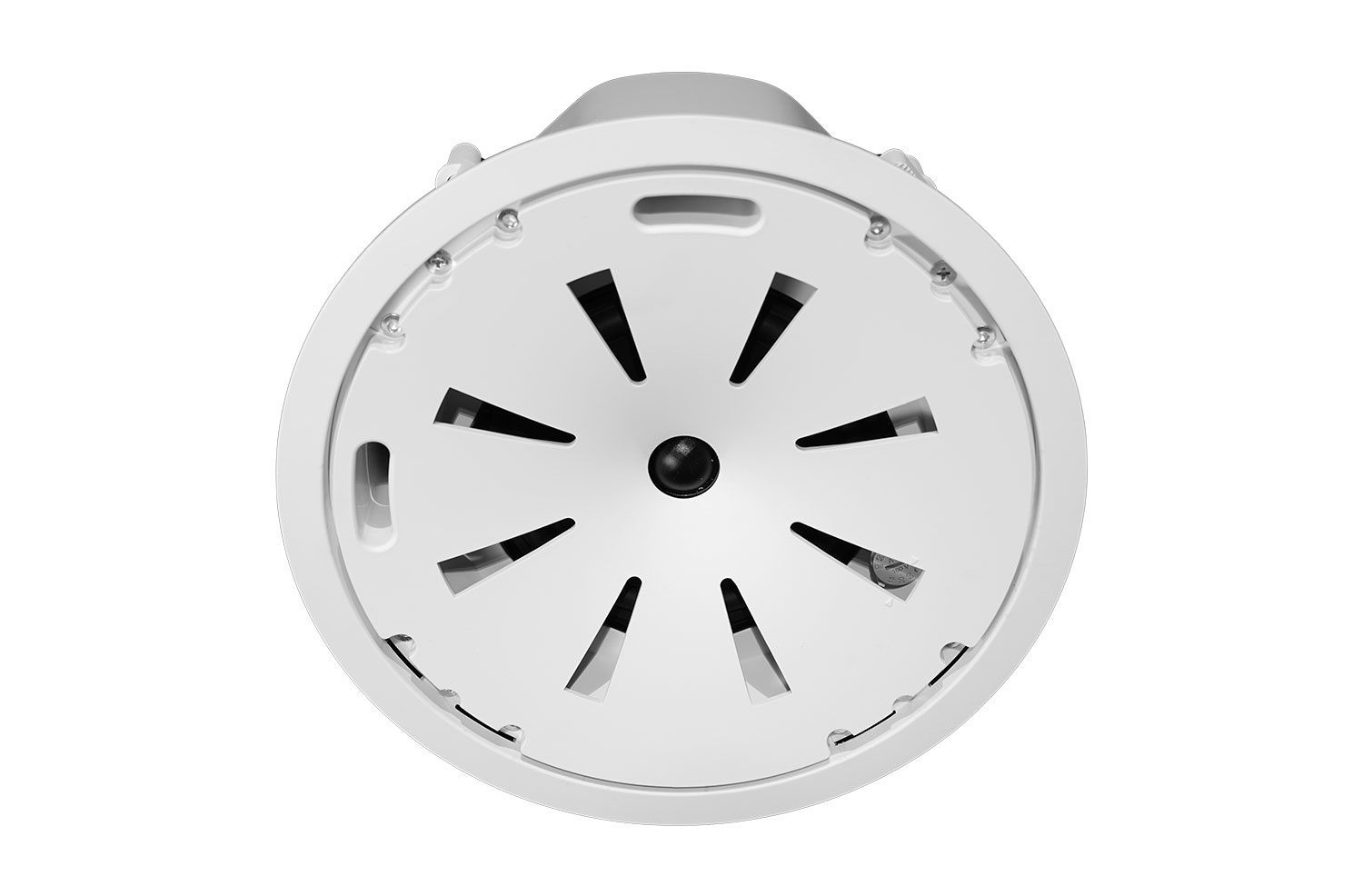

file type icon Control 47LP 01
updated: เม.ย. 2019
    63.4 กิโลไบต์ เม.ย. 2019

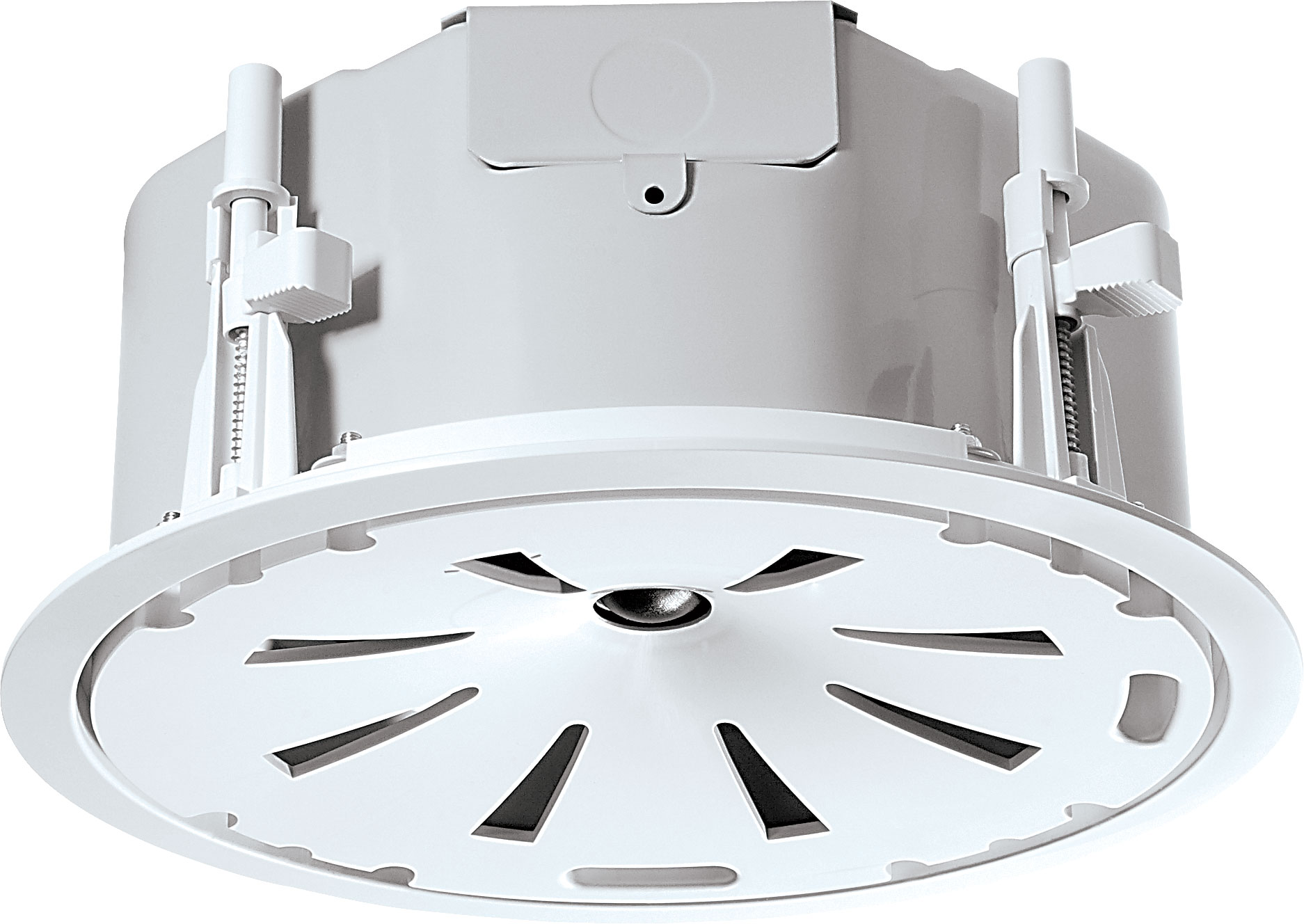

file type icon Control 47LP HiRes
updated: เม.ย. 2019
    217 กิโลไบต์ เม.ย. 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: พ.ค. 2023
  557 กิโลไบต์ พ.ค. 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range 68 Hz - 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), hrs
Sensitivity 91 dB (1kHz - 16 kHz)
Transformer Taps 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
Coverage Angle 120° conical, constant directivity
Impedance 8 ohms (in bypass mode)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 25 mm (1 in)
Input Connectors Two removeable locking 2-pin connectors with screwdown terminals.
Included Accessories C-rings, tile rails, paint shield, cutout template, Grille
Dimensions (Diameter x Depth) 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in)
Maximum SPL (1m) 110 dB (low-impedance, 116 dB peak)
109 dB (top 70V/100V tap)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size 282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
Plenum Usage Yes, backcan included


MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 Main photo
Larger Images

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

  • Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
    Includes (at product release):
    • Control 24C/CT Micro & 24CT MicroPlus
    • Control 24C/CT, 26C/CT, 19CS/CST
    • Control 47C/T, 47LP, 47HC, 40CS/T, 42C
    • Control 226C/T
    • 8124/8128
    • Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
  • Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
  • 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
  • Multiple C-ring mounting holes. Additional hole locations drillable by installer.
  • One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
