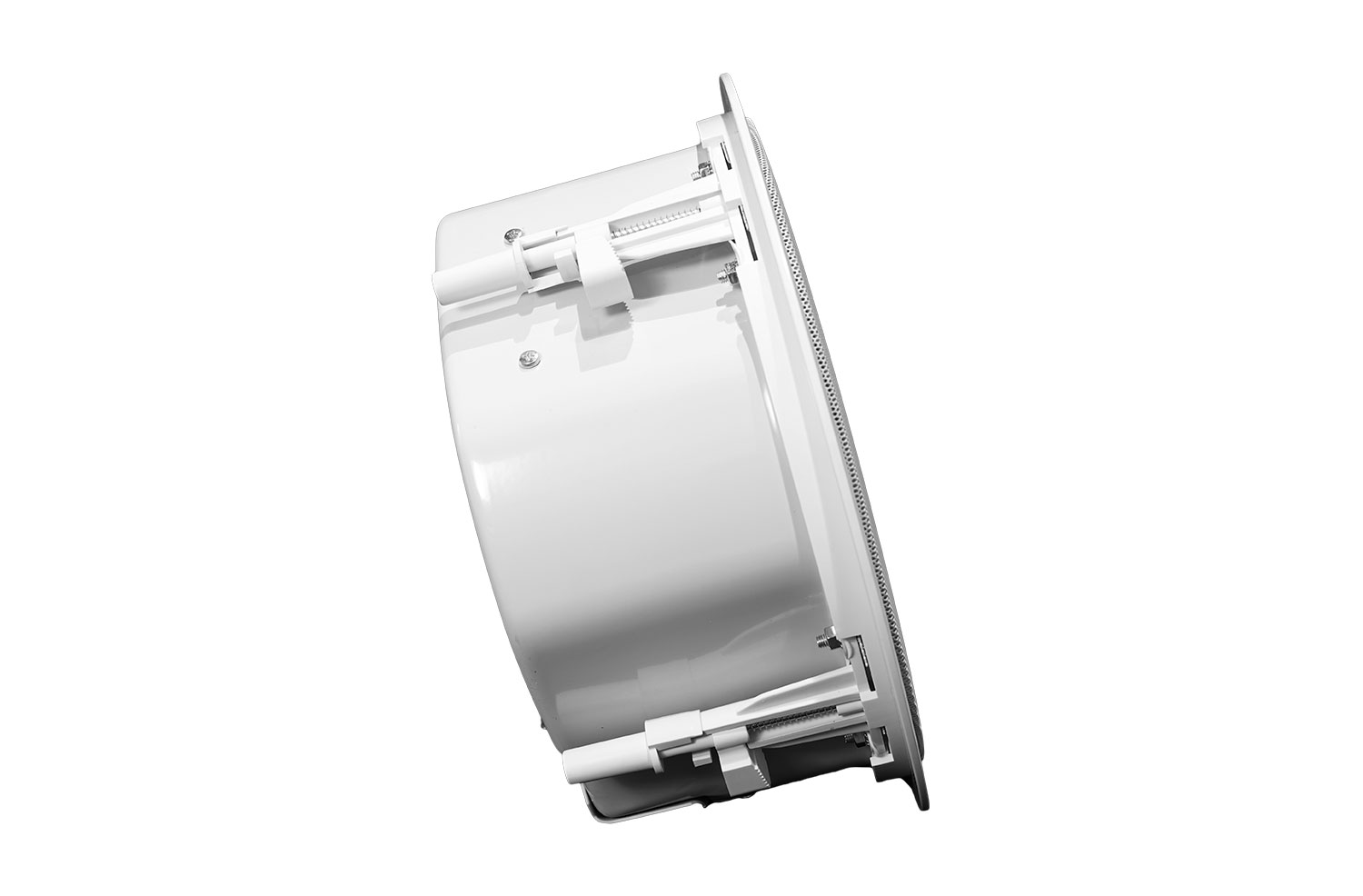

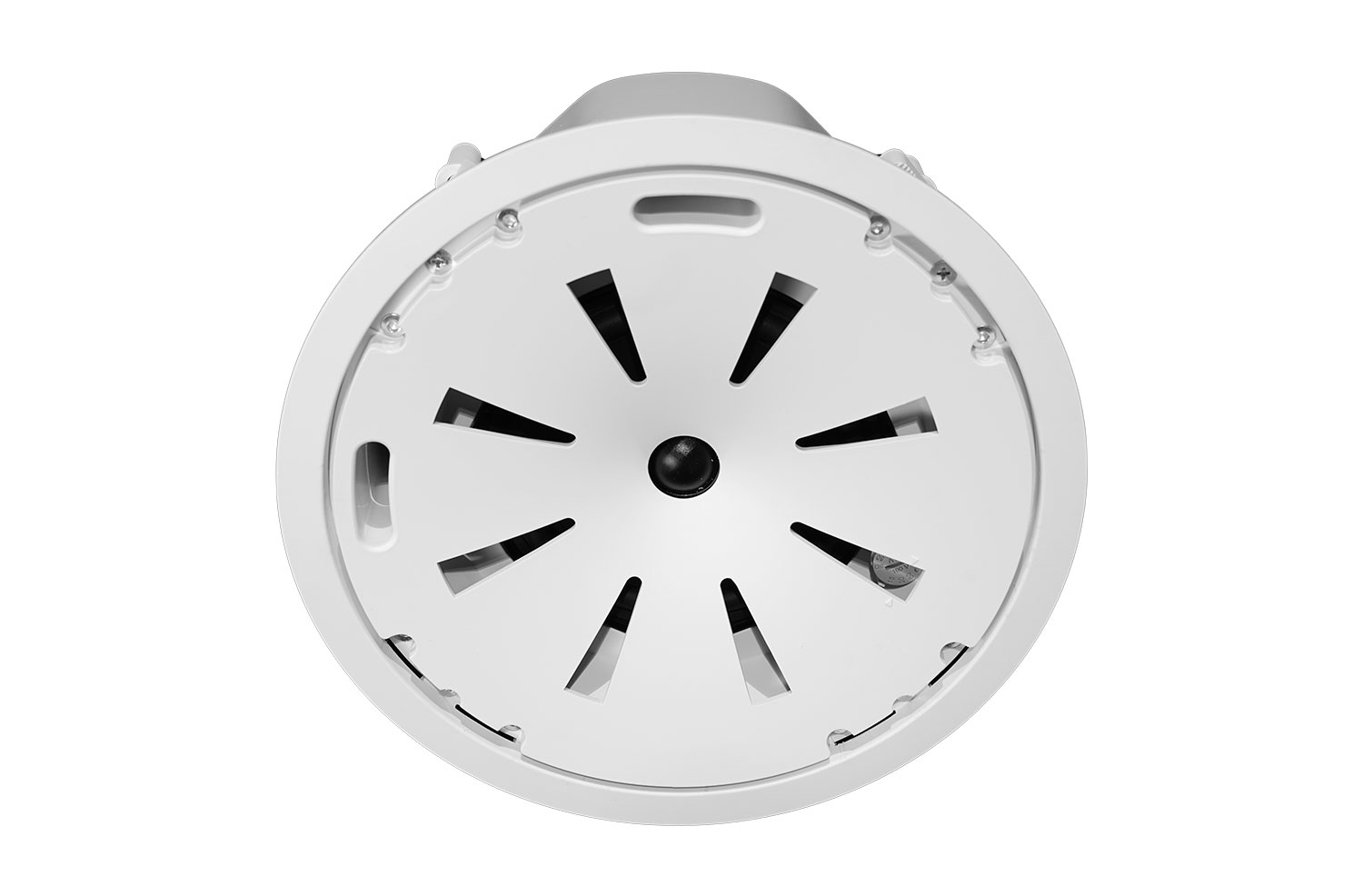

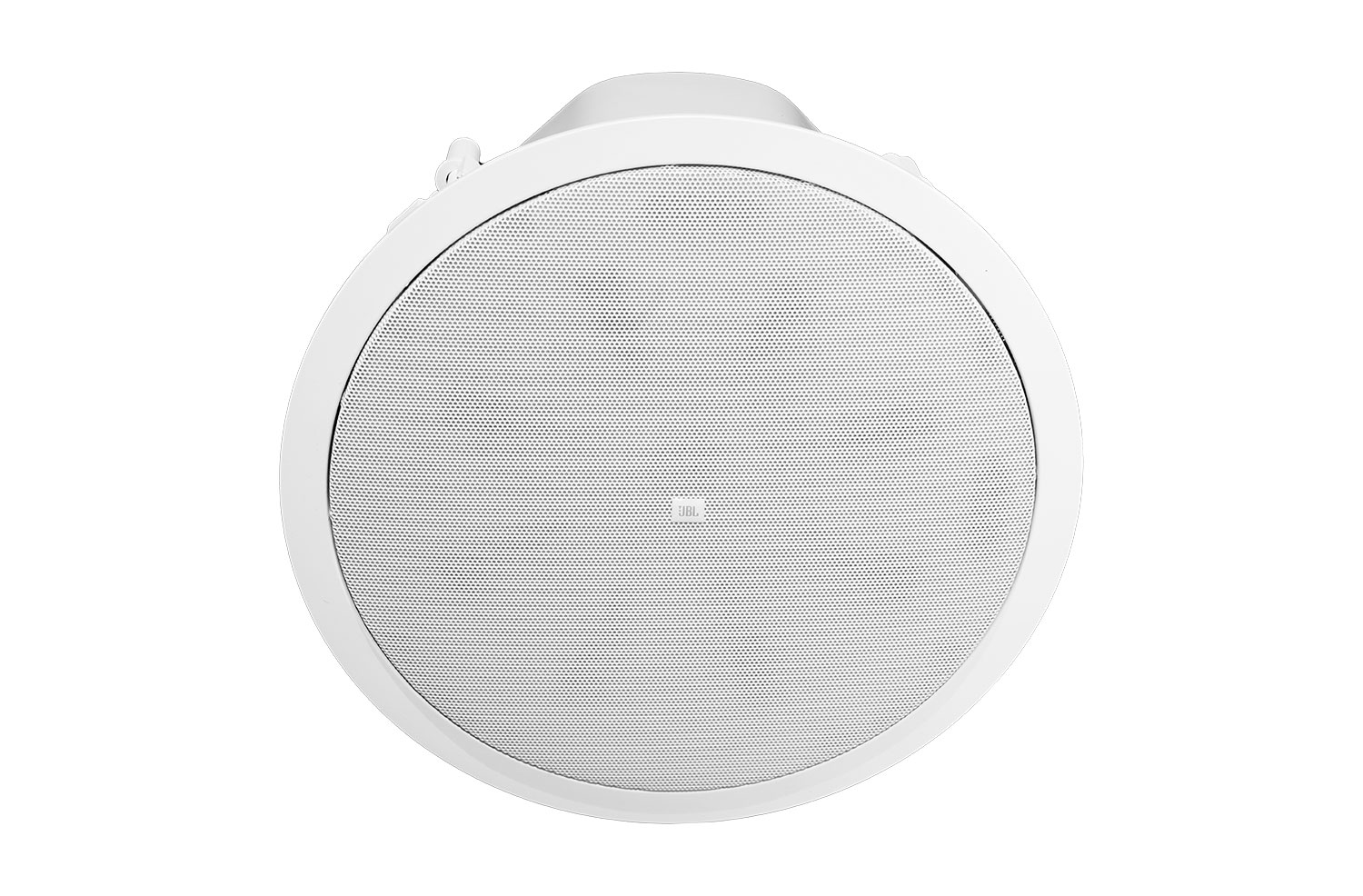

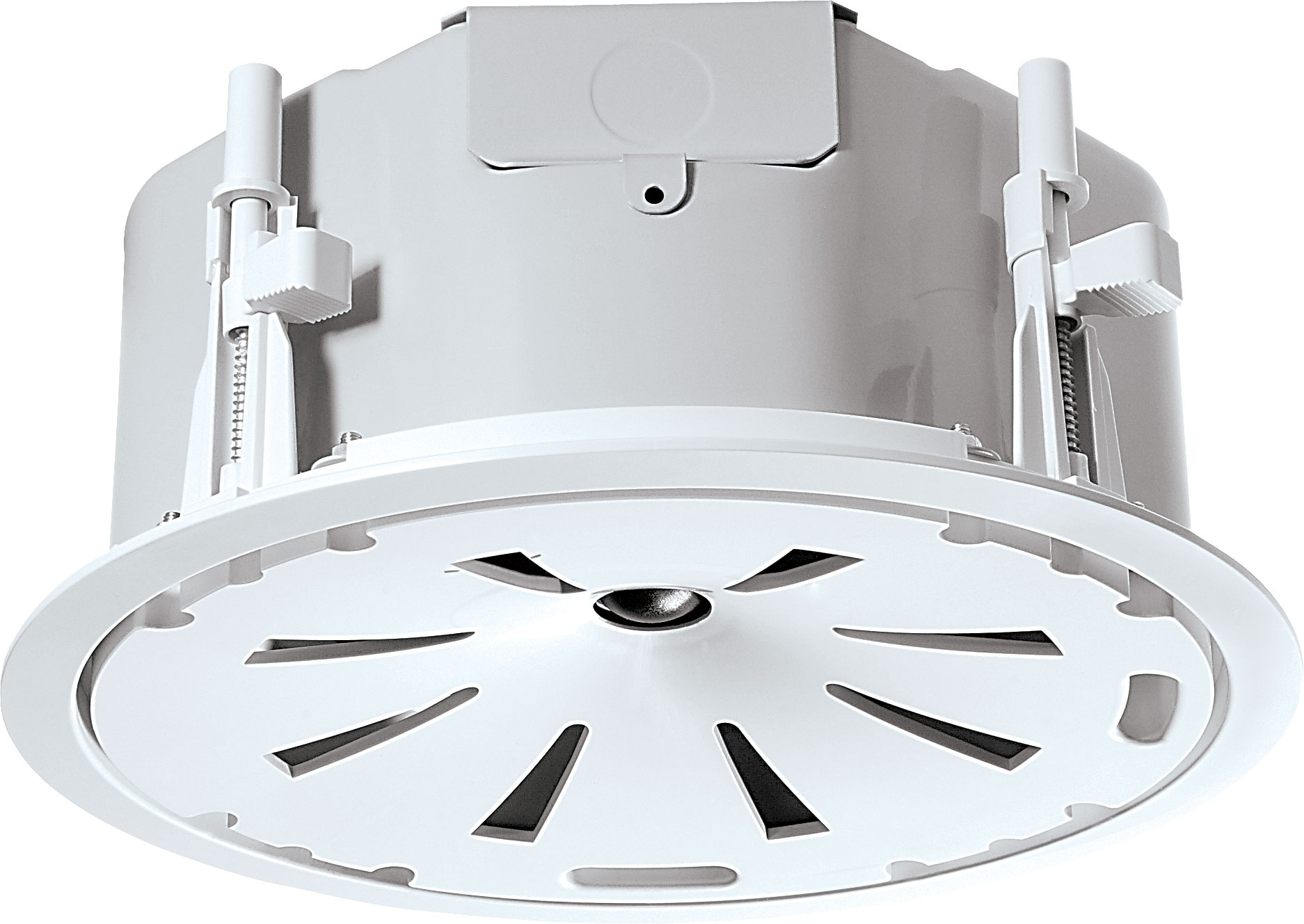

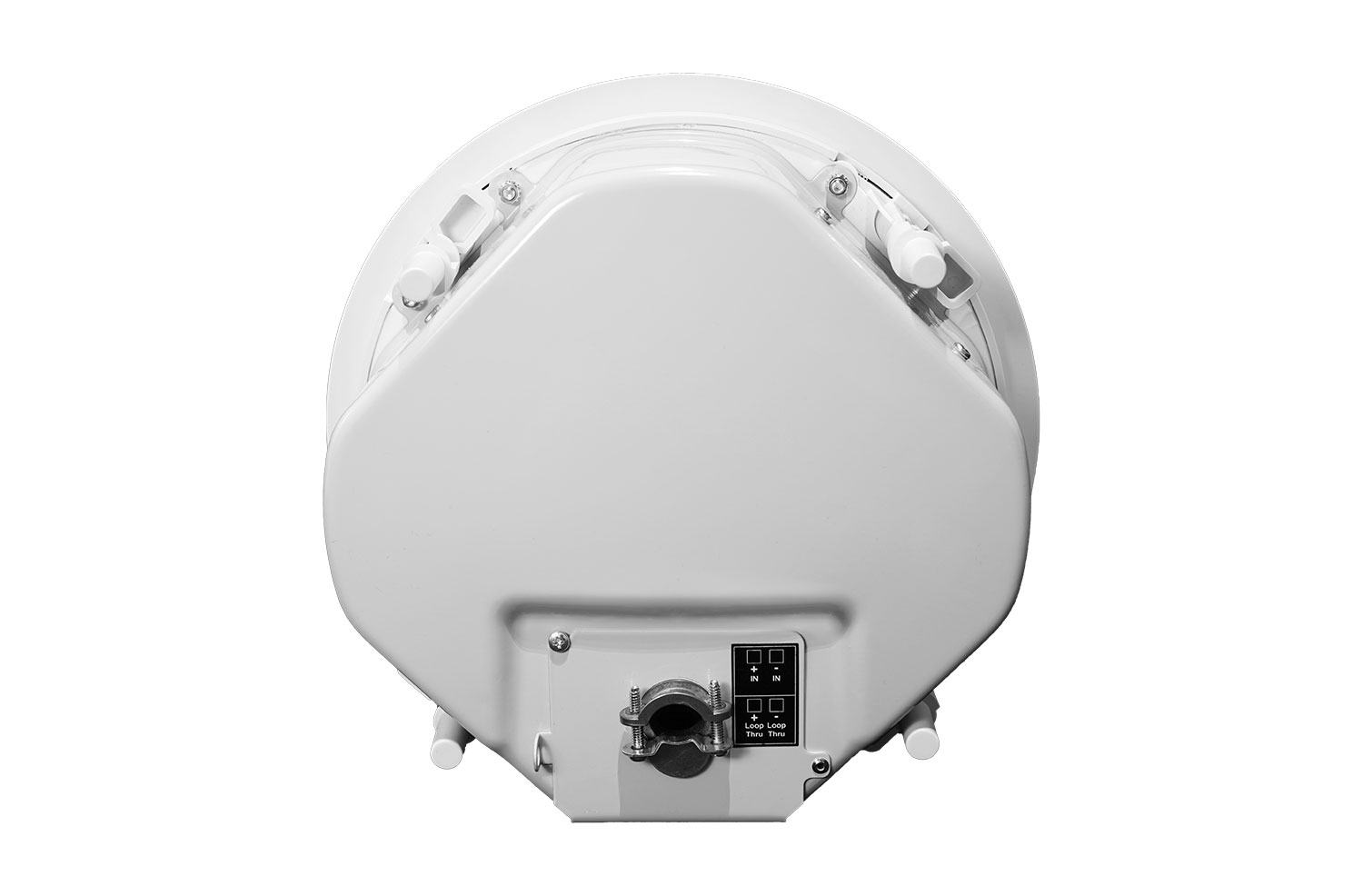

Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.
| Storlek | |
|
|
969 KB |
| Storlek | |
|
|
127 KB |
| Storlek | |
|
|
14 MB |
|
|
23 MB |
|
|
716 KB |
|
|
21 MB |
| Storlek | |
|
|
184 KB |
|
|
2,71 MB |
| Storlek | |
|
|
154 KB |
|
|
179 KB |
| Storlek | |
|
|
612 KB |
| Storlek | |
|
|
21 MB |
| Storlek | |
|
|
934 KB |
| Storlek | |
|
|
204 KB |
| Storlek | |
|
|
1,02 MB |
| Storlek | |
|
|
58,9 KB |
|
|
55,9 KB |
|
|
209 KB |
|
|
63,4 KB |
|
|
217 KB |
| Storlek | |
|
|
557 KB |
Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.
| Frequency Range | 68 Hz - 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), hrs |
| Sensitivity | 91 dB (1kHz - 16 kHz) |
| Transformer Taps | 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass |
| Coverage Angle | 120° conical, constant directivity |
| Impedance | 8 ohms (in bypass mode) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in) |
| Input Connectors | Two removeable locking 2-pin connectors with screwdown terminals. |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, Grille |
| Dimensions (Diameter x Depth) | 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in) |
| Maximum SPL (1m) | 110 dB (low-impedance, 116 dB peak) 109 dB (top 70V/100V tap) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | ABS baffle with UL94-V0 flame class fire rating. |
| Ceiling Cutout Size | 282 mm Diameter (11.1 in) (cardboard cutout template included) |
| Optional Accessories | MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket |
| Plenum Usage | Yes, backcan included |
MTC-48TRx12 är en tillbehörsskena för installation av många av JBL:s takmontering högtalar in i 4 ft x 4 ft
(1200 x 1200 mm; 48 x 48 tum)
takplattor i upphängda takapplikationer.
MTC-48TRx12 Spec Sheet (revB)
[77,2 KB]
version D,
uppdaterad: feb 2024
