Control 47LP

Low Profile

较大的图像

Low Profile

Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.

特点

  • Shallow Backcan Version of 47C/T for locations with limited clearance
  • Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode
  • Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
  • Flat Frequency Response and Superior Performance
  • Elegant design fits any décor

下载

  Version Language Size Uploaded
Data Sheets
Control 47LP Spec Sheet
version C, updated: 4月30日
  968.9 KB 4月30日
Manuals
Ceiling Speaker Accessory Guide
updated: 10月18日
    126.9 KB 10月18日
Brochures
Control 40 Brochure
updated: 9月26日
    716.0 KB 9月26日
CAD Drawings
Control 47LP 3D Drawing
updated: 4月29日
    2.7 MB 4月29日
Control 47LP 2D Drawing
updated: 4月29日
    184.0 KB 4月29日
Bim Objects
BIM (Revit) Files
updated: 10月22日
    12.4 MB 10月22日
Compliances
    179.3 KB 12月17日
    154.0 KB 10月18日
Software
Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 1月14日
3.6.2     804.8 KB 1月14日
User Guides
Control 40 Users Guide
updated: 10月23日
    934.1 KB 10月23日
Ease Data
    20.5 MB 7月08日
Speaker Tunings
    557.0 KB 10月22日
Images

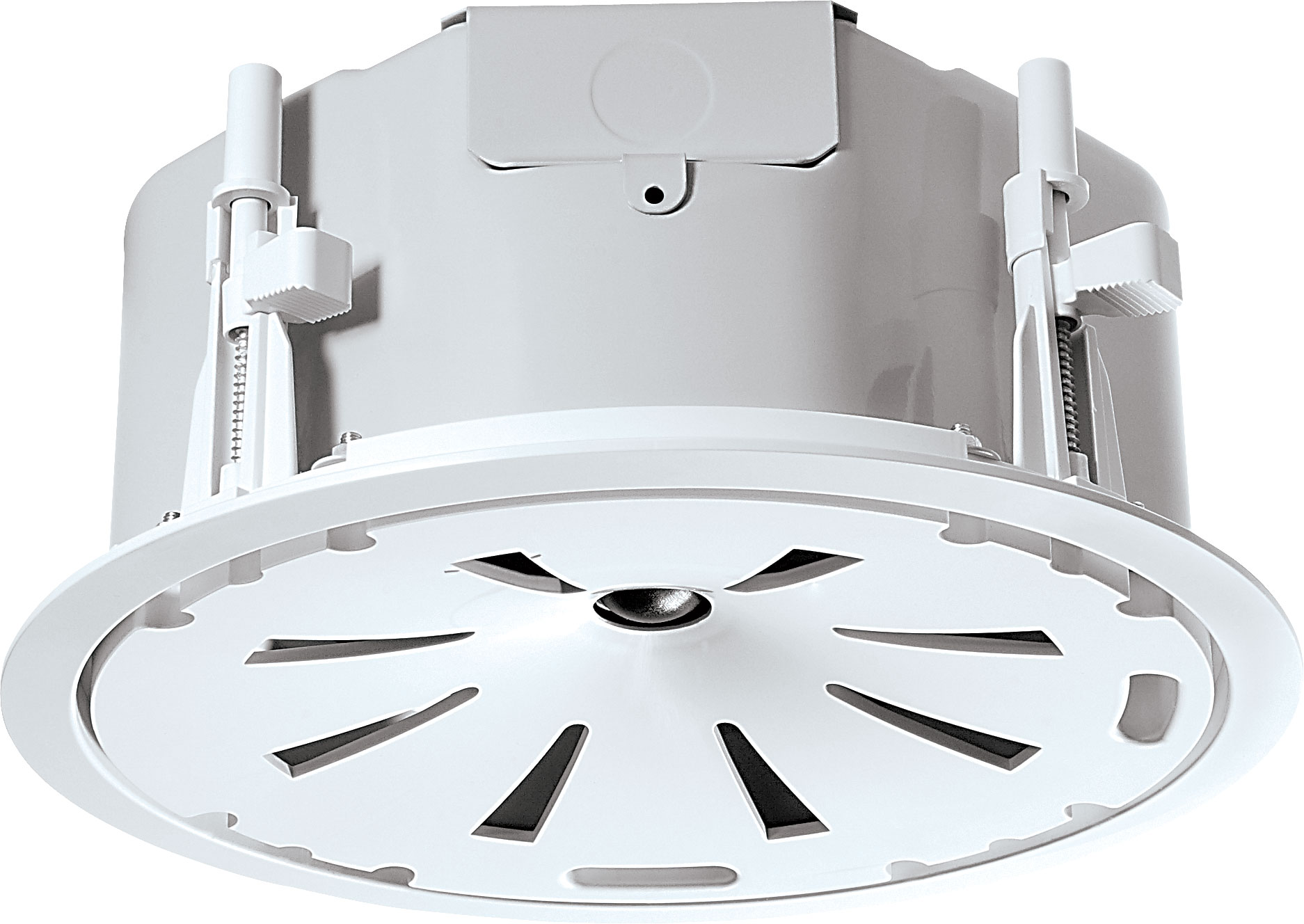

Control 47LP HiRes
updated: 4月29日
    217.4 KB 4月29日

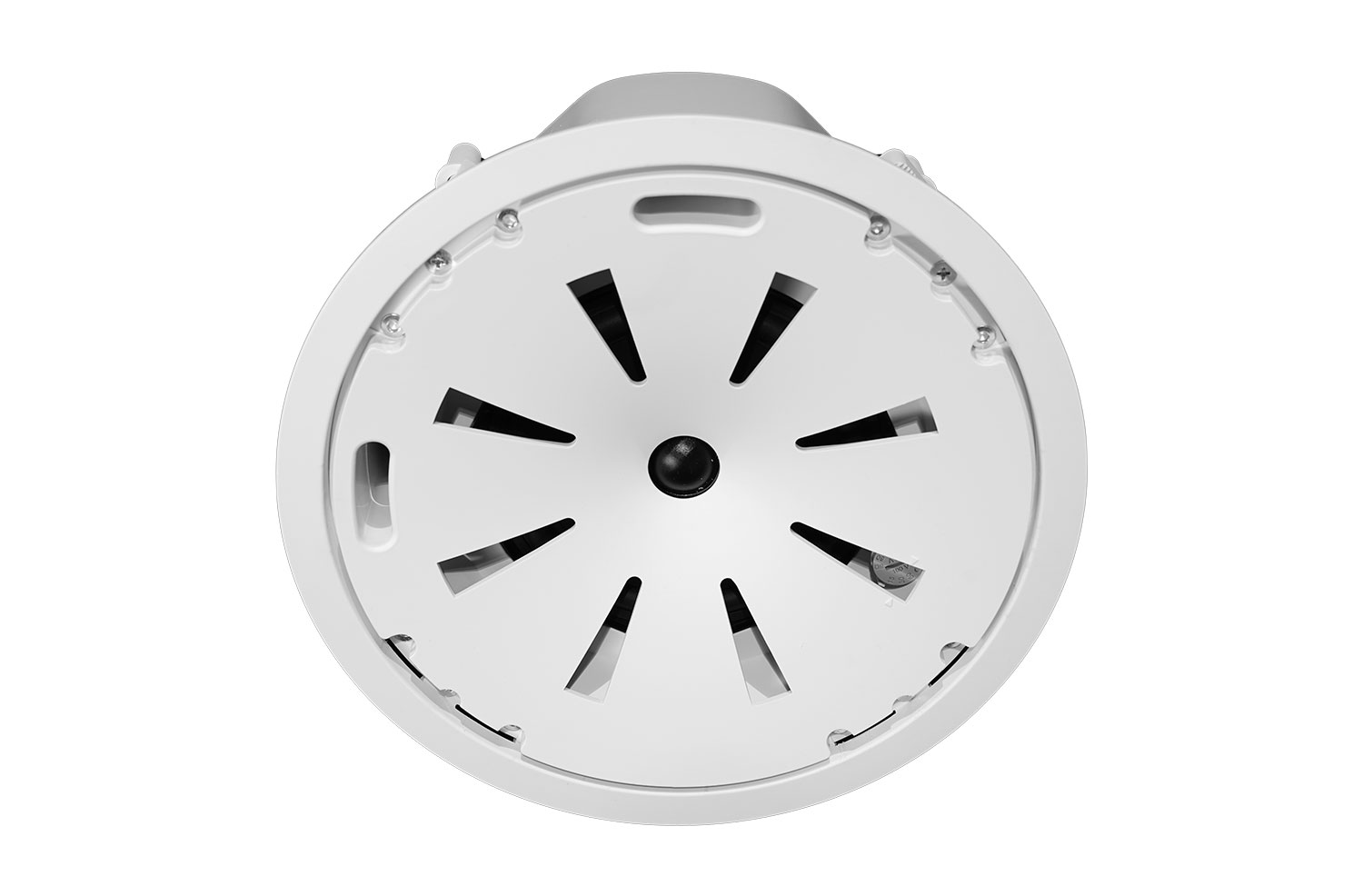

Control 47LP 01
updated: 4月29日
    63.4 KB 4月29日

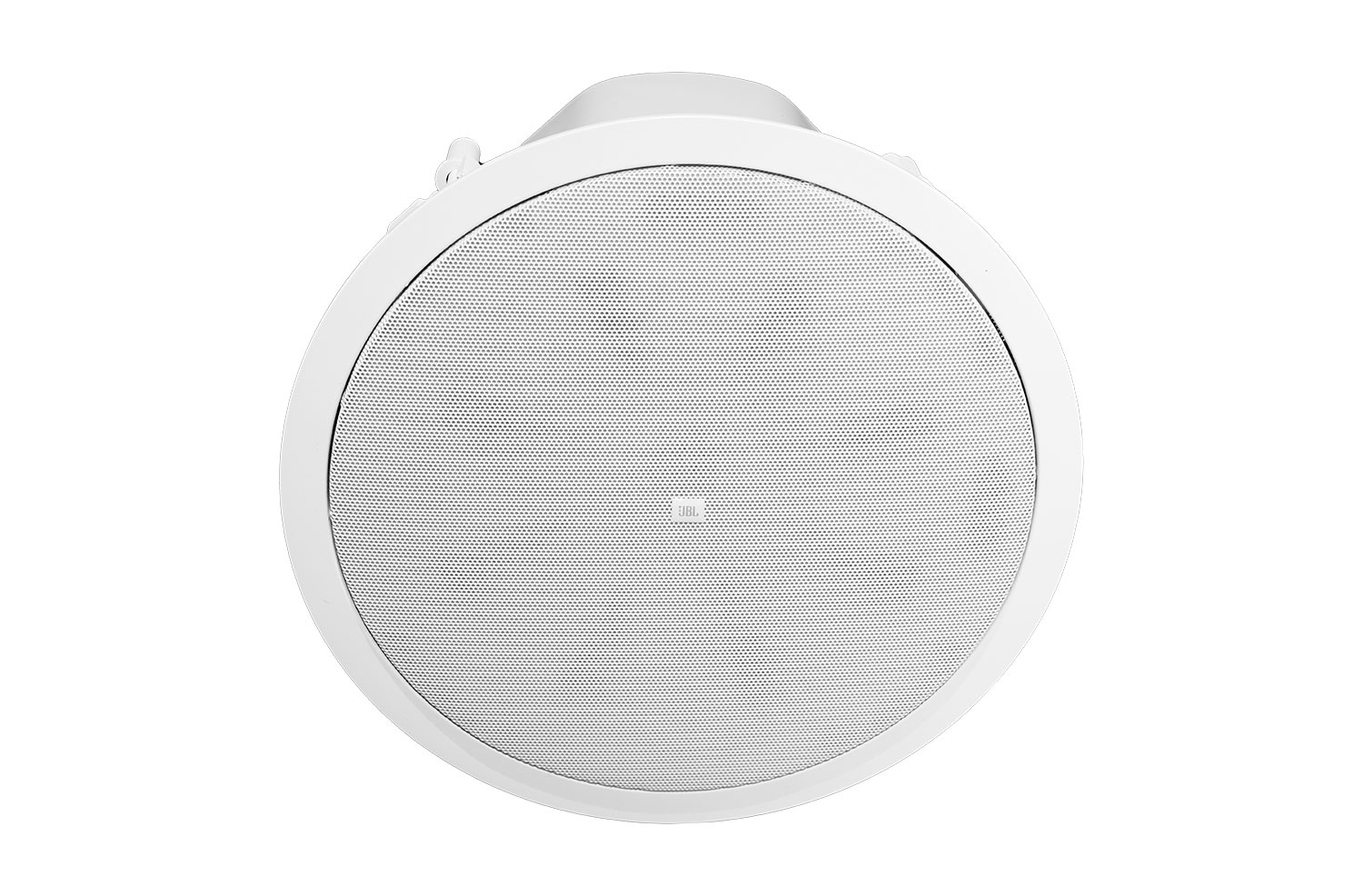

Control 47LP 02
updated: 4月29日
    209.2 KB 4月29日

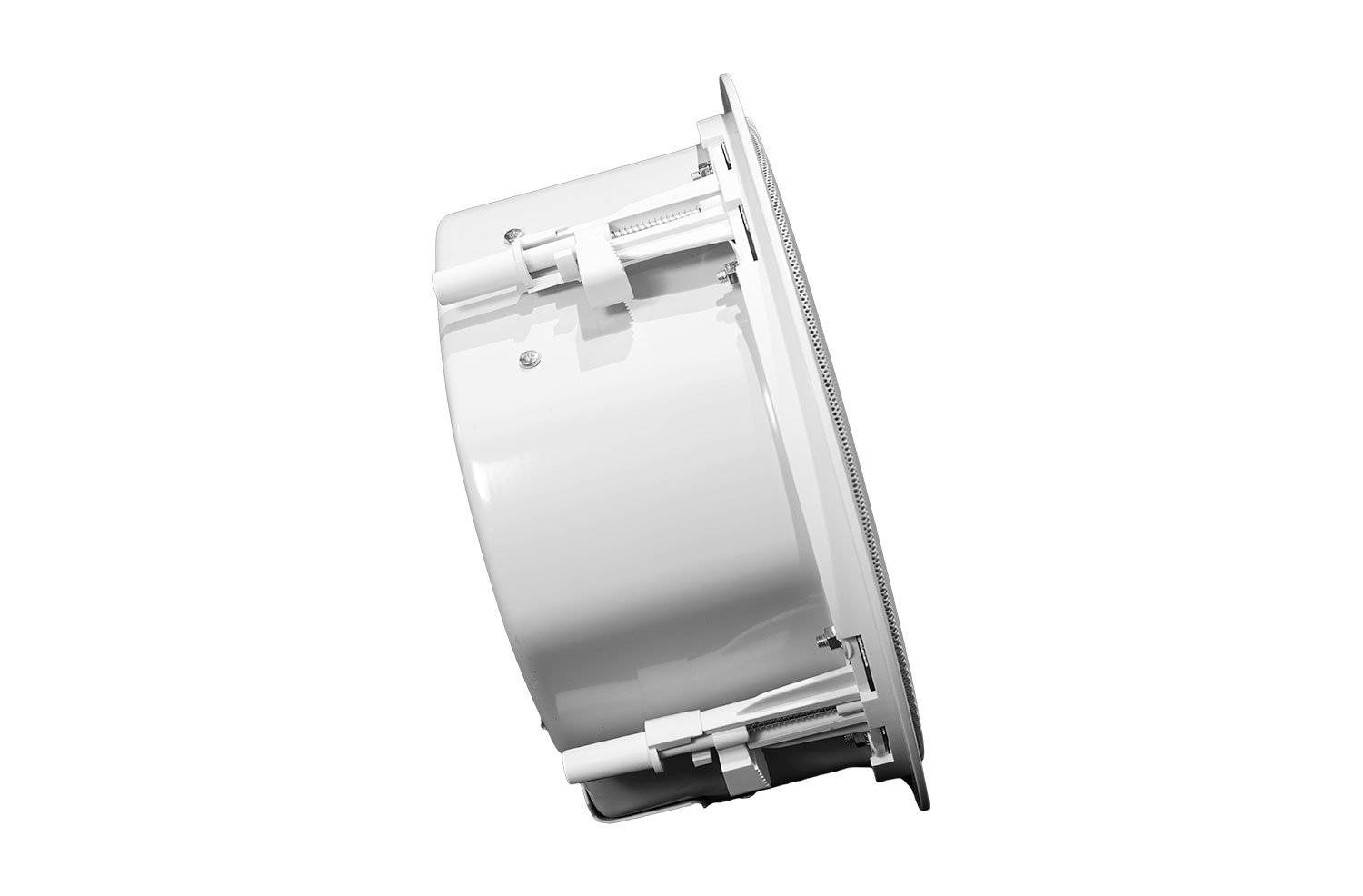

Control 47LP 03
updated: 4月29日
    55.9 KB 4月29日

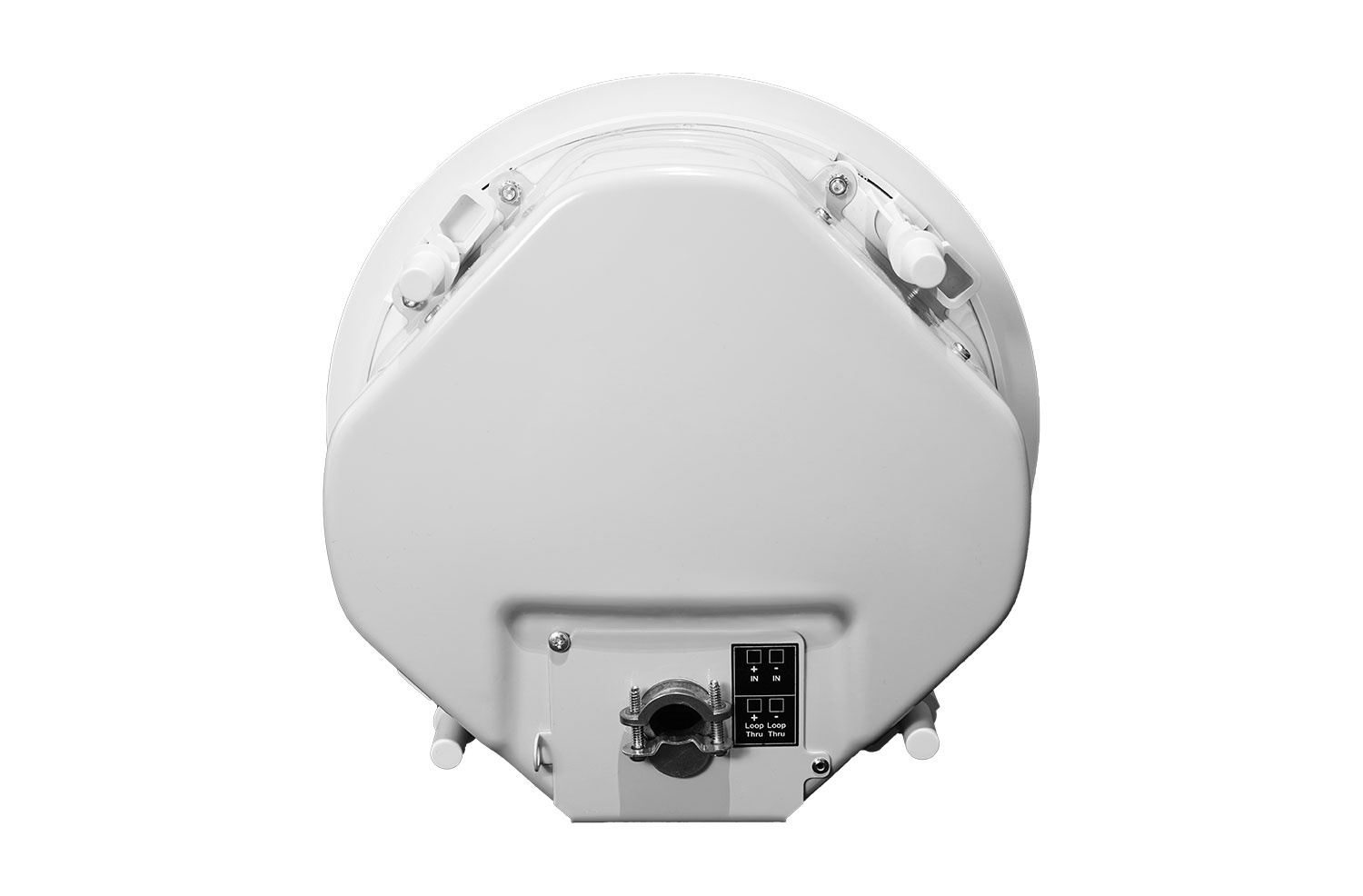

Control 47LP 04
updated: 4月29日
    58.9 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 68 Hz - 20 kHz
额定功率 IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), hrs

灵敏度

91 dB (1kHz - 16 kHz)
变压器抽头 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
覆盖角度 120° conical, constant directivity
阻抗 8 ohms (in bypass mode)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 25 mm (1 in)
输入连接器 Two removeable locking 2-pin connectors with screwdown terminals.

随附配件

C-rings, tile rails, paint shield, cutout template, Grille
Dimensions (Diameter x Depth) 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in)
Maximum SPL (1m) 110 dB (low-impedance, 116 dB peak)
109 dB (top 70V/100V tap)
颜色 White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size 282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
Plenum Usage Yes, backcan included

Accessories

MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 Main photo
较大的图像

Tile Rail for 4' x 4' Ceiling Tiles

MTC-48TRx12 is an accessory tile rail for installing many of JBL’s ceiling loudspeakers into 4 ft by 4 ft
(1200 x 1200 mm; 48 x 48 inch) ceiling tiles in suspended ceiling applications.

  • Can be used with any JBL ceiling speakers having the C-ring/tile-rail mounting system.
    Includes (at product release):
    • Control 24C/CT Micro & 24CT MicroPlus
    • Control 24C/CT, 26C/CT, 19CS/CST
    • Control 47C/T, 47LP, 47HC, 40CS/T, 42C
    • Control 226C/T
    • 8124/8128
    • Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list.
  • Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
  • 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
  • Multiple C-ring mounting holes. Additional hole locations drillable by installer.
  • One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
