Two-Way ScreenArray™ Cinema Loudspeaker System
The 3722N provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost
effective system
Larger Images
Features
- 3722 available as a Passive model with network (3722N)
or BiAmp Ready 3722 - Power Capacity: 400 W continuous IEC pink noise
- Sophisticated crossover network
- High quality in a compact and very cost effective system
- Smooth response, Controlled coverage
Downloads
| Size | ||||
Specifications | ||||
3722/3722N Spec Sheet
updated: Oct 2020
|
148 KB | |||
Compliances | ||||
|
Cinema Sound - ScreenArray Systems (2 Way) Declaration of Conformity
updated: Oct 2019
|
90.6 KB | |||
Images | ||||

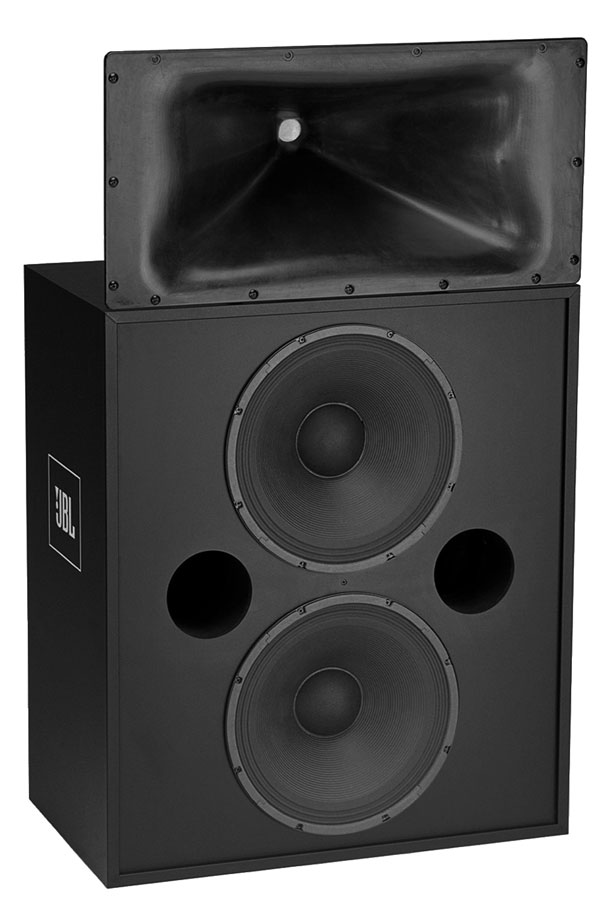

3722/3722N Front Angle
updated: Oct 2020
|
53.7 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
Specifications
| Frequency Response (±3 dB) | 40 Hz - 18 kHz |
| Frequency Range (-10dB) | 30 Hz - 18 kHz |
| Sensitivity | 104dB, 2.83V @ 1m (3.3ft) |
| Nominal Impedance | 4Ω |
| Maximum SPL (1m) | 127dB, @ 1m (3.3 ft) 133db peak |
| Passive System Input Power Rating | 400W |
| Crossover Frequency | 1300Hz |
| Dimensions (H x W x D) | 1265 x 762 x 450mm (49.8 x 30 x 17.75in) |
| Net Weight (each) | 137 lbs (62.2 kg) |
| 3739 Low Frequency | 2 M115H-8A 380 mm (15 in) dia.61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in 4509 LF enclosure |
| Shipping Weight | 140 lbs (63.6 kg) |
| 3722-HF High Frequency Pack | One 2418H-1 Compression Driver, One2374 HF horn, one adjustable bracket |
| Power Handling (2Hr AES Rating) | 400W |
