3722/3722N

Two-Way ScreenArray™Cinema Loudspeaker System

较大的图像

Two-Way ScreenArray™ Cinema Loudspeaker System

The 3722N provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost
effective system

特点

  • 3722 available as a Passive model with network (3722N)
    or BiAmp Ready 3722
  • Power Capacity: 400 W continuous IEC pink noise
  • Sophisticated crossover network
  • High quality in a compact and very cost effective system
  • Smooth response, Controlled coverage

下载

  Version Language Size Uploaded
Specifications
3722/3722N Spec Sheet
updated: 4月29日
    148.1 KB 4月29日
Compliances
Cinema Sound - ScreenArray Systems (2 Way) Declaration of Conformity
updated: 10月18日
    90.6 KB 10月18日
Images

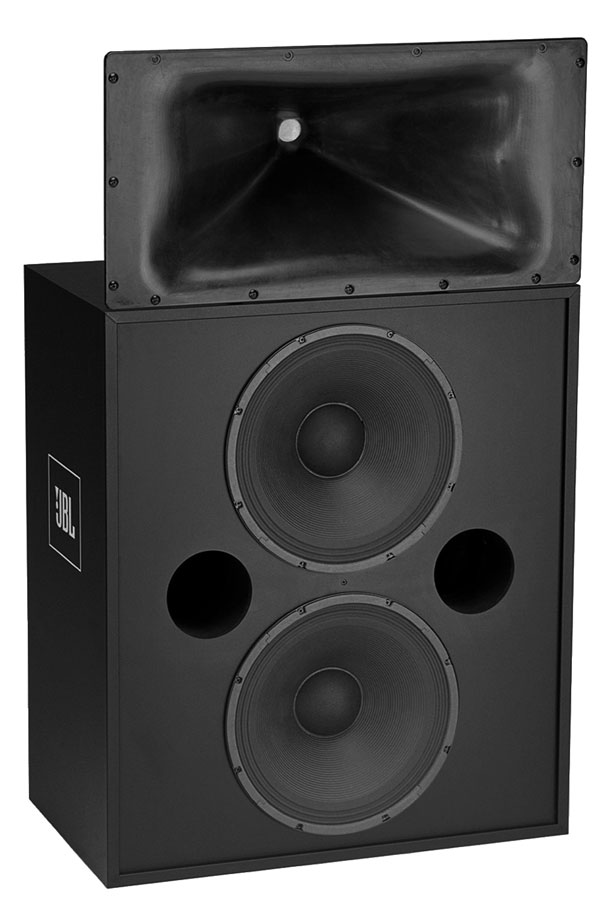

3722/3722N Front Angle
updated: 4月29日
    53.7 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (±3 dB) 40 Hz - 18 kHz
Frequency Response (-10dB) 30 Hz - 18 kHz

灵敏度

104dB, 2.83V @ 1m (3.3ft)
标称阻抗
Maximum SPL (1m) 127dB, @ 1m (3.3 ft) 133db peak
Passive System Input Power Rating 400W
分频频率 1300Hz
尺寸(高 x 宽 x 厚) 1265 x 762 x 450mm (49.8 x 30 x 17.75in)
Net Weight (each) 137 lbs (62.2 kg)
3739 Low Frequency 2 M115H-8A 380 mm (15 in) dia.61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in 4509 LF enclosure

运输重量

140 lbs (63.6 kg)
3722-HF High Frequency Pack One 2418H-1 Compression Driver, One2374 HF horn, one adjustable bracket
Power Handling (2Hr AES Rating) 400W
