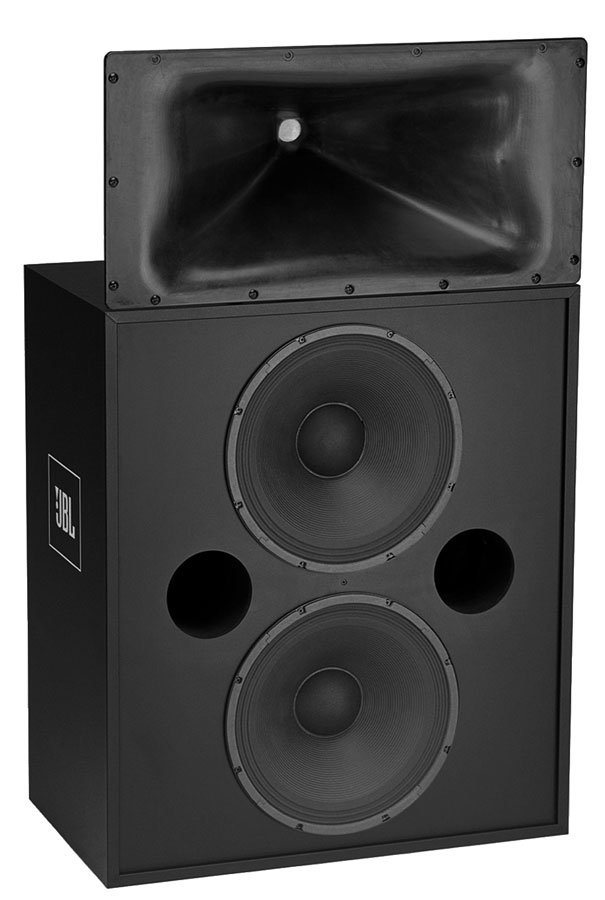

Two-Way ScreenArray™ Cinema Loudspeaker System
The 3722N provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost
effective system
Większe obrazy
Funkcje
- 3722 available as a Passive model with network (3722N)
or BiAmp Ready 3722 - Power Capacity: 400 W continuous IEC pink noise
- Sophisticated crossover network
- High quality in a compact and very cost effective system
- Smooth response, Controlled coverage
Pobrania
Specifications
| Rozmiar | |
|
|
148 KB |
Compliances
| Rozmiar | |
|
|
90,6 KB |
Images
| Rozmiar | |
|
|
53,7 KB |
Jeśli któryś z powyższych linków wyświetla dziwne znaki w przeglądarce, kliknij plik prawym przyciskiem myszy, aby zapisać go na komputerze.
Części i serwis
Specyfikacje
| Frequency Response (±3 dB) | 40 Hz - 18 kHz |
| Frequency Range (-10dB) | 30 Hz - 18 kHz |
| Sensitivity | 104dB, 2.83V @ 1m (3.3ft) |
| Nominal Impedance | 4Ω |
| Maximum SPL (1m) | 127dB, @ 1m (3.3 ft) 133db peak |
| Passive System Input Power Rating | 400W |
| Crossover Frequency | 1300Hz |
| Dimensions (H x W x D) | 1265 x 762 x 450mm (49.8 x 30 x 17.75in) |
| Net Weight (each) | 137 lbs (62.2 kg) |
| 3739 Low Frequency | 2 M115H-8A 380 mm (15 in) dia.61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in 4509 LF enclosure |
| Shipping Weight | 140 lbs (63.6 kg) |
| 3722-HF High Frequency Pack | One 2418H-1 Compression Driver, One2374 HF horn, one adjustable bracket |
| Power Handling (2Hr AES Rating) | 400W |
